Tisarius-D

Ti:sapphire laser single frequency doubled tunable CW

Tisarius-D


Single frequency laser system consisting of Ti:Sapphire und frequency doubler

Wavelength               350-550 nm
Output power            100-800 mW
Scanning range         5 / 18 / 25 / 35 / 45 GHz
Linewidth                   < 10 kHz/s (< 1 kHz/0,1s) rms
Mode                          TEM00
Tisarius-D is a new powerful source of UV to blue-green single-frequency radiation on the basis of tandem "Tisarius-D" including a Ti:Sapphire laser (700-1050 nm) and efficient frequency doubler (350-550 nm). When pumped by a standard 5-12-W DPSS/fibre laser, Tisarius-D delivers 100-800 mW of single-frequency output with radiation line width < 10 kHz at selected wavelength within the 350-550 nm range.

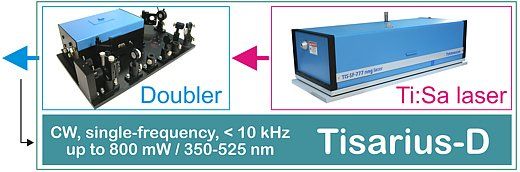

Frequency doubler pumped with Ti:Sapphire laser single frequency tunable
This leading-edge tuneable laser system features the highest efficiency of second-harmonic conversion for CW single-frequency radiation and record-setting ultra-narrow radiation line width within UV to blue-green spectrum range. Electronic control systems of the laser and the resonant enhancement frequency doubler provide a unique Auto Re-Lock function allowing Tisarius-D to operate reliably and stably even in conditions of considerable external perturbations.
Ti:Sapphire laser application optical tweezers, lithography, spectroscopy
Areas of application:

The most important application areas of this system are atom/molecule cooling and trapping, in situ process control of physical vapour deposition, nanostructure fabrication, atomic lithography, gas analysis, new high-precision spectroscopy experiments, trace substance detection, high speed wafer inspection, etc.
In applications related to laser cooling system, Tisarius-D efficiently cools such atoms as Ca (397, 423, 442.7 nm), Mg (383 nm), Pb (368.3 nm), Rb (421 nm), Sr (422, 481 nm), Yb (369.5 nm), Er (401 nm), Tm (410-420 nm) and many others.

In areas connected to physical vapour deposition system Tisarius-D provides precision control in deposition of such materials as aluminium (394 nm), titanium (391 nm), yttrium (408 nm), tungsten (385 nm), gallium (403 nm) and others.

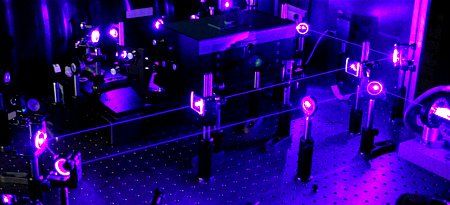

Laser cooling of atoms with ultra violet Ca, Mg, Pb, Rb, Yb
FEATURES

Auto-Relock function

ensures stable laser operation even in the case of severe environmental disturbances

High power

while using high efficient frequency doubler

Ultra-narrow line width

Single frequency Ti:Sapphier laser
