257 nm

Q-switch laser 257 nm


MPL-N-257 | Q-switched UV solid state laser

Q-switched all solid state 257 nm UV laser is made features of ultracompact, long lifetime, cost-effectiveness and easy operating, which is widely used in UV curing,  micro-electronics, CD carving, laser medical treatment, scientific experiments, etc.

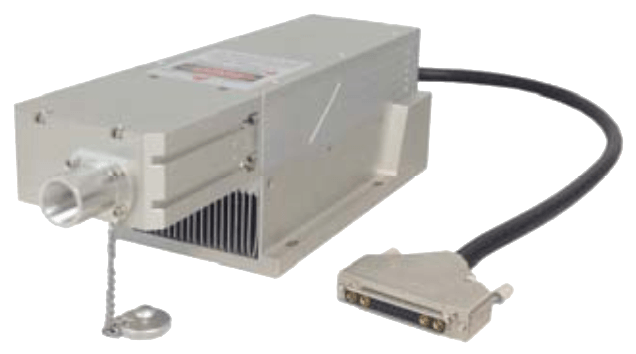

Q-switched UV laser 257 nm, diode pumped solid state laser (DPSS)
Wavelength:                        257 ± 1nm
Operation mode:                pulsed, Cr: YAG - passive
Mode:                                  TEM00
Output power:                    1 ~ 15 mW (@ 4 kHz)
Power stability:                   < 10% (rms, 4 hours)
Pulse duration:                   ~ 10 ns
Pulse energy:                      0.1-4 µJ
Peak power:                        ~ 400 W
Repetition rate:                   2 kHz - 5 kHz
Beam shape:                      elliptical (0.5x2 mm²)
Beam height:                      70 mm
Cooling:                               air cooling
Operating temperature:    15 ~ 30 ° C
Warm-up time:                   < 10 min
Power supply:                    AC 220V
Expected lifetime:             5000 hours
Warranty:                            1 year
