Green 532 nm diode pumped solid state (DPSS) laser and fibe r lasers
- Low noise, narrow band width, high stability CW lasers

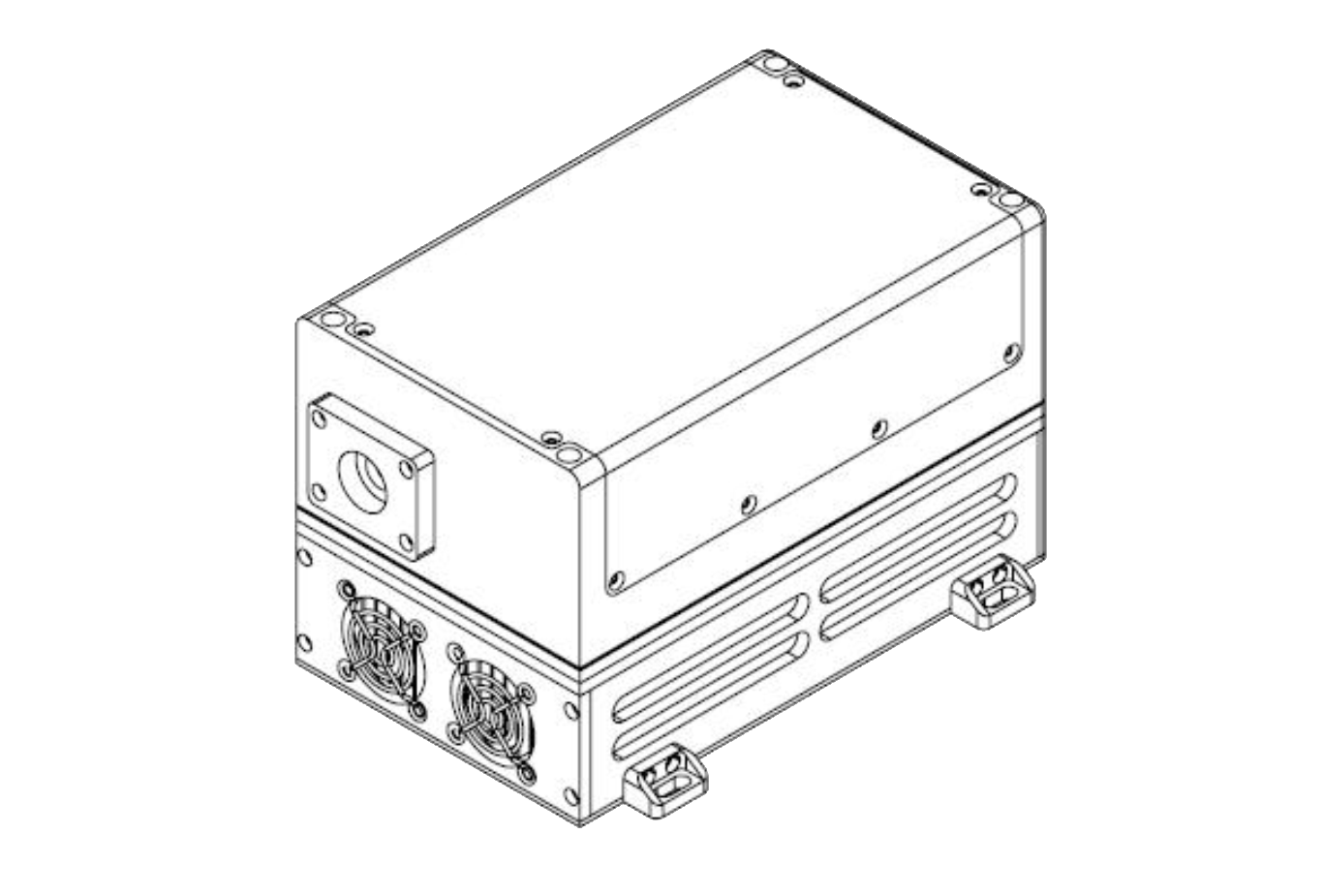

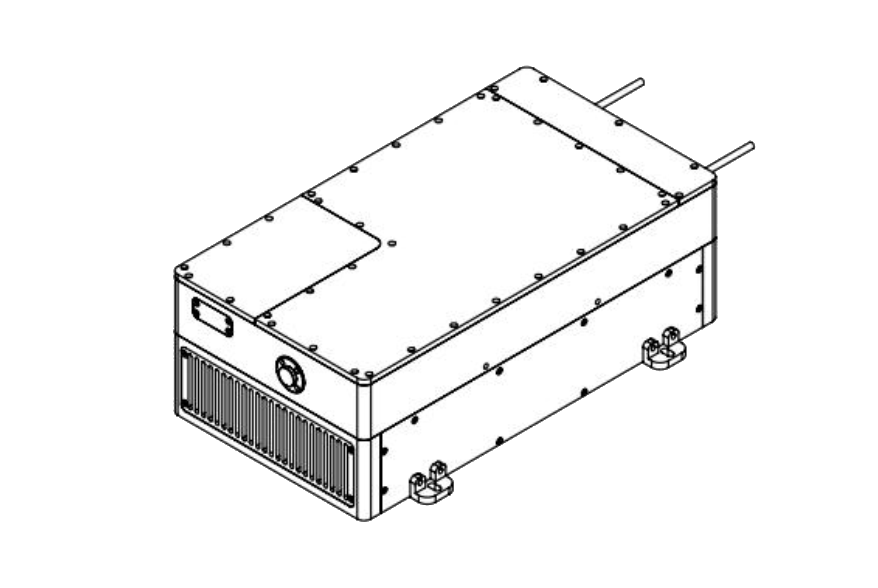

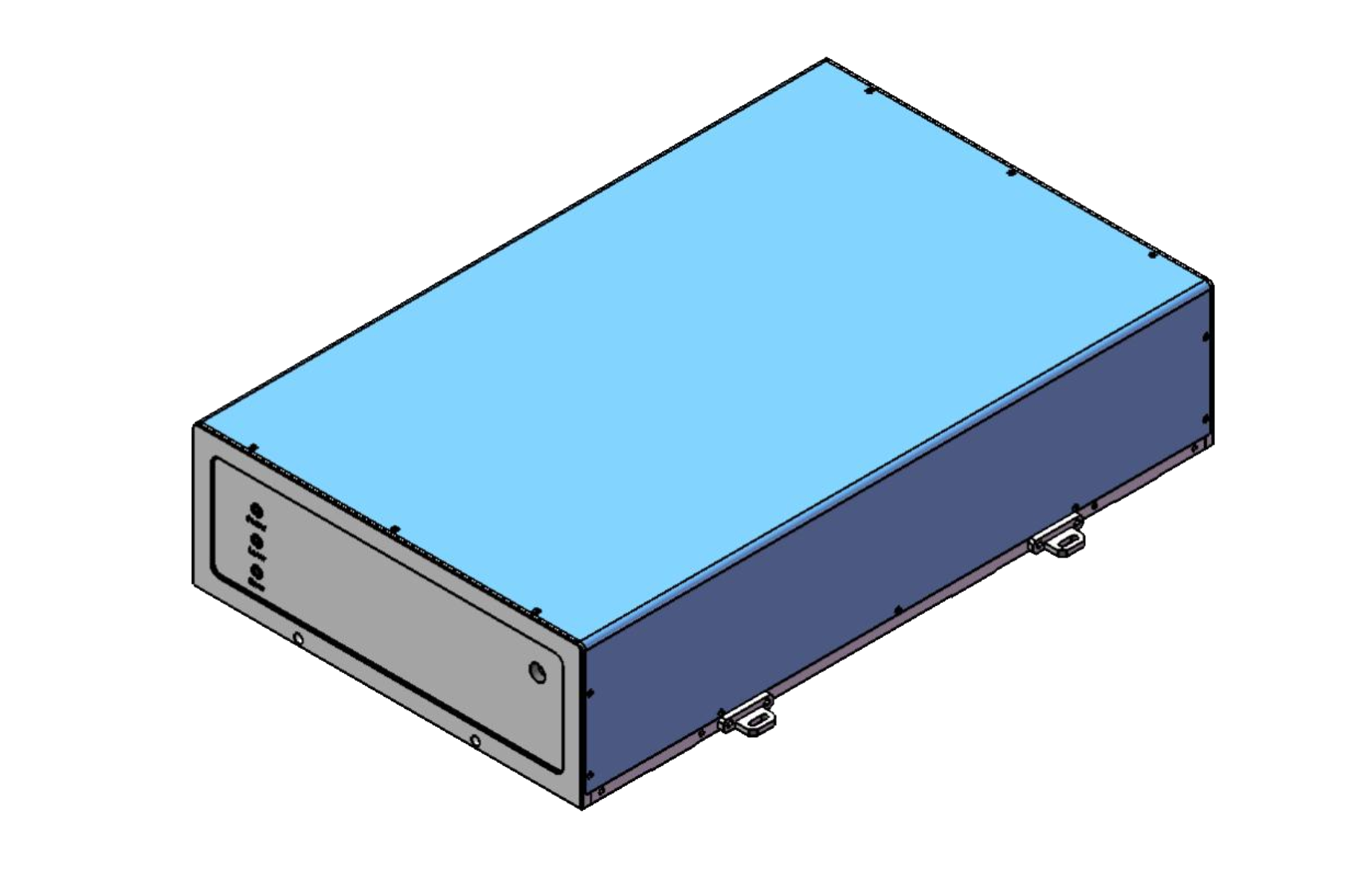

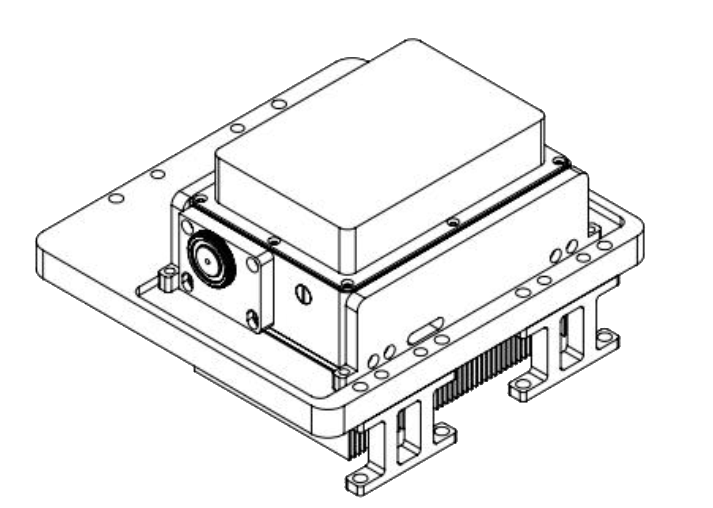

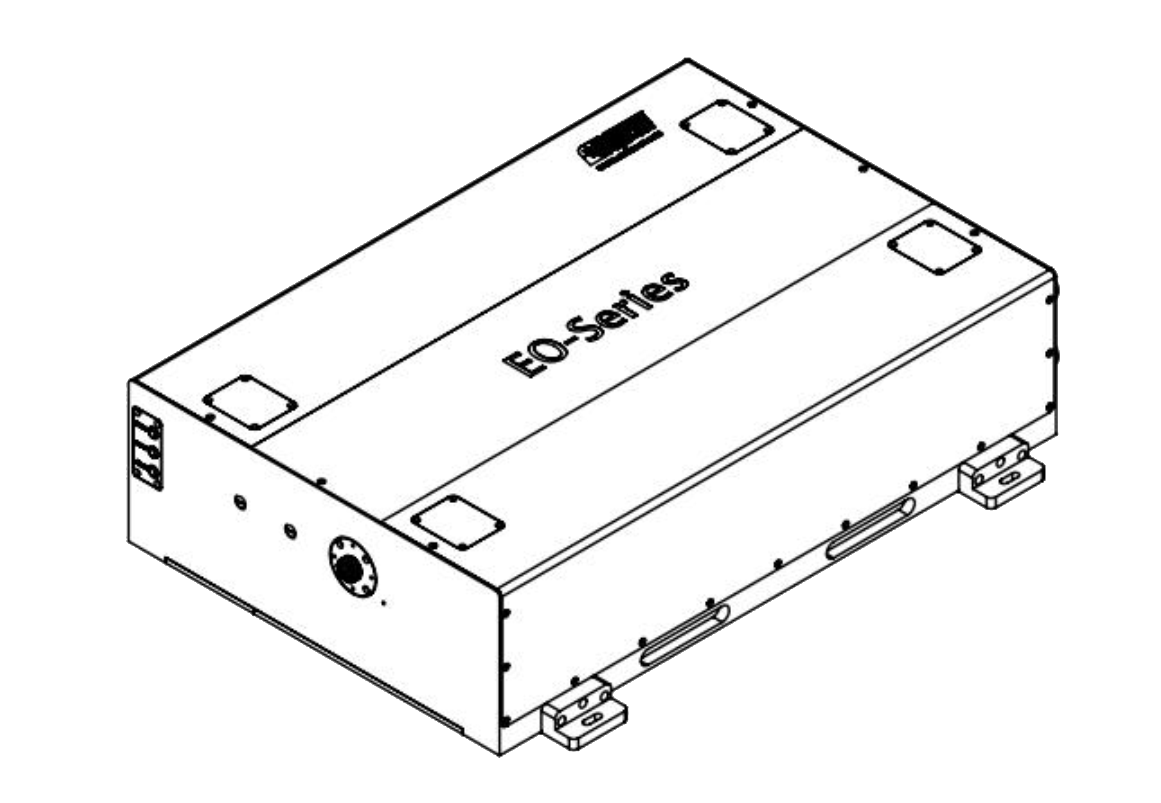

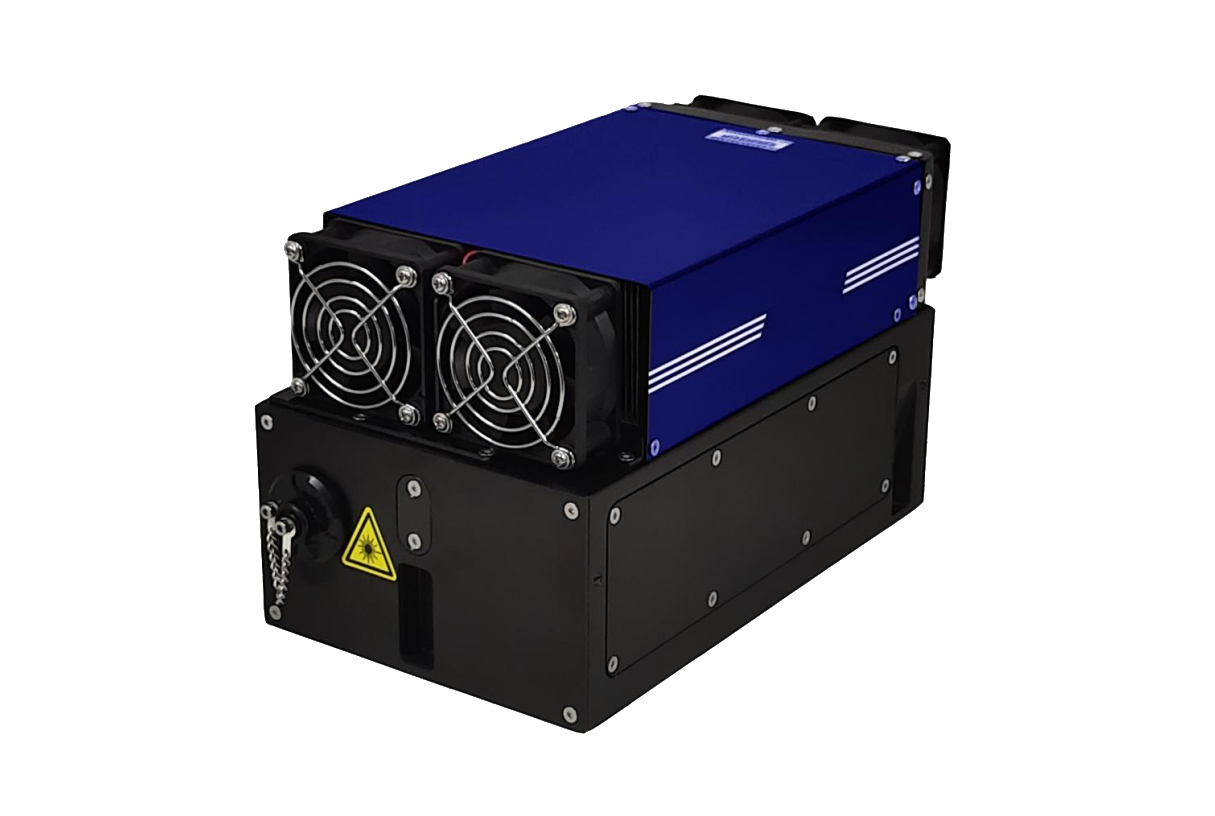

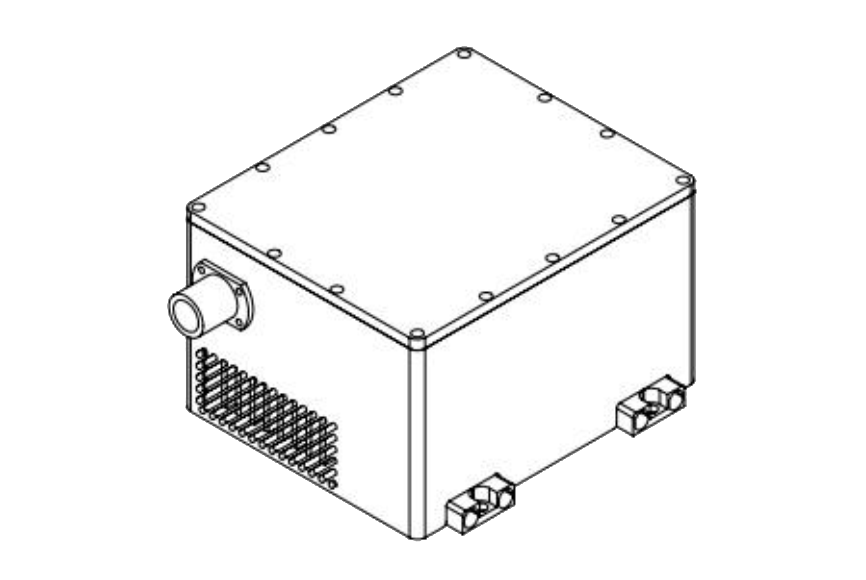

- Q-switched lasers with high pulse energy

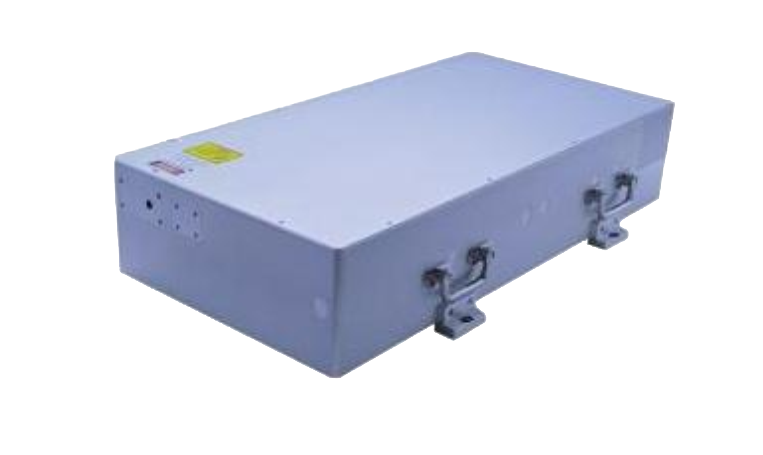

- Mode locked lasers
- Fiber coupled laser modules

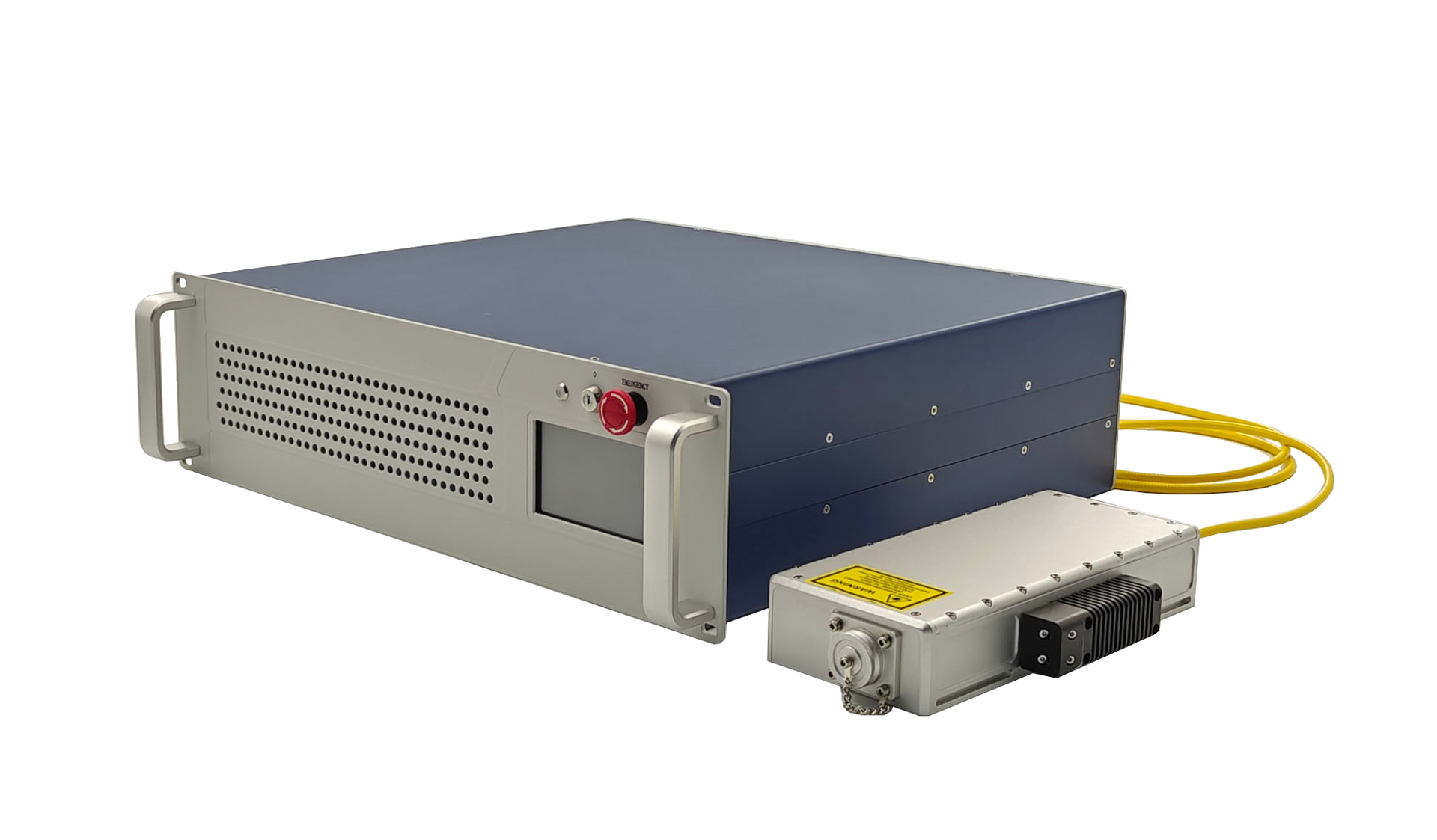

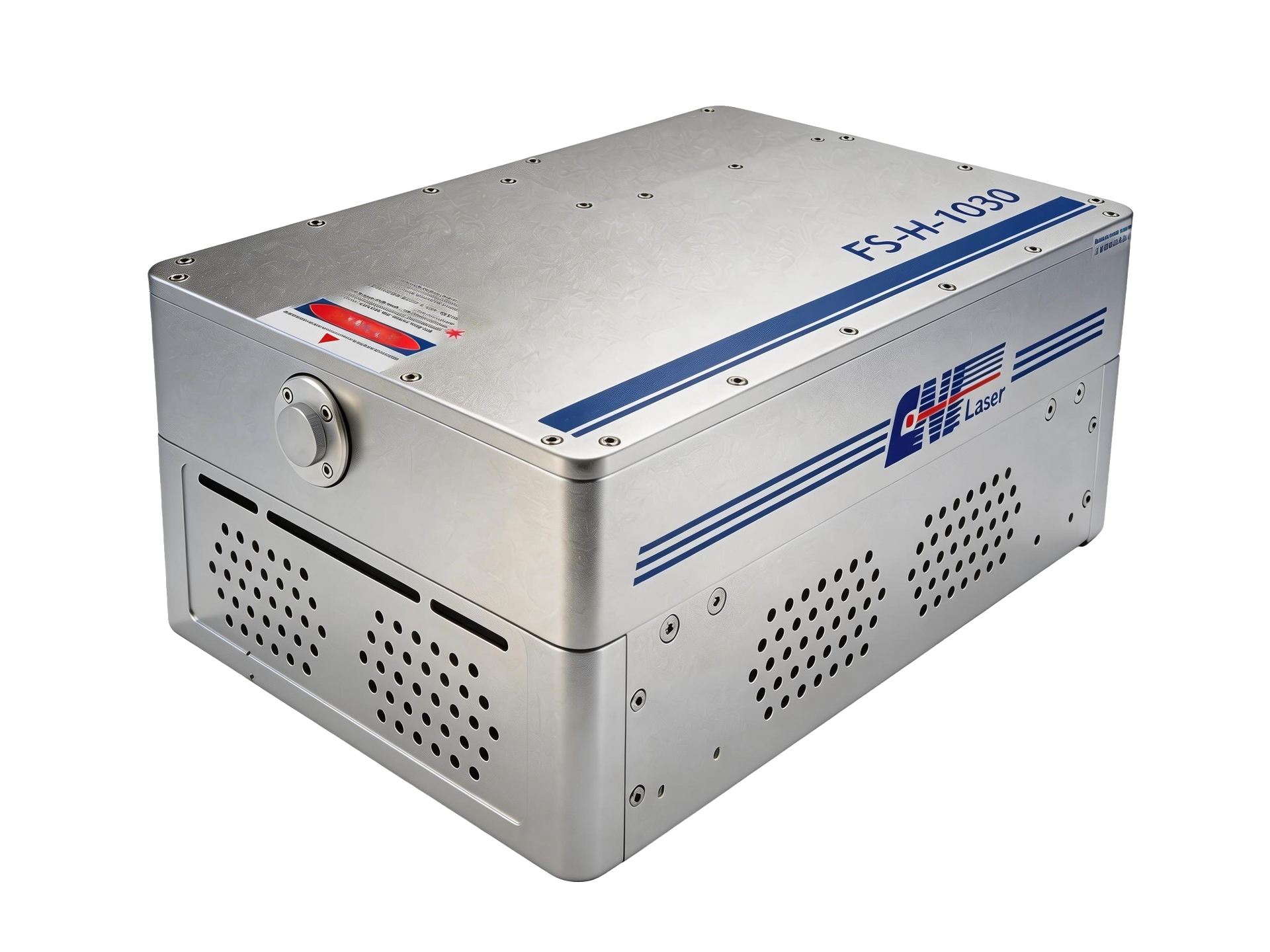

- Fiber lasers
- Line generating lasers
- OEM lasers
- Laser for marking and engraving
High stability 532 nm lasers (DPSS)

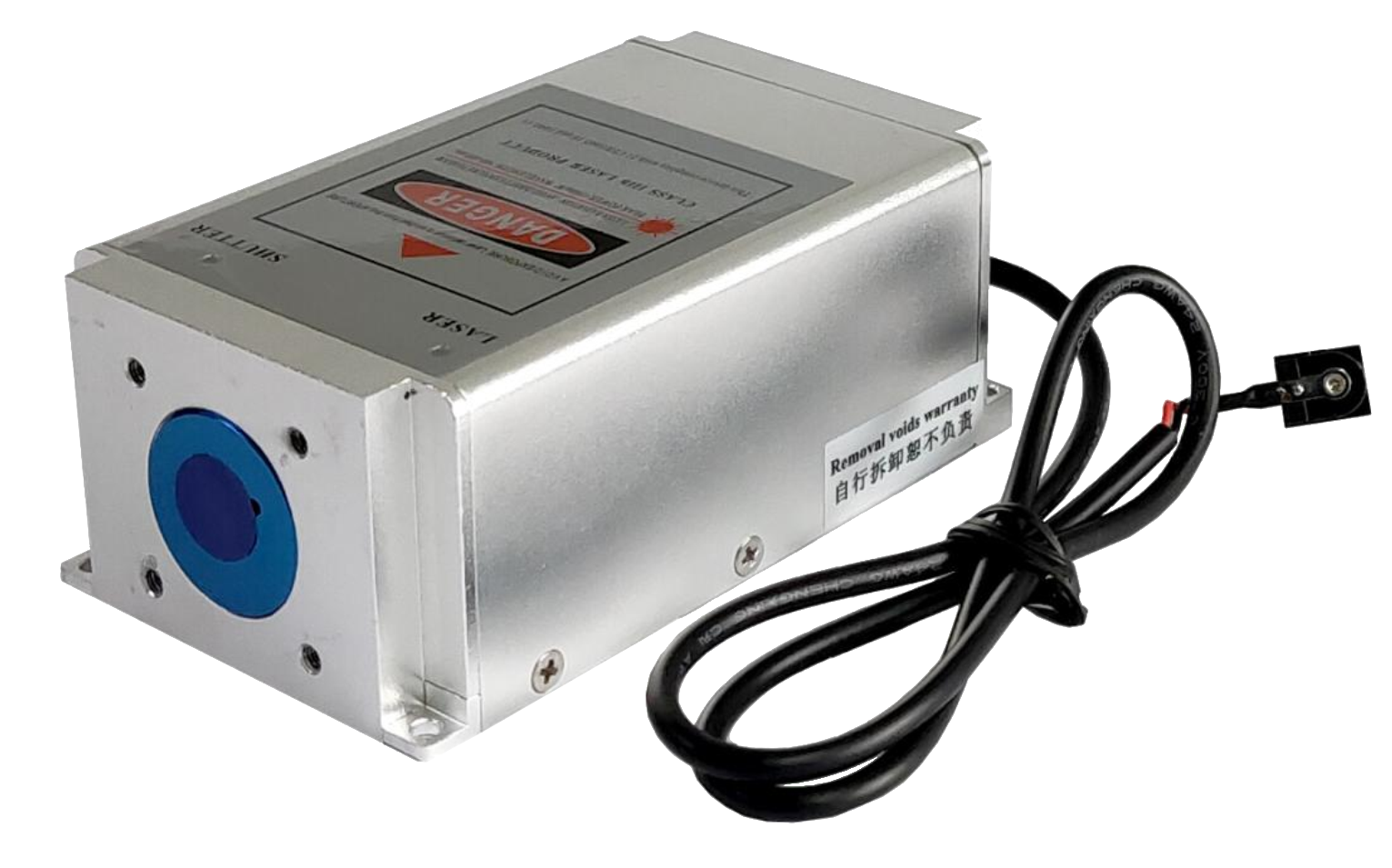

MGL-DS-532
Laser diode pumped all-solid state low noise laser at 532 nm. It features ultra compact design, small size, photoelectric integrated, built-in electric shutter, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 - 150 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: TEM00
M²: < 1.2, < 1.1
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, vertical (or horizontal as option)
Pointing stability: < 0.05 mrad and < 8 µrad/°C
Beam height: 19 mm
Fiber coupled: as option
Operating temperature: 10 ~ 35 °C
Storage temperature: 5 ~ 50 °C
Warm-up time: < 5 min
Power supply: DC 5 V
Electrical consumption: < 6 W
Shock tolerances: 7 g laterally, 15 g vertically
Expected lifetime: 10,000 hours
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation

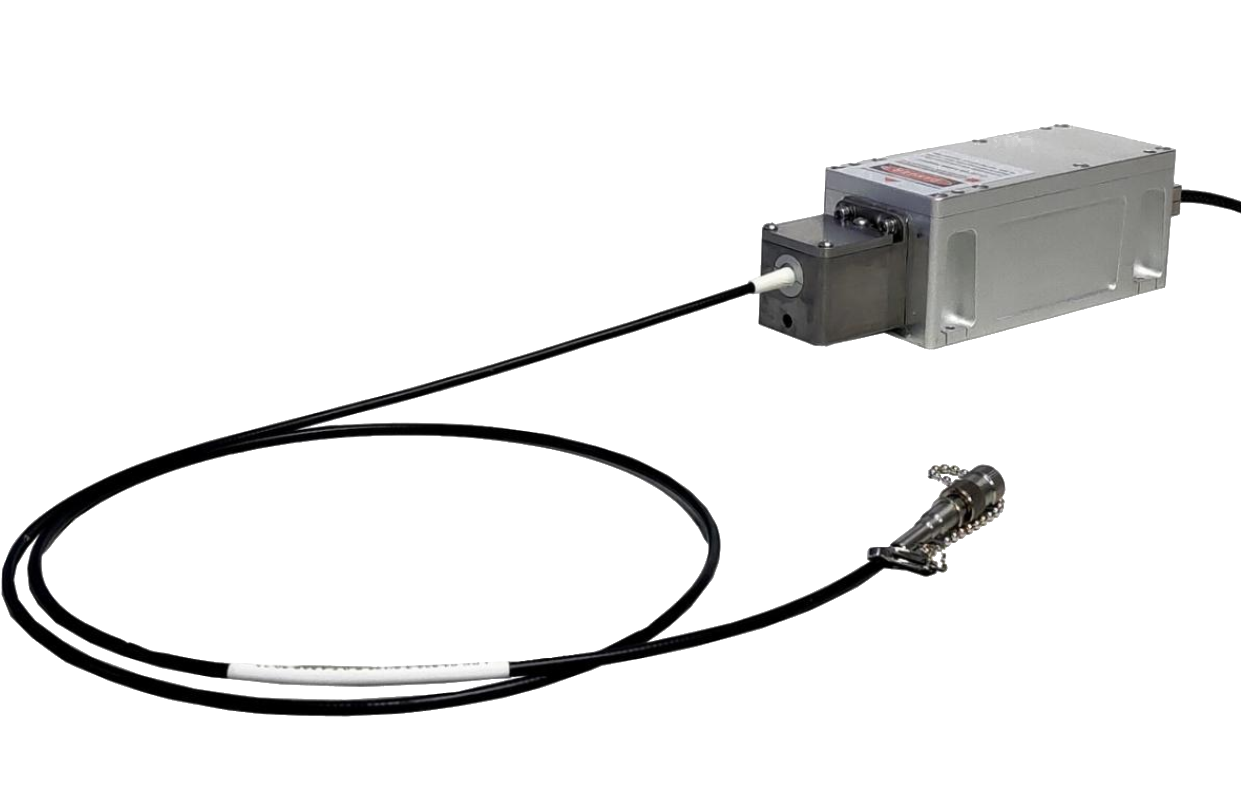

MGL-S-532-SM
Fiber coupled laser at 532 nm wavelength. All laser types can be offered with appropriate fiber coupling systems. This type is specifically designed for single-mode fiber (include PM) coupling with high power stability and long term stability
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 ~ 150 mW
Fiber type: SM (PM fiber as option)
Power stability: < 1%, < 2%, < 3%, < 5 (rms, 4 hours)
Fiber connector: FC
Fiber jacket: PVC (black)
Mode: TEM00 at SM- fiber output
M²: < 1.1
Numerical aperture: 0.10 ~ 0.12
Polarization ratio: > 50:1 after PM fiber
Operating temperature: 10 ~ 35 °C
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; (TTL or analog)
Warm-up time: < 10 min
Power supply: AC 90 ~ 264 V or DC 5 V
Expected lifetime: 10,000 hours
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation

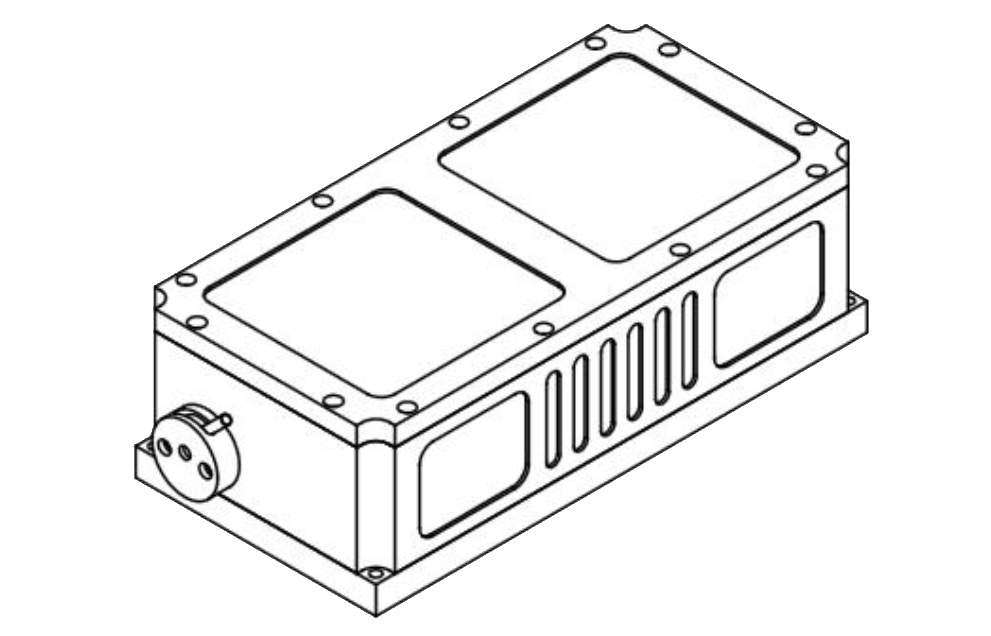

MGL-III-532-AOM
High frequency modulated all solid state laser system has such characteristics as quick modulation rate, high extinction ratio, easy coding and convenient use. Laser modulation frequency of this laser system can be up to 1 MHz, It is mainly used in such fields as laser text-image processing, laser lithography, laser phototypesetting, and laser digital communication. It is suitable for OEM system integration and scientific research laboratories etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 ~ 150 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: ~ TEM00
M²: < 1.5
Beam diameter: ~ 3.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1
Pointing stability: < 0.05 mrad
Modulation: up to 1 MHz (AOM)
Operating temperature: 10 ~ 35 °C
Beam height: 24.8 mm
Warm-up time: < 10 min
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 Year
MGL-S-532
LD pumped all solid state laser is made features of high output power stability, good beam profile, ultra compact, small size, wide operating temperature, good sealing, long lifetime, cost -effectiveness and easy operating, working under the pressure of 0.02kPa, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 - 300 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: TEM00
M²: < 1.2, < 1.1
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, horizontal (or vertical as option)
Pointing stability: < 0.05 mrad and < 8 µrad/°C
Beam height: 19 mm
Fiber coupled: as option
Storage temperature: 5 ~ 50 °C
Warm-up time: < 5 min
IP rating: a) IP67
b) IP65
Operating temperature: a) 0 ~ 60 °C
b) 10 ~ 35 °C
Max. Heat Dissipation: a) 10W @ 50°C
b) 4W @ 25°C
Power supply: AC 90~264V
Electrical consumption: < 30 W
Modulation*: 1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz ; TTL (+ analog on request)
Shock tolerances: 7 g laterally, 15 g vertically
Expected lifetime: 10,000 hours
Warranty: 1 Year
* As option
Attention: The laser head needs to be attached to heat sink with good heat dissipation
MGL-U-532
All solid state laser at 532 nm. It features ultra compact, long lifetime, high stability and reliability, which is used in scientific experiment, medical measurement, instrument, spectrum analysis, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 - 1500 mW
Power stability: < 1%*, < 2%, < 3% (rms, 4 hours)
Mode: TEM00
M²: < 1.2
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, horizontal (vertical**)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Warm-up time: < 5 min
Operating temperature: 10 ~ 35 °C
Max. base plate temp.: 50 °C
Power supply: AC 90~264V
Electrical consumption: 15 W (typical, < 25 W (@ 40 °C)
Modulation**: 1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz ; TTL (+ analog on request)
Expected lifetime: 10,000 hours
Warranty: 1 Year
* @ < 1000 mW
** as option
Note: The laser head needs to be attached to heat sink with good heat dissipation
MGL-FN-532(-AOM)
All solid state laser at 532 nm, which can be high frequency modulated with an AOM. It features high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating
which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.
High frequency modulated laser system has such characteristics as quick modulation rate, high extinction ratio, easy coding and convenient use. Laser modulation frequency of this laser system can be up to 1MHz, It is mainly used in such fields as laser text-image processing, laser lithography, laser phototypesetting, and laser digital communication. It is suitable for OEM system integration and scientific research laboratories etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 300 - 4000 mW (150 - 1000 mW wiht AOM)
Power stability: < 1%*, < 2%, < 3% (rms, 4 hours)
Mode: TEM00
M²: < 1.2; <1.1
Beam diameter: ~ 2.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, horizontal (vertical**)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm (24.8 mm AOM version)
Warm-up time: < 5 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 90~264V
Modulation**: 1 Hz- 1 kHz (TTL or analog as option)
1 kHz - 10 kHz (TTL or analog as option)
10 kHz - 30 kHz (TTL or analog as option)
up 1 MHz with AOM
Expected lifetime: 10,000 hours
Warranty: 1 Year
* @ ≤ 2500 mW
** as option
Note: The laser head needs to be attached to heat sink with good heat dissipation
MGL-F-532
Laser diode pumped solid state laser @ 532nm. It features of ultra compact design, long lifetime, and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1.5 W, 1.6 W, ..., 2.5 W
Power stability: < 1%, < 2%, < 3%, < 5% (rms, 4 hours)
Mode: TEM00
Spectral line width: < 0.1 nm (< 0.003 nm @ 1.5W)
M²: < 1.2 (< 1.1 as option)
Beam diameter: ~ 2.0 mm (1/e²)
Beam divergence: < 1.2 mrad (full angle)
Polarization ratio: > 100:1
Pointing stability: < 0.05 mrad
Beam height: 45 mm
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 90~264V
Modulation: 1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (as option); TTL or analog
Expected lifetime: 10,000 hours
Warranty: 1 Year
MGL-N-532(-AOM)
All solid state laser at 532 nm, which can be high frequency modulated with an AOM. It features high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating
which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.
The modulation frequency of high frequency modulation AOM laser system is up to 1MHz. It can be used in the field like laser graphic processing, laser digital communications, etc. It have the feature of high extinction ratio, coding easily, usableness, etc
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 2.5 W, 3W, ..., 5 W (0.4 - 4 W wiht AOM)
Power stability: < 1%, < 3%, < 5% (rms, 4 hours)
Mode: ~ TEM00 (TEM00 AOM-version)
M²: 3 ~ 5 (1.5 ~ 3 AOM-version)
Beam diameter: ~ 3.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 50:1 (< 100:1 optional or AOM-version)
Beam height: 68.4 mm (69 mm AOM-version)
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 100 ~ 240V
Modulation*: 1 Hz- 1 kHz (TTL or analog as option)
1 kHz - 10 kHz (TTL or analog as option)
10 kHz - 30 kHz (TTL or analog as option)
up 1 MHz with AOM
Expected lifetime: 10,000 hours
Warranty: 1 Year
* as option
Optionally linear power regulation 0-100% with constant beam quality. Part number: MGL-N-532-HQ

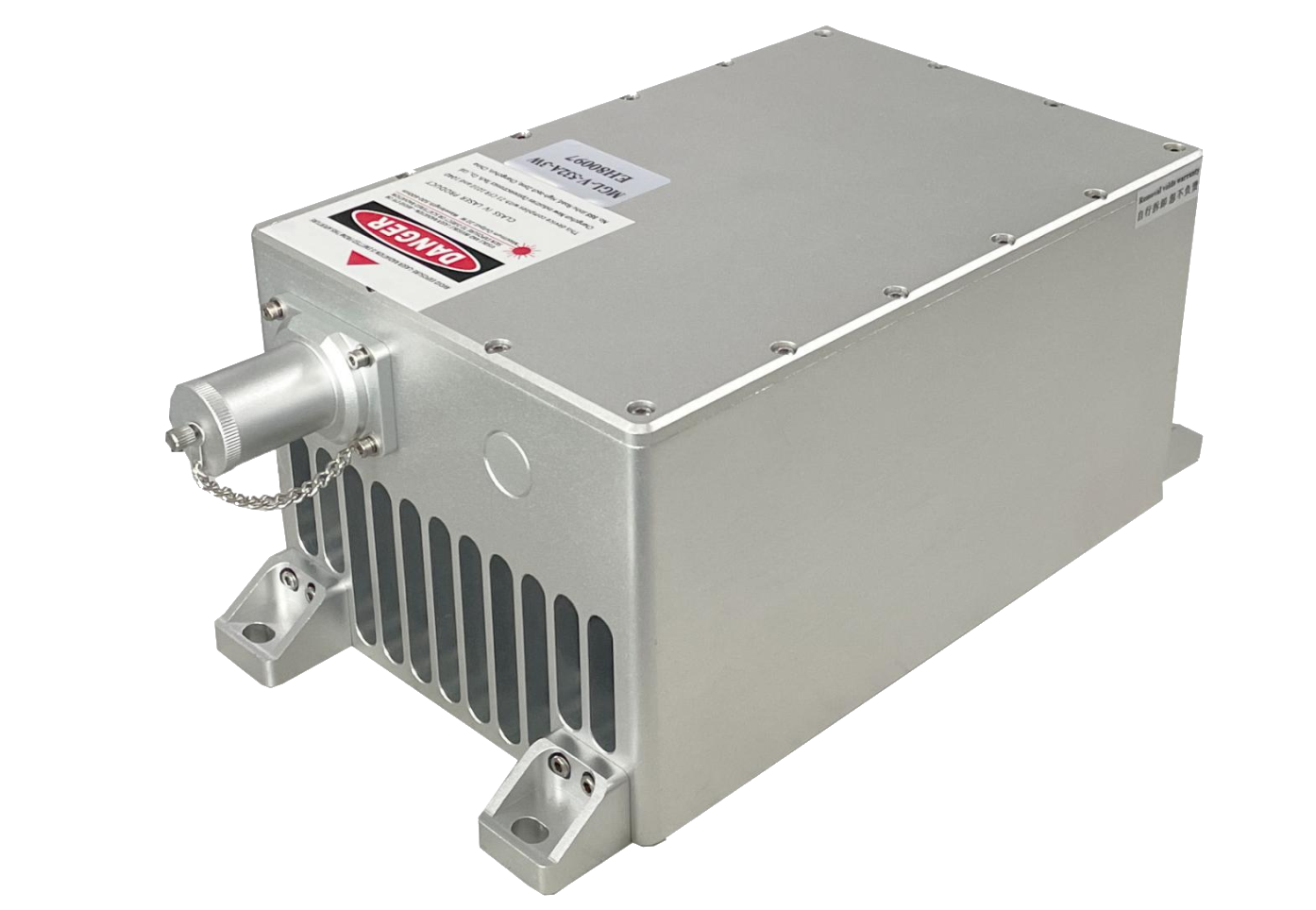

MGL-V-532 | MGL-V-532-Water
All solid state 532nm green laser. This model features good beam profile, ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, etc.
The modulation frequency of high frequency modulation AOM laser system is up to 2 MHz.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 W, 2 W, ..., 15 W, 20 W*
Power stability: < 0.5 %* @ 1 - 15 W, < 1%, < 3%, < 5% (rms, 4 hours)
Mode: ~ TEM00
M²: < 1.2, < 3.0 @ 20 W
Beam diameter: ~ 2.0 mm (1/e²), ~ 3.0 mm @ 20 W (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Polarization ratio: > 50:1 (> 100:1 optional)
Beam height: 80 mm, 85 mm, 68 mm*
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 100 ~ 240V
Modulation*: 1 Hz- 1 kHz (TTL or analog as option)
1 kHz - 10 kHz (TTL or analog as option)
10 kHz - 30 kHz (TTL or analog as option)
Expected lifetime: 10,000 hours
Warranty: 1 Year
* Water cooled version only (Model MGL-V-532-Water)
Additional features:
(1) Linear power regulation 0-100% with constant beam quality. Part number: MGL-V-532-HQ/MGL-V-532-Water-HQ.
(2) Repetition rate up to 2MHz. Part number: MGL-V-532-AOM/MGL-V-532-Water-AOM.
MGL-W-532A
LD pumped all solid state laser at 532nm green laser.
It features ultra compact design, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: > 10 W, 11 W, ..., 20 W
Power stability: < 1%, < 3%, < 5% (rms, 4 hours)
Mode: ~ TEM00
M²: 3.0 ~ 6.0
Beam diameter: ~ 4.0 mm (1/e²)
Beam divergence: < 2.0 mrad (full angle)
Polarization ratio: > 50:1 (> 100:1 optional)
Beam height: 93.5 mm
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 100 ~ 240 V
Modulation*: 1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz ; TTL (+ analog on request)
Expected lifetime: 10,000 hours
Warranty: 1 Year
* as option
Option: Linear power regulation 0-100% with constant beam quality. Part number: MGL-W-532A-HQ.

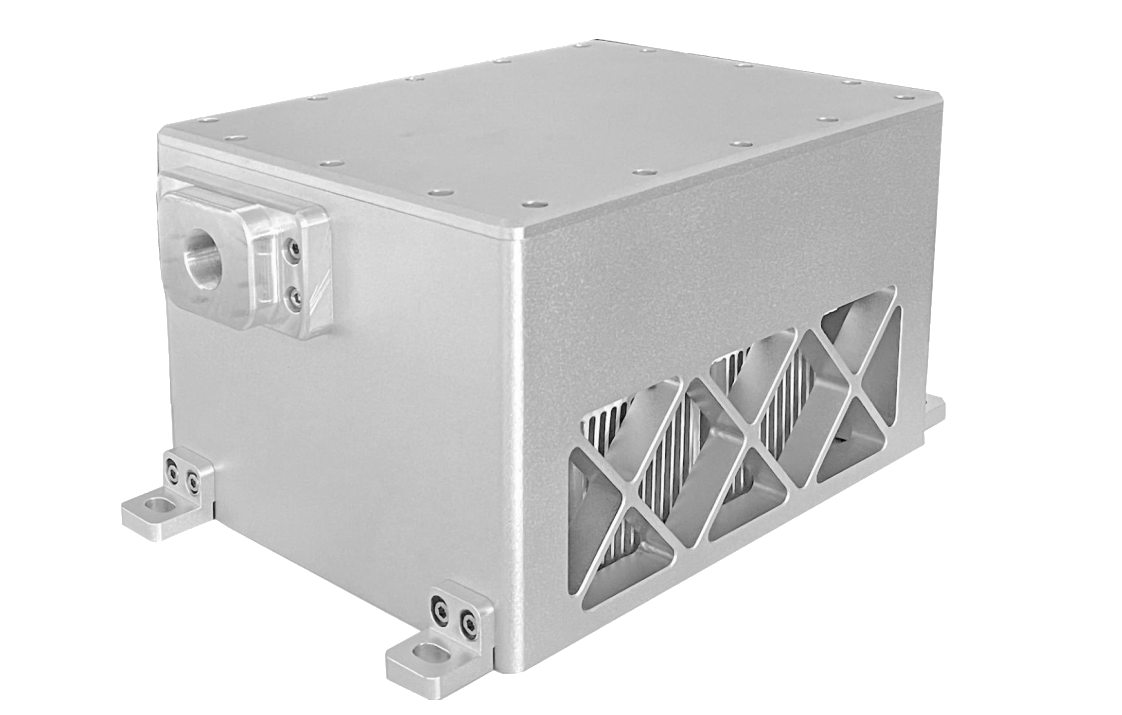

MGL-D-532 | MGL-D-532-Water
LD pumped all solid state green laser at 532nm.
This model features ultra compact design, long lifetime, and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: > 20 W, 21 W, ..., 30 W
Power stability: < 1%, < 3%, < 5% (rms, 4 hours)
Mode: ~ TEM00; TEM00*
M²: ~ 10, < 1.5*
Beam diameter: ~ 4.0 mm, ~ 1.5 mm* (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Beam height: 88.5 mm, 90 mm* or 92,5 mm*
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Expected lifetime: 10,000 hours
Warranty: 1 Year
* Water cooled version (MGL-D-532-Water)
Option:
(1) Linear power regulation 0-100% with constant beam quality. Part number: MGL-D-532-HQ/MGL-D-532-Water-HQ.
(2)Repetition rate up to 2MHz. Part number: MGL-D-532-AOM/MGL-D-532-Water-AOM.

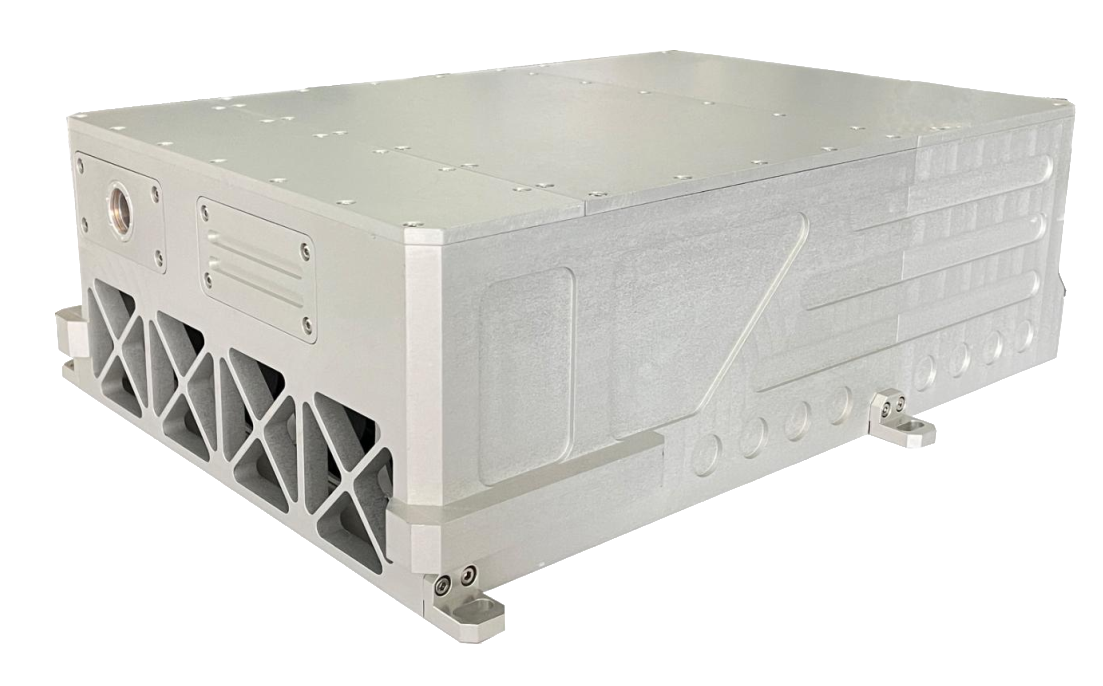

MGL-Z-532
LD pumped all solid state 532nm green laser. It features compact design, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: > 30 W, 40 W, ..., 60 W
Power stability: < 1%, < 2%, < 3%, < 5% (rms, 4 hours)
Mode: ~ TEM00
Beam diameter: ~ 4.5 mm (1/e²)
Beam divergence: < 2.0 mrad (full angle)
Beam height: 91 mm
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 90 ~ 264 V
Modulation: 1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz optional; TTL (+ analog on request)
Expected lifetime: 10,000 hours
Warranty: 1 Year
Note The laser head and power supply cannot be separated.
Low noise 532 nm CW laser (DPSS)

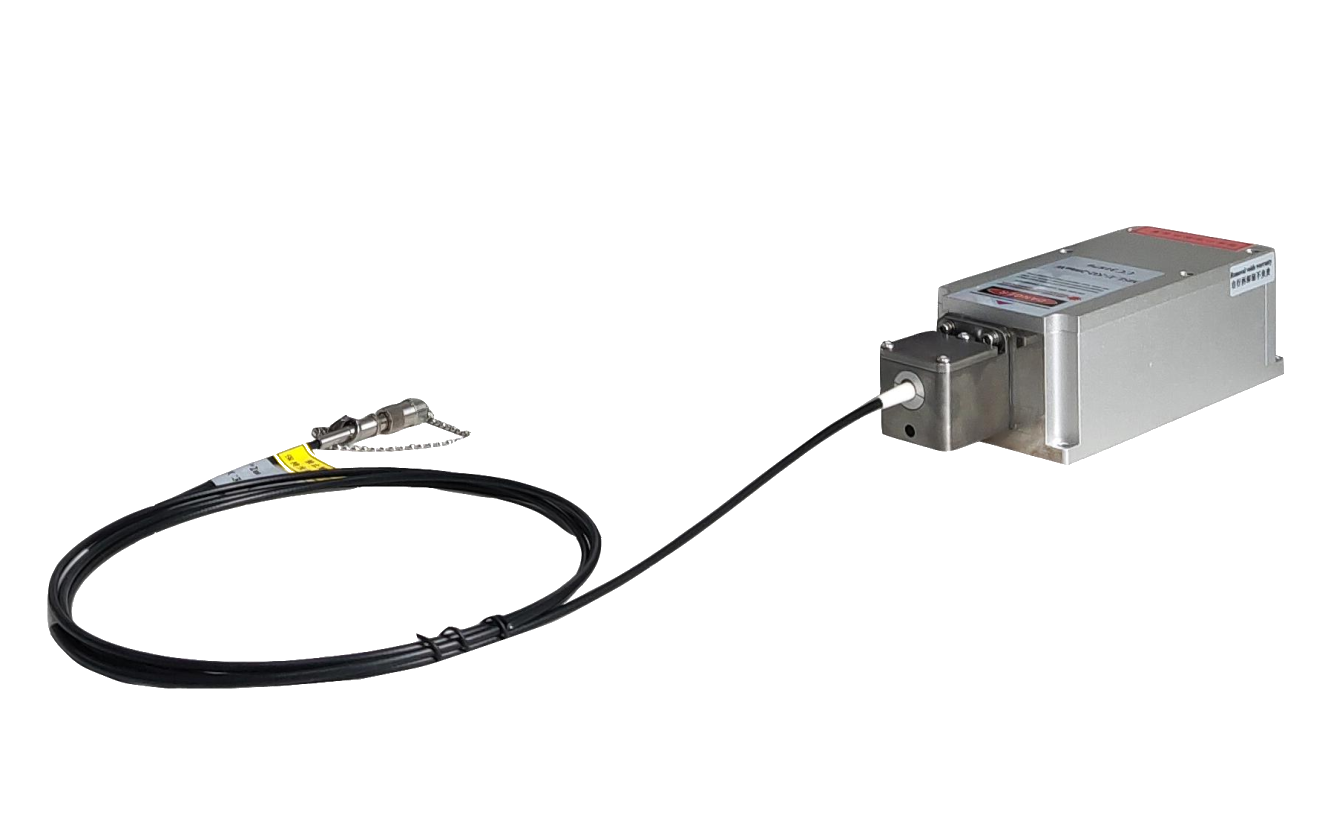

MLL-U-532-SM
Fiber coupled laser at 532 nm wavelength. All laser types can be offered with appropriate fiber coupling systems. This type is specifically designed for single-mode fiber (include PM) coupling with high power stability and long term stability
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 ~ 200 mW
Fiber type: SM (PM fiber as option)
Power stability: < 1%, < 3%, < 5 (rms, 4 hours)
Mode: TEM00 at SM- fiber output
M²: < 1.1
Fiber connector: FC/APC
Fiber jacket: PVC (black)
Fiber lenght: 1 m (other length on request)
Numerical aperture: 0.10 ~ 0.15
Polarization ratio: > 50:1 after PM fiber
Operating temperature: 20 ~ 35 °C
Modulation*: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; (TTL and/or analog)
Warm-up time: < 10 min
Power supply: AC 90 ~ 264 V or DC 5 V
Expected lifetime: 10,000 hours
Warranty: 1 Year
* as option
Attention: The laser head needs to be attached to heat sink with good heat dissipation

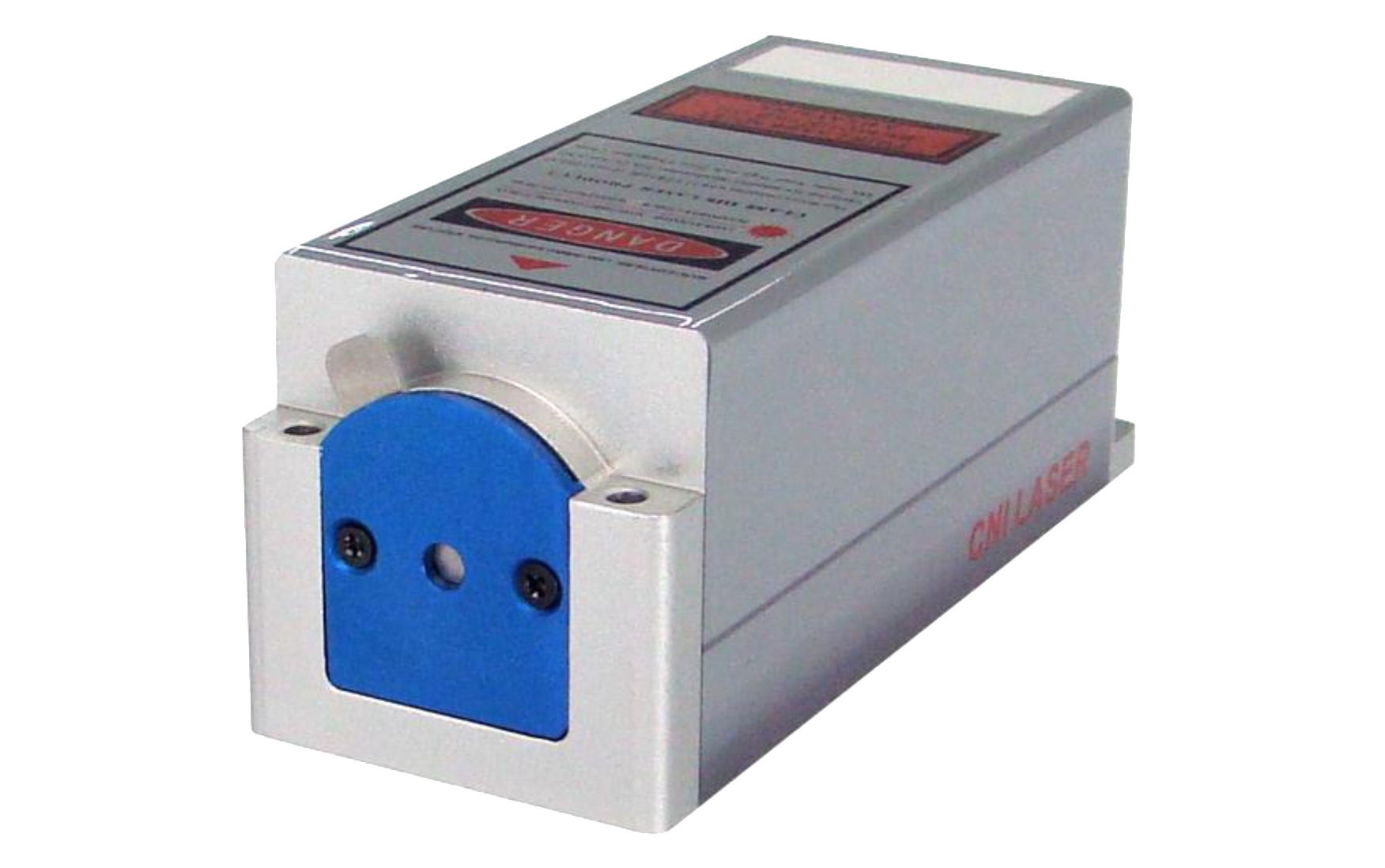

MLL-S-532-A/B
Low noise LD pumped all solid state laser at 532 nm. This model features sealed housing, good beam profile, ultra compact, small size, wide operating temperature, long lifetime, cost -effectiveness and easy operating It isworking under the pressure of 0.02 kPa. This laser is widely used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, laser printing, chip inspection, physics experiment, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 - 300 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: TEM00
M²: < 1.2, < 1.1
Spectral line width: < 0.1 nm
Noise of amplitude: < 1%, < 0.5% (1 Hz ~ 20 MHz, RMS)
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, horizontal (or vertical as option)
Pointing stability: < 0.05 mrad and < 8 µrad/°C
Beam height: 19 mm
Fiber coupled: as option
Storage temperature: 5 ~ 50 °C
Warm-up time: < 5 min
IP rating: Version A: IP67
Version B: IP65
Operating temperature: Version A: 0 ~ 60 °C
Version B: 10 ~ 35 °C
Max. Heat Dissipation: Version A: 10W @ 50°C
Version B: 4W @ 25°C
Power supply: AC 90~264V
Electrical consumption: < 40 W
Modulation: 1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz ; TTL (+ analog on request)
Shock tolerances: 7 g laterally, 15 g vertically (6 ms)
Expected lifetime: 10,000 hours
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
MLL-U-532
Ultra low noise laser at 532 nm. It features ultra compact design, long lifetime, high stability and reliability, which is used in scientific experiment, medical measurement, instrument, spectrum analysis, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 300 - 1500 mW
Power stability: < 1%*, < 2%, < 3% (rms, 4 hours)
Spectral line width: < 0.1 nm, <0.003 nm
Noise of amplitude: < 1%, < 0.5% (RMS, 1 Hz ~ 20 MHz)
Mode: TEM00
M²: < 1.2
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, horizontal (vertical**)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Warm-up time: < 5 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 90~264V
Expected lifetime: 10,000 hours
Warranty: 1 Year
* @ ≤ 500 mW
** as option
Note: The laser head needs to be attached to heat sink with good heat dissipation
MLL-FN-532
LD pumped low noise all solid state laser at 532 nm. It features high output power stability, good beam profile, ultra compact design, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 100 ~ 2500 mW
Power stability: < 1%*, < 2%, < 3% (rms, 4 hours)
Spectral line width: < 0.1 nm, <0.003 nm*
Noise of amplitude: < 1%, < 0.5% (RMS, 1 Hz ~ 20 MHz)
Mode: TEM00
M²: < 1.2; <1.1*
Beam diameter: < 2.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1 (horizontal or vertical)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Warm-up time: < 5 min
Laser base plate temp.: max. 50°C
Operating temperature: 10 ~ 35 °C
Power supply: AC 90~264V
Expected lifetime: 10,000 hours
Warranty: 1 Year
* @ ≤ 1500 mW
Note: The laser head needs to be attached to heat sink with good heat dissipation
MLL-F-532
LD pumped all solid state 532nm low noise green laser. It features compact design, long lifetime and easy operating, which is widely used in DNA sequencing, flow cytometry, cell sorting, instruments, spectrum analysis, interference measurement, holography, laser printing, chip inspection, physics experiments etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 mW, 10 mW, ..., 2500 W
Power stability: < 1%, < 2%, < 3%, < 5% (rms, 4 hours)
Mode: TEM00
Spectral line width: < 0.1 nm (< 0.003 nm @ 1500 mW)
Noise of amplitude: < 1%, < 0.5% (RMS, 1 Hz ~ 20 MHz)
M²: < 1.1
Beam diameter: ~ 2.0 mm (1/e²)
Beam divergence: < 1.2 mrad (full angle)
Polarization ratio: > 100:1
Pointing stability: < 0.05 mrad
Beam height: 45 mm
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 90~264V
Modulation: 1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (as option); TTL or analog
Expected lifetime: 10,000 hours
Warranty: 1 Year

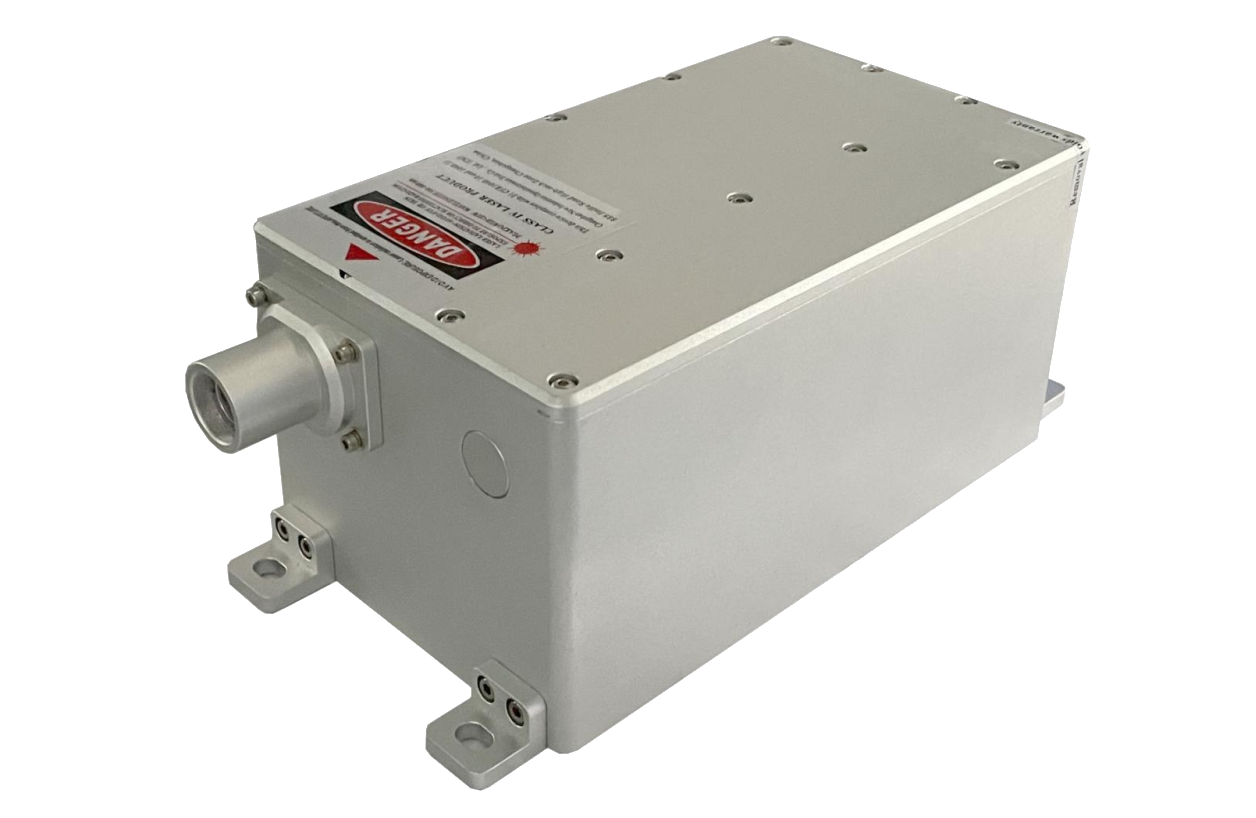

MLL-V-532
Low noise green laser at 532nm. It features high power, good beam profile, compact design, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, etc
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 W, 2 W, ..., 15 W, 20 W*
Power stability: < 0.5 %*, < 1%, < 3%, < 5% (rms, 4 hours)
Spectral line width: < 0.15 nm
Noise of amplitude: < 2%, < 1%, < 0.5%* @ ≤ 10 W(RMS, 1 Hz ~ 20 MHz)
Mode: TEM00
M²: < 1.3, < 1.2 @ ≤ 10 W
Beam diameter: ~ 2.0 mm (1/e²), ~ 3.0 mm @ 20 W (1/e²)
Beam divergence: ~ 1.0 mrad (full angle)
Polarization ratio: > 100:1 horizontal (vertical optional)
Beam height: 80 mm, 68 mm*
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Power supply: AC 100 ~ 240V
Modulation: 1 Hz- 1 kHz (TTL or analog as option)
1 kHz - 10 kHz (TTL or analog as option)
10 kHz - 30 kHz (TTL or analog as option)
Expected lifetime: 10,000 hours
Warranty: 1 Year
* Water cooled version only (Model MLL-V-532-Water)
532 nm single frequency laser
MSL-DS-532
All solid state single longitudinal mode laser at 532 nm. It features compact design, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment,
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 - 100 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: TEM00
Longitudinal mode: single
Spectral line width: < 0.00001 nm
Coherent length: > 50 m
Noise of amplitude: < 0.5% (RMS. 20 Hz ~ 20 MHz)
M²: < 1.2, (< 1.1 optional)
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, horizontal (or vertical as option)
Pointing stability: < 0.05 mrad and < 8 µrad/°C
Beam height: 19 mm
Fiber coupled: as option, SM or MM
Operating temperature: 10 ~ 35 °C
Storage temperature: 5 ~ 50 °C
Warm-up time: < 5 min
Power supply: DC 5 V
Electrical consumption: < 6 W
Shock tolerances: 7 g laterally, 15 g vertically
Expected lifetime: 10,000 hours
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
MSL-S-532-A/B/C
Single mode LD pumped all solid state laser at 532 nm. This model features sealed housing, compact design, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 - 100 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: TEM00
Longitudinal mode: single
Spectral line width: < 1 MHz
Coherent length: > 50 m
M²: < 1.2
Noise of amplitude: Version A: < 0.5% (1 Hz ~ 20 MHz, RMS)
Version B: < 0.5% (1 Hz ~ 20 MHz, RMS)
Version C: < 0.25% (1 Hz ~ 20 MHz, RMS)
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, horizontal (or vertical as option)
Pointing stability: Version A: < 0.05 mrad and < 8 µrad/°C
Version B: < 0.05 mrad and < 8 µrad/°C
Version C: < 0.05 mrad
Frequency shift: Version A: < ± 200 MHz (8 hours.); < 200 MHz/°C
Version B: < ± 200 MHz (8 hours.); < 200 MHz/°C
Beam height: Version A: 19 mm
Version B: 19 mm
Version B: 29 mm
Warm-up time: Version A: < 5 min
Version B: < 5 min
Version B: < 3 min
IP rating: Version A: IP67
Version B: IP65
Operating temperature: Version A: 0 ~ 60 °C
Version B: 10 ~ 35 °C
Version C: -40 ~ 60 °C
Max. Heat Dissipation: Version A: 10W @ 50°C
Version B: 4W @ 25°C
Power supply: AC 90~264V
Shock tolerances: 7 g laterally, 15 g vertically (6 ms)
Expected lifetime: 10,000 hours
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
MSL-U-532
All solid state single longitudinal mode laser. This model features narrow bandwith, ultra compact design, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1, 10, ..., 1000 mW
Power stability: < 0,5%*, < 1%*, < 2%, < 3%, < 5% (rms, 4 hours)
Mode: TEM00
Longitudinal mode: single
Spectral line width: < 1 MHz
Noise of amplitude: < 1%, < 0.5%, < 0.25% (RMS, 1 Hz ~ 20 MHz)
M²: < 1.2
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, vertical (horizontal**)
Warm-up time: < 5 min
Pointing stability: < 0.05 mrad
Frequency shift**: < ± 200 MHz / 8 hours, < 200 MHz/°C
Coherent length: > 50 m
Beam height: 27.4 mm
Electrical consumption: 15 W (typical), < 25 W (@ 40°C)
Laser base plate temp.: max. 50°C
Operating temperature: 10 ~ 35 °C
Power supply: AC 90~264V
Expected lifetime: 10,000 hours
Warranty: 1 Year
* @ ≤ 300 mW
** as option
Note: The laser head needs to be attached to heat sink with good heat dissipation
MSL-R-532
All solid state single longitudinal mode laser. Features: compact design, cost-effectiveness and easy operating. Applications: DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurements, holography, physics experiments, etc.
Wavelength: 532 ± 1nm
Operating mode: CW
Output power: 1,000 - 10,000 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Transverse mode: ~ TEM00
Longitudinal mode: single
Spectral linewidth: < 0.00001 nm
Coherent length: > 50 m
Noise of amplitude: < 0.1%, < 0.05%, < 0.02% (rms, 1Hz~20MHz)
M² factor: < 1.2
Beam diameter: < 1.5 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1 (horizontal*)
Pointing stability: < 0.05 mrad
Beam height: 65 mm
Operating temperature: 20 ~ 30 °C
Warm-up time: < 15 min
Power supply: AC 90-264V
Cooling method: water
Expextedt life time: 10,000
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
* vertcal orientation on request
MSL-III-532-AOM
High frequency modulated all solid state single lomgitudinal mode laser system has such characteristics as quick modulation rate, high extinction ratio, easy coding and convenient use. Laser modulation frequency of this laser system can be up to 1 MHz, It is mainly used in such fields as laser text-image processing, laser lithography, laser phototypesetting, and laser digital communication. It is suitable for OEM system integration and scientific research laboratories etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 1 - 30 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: ~ TEM00
Longitudinal mode: single
Spectral linewidth: < 0.00001 nm
Coherent length: > 50 m
Noise of amplitude: < 0.5% (1 Hz ~ 20 MHz, RMS)
M²: < 1.3
Beam diameter: ~ 1.5 mm (1/e²)
Beam divergence: < 1.2 mrad (full angle)
Modulation: up to 1 MHz (AOM)
Operating temperature: 10 ~ 35 °C
Beam height: 24.8 mm
Warm-up time: < 5 min
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 Year
MSL-FN-532-AOM
High frequency modulated all solid state single lomgitudinal mode laser system. It has such characteristics as high power, quick modulation rate, high extinction ratio, easy coding and convenient use. Laser modulation frequency of this laser system can be up to 1 MHz, It is mainly used in such fields as laser text-image processing, laser lithography, laser phototypesetting, and laser digital communication. It is suitable for OEM system integration and scientific research laboratories etc.
Wavelength: 532 ± 1 nm
Operating mode: CW
Output power: 30 - 200 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: ~ TEM00
Longitudinal mode: single
Spectral linewidth: < 0.00001 nm
Coherent length: > 50 m
Noise of amplitude: < 0.5% (1 Hz ~ 20 MHz, RMS)
M²: < 1.5
Beam diameter: ~ 1.5 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, vertical (horizotal as option)
Pointing stability: < 0.05 mrad
Modulation: up to 1 MHz (AOM)
Operating temperature: 10 ~ 35 °C
Beam height: 24.8 mm
Warm-up time: < 5 min
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 Year

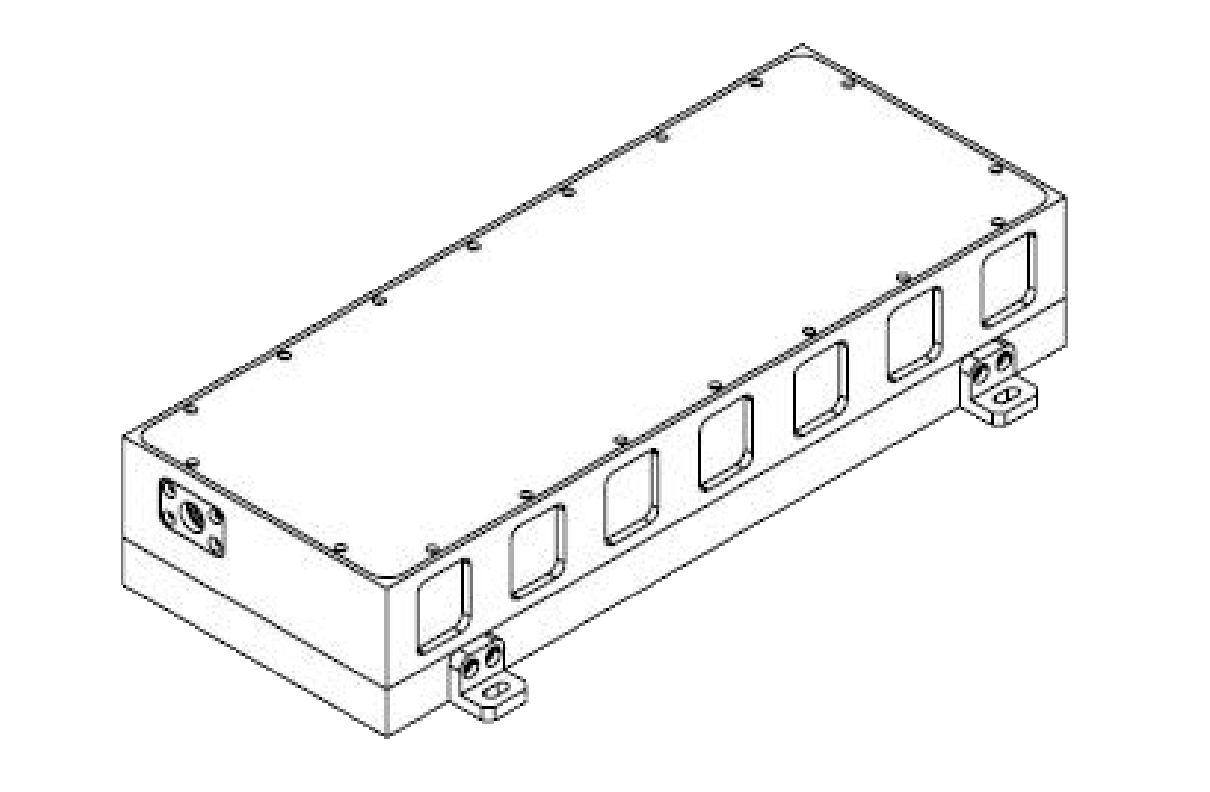

MSL-AO-532
Acousto-optically Q-switched all solid state single longitudinal mode laser. It features compact design, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.
Wavelength: 532 ± 1nm
Operation mode: acousto-optics Q-switched
Power stability: < 3%, < 5%
Pulse duration: ~ 25 ns
Pulse peak power: 1 ~ 4 kW
Pulse energy: 1 ~ 100 µJ
Repitition rate: 1 - 1000 Hz
Polarization ratio: > 100:1, horizontal (vertical as option)
Beam divergence: < 2.0 mrad (full angle)
Beam diameter: ~ 2.0 mm (1/e²)
Beam height: 59 mm
Cooling method: water
Operating temperature: 10 ~ 35 °C
Warm-up time: < 20 min
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
Passively Q-switched laser at 532 nm

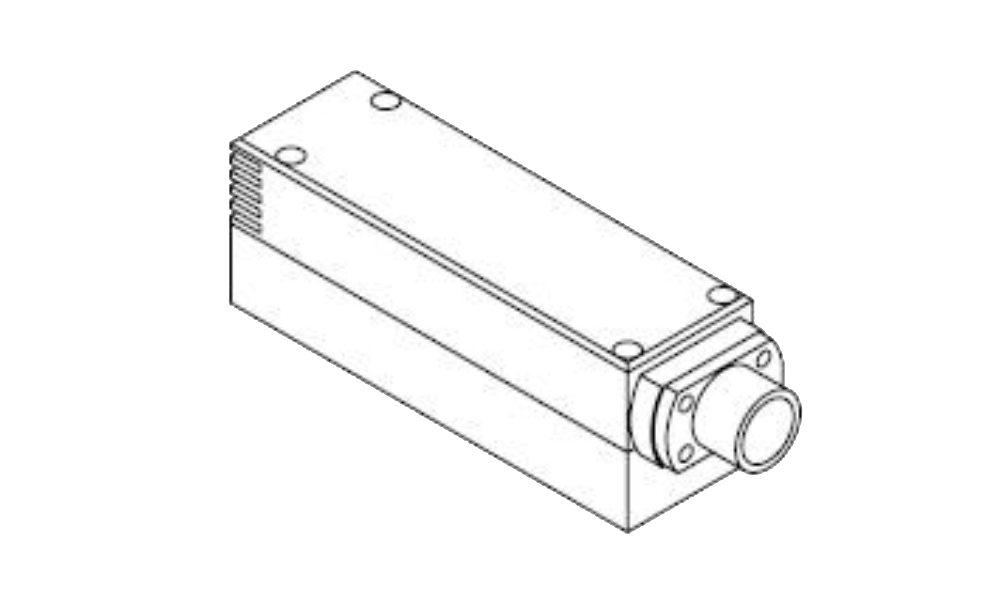

MPL-T-532
LD Pumped all solid state Q-switched laser has the features of high peak power and short pulse duration, which is widely used in scientific research, laser micromaching, laser radar ranging, environment monitoring, laser ultrasonic monitoring and LIBS (Laser Induced Breakdown Spectroscopy) etc.
Wavelength: 532 ± 1nm
Operation mode: frequency conversion of Q-switched pulsed laser
Avarage power*: 3 ~ 180 mW
Pulse energy: 1 ~ 10 µJ
Pulse duration: 0.5 ~ 5 ns
Pulse peak power: 0.3 ~ 10 kW
Repitition rate: 1 Hz ~ 4 kHz (fixed or exrnal triggered) or 5 ~ 15 kHz QCW
Power stability: < 5%, < 3%, <1%
Mode: TEM00
M²: < 1.5
Beam diameter: ~ 1.2 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, vertical (horizontal as option)
Warm-up time: < 5 min
Beam height: 22 mm
Operating temperature: 10 ~ 35 °C
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 year
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
Attention: The laser head needs to be attached to heat sink with good heat dissipation
MPL-H-532
LD pumped all solid state Q-switched laser has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in industry (marking on diamond or stone), teaching of nonlinear optics, fiber communication, etc.
Wavelength: 532 ± 1nm
Operation mode: frequency conversion of Q-switched pulsed laser
Avarage power*: 30 ~ 150 mW
Pulse energy: 5 ~ 30 µJ
Pulse duration: 1.3 ns, 5 ns
Pulse peak power: 3.8 ~ 24.6 kW @ 1.3 ns, 1 ~ 10 kW @ 5 ns
Repitition rate: 1 Hz ~ 4 kHz (fixed or exrnal triggered) or 5 ~ 30 kHz QCW
Power stability: < 5%, < 3%, < 2%, <1%
Mode: TEM00
M²: < 1.5
Beam diameter: ~ 0.8 mm (1/e²)
Beam divergence: < 2 mrad (full angle)
Polarization ratio: > 100:1, horizontal (vertical as option)
Warm-up time: < 5 min
Beam height: 29 mm
Operating temperature: 10 ~ 35 °C
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 year
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

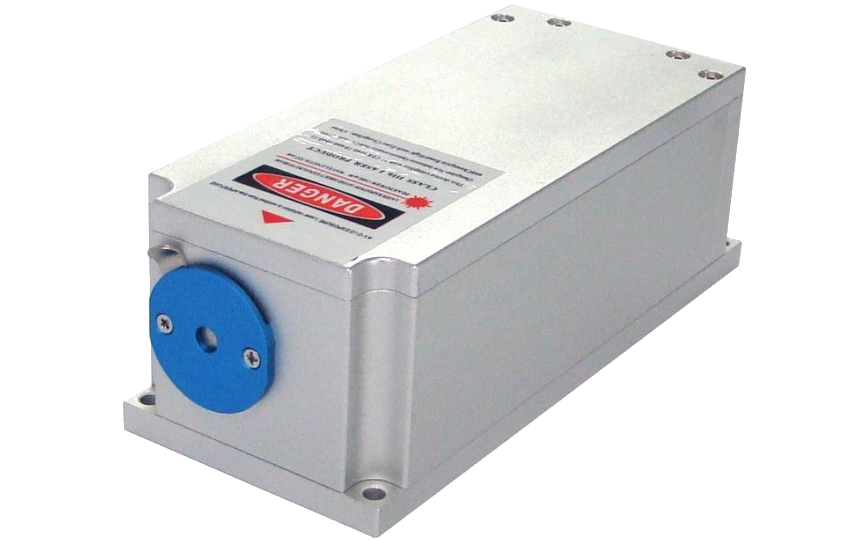

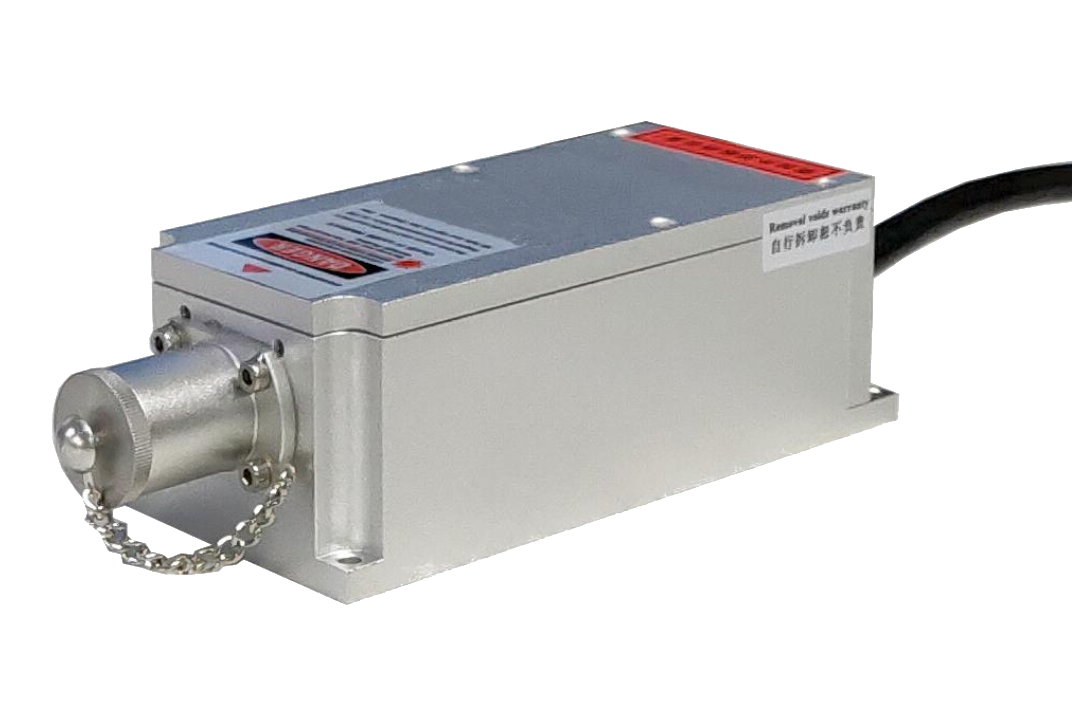

MPL-U-532
LD pumped all solid state Q-switched laser has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in industry (marking on the diamond or stone), teaching of nonlinear optics, experiments of generating 355nm, or 266nm laser, fiber communication, etc.
Wavelength: 532 ± 1nm
Operation mode: frequency conversion of Q-switched pulsed laser
Avarage power*: 1 ~ 500 mW
Pulse energy: 1 ~ 60 µJ
Pulse duration: 0.6 ~ 5 ns
Pulse peak power: 0.2 ~ 66 kW
Repitition rate: 1 Hz ~ 6 kHz (fixed or exrnal triggered) or 5 ~ 20 kHz QCW
Power stability: < 5%, < 3%, <1%
Mode: TEM00
M²: < 1.5
Beam diameter: ~ 1.0 mm (1/e²)
Beam divergence: < 2.0 mrad (full angle)
Polarization ratio: > 100:1
Warm-up time: < 5 min
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 year
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
Attention: The laser head needs to be attached to heat sink with good heat dissipation
EL-532
LD Pumped all solid state Q-switched laser at 532nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in industry, such as marking on highly reflective metals, semiconductors, carbide, rubbers, ceramics and composites.
Wavelength: 532 ± 1nm
Operation mode: passively Q-switched laser
Avarage power: 150 ~ 1500 mW
Pulse energy: 50 ~ 125 µJ
Pulse duration: ~ 2 ns or ~ 5 ns
Pulse peak power: 75 kW (@ 2 ns) or 30 kW (@ 5 ns)
Repitition rate: 1 kHz ~ 10 kHz (fixed or exrnal triggered) or 1 ~ 15 kHz QCW
Power stability: < 5%, < 3%
Mode: ~ TEM00
M²: < 1.5
Beam diameter: ~ 0.8 mm (1/e²)
Beam divergence: < 2.0 mrad (full angle)
Polarization ratio: > 100:1, vertical (horizontl as option)
Warm-up time: < 10 min
Beam height: 68.4 mm
Operating temperature: 10 ~ 35 °C
Power supply: AC 90 ~ 264 V

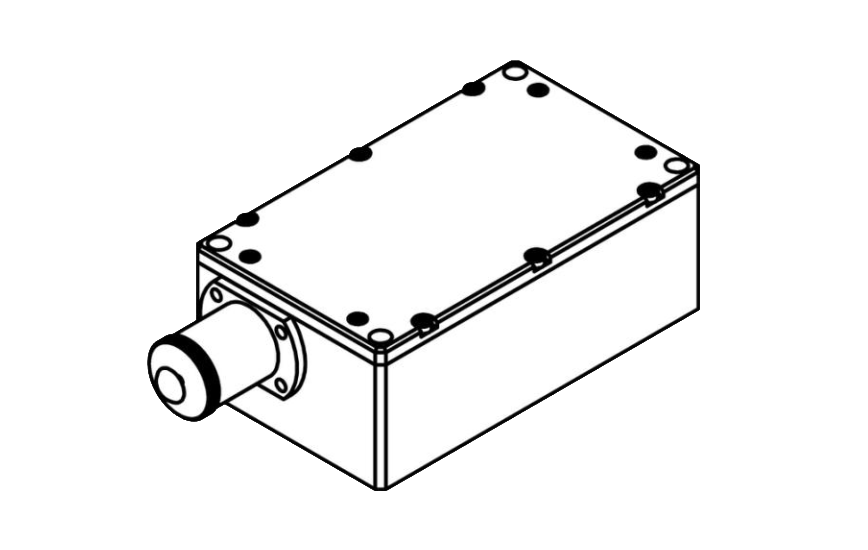

MPL-S-532-LP
High energy LD pumped all solid state Q-switched laser has the features of high peak power and short pulse duration, which is widely used in scientific research, laser micromaching, laser radar ranging, environment monitoring, laser ultrasonic monitoring, LIBS (Laser Induced Breakdown Spectroscopy), etc.
Wavelength: 532 ± 1nm
Operation mode: Q-switched pulsed laser
Avarage power*: ~ 80 mW
Pulse energy: 80 µJ
Pulse duration: ~ 400 ps
Pulse peak power: 200 kW
Repitition rate**: 10 Hz ~ 1 kHz
Power stability: < 5%, < 3%, <1%
Mode: TEM00
M²: < 1.5
Beam diameter: ~ 2.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Warm-up time: < 5 min
Beam height: 27.4 mm
Operating temperature: 15 ~ 35 °C
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 year
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
** optional
Attention: The laser head needs to be attached to heat sink with good heat dissipation

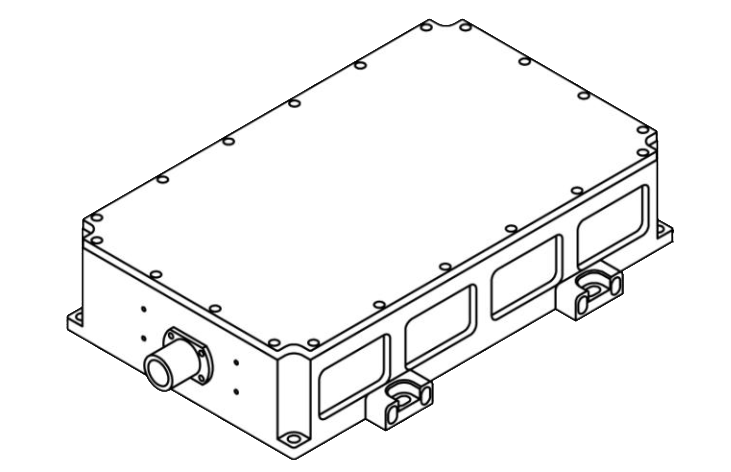

MPL-S-532-HP
High energy LD pumped all solid state Q-switched laser at 1064nm has the features of high peak power and short pulse duration, which is widely used in scientific research, laser micromaching, laser radar ranging, environment monitoring, laser ultrasonic monitoring, LIBS (Laser Induced Breakdown Spectroscopy), etc.
Wavelength: 532 ± 1nm
Operation mode: Q-switched pulsed laser
Avarage power*: a) ~ 900 mW
b) ~ 700 mW
c) ~ 250 mW
d) ~ 400 mW**
Pulse energy: a) ~ 22,5 µJ
b) ~ 175 µJ
c) ~ 250 µJ
d) ~ 400 µJ**
Pulse duration: a) ~ 700 ps
b) ~ 4000 ps
c) ~ 400 ps
d) ~ 500 ps**
Pulse peak power: a) 32,1 kW
b) 175 kW
c) 625 kW
d) 800 KW**
Repitition rate***: a) ~ 40 kHz
b) 1 ~ 4 kHz
c) 0,01 ~ 1 kHz
d) 0,01 ~ 1 kHz**
Power stability: < 5%, < 3% (4 hours)
Mode: TEM00
Beam diameter: ~ 1.5 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Warm-up time: < 5 min
Beam height: 32 mm
Operating temperature: 15 ~ 30 °C
Power supply: AC 90 ~ 264 V
Expected lifetime: 10,000 hours
Warranty: 1 year
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
** water cooled
*** optional
Attention: The laser head needs to be attached to heat sink with good heat dissipation
Acousto-optically Q-switched laser at 532 nm
AO-S-532
LD pumped all solid state acousto-optic Q-switched laser. It features high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power*: 1 ~ 250 mW
Pulse energy: 1 ~ 100 µJ**
Pulse duration: 5 ~ 10 ns (@ < 10 kHz)
Pulse peak power: 0.2~ 20 kW
Repitition rate: 1 Hz ~ 50 kHz
Power stability: < 5%, < 3%, <2% (rms, 4 hours)
Mode: TEM00
M²: < 1.5
Beam diameter: ~ 1.2 mm (1/e²)
Beam divergence: < 5 mrad (full angle)
Polarization ratio: > 100:1
Warm-up time: < 10 min
Beam height: 25 mm
Operating temperature: 10 ~ 35 °C
Power supply: AC 90 ~ 264 V
Expected lifetime: 10.000 hours
Warranty: 1 year
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
** (100 μJ @ 1 kHz; 50 μJ @ 5 kHz)
Attention: The laser head needs to be attached to heat sink with good heat dissipation

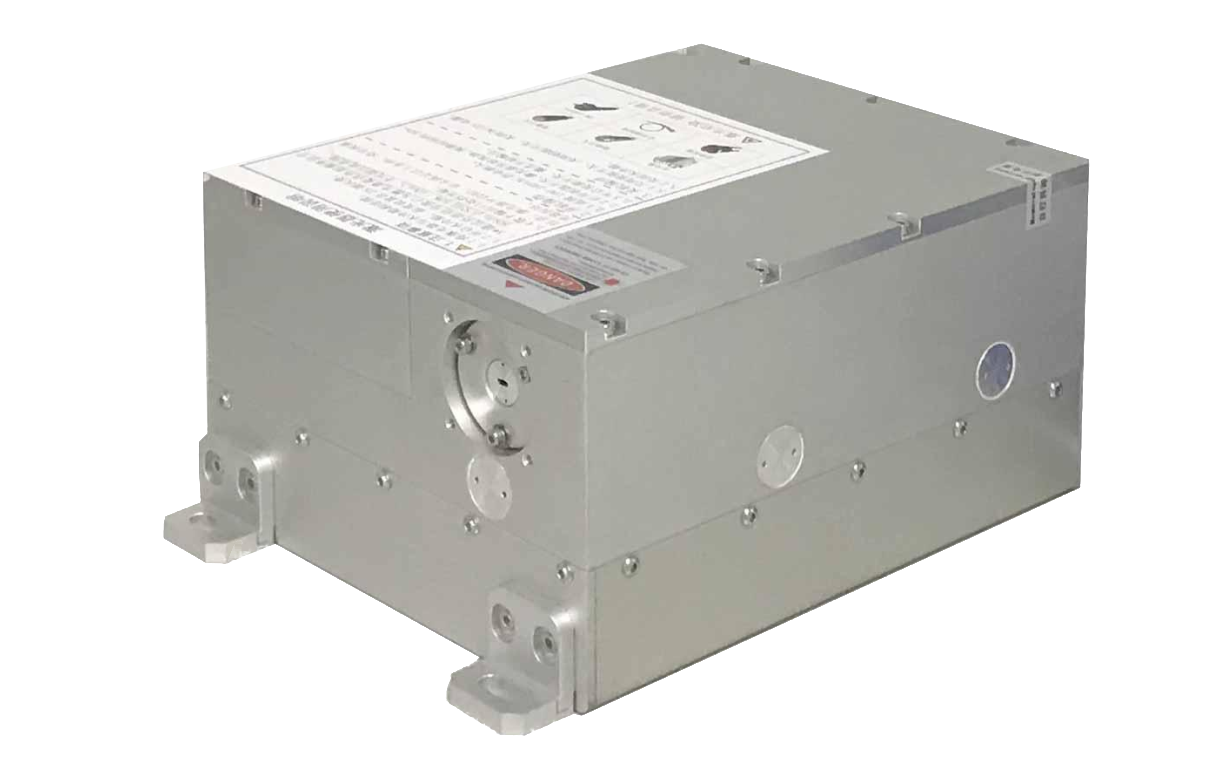

AO-Mini-532
LD Pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is used in laser inner carver, laser marking, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
Pulse energy: a) ~ 100 µJ
b) ~ 20 µJ
Pulse duration: ~ 7 ns
Pulse peak power: a) ~ 15 kW
b) ~ 3 kW
Repitition rate: a) 1 ~ 10 kHz
b) 10 ~ 50 kHz
Power stability: < 5%, < 3%, <1% (rms, 4 hours)
Mode: TEM00
M²: < 1.2
Beam diameter: ~ 1.0 mm (1/e²)
Beam divergence: < 4.0 mrad (full angle)
Polarization ratio: > 100:1 vertical
Warm-up time: < 10 min
Beam height: a) 77,5 mm
b) 99 mm
Operating temperature: 10 ~ 35 °C
Cooling method: a) Wasserkühlung
b) Luftkühlung
Power supply: DC 12 V / 25 A (AC 100-240 V optional)
Warranty: 1 year

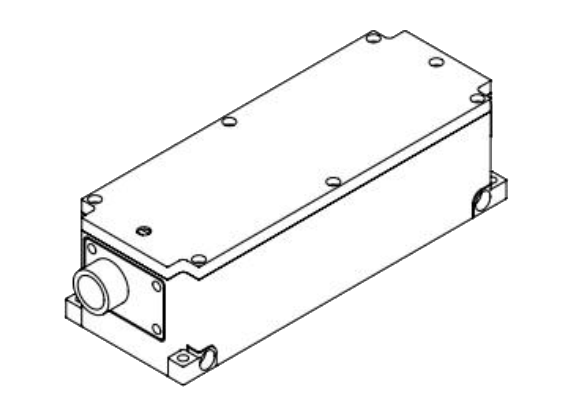

AO-S-532-H
LD pumped all solid state acousto-optic Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 1 ~ 1000 mW*
Pulse energy: 1 ~ 250 µJ
Pulse duration: 5 ~ 25 ns
Pulse peak power: 0.04 ~ 25 kW
Repitition rate: 1 Hz ~ 70 kHz
Power stability: < 5%, < 3%, <2% (rms, 4 hours)
Mode: ~ TEM00
M²: < 1.5
Beam diameter: ~ 1.2 mm (1/e²)
Beam divergence: < 5 mrad (full angle)
Polarization ratio: > 100:1
Warm-up time: < 10 min
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Power supply: AC 90 ~ 240 V
Expected lifetime: 10.000 hours
Warranty: 1 year
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
Attention: The laser head needs to be attached to heat sink with good heat dissipation

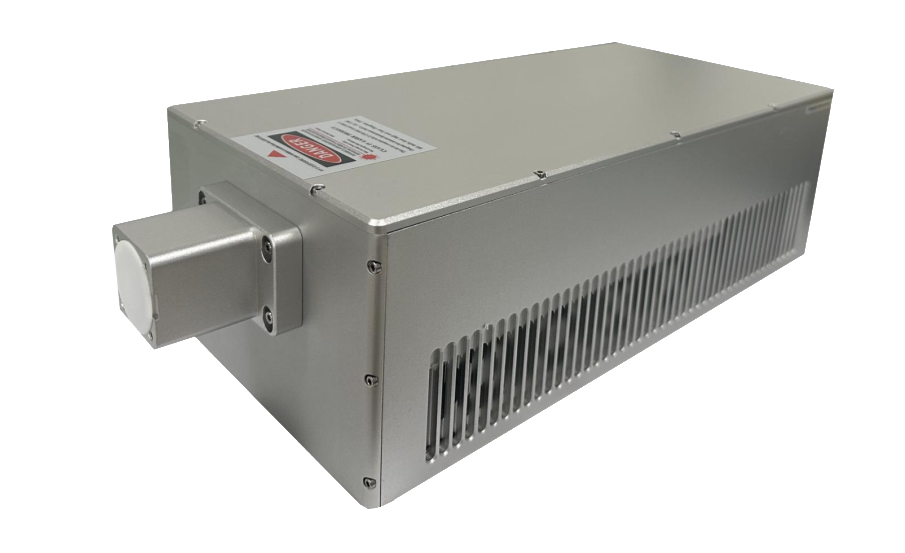

AO-532A
LD pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration. Typical applications are marking on hard materials or highly reflective metals: silver and gold; semiconductors: including silicon, gallium arsenide and germanium, and rubbers such as silicone.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 8 - 10 W (@ 30 kHz)*
Pulse energy: > 300 µJ (@ 30 kHz)
Pulse duration: ~ 12 ns (@ 30 kHz)
Repitition rate: 20 ~ 200 kHz
Mode: TEM00
M²: < 1.2
Beam diameter: ~ 0.8 mm (1/e²)
Beam divergence: < 3.5 mrad (full angle)
Polarization ratio: > 100:1, vertical
Warm-up time: < 10 min
Beam height: 79 mm
Operating temperature: 10 ~ 35 °C
Power supply: DC 12 V / 25 A (adapter vor 220 V available)
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

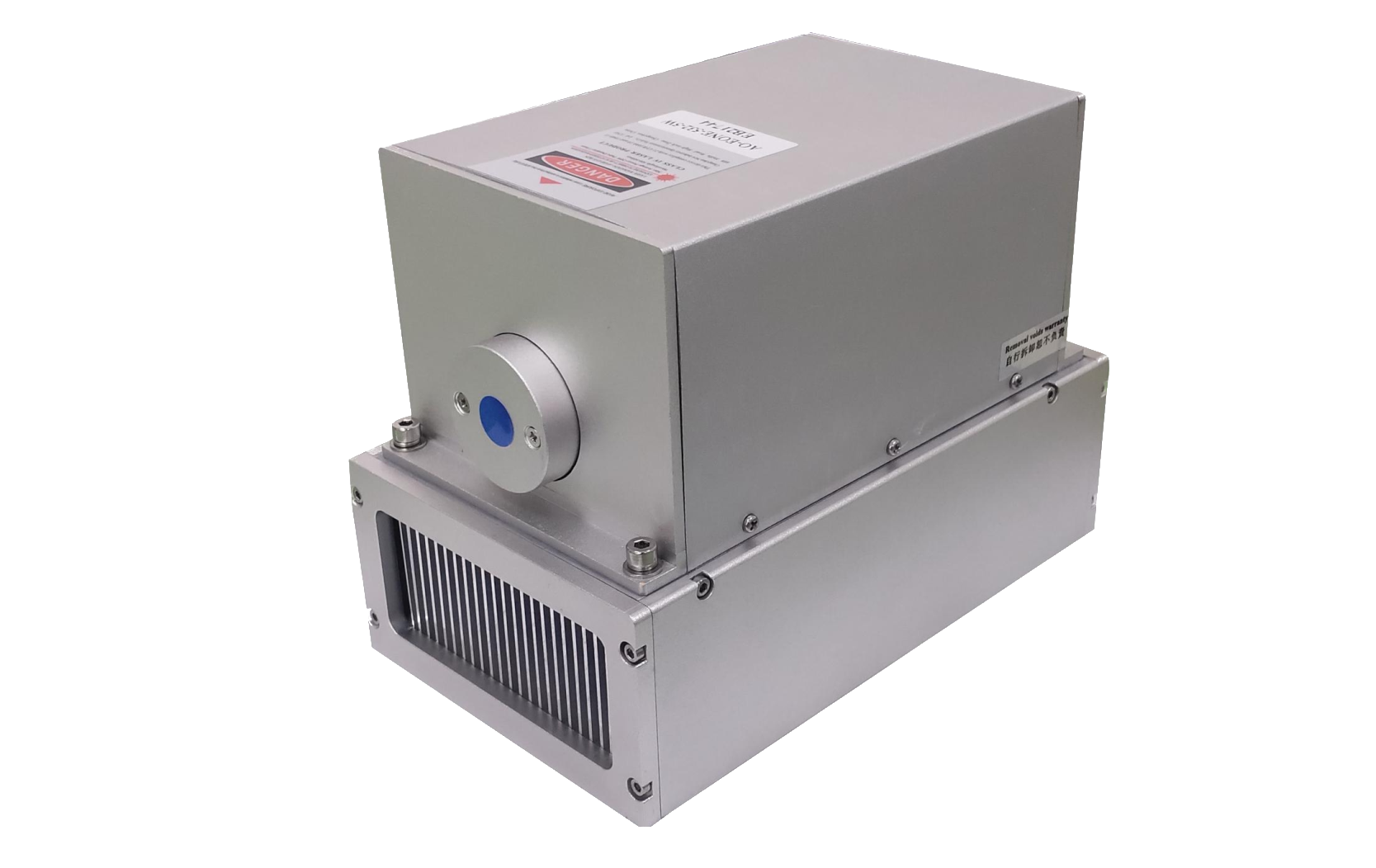

AO-Mini-E-532
LD Pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is used in laser inner carver, laser marking, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power*: a) 300 mW @ 1 kHz, 2 W @ 10 kHz
b) 5 W @ 40 kHz, 6 W @ 80 kHz
Pulse energy: a) > 300 µJ @ 1 kHz, > 200 µJ @ 10 kHz
b) > 125 µJ @ 50 kHz
Pulse duration: a) ~ 10 ns
b) ~ 15 ns
Pulse peak power: a) ~ 20 kW
b) ~ 8 kW
Repitition rate: a) 1 ~ 10 kHz
b) 10 ~ 100 kHz
Power stability: < 5%, < 3%, <1% (rms, 4 hours)
Mode: TEM00
M²: < 1.2
Beam diameter: ~ 0.5 mm (1/e²)
Beam divergence: < 3.0 mrad (full angle)
Warm-up time: < 10 min
Beam height: 81.4 mm
Operating temperature: 10 ~ 35 °C
Cooling method: air cooled
Power supply: DC 24 V / 13 A (AC 100-240 V optional)
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

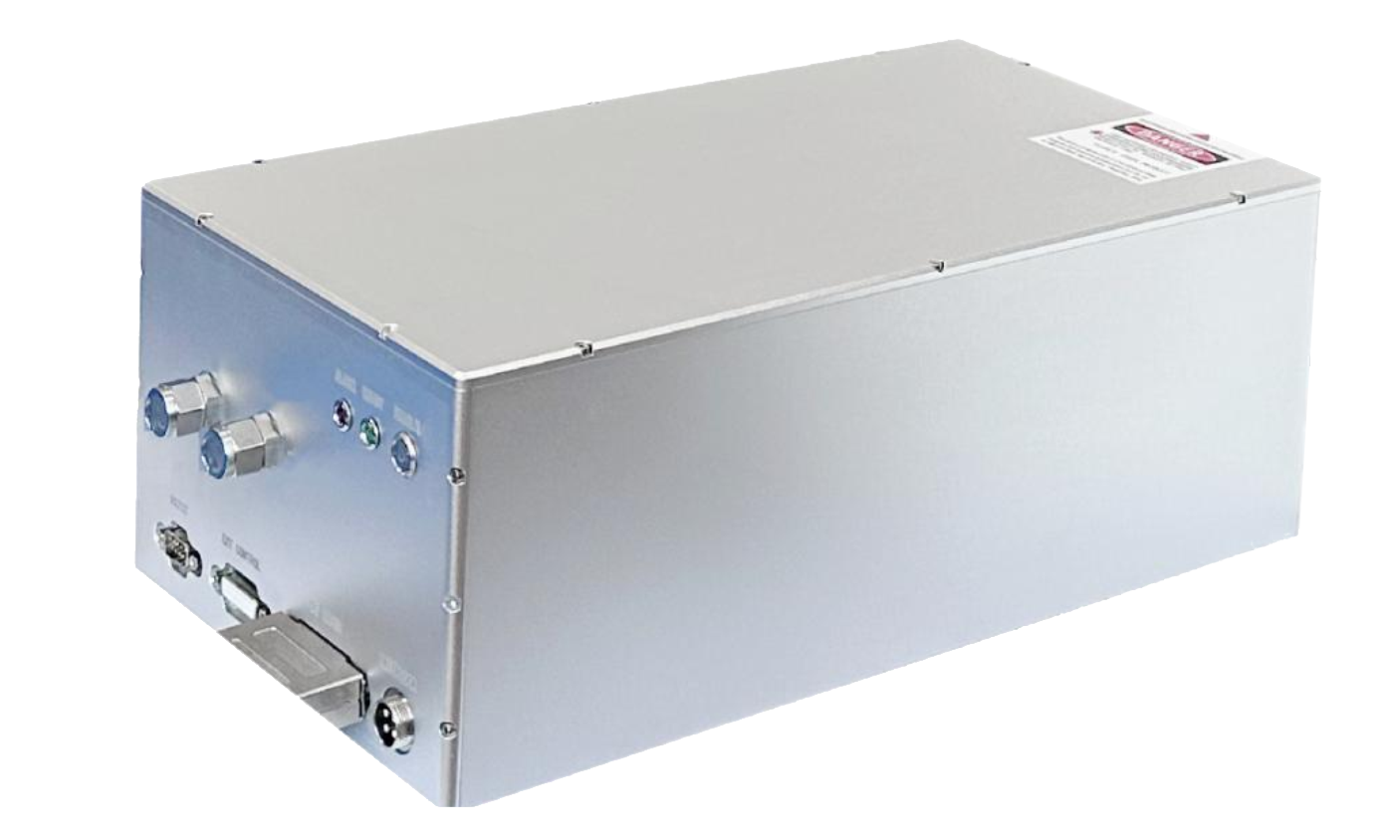

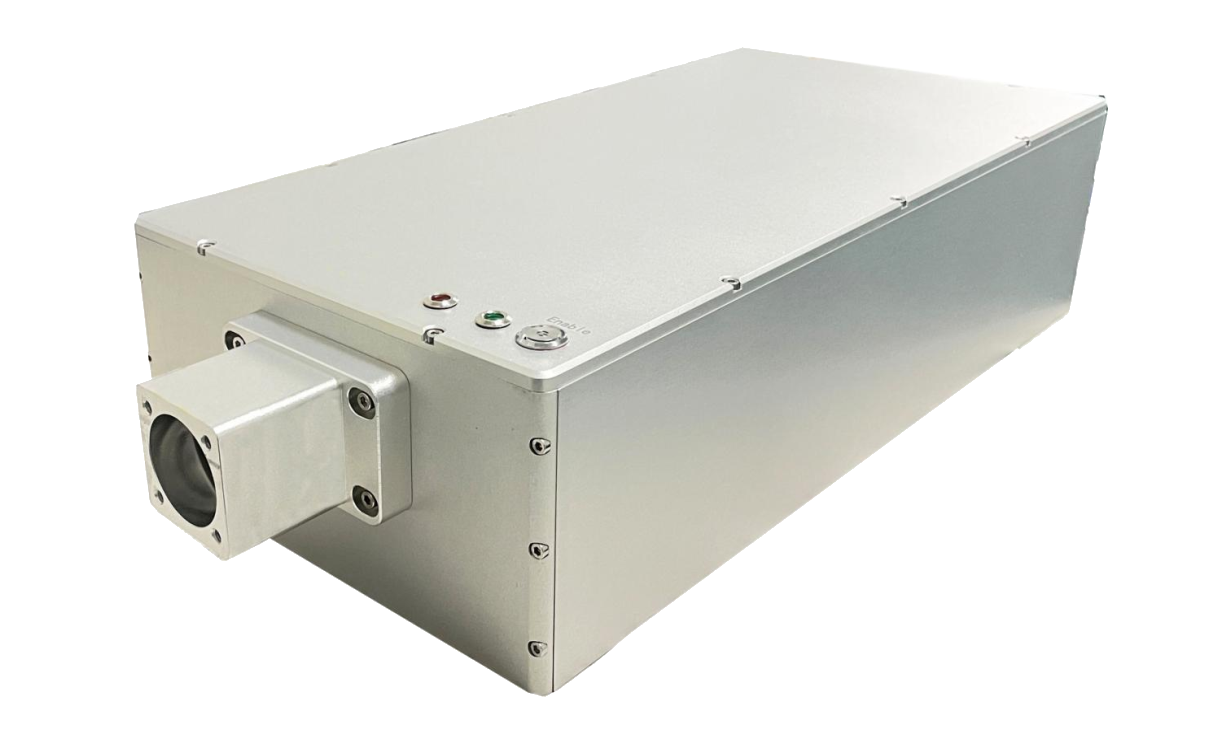

AO-532W
LD pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration. Typical applications are marking on hard materials or highly reflective metals: silver and gold; semiconductors: including silicon, gallium arsenide and germanium, and rubbers such as silicone.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
A:
Avarage power*: 8 W @ 30 kHz
Pulse energy: > 300 µJ @ 30 kHz
Pulse duration: ~ 12 ns @ 30 kHz
Repitition rate: 20 ~ 200 kHz
B:
Avarage power*: 10 W @ 30 kHz; 20 W @ 50 kHz
Pulse energy: > 400 µJ @ 50 kHz
Pulse duration: ~ 10 ns @ 50 kHz
Repitition rate: 40 ~ 150 kHz
C:
Avarage power*: 40 W @ 60 kHz
Pulse energy: > 600 µJ @ 60 kHz
Pulse duration: ~ 13 ns @ 60 kHz
Repitition rate: 50 ~ 200 kHz
Mode: TEM00
M²: < 1.2
Beam diameter: ~ 0.8 mm (1/e²)
Beam divergence: < 3.5 mrad (full angle)
Polarization ratio: > 100:1, vertical
Warm-up time: < 10 min
Beam height: A: 60 mm; B: 59 mm; C: 90 mm
Operating temperature: 10 ~ 35 °C
Cooling method: water cooled
Power supply: A: DC 12V / 25A; B: DC 24 V / 13 A; C: DC 30 V / 18,6 A
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
AO-UA-532
LD Pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is used in laser inner carver, laser marking, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 3 W @ 5 kHz*
Pulse energy: > 0.5 mJ (@ 5 kHz)
Pulse duration: < 15 ns (@ 5 kHz)
Pulse peak power: ~ 30 kW (@ 5 kHz)
Repitition rate: 1 ~ 5 kHz
Power stability: < 5%, < 3%, <2%, <1% (rms, 4 hours)
M²: < 1.2
Beam diameter: ~ 0.8 mm (1/e²)
Beam divergence: < 3.5 mrad (full angle)
Polarization ratio: > 100:1, vertical
Warm-up time: < 10 min
Beam height: 70 mm
Operating temperature: 10 ~ 35 °C
Cooling method: air cooled
Power supply: AC 220/110 V
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

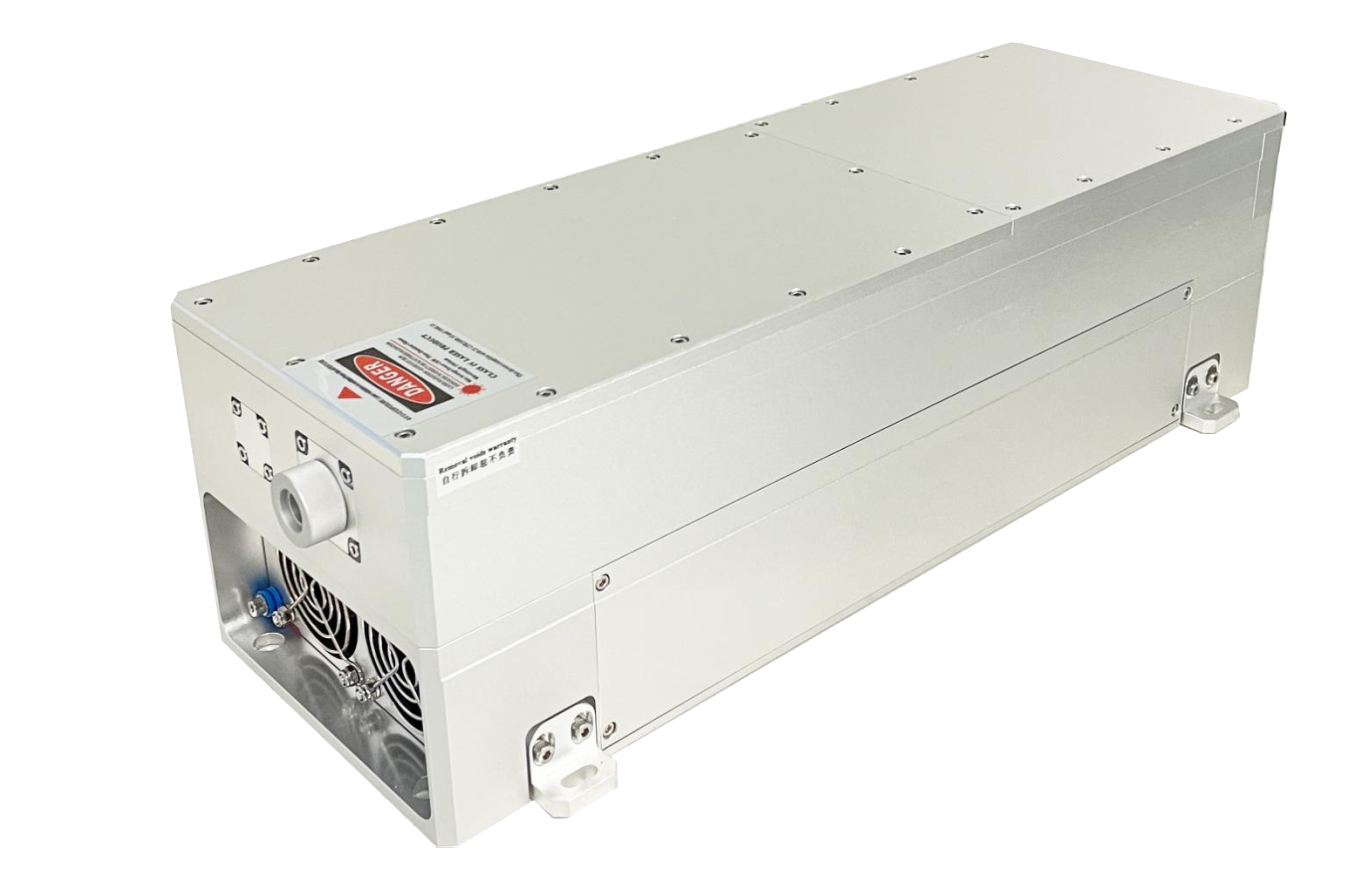

AO-T-532
LD pumped all solid state AOM Q-switched laser AO-T-532. It features high peak power, high repetition rate and short pulse duration, which is widely used in marking on harder metals such as Titanium, Inconel, or Tool Steel.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 1 ~ 6 W (6W @ 10 kHz)*
Pulse energy: > 600 µJ (@ 10 kHz)
Pulse duration: ~ 30 ns @ 10 kHz (optional)
Pulse peak power: 1 ~ 20 kW (20 kW @ 10 kHz)
Repitition rate: 1 ~ 200 kHz
Power stability: < 5%, < 3%, <2%, <1% (rms, 4 hours)
M²: < 1.1
Beam diameter: ~ 1 mm (1/e²)
Beam divergence: < 3.5 mrad (full angle)
Polarization ratio: > 100:1, vertical
Warm-up time: < 10 min
Beam height: 109.75 mm
Operating temperature: 10 ~ 35 °C
Cooling method: air cooled
Power supply: AC 220/110 V
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

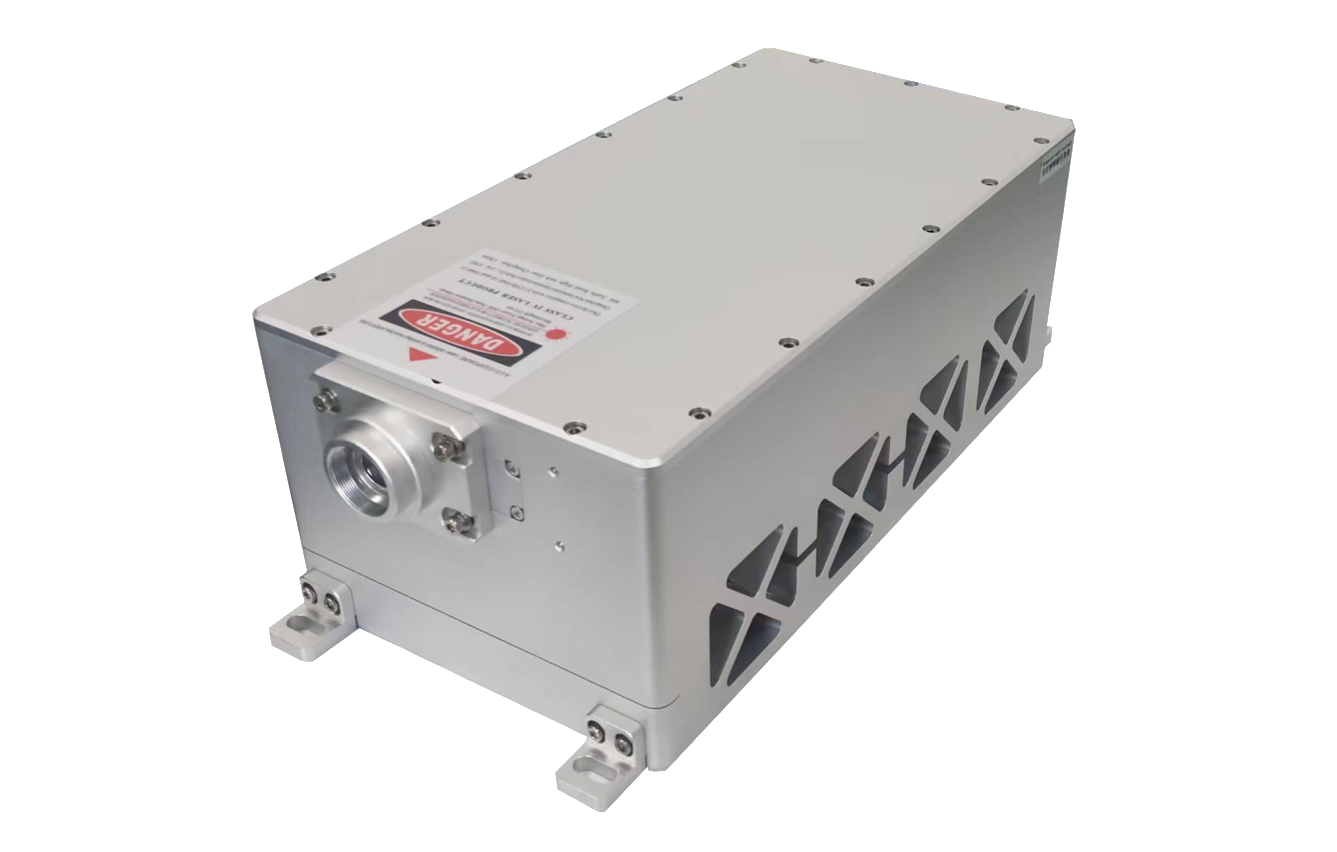

AO-L-532
LD Pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is used in laser inner carver, laser marking, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 1 ~ 3 W @ 2 ~ 5 kHz*
Pulse energy: 1 ~ 600 µJ (500 µJ @ 2 kHz; 600 µJ @ 5 kHz)
Pulse duration: 5 ~ 7 ns (@ 5 kHz)*
Pulse peak power: 1 ~ 100 kW (100 kW @ 2 kHz and 5 kHz)
Repitition rate: 0.001 ~ 10 kHz
Power stability: < 5%, < 3%, <2%, <1% (rms, 4 hours)
Beam diameter: ~ 1.0 mm (1/e²)
Beam divergence: < 4.5 mrad (full angle)
Polarization ratio: > 100:1, vertical
Warm-up time: < 10 min
Beam height: 84.5 mm
Operating temperature: 10 ~ 35 °C
Cooling method: air cooled
Power supply: AC 220/110 V
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

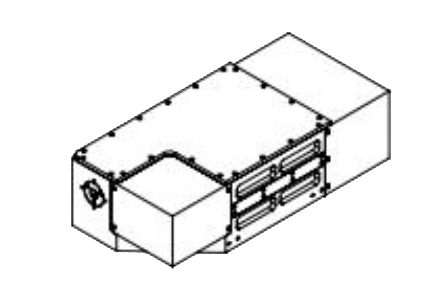

AO-X-532
LD Pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is used in laser inner carver, laser marking, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 1 ~ 20 W (20 W @ 30 kHz)*
Pulse energy: 1 ~ 670 µJ (670 µJ @ 30 kHz)
Pulse duration: < 25 ns
Pulse peak power: 1 ~ 45 kW (45 kW @ 30 kHz)
Repitition rate: 30 ~ 100 kHz
Power stability: < 5%, < 3% (rms, 4 hours)
Beam diameter: ~ 2.0 mm (1/e²)
Beam divergence: < 2.0 mrad (full angle)
M²: < 2
Warm-up time: < 10 min
Beam height: 68 mm
Operating temperature: 10 ~ 35 °C
Cooling method: water cooled
Power supply: AC 220/110 V
Expected lifetime: 10.000 hours
Warranty: 1 year
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

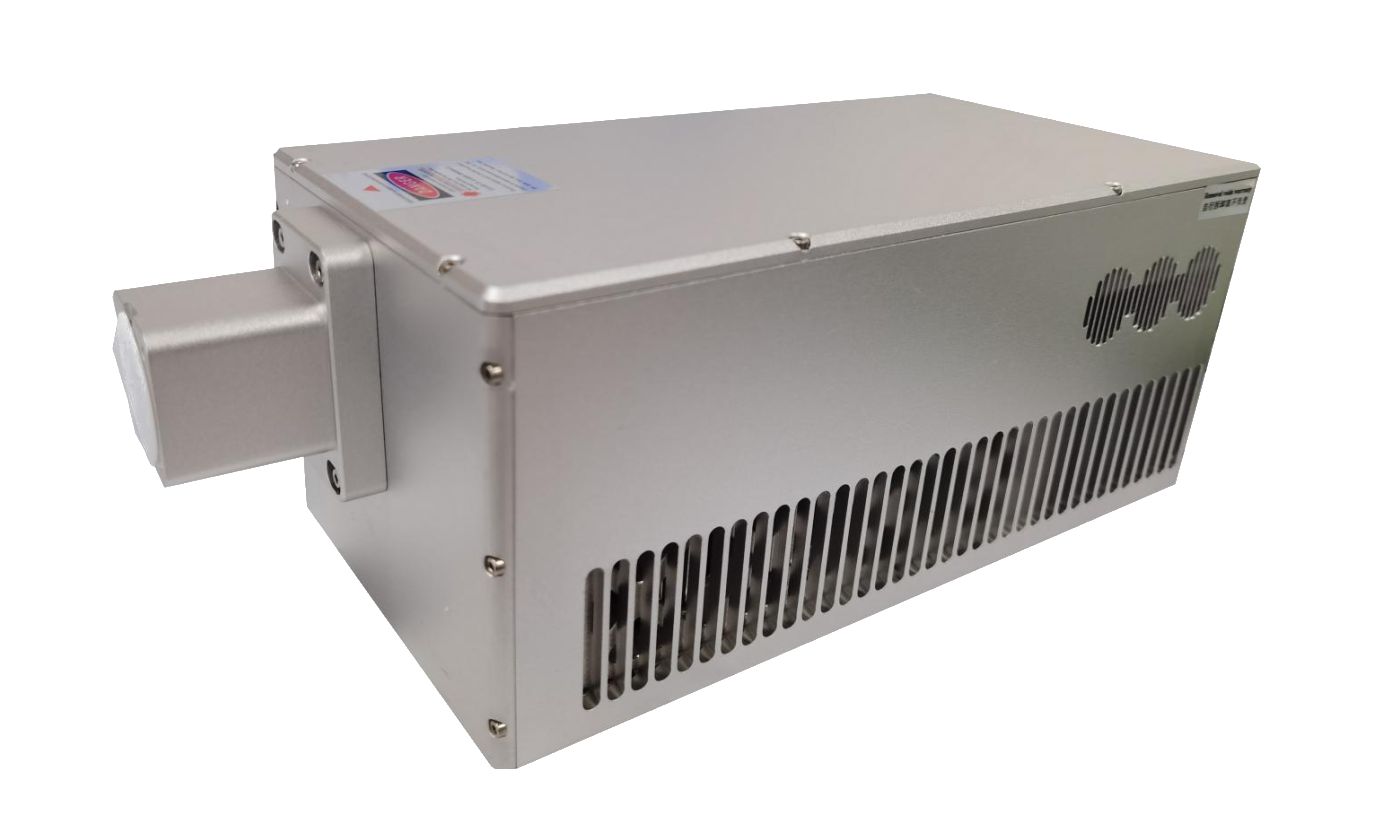

AO-532B
Laser diode pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is whidelly used in marking on hard materials, such as highly reflective metals: silver and gold; semiconductors: including silicon, gallium arsenide and germanium, and rubbers such as silicone.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power*: a) 1 W @ 1 Hz, 2 W @ 10 kHz
b) 3 W @ 5 kHz
c) 3 W @ 10 kHz
Pulse energy: a) > 1 mJ @ 1 Hz ~ 1 kHz
b) > 600 µJ @ 1 ~ 5 kHz
c) > 300 µJ @ 5 ~ 10 kHz
Pulse duration: a) ~ 10 ns @ 1 Hz ~ 1 kHz
b) ~ 12 ns @ 1 ~ 5 kHz
c) ~ 18 ns @ 5 ~ 10 kHz
Repitition rate: 1 ~ 10 kHz
Mode: TEM00
Beam circularity: > 90%
M²: < 1.2
Beam diameter: ~ 0.8 mm (1/e²)
Beam divergence: < 3.5 mrad (full angle)
Polarization ratio: > 100:1, vertical
Warm-up time: < 10 min
Beam height: 79 mm
Operating temperature: 10 ~ 35 °C
Cooling method: air cooled
Power supply: DC 12 V / 25 A (AC 100-240 V optional)
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

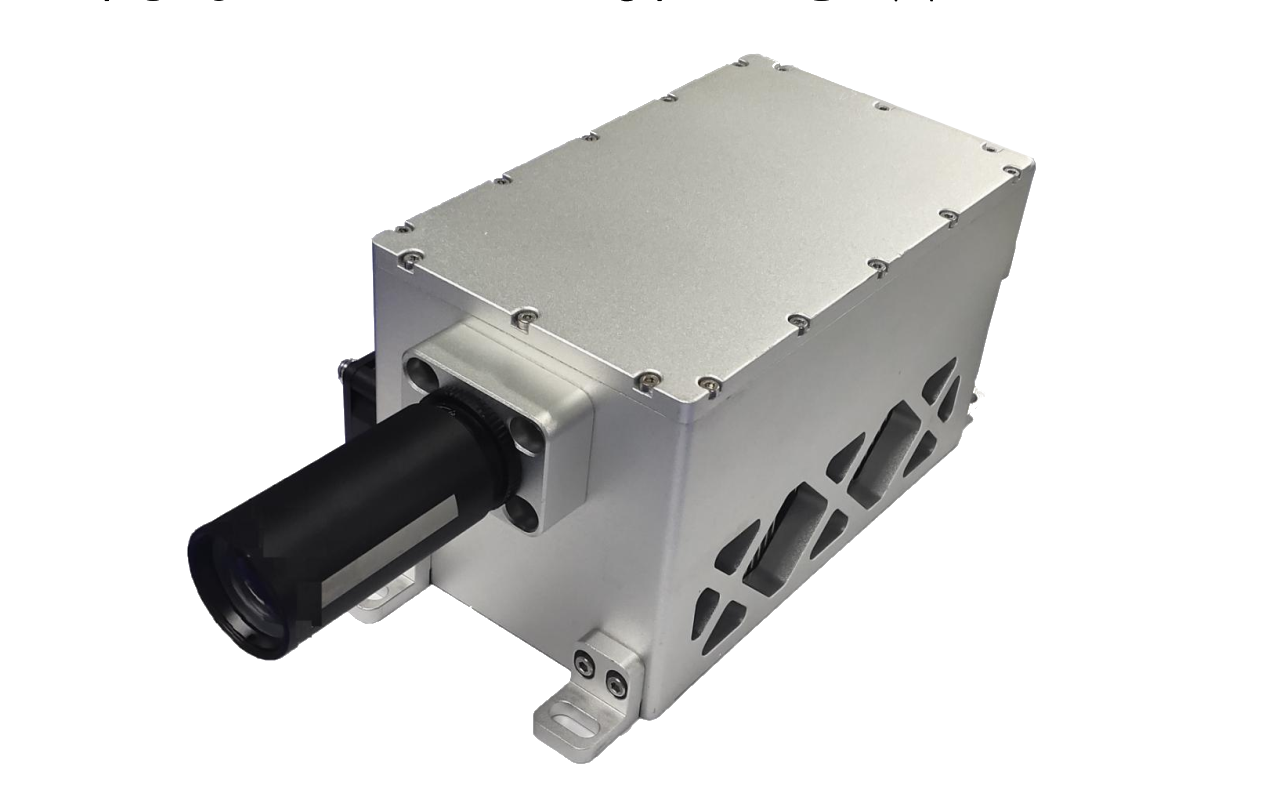

AO-U-532
LD Pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is used in laser inner carver, laser marking, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 1 ~ 3 W (1 W @ 1 kHz; 3 W @ 3 kHz)*
Pulse energy: 1 mJ (1 mJ @ 1 kHz und 3 kHz)
Pulse duration: typical < 15 ns @ 3 kHz
Pulse peak power: 1 ~ 66 kW (66 kW @ 3 kHz)
Repitition rate: 1 ~ 10 kHz
Power stability: < 5%, < 3%, < 2%, < 1% (rms, 4 hours)
Beam diameter: ~ 1.0 mm (1/e²)
Beam divergence: < 4.5 mrad (full angle)
Polarization ratio: > 100:1, vertical
M²: < 1.2
Warm-up time: < 10 min
Beam height: 70.5 mm
Operating temperature: 10 ~ 35 °C
Cooling method: air cooled
Power supply: AC 220/110 V
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
AO-532W-HE
Laser diode pumped all solid state AOM Q-switched laser at 532 nm with high peak power, high repetition rate, and short pulse duration. It is used in superhard material processing, diamond cutting and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 20 W @ 10 kHz*
Pulse energy: 2 mJ @ 10 kHz
Pulse duration: ~ 15 ns @ 10 kHz
Repitition rate: 7 ~ 100 kHz
Power stability: < 3%, < 1% (rms, 4 hours)
Mode: TEM00
M²: < 1.2
Beam circularity: > 90%
Beam diameter: ~ 1 mm (1/e²)
Beam divergence: < 3 mrad (full angle)
Polarization ratio: > 100:1, vertical
Warm-up time: < 10 min
Beam height: 103 mm
Operating temperature: 10 ~ 35 °C
Cooling method: water cooled
Power supply: DC 15 V / 33.4 A (Power supply 100-240VAC available)
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

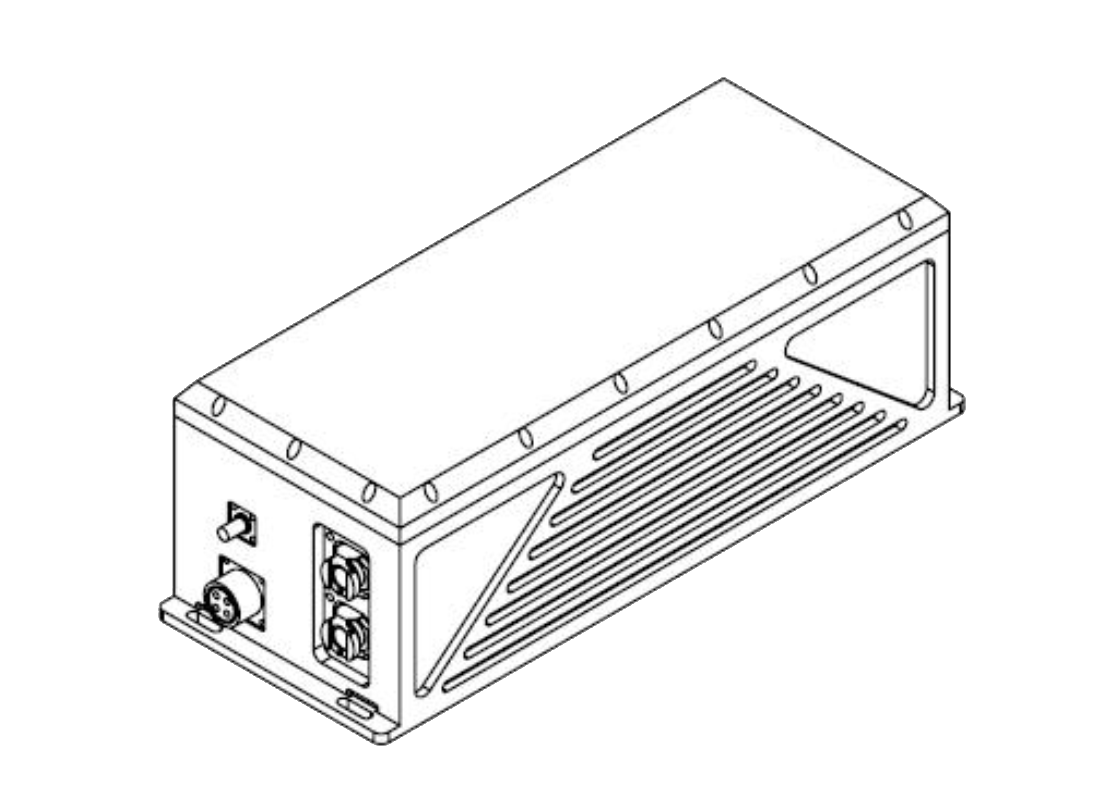

HPL-532-Q
Laser diode pumped all solid state AOM Q-switched laser at 532 nm with high peak power, high repetition rate, and short pulse duration. It is used in diamond cutting, carving, measure, science research, etc
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 20 W @ 9 kHz
Pulse duration: ~ 80 ns @ 9 kHz
Repitition rate: 9 kHz
Pulse to pulse stability: < 1.5% (rms)
Mode: TEM00
M²: < 1.3
Beam diameter: ~ 1 mm (1/e²)
Beam divergence: < 1.7 mrad (full angle)
Polarization ratio: > 100:1, vertical
Warm-up time: < 10 min
Beam height: 76,5 mm
Operating temperature: 15 ~ 35 °C
Cooling method: water cooled
Power supply: AC 220/110 V
HPL-532-Q
Laser diode pumped all solid state AOM Q-switched laser at 532 nm with high peak power, high repetition rate, and short pulse duration. It is used in diamond cutting, carving, measure, science research, etc
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: a) 20 W @ 10 k Hz
b) 30 W @ 10 kHz
Pulse energy: a) 2 mJ
b) 3 mJ
Pulse duration: ~ 100 @ 10 kHZ & 30 W
Repitition rate: 10 ~ 20 kHz (other rep. rate on request)
Pulse peak power: a) 20 kW @ 10 kHz & 20 W
b) 30 kW @ 10 kHz & 40 W
Power stability: < 5%, < 3% (rms, 4 hours)
Beam diameter: a) < 6 mm (1/e²)
b) < 9 mm (1/e²)
Beam divergence: < 3.5 mrad (full angle)
Warm-up time: < 10 min
Beam height: 55 mm
Operating temperature: 15 ~ 35 °C
Cooling method: water cooled
Power supply: AC 220 V
Expected lifetime: 10.000 hours
Warranty: 1 year

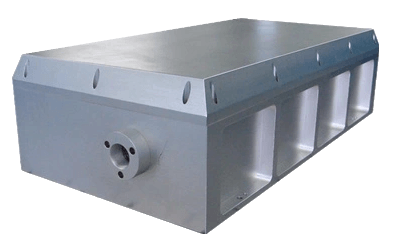

HPL-532-OM
LD Pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is used in laser inner carver, laser marking, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 20 ~ 100 W @ 15 k Hz
Pulse duration: ~ 100 @ 15 kHZ & 100 W
Repitition rate: 10 ~ 20 kHz (other rep. rate on request)
Pulse energy: 6.6 mJ
Pulse peak power: 66 kW @ 15 kHz & 100 W
Power stability: < 5%, < 3% (rms, 4 hours)
Beam divergence: < 3.5 mrad (full angle)
Beam diameter: < 12 mm (1/e²)
Warm-up time: < 10 min
Beam height: 65 mm
Operating temperature: 15 ~ 35 °C
Cooling method: water cooled
Power supply: AC 220 V
Expected lifetime: 10.000 hours
Warranty: 1 year

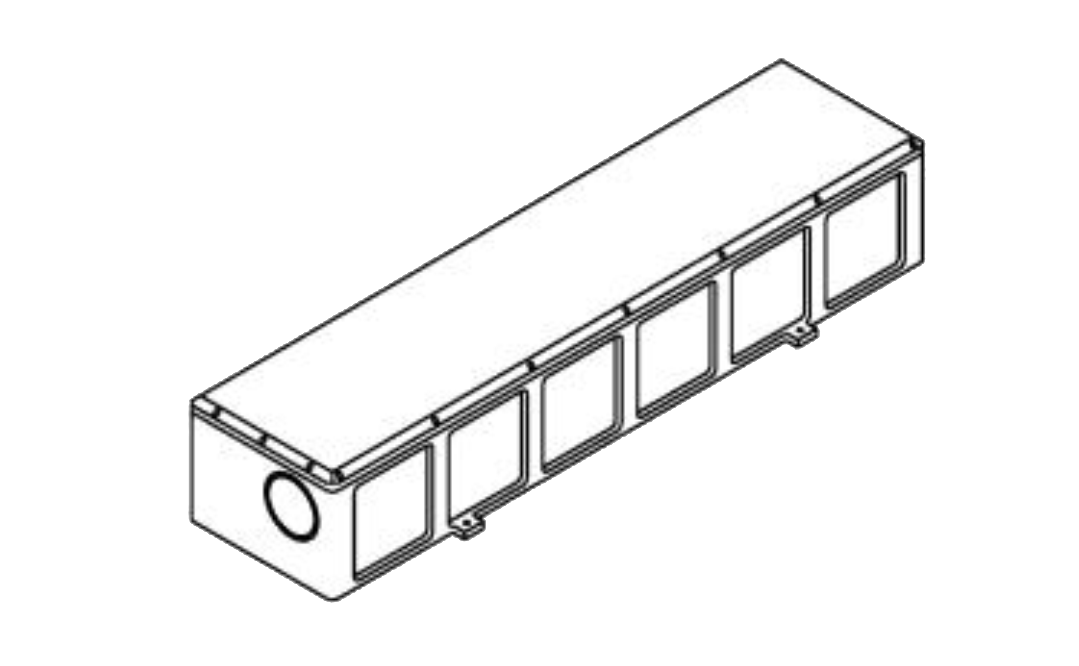

HPL-532-QL
LD Pumped all solid state AOM Q-switched laser at 532 nm. It features high peak power, high repetition rate, and short pulse duration, which is used in laser inner carver, laser marking, scientific research and so on.
Wavelength: 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 100 ~ 200 W
Pulse duration: ~ 100 @ 15 kHZ & 200 W
Repitition rate: 15 kHz (other rep. rate on request)
Pulse energy: 13 mJ
Pulse peak power: 130 kW @ 15 kHz & 200 W
Power stability: < 5%, < 3% (rms, 4 hours)
Beam divergence: < 3.5 mrad (full angle)
Beam diameter: < 15 mm (1/e²)
Warm-up time: < 10 min
Beam height: 100 mm
Operating temperature: 15 ~ 35 °C
Cooling method: water cooled
Power supply: AC 220 V
Expected lifetime: 10.000 hours
Warranty: 1 year
Dual wavelength acousto-optically Q-switched laser
AO-1064W & 532W
LD pumped all solid state AOM Q-switched laser at daul wavelengths 1064 nm and 532nm. It features high peak power, high repetition rate and short pulse duration. It is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
Wavelength: 1064 ± 1 nm & 532 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 50 W & 20 W(@ 60 kHz)*
Pulse energy: > 800 µJ & > 300 µJ (@ 60 kHz)
Pulsdauer:
Pulse duration: ~ 10 ns @ 60 kHz
Repitition rate: 50 ~ 100 kHz
Mode: TEM00
M²: < 1.2
Beam circularity: > 90%
Beam diameter: ~ 0.8 mm (1/e²)
Beam divergence: < 3.5 mrad (full angle)
Polarization ratio: > 100:1 horizontal & vertical
Warm-up time: < 10 min
Beam height: 91 mm
Operating temperature: 10 ~ 35 °C
Power supply: DC 30 V / 18.6 A (Power supply 100-240VAC available)
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)

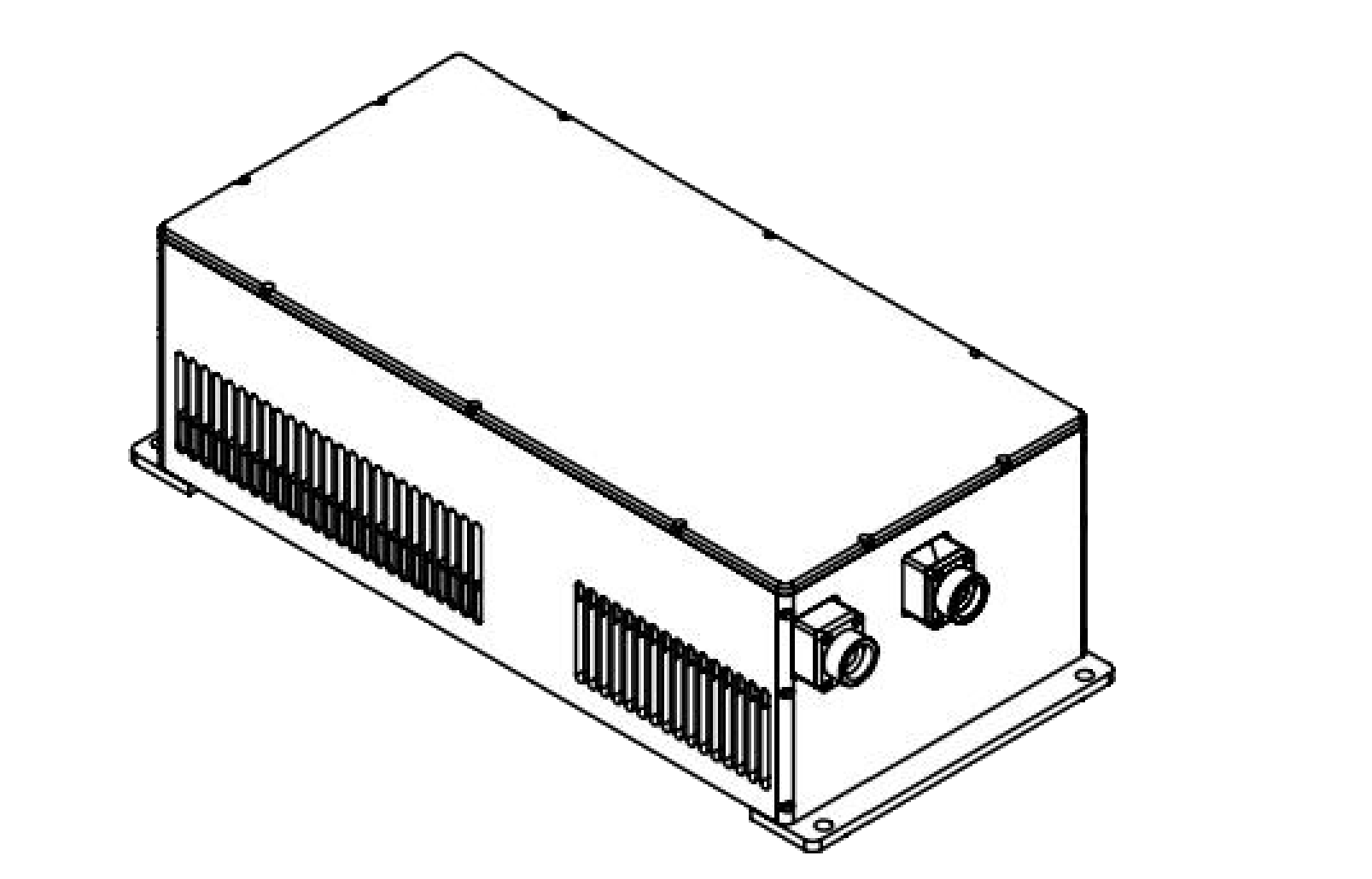

AO-U-532&266
LD pumped all solid state AOM Q-switched laser at daul wavelengths 532 nm and 266 nm. It features high peak power, high repetition rate and short pulse duration. It is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
Wavelength: 532 ± 1 nm & 266 ± 1nm
Operation mode: acousto-optically Q-switched pulsed laser
Avarage power: 3 W & 200 mW(@ 3 kHz)*
3 W & 400 mW(@ 5 kHz)*
Pulse energy: > 1000 µJ & > 60 µJ (@ 3 kHz)
> 500 µJ & > 80 µJ (@ 5 kHz)
Pulsdauer:
Pulse duration: ~ 15 ns
Repitition rate: 1 ~ 10 kHz
Pulse peak power: ~ 66 kW & ~ 5 kW
M²: < 1.2
Beam diameter: ~ 0.8 mm (1/e²)
Beam divergence: < 3.5 mrad (full angle)
Polarization ratio: > 100:1, vertikal & > 100:1, horizontal
Warm-up time: < 10 min
Beam height: 116.5 mm
Operating temperature: 10 ~ 35 °C
Power supply: DC 12 V / 25 A (Power supply 100-240VAC available)
*Average power (mW) = Single pulse energy (μJ) * Rep. rate (kHz)
