360 nm UV laser

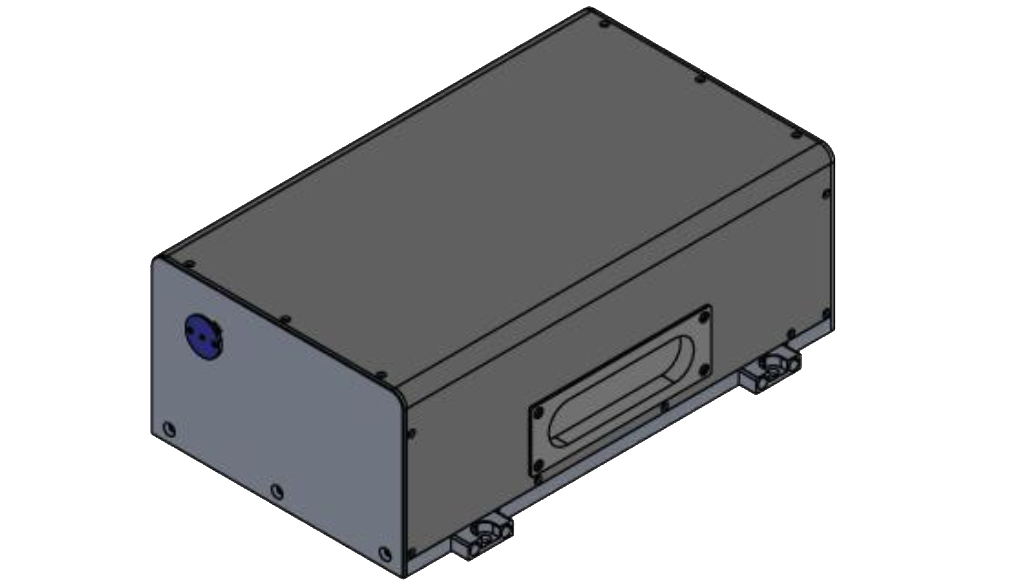

All solid state 360 nm UV laser. Features: ultra compact, cost-effectiveness and easy operating. Applications: DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurements, holography, physics experiments, etc.

Wavelength:                               360 ± 1nm

Operating mode:                       CW

Output power:                           1, 2, ..., 100 mW

Power stability:                         <2%, < 3%, < 5% (rms, 4 hours)

Transverse mode:                    ~ TEM00

Longitudinal mode:                  single

Spectral linewidth:                   < 0.00001 nm

Coherent length:                       > 50 m

Noise of amplitude:                 < 1%, < 0.5% (rms, 1Hz~20MHz)

M² factor:                                  < 2.0

Beam diameter:                        ~ 1.5 mm (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Polarization ratio:                     > 50:1 (vertical*)

Pointing stability:                     < 0.05 mrad

Frequency shift**:                    < ±200 MHz (over 8 hours); < 200 MHz/°C

Beam height:                             27.4 mm

Operating temperature:           10 ~ 40 °C

Max. heat sink temp.:               50 °C

Warm-up time:                          < 10 min

Power supply:                           AC 90-264V

Warranty:                                   1 Year

Attention: The laser head needs to be attached to heat sink with good heat dissipation

* horizontal orientation on request

** optional

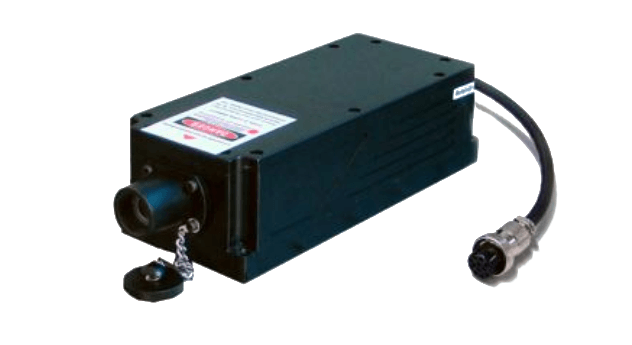

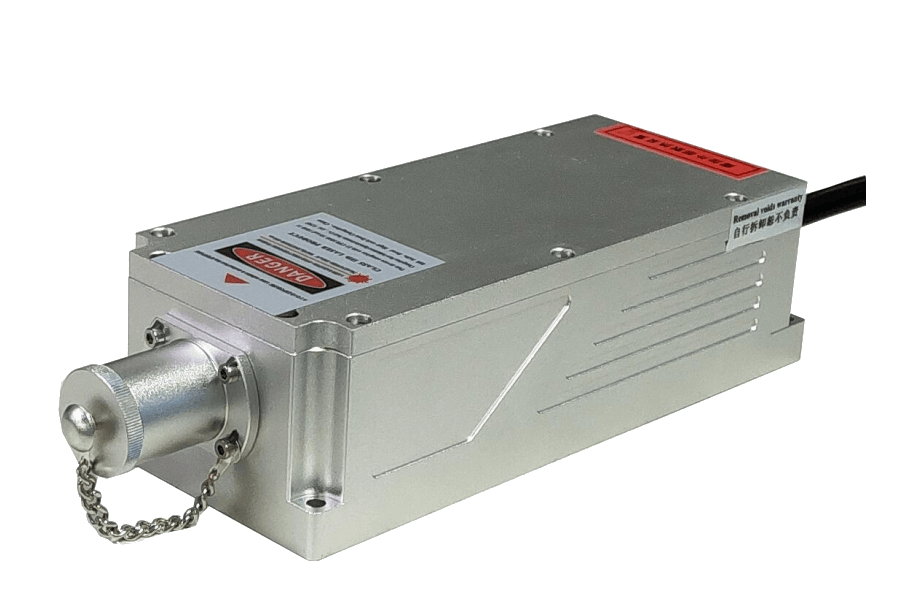

All solid state low noise UV laser at 360 nm. Features: TEM00,  long  lifetime and easy operating, which is widely used in measurement, laser medical treatment, schientific experiments, optical instruments, etc..

Wavelength:                              360 ± 1nm

Operating mode:                      CW

Output power:                          1, 2, ..., 50, 100, 200* mW

Power stability:                        < 3%, <2%, < 1%, 0.5%** (rms, 4 hours)

Line width**:                            < 0.2 nm**

Transverse mode:                   ~ TEM00* / TEM00**

Noise of amplitude**:             < 1% (rms, 1Hz ~ 20MHz)

M² factor:                                  < 1.5* / < 1.2**

Beam diameter:                       ~ 1.2 mm

Beam divergence:                    < 1.0 mrad (full angle)

Polarization ratio:                     > 50:1 (horizontal or vertical)

Pointing stability:                     < 0.05 mrad

Beam height:                             27,4 mm

Operating temperature:           10 ~ 35 °C

Mas. heat sink temp.:              50 °C

Warm-up time:                          < 10 min

Modulation:                               1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (TTL or analog)

Power supply:                           AC 90~264V

Warranty:                                   1 Year

Note: The laser head needs to be used on a heat sink with good heat dissipation.

* Model UV-FN-360 only

** Model MLL-FN-360 only

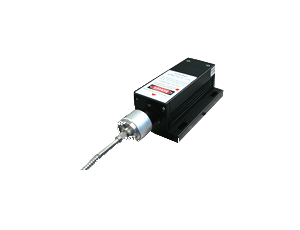

Nearly all 360 nm laser modules can be coupled with MM or SM fibers with different core diameters. Here you will find all possible fiber coupling options and their parameters.
