515 nm

Green 515 nm Solid State Laser (DPSS)

- Low noise, single longitudinal mode, high stability CW-laser
- High energy Q-swtiched laser
- Fiber coupled laser
- Fiberlaser

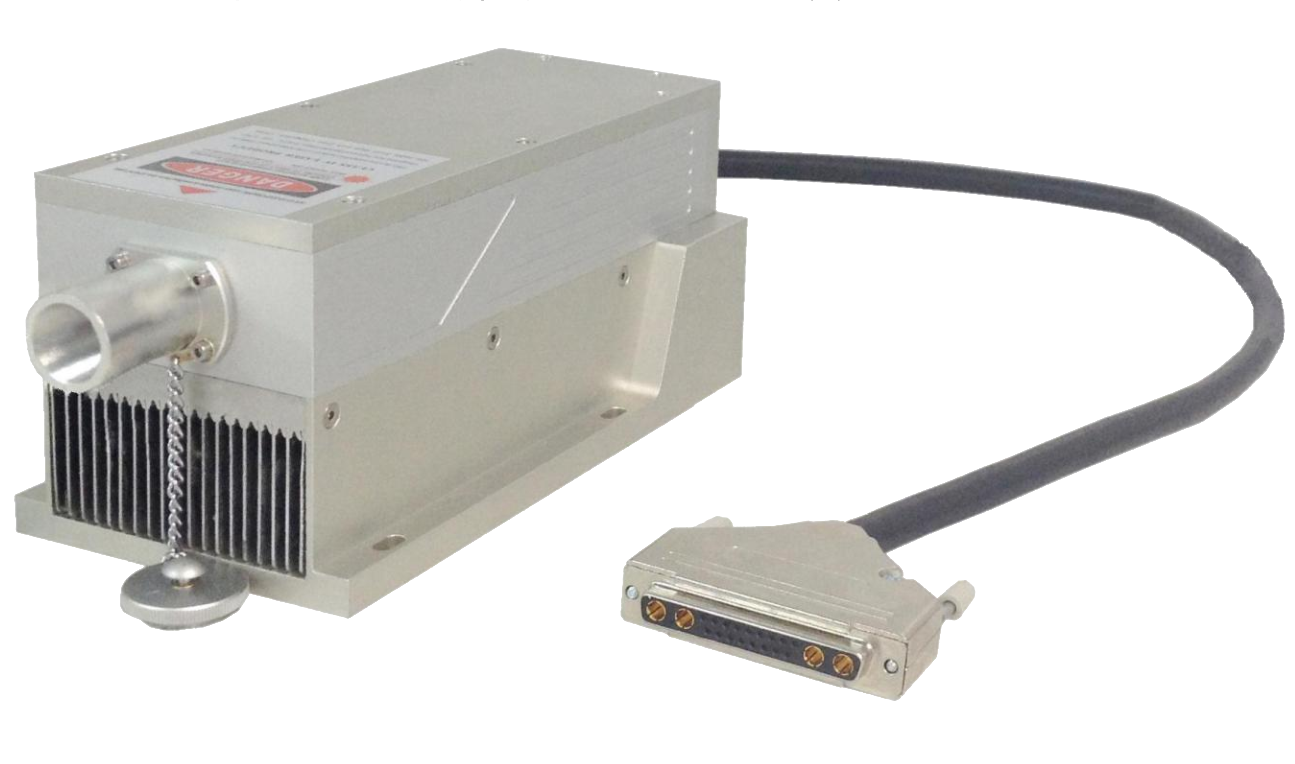

Q-switched 515 nm laser

MPL-N-515

LD pumped all-solid-state green laser @ 515 nm. It features of ultra compact design, long lifetime, cost -effectiveness and easy operating. The laser is widely used in scientific experiment, laser fluorescence, etc.


Wavelength:                        515 ± 1nm

Operation mode:                pulsed

Mode:                                  TEM00

Output power:                    1 ~ 60 mW (@ 4 kHz)

Power stability:                   < 10% (rms, 4 hours)

Pulse duration:                   ~ 10 ns

Pulse energy:                      1 - 30 µJ

Peak power:                        ~ 3000 W

Repetition rate:                   1 kHz - 2 kHz (predefined)

Beam diameter:                 ~ 3.0 mm (1/e²)

Beam divergence:              < 2.0 mrad (full angle)

Beam height:                      70 mm

Cooling:                               air cooling

Operating temperature:    15 ~ 30 ° C

Warm-up time:                   < 10 min

Power supply:                    AC 90~264 V

Expected lifetime:             10,000 hours

Warranty:                            1 year

Single frequency, low noise high stability green CW-laser at 515 nm

MSL-F-515

Single frequency solid state laser at 515 nm wavelength. Main advantages are long life time, ultra compact design, cost efficiency and easy operating. Applications: used in DNA sequencing, flow cytometry, cell sorting, spectrum analysis, physics experiment, etc.


Wavelength:                               515 ± 1nm

Operating mode:                       CW

Output power:                           1 - 20 mW

Power stability:                         < 1%, < 2%, < 3% (rms, 4 hours)

Transverse mode:                    TEM00

Longitudinal mode:                  single

Spectral linewidth:                   < 0.00001 nm

Coherent length:                       > 50 m

Noise of amplitude:                 < 1%, < 0.5% (rms, 1Hz~20MHz)

M² factor:                                  < 1.5

Beam diameter:                        ~ 3.0 mm (1/e²)

Beam divergence:                    < 2.0 mrad (full angle)

Polarization ratio:                     > 100:1 horizontal (vertical*)

Pointing stability:                     < 0.05 mrad

Beam height:                             45 mm

Operating temperature:           10 ~ 35 °C

Max. heat sink temp.:               50 °C

Warm-up time:                          < 5 min

Power supply:                           AC 90-264V

Expextedt life time:                  10,000

Warranty:                                   1 Year


*as option

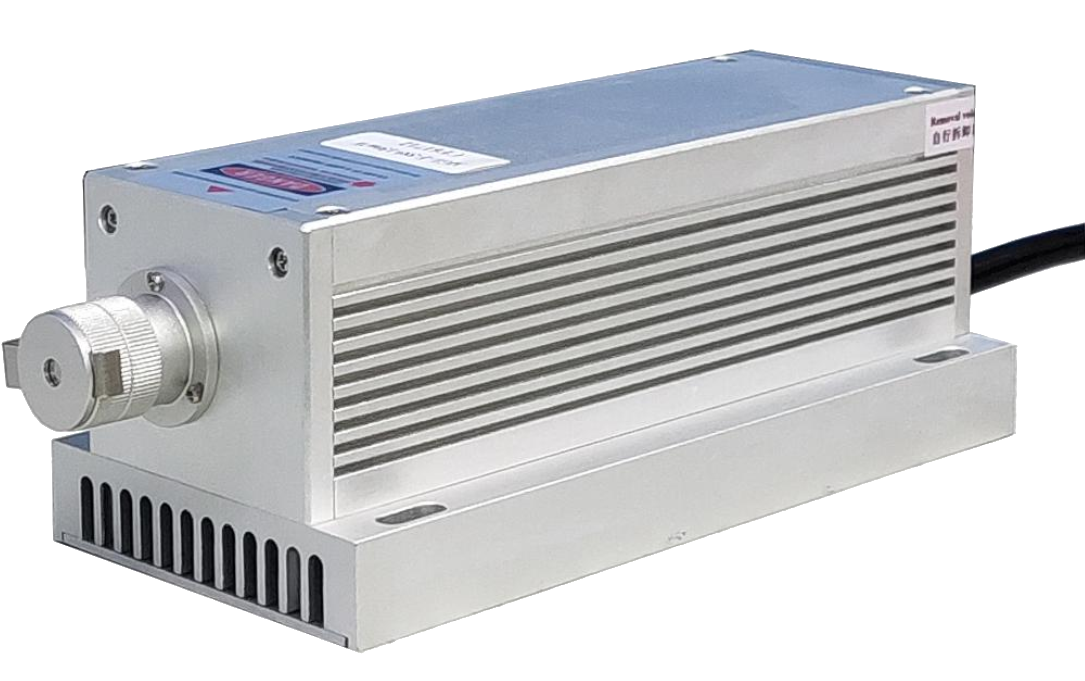

MGL-F-515

Green solid state laser at 515 nm wavelength. Main advantages are long life time, ultra compact design, cost efficiency and easy operating. Applications: used in fluorescence sensors, Raman spectrum, laser printing, holography, laser display, submarine communication, biomedicine, laser lighting show, etc.


Wavelength:                               515 ± 1nm

Operating mode:                       CW

Output power:                           1 - 100 mW

Power stability:                         < 1%, < 2%, < 3% (rms, 4 hours)

Transverse mode:                    ~ TEM00

M² factor:                                  < 2.0

Beam diameter:                        < 3.0 mm (1/e²)

Beam divergence:                    < 2.0 mrad (full angle)

Polarization ratio:                     > 100:1 horizontal (vertical*)

Pointing stability:                     < 0.05 mrad

Beam height:                             45 mm

Operating temperature:           10 ~ 35 °C

Max. heat sink temp.:               50 °C

Warm-up time:                          < 5 min

Power supply:                           AC 90-264V

Modulation**:                           1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz ; TTL (+ analog optional)

Expextedt life time:                  10,000

Warranty:                                   1 Year


*as option

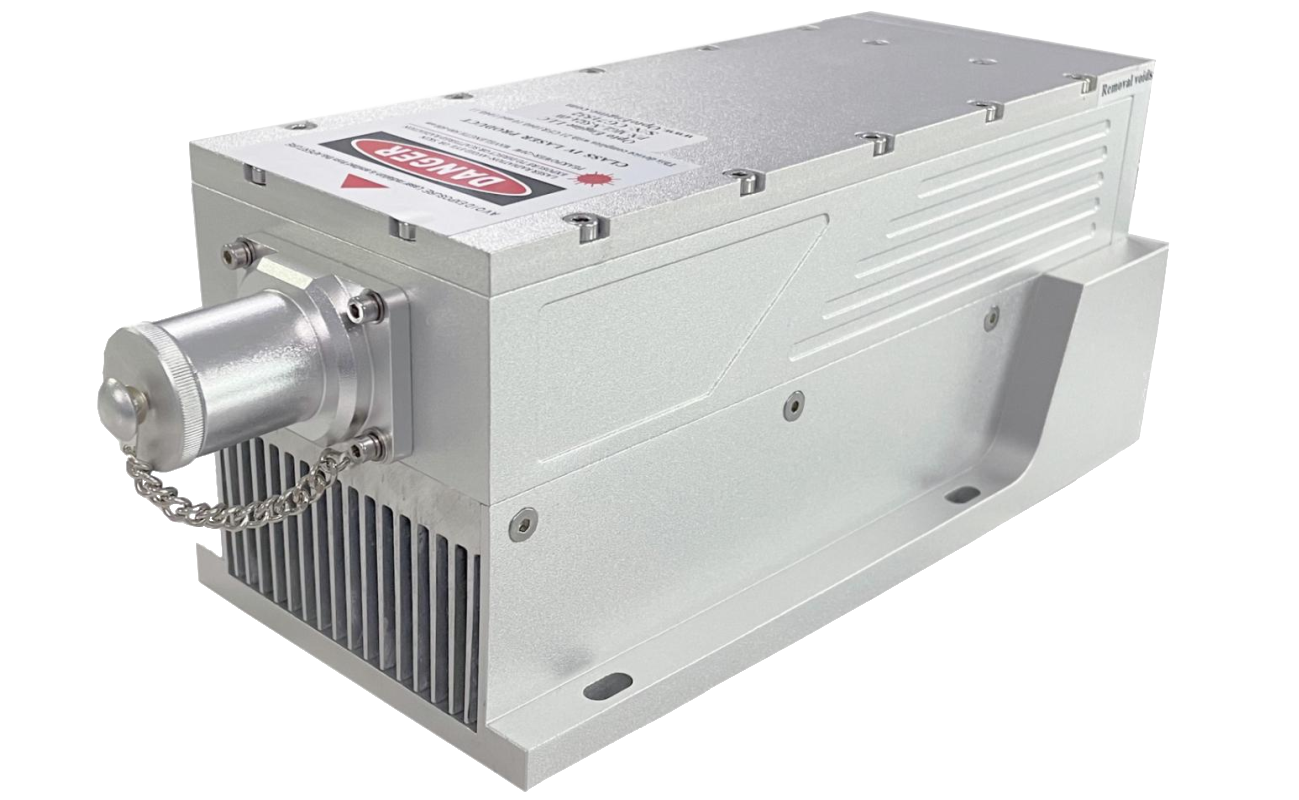

MLL-N-515 | MGL-N-515

All solid state 515nm green laser. It features ultra compact design, long lifetime and easy operating. This laser is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.


Wavelength:                        515 ± 1 nm

Operating mode:                CW

Output power*:                   1, 10, ..., 100 mW

Output power**:                 100, 110, ..., 150 mW

Power stability:                   < 1%*, < 2%*, < 3%, < 5% (rms, 4 hours)

Mode:                                   TEM00

M²:                                        < 1.2

Noise of amplitude*:         < 1% (rms, 1 Hz ~ 20 MHz)

Beam diameter:                  ~ 2.0 mm (1/e²)

Beam divergence:              < 1.2 mrad (full angle)

Polarization ratio:              > 100:1

Beam height:                       68.4 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 10 min

Power supply:                     AC 90 ~ 264 V

Modulation**:                     1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; TTL or analog

Expected lifetime:              10.000 hours

Warranty:                             1 Year


* Model MLL-N-515 only

** Model MGL-N-515 only

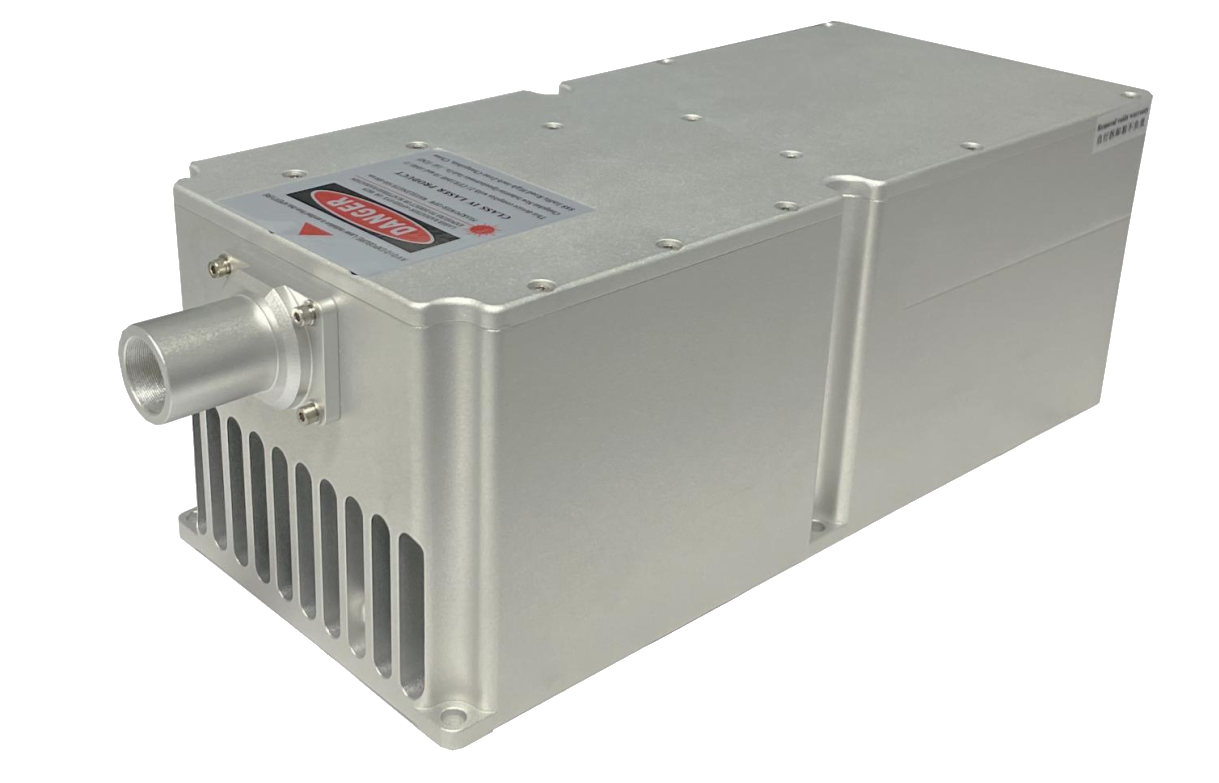

MGL-W-515A

All solid state 515nm green laser. It features ultra compact design, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.


Wavelength:                        515 ± 1 nm

Operating mode:                CW

Output power:                     150, 200, ..., 500 mW

Power stability:                   < 3%, < 5% (rms, 4 hours)

Mode:                                   ~ TEM00

M²:                                        < 3.0

Beam diameter:                  ~ 3.0 mm (1/e²)

Beam divergence:              < 2.0 mrad (full angle)

Polarization ratio:              > 100:1

Beam height:                       80 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 10 min

Power supply:                     AC 90 ~ 264 V

Modulation*:                       1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; TTL or analog

Expected lifetime:              10.000 hours

Warranty:                             1 Year


*as option

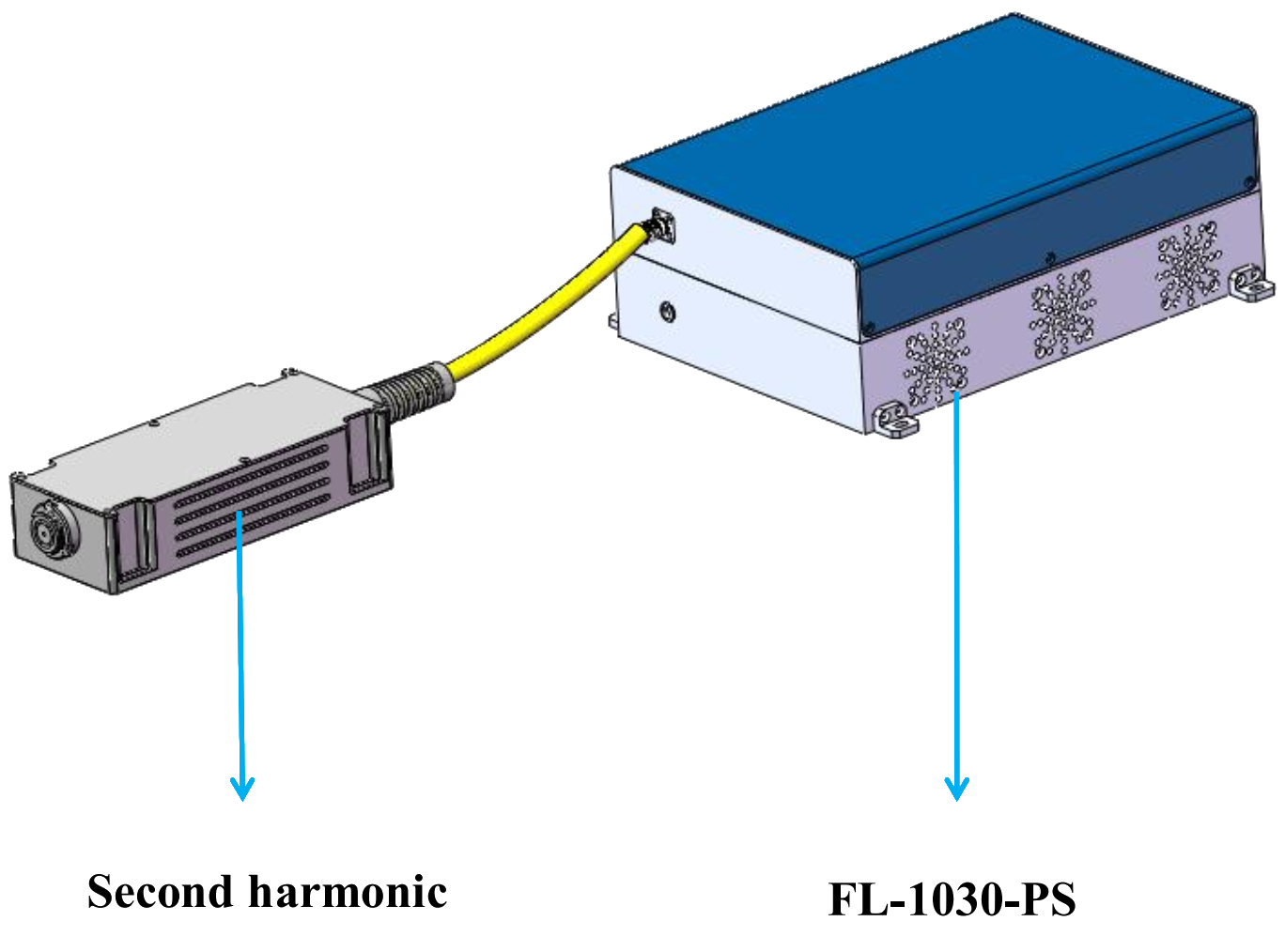

Fiberlaser at 515 nm

FL-515-PS

Mode-locked all fiber pulsed laser at 515nm with SESAM technique. This laser features high output power stability, good beam profile, ultra compact design, long lifetime,cost- effectiveness and easy operating, which is widely used in TCSPC, picosecond processing, scientific research, etc.


Wavelength:                               515 ± 1nm

Operating mode:                       passive mode locked

Output power:                           100 mW, 200 mW

Power stability:                         < 2%, < 3% (rms, 4 hours)

Pulse duration:                          ~ 10 ps

M² factor:                                   < 1.5

Pulse energy:                             1 - 30 µJ

Repetition rate:                          20 - 50 +/- 1 MHz (predefined)

Polarization ratio:                      > 15 dB

Beam height:                              30 mm

Fiberlength:                                variable

Operating temperature:            15 ~ 30 ° C

Warm-up time:                           < 15 min

Power supply:                            DC 12 V

Expected lifetime:                     10,000 hours

Warranty:                                    1 year

FL-515-Pico

Picosecond all fiber pulsed laser at 515nm. It features high output power stability, good beam profile, ultra compact design, long lifetime,cost-effectiveness and easy operating. The laser is widely used in TCSPC, picosecond processing, laser drilling, glass engraving, scientific research, etc.


Wavelength:                               515 ± 1nm

Operating mode:                       pulsed

Output power:                           a) 1 ~ 100 mW

                                                    b) 100 ~ 1000 mW

Power stability:                         < 2%, < 3%, < 5% (rms, 4 hours)

Pulse duration:                          100 ~ 900 ps (fixed)

M² factor:                                   a) < 1.5

                                                     b) < 2

Repetition rate:                          a) 0.1 - 20 MHz (fixed)

                                                     b) 0.1 - 1 MHz (fixed)

Polarization ratio:                      > 15 dB

Beam height:                              30 mm

Fiberlength:                                variable

Operating temperature:            15 ~ 30 ° C

Warm-up time:                           < 15 min

Power supply:                            DC 24 V

Expected lifetime:                     10,000 hours

Warranty:                                    1 year


Options:

(1) Pulse width 100 ~ 900 ps variable

(2) Repetition rate 0.1 ~ 20 MHz or 0.1 ~ 1 MHz variable

(3) RS 232 interface

(4) Higher output power can be customized

FL-515-Nano

High frequency all fiber pulsed laser at 515nm. It features of high output power stability, good beam profile, ultra compact design, long lifetime, low cost and easy operating, which is widely used in laser drilling, glass engraving, scientific research, etc.



Wavelength:                               515 ± 1nm

Operating mode:                       pulsed

Output power:                           10, 100, 500, 1000 mW

Power stability:                         < 2%, < 3% (rms, 4 hours)

Pulse duration:                          0.5 ~ 50 ns (fixed)

M² factor:                                   < 1.8

Repetition rate:                          0.1 - 1 MHz (fixed)

Polarization ratio:                      > 15 dB

Fiberlength:                                variable

Operating temperature:            15 ~ 35 ° C

Warm-up time:                           < 15 min

Power supply:                            AC 220 V / DC 12 V

Expected lifetime:                     10,000 hours

Warranty:                                    1 year


Options:

(1) Pulse width 0.5 ~ 5 ns or 5 ~ 50 ns variable

(2) Repetition rate 0.1 ~ 1 MHz variable

(3) RS 232 interface

(4) Higher output power can be customized

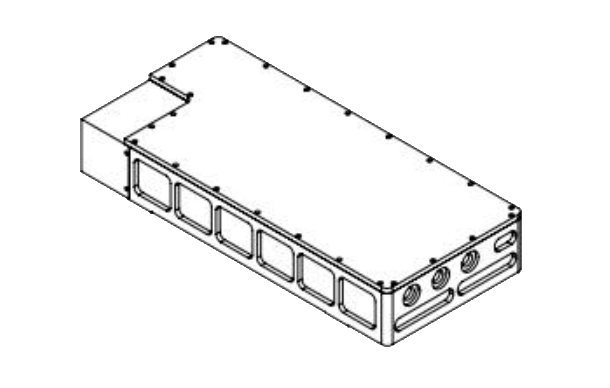

Picosecond-pulsed laser at 515 nm

PS-R-515

On request

PS-R-515

On request
