Wide tunable narrow linewidth laser system from ultraviolet to infrared based on Ti:Sapphire and dye

Wavelength                   260-1100 nm
Output power                up to 4 W (550-1100 nm)
                                        up to 500 mW (260-550 nm)
Scanning range            > 200 GHz ( > 300 GHz)
Linewidth                      1- 6 GHz (others on demand)
T&D-scan is an unique fully computer-controlled powerful broadly tunable laser system for research studies in nano- & bio-domains demanding fine resolution and high spectral density of CW radiation within UV-VIS-NIR spectral ranges.

This fully automated laser system based on our CW narrow linewidth laser (line-width < 1 GHz) comes as a perfect embodiment of modern ideas and technology innovation in the field of nanotechnology-oriented smart tunable laser spectrometers.

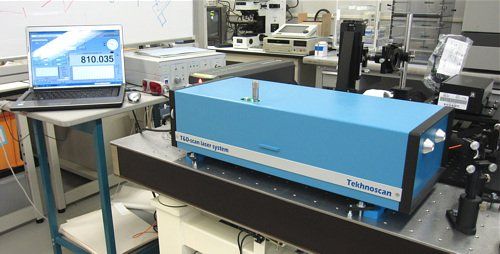

Hybride laser system Ti:Sa dye computer controlled software tunable
Novel advanced design of the fundamental laser component implements efficient intra-cavity frequency doubling as well as provides a state-of-the-art combined ultra-wide-tunable Ti:Sapphire & Dye laser covering a super-broad spectral region between 260 and 1100 nm.

The wavelength range is defined by the optics and can be adapted according customer’s needs (the wavelength ranges can be reduced, increased or moved).

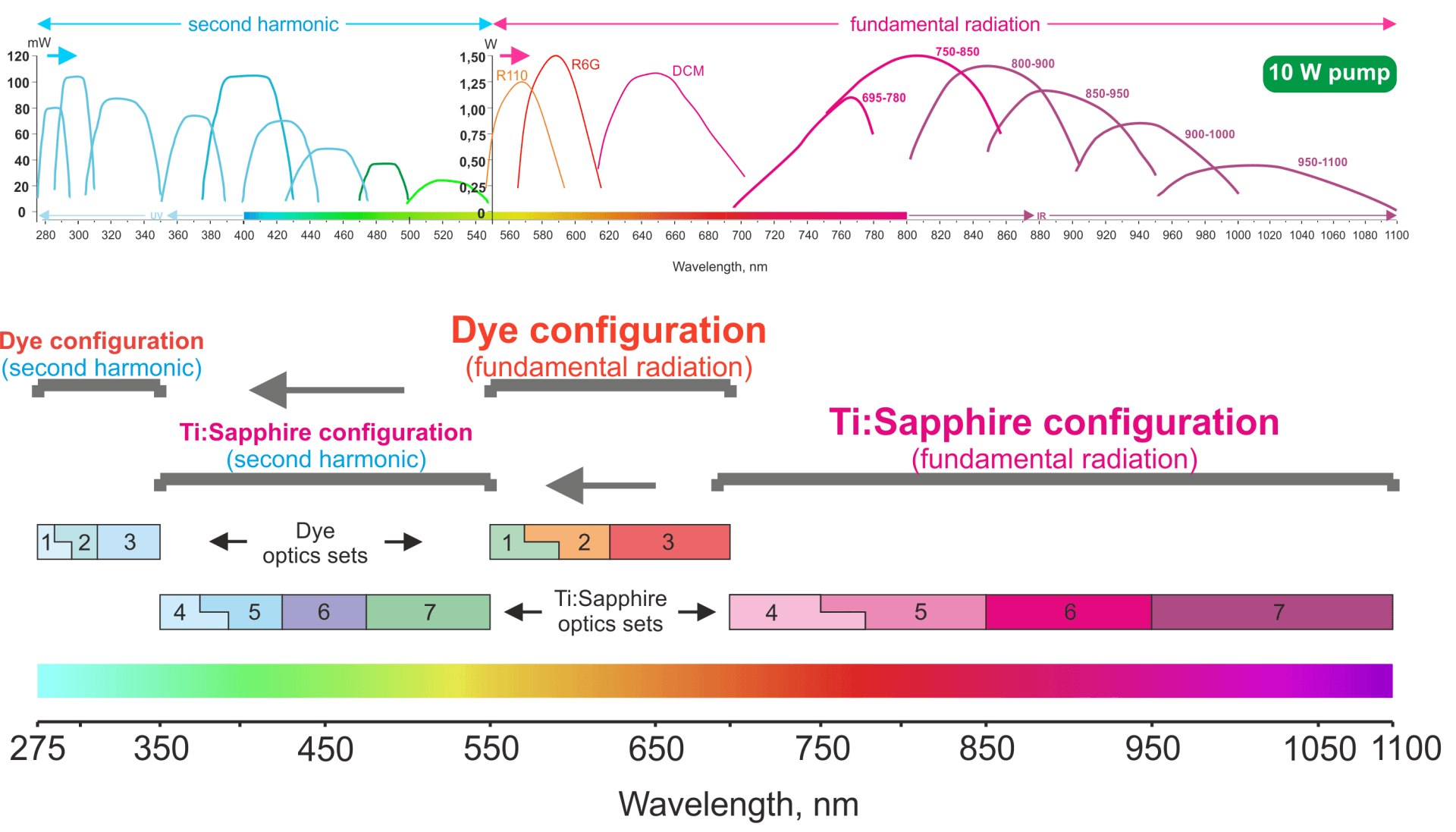

Ti:Sapphire dye tunability spectrum, frequency range, UV-IR, Ultraviolet Infrared, Power R110 R6G DCM Coumarin Pyridine
Ti:sapphire dye laser software wevelength settings control tunability
The laser system is fully controllable through a user-friendly computer interface that offers a variety of modes for setting and scanning of the radiation wavelength as well as different modes of data acquisition and recording.

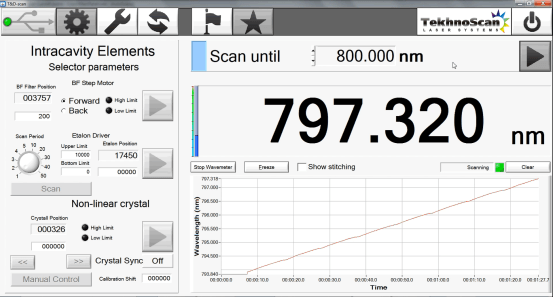

The "T&D-scan" features LabView based software running under Windows XP/7/10. For acquisition of experimental data an 8-channel 16-bit ADC is used with quantisation frequency of 3 MHz and channel multiplexing frequency 3 MHz.
The "T&D-scan" laser system includes, as its base, a CW ultra-wide-tunable narrow-line laser, high-precision wavelength meter, an electronic control unit driven through USB interface as well as a software package.


The "T&D-scan" system is designed for wide-range spectral studies and characterisation of quantum semiconductor structures, meta-materials, as well as for nano-technological applications, and quality control.

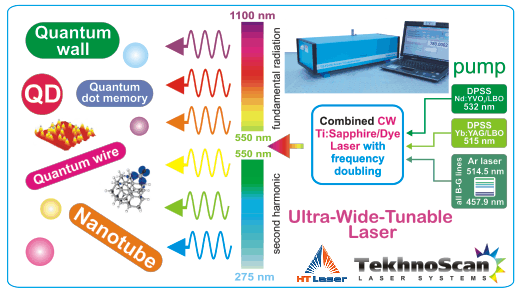

Laser application narrow linewidth Ultraviolet-Infrared UV-IR tunable laser cooling, nano tubes, quantum wires, quantum walls
NEW

The spectrum of the T&D-Scan laser system has been extended to 260-275 nm in the DUV. On the other hand, the fundamental wavelength in the range of 520-550 nm better covers the gap between the dye R110 (550-590 nm) and the frequency-doubled titanium sapphire (475-550 nm), where the power is naturally lower. For this, the dye Coumarine 540 is used, which is pumped with 488nm DPSS laser. The power in this range exceeds 25 mW in the second harmonic and 150 mW in the fundamental wavelength.

As a result of this extention, the T&D scan laser system continues to expand its working range into "Deep UV", thus offering new possibilities of usage in new application fields.

Type of laser:

Combined narrow line width, wide tunable CW-system:
(1) Ti:Sapphire laser
(2) Ti:Sapphire laser with integrated frequency dounling
(3) Dye laser
(4) Dye laser with integrated frequency dounling

Wavelength range

260-1100 nm:
680-1100 nm (1)
340-550 nm (2)
520-700 nm (3)
260-350 nm (4)

Power

up to 4 W at 550-1100 nm
up to 500 mW at 260-550 nm

Linewidth

< 0,001nm (TiS) + < 0,003nm (Dye);
up to 0,5nm available
< 1GHz (TiS) + < 3GHz (Dye);
up to 500GHz available

Accuracy

0,001 nm

Tunability

up to 300 GHz (smooth scanning / step-scan)

Data channels

8-channel 14-bit ADC, 12-bit DAC,
6 input ports, 4 output ports

Accessories (optional)

notebook, laser power meter, UV-IR viewer, extra dye circulation unit, pump laser
FEATURES

Compact design

icluding intra-cavity frequency doubling and two high-effective spectral selectors

Continuous tunability

in ultra-wide spectral range 260 - 1100 nm

Computer controlled

Fully automated system with user friendly interface, programmable

Fast

Quick tuning of the laser line to the given wavelength. Simple mirror change procedure when switching spectral ranges.

Possibility of direct pumping

without any additional mirrors and/or spacers by popular DPSS lasers

Flexible

Operation in Ti:Sapphire and dye configuration possible
