442 nm

442 nm diode laser

- Fiber coupled laser
- low noise, narrow linewidth, high power CW diode laser
- OEM laser

Low noise, high stability blue violet laser at 442 nm

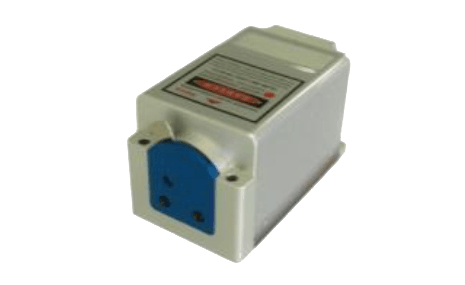

MDL-XS-442

This laser features integrated electronics, plug and play, miniaturization, international standard interface. They are the ideal solution for a wide range of applications including life sciences, environmental monitoring, inspection and machine vision.


Wavelength:                               442 ± 5 nm

Operating mode:                       CW

Output power:                           1, 10, ..., 80 mW

Power stability:                         < 1%, < 2%, < 3% (rms,  hours)

Mode:                                         ~ TEM00

Noise of amplitude:                 < 0.5%, < 1%(rms, 1Hz ~ 20MHz)

M²:                                              < 1,2

Beam diameter:                        ~ 1.2 mm (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Polarization ratio:                     > 50:1, > 100:1 optional (horizontal or vertical)

Beam height:                            19 mm

Operating temperature:           10 ~ 35 °C

Warm-up time:                          < 5 min

Power supply:                           DC 12V 4A

Modulation:                               DMOD (TTL) up to 1 MHz

                                                    AMOD (Analog) up to 100 kHz

                                                    DMOD + AMOD (TTL + Analog)

Expected lifetime:                    10.000 hours

Warranty:                                   1 Year


Note: The laser head needs to be used on a heat sink with good heat dissipation.

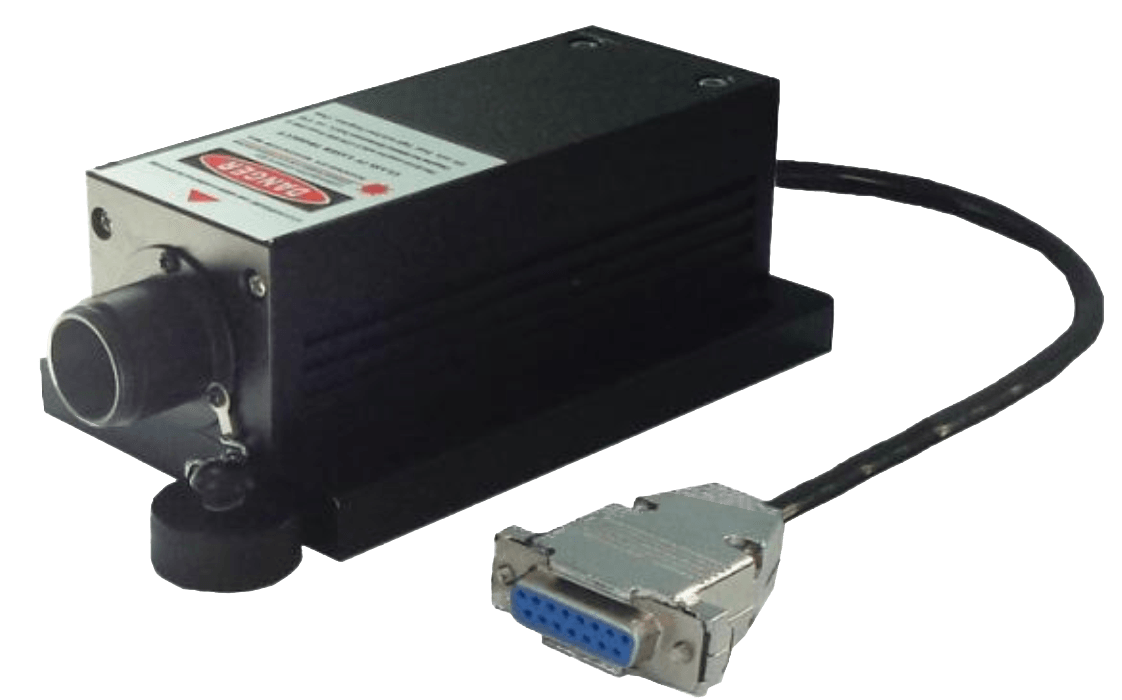

MLL-III-442L | MDL-III-442L

442 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 10 nm

Operating mode:                CW

Output power:                     >1, 10, ..., 80 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%)

                                              (rms, 4 hours)

Mode:                                   nearTEM00

M²:                                        < 1.5 (< 1.2 optional)

Noise of amplitude*:          < 1% (rms, 10Hz~20MHz)

Beam diameter:                  3.5 mm (1/e²)

Beam divergence:               < 1 mrad (full angle)

Polarization ratio:               > 50:1, > 100:1 (horizontal or vertical)

Beam height:                       24.8 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz -30 kHz; 30 kHz - 100 kHz (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year


* Model MLL-III-442L only

MLL-III-442 | MDL-III-442

442 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 5 nm

Operating mode:                CW

Output power:                     a) > 80, 50, ..., 500 mW

                                              b) > 500, 600, ..., 1000 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%)

                                              (rms, 4 hours)

Mode:                                   multimode

Noise of amplitude*:          < 1% (rms, 10Hz~20MHz)

Beam diameter:                  a) < 2.5 x 5.2 mm (1/e²)

                                              b) < 2 x 5 mm² (1/e²)

Beam divergence:              a) < 2.1 x 1.6 mrad (full angle)

                                              b) < 2.5 x 0.2 mrad (full angle)

Beam height:                       24.8 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year


* Model MLL-III-442 only

MLL-F-442 | MDL-F-442 | F-442-HS (ultra compact)

442 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 5 nm

Operating mode:                CW

Output power:                     a)* 1, 10, .., 1000 mW

                                              b) > 1000, 1100, ..., 2000 mW

                                              c) > 2000, 2100, ..., 3500 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%)

                                              (rms, 4 hours)

Mode:                                   multimode

Noise of amplitude**:         < 1% (rms, 20Hz~20MHz)

Beam diameter:                  a) < 2.7 x 2.7 mm (1/e²)

                                              b) < 2.7 x 2.7 mm (1/e²)

                                              c) < 3.5 x 3.5 mm² (1/e²)

Beam divergence:              < 1.4 x 0.2 mrad (full angle)

Beam height:                       45 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 100 ~ 240 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year


* Model F-442-HS only

** Model MLL-F-442 only

MDL-SD-442

442 nm high power blue diode laser module. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 5 nm

Operating mode:                CW

Output power:                     > 3500, 3600, ..., 4000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  a) ~ 4.7 x 2.7 mm

                                              b) < 2.7 x 2.7 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Polarisation:                       a) horizontal / vertical

                                              b) horizontal + vertical

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 100 ~ 240 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

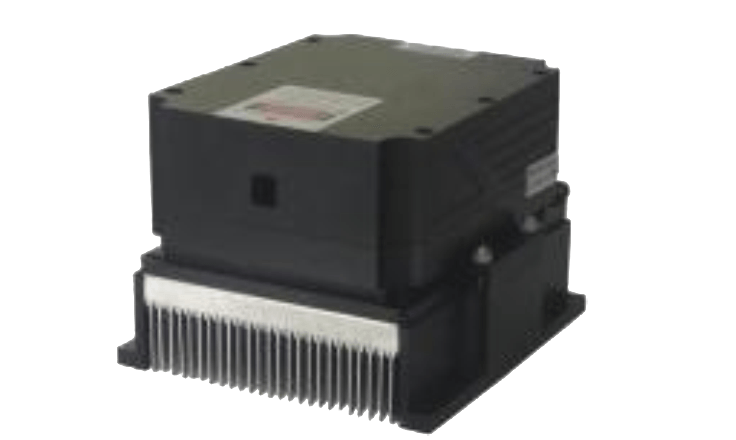

MDL-D-442

442 nm high power blue diode laser module. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 5 nm

Operating mode:                CW

Output power:                     > 4000, 5000, ..., 8000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  ~ 3.2 x 3.2 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Polarisation:                       horizontal + vertical

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 100 ~ 240 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

Diode laser with narow linewidth at 442 nm

MDL-C-442 / MDL-E-442

Diode laser at 442 nm. It features a narrow spectral linewidth, long coherent length, stable wavelength, long lifetime and easy operation.They are widely used in holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, Laser radar, precision measurement, etc.


Wavelength:                        442 ± 1 nm

Operating mode:                CW

Output power:                    1, 10, ..., 50 mW

Power stability:                  < 1%, < 2%, < 3%

                                             (rms, 4 hours)

Mode:                                  ~ TEM00

Coherent length*:              > 1 m

Spectral line width**:        < 0.06 nm (< 0.03 nm)

Beam diameter:                 ~ 1.3 mm (1/e²)

Beam divergence:             < 1.5 mrad (full angle)

Polarization ratio:              > 50:1 (> 100:1 optional)

                                             (horizontal or vertical, +/- 5°)

Beam height:                     30 mm

Operating temperature:    20 ~ 30 °C

Warm-up time:                   < 5 min

Power supply:                    AC 100 ~ 240 V

Expected lifetime:             10.000 hours

Warranty:                            1 Year


* Model MDL-C-442 only

** Model MDL-E-442 only

OEM laser at 442 nm

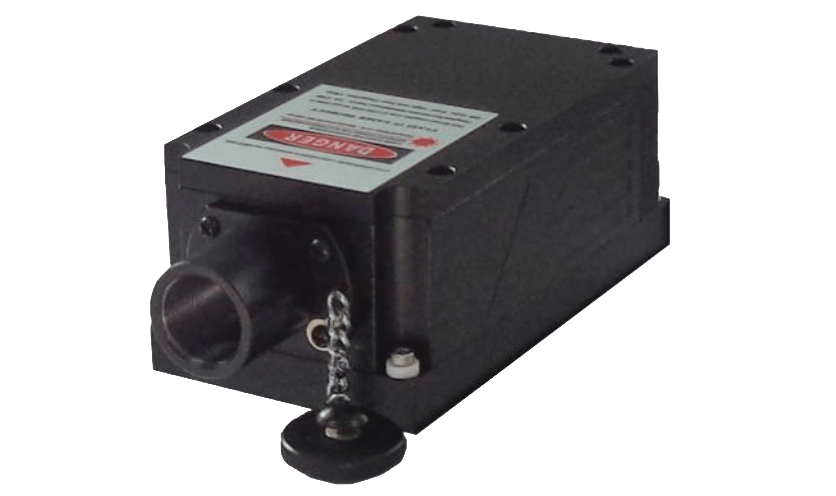

F-442-HS-OEM

442 nm blue diode laser. IIt features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 5 nm

Operating mode:                CW

Output power:                     a) 1, 10, .., 2000 mW

                                              b) > 2000, 2100, ..., 3500 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%)

                                              (rms, 4 hours)

Mode:                                   multimode

Beam diameter:                  a) < 2.7 x 2.7 mm (1/e²)

                                              b) < 3.5 x 3.5 mm² (1/e²)

Beam divergence:              < 1.4 x 0.2 mrad (full angle)

Beam height:                       25 mm

Operating temperature:     25  ± 3 °C

Warm-up time:                    < 5 min

Power supply:                     DC 8 V; 7 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (TTL oder Analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

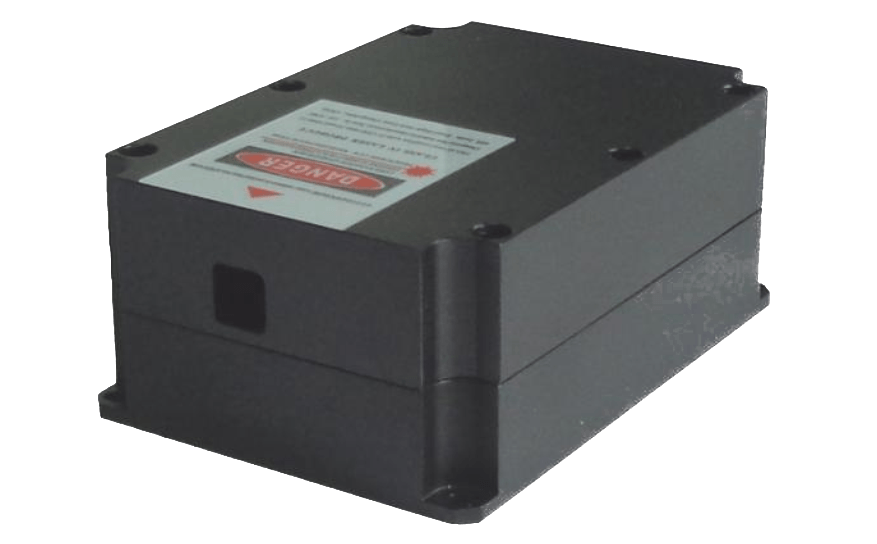

MDL-SD-442-OEM

442 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 5 nm

Operating mode:                CW

Output power:                     > 3500, 3600, ..., 4000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  a) ~ 4.7 x 2.7 mm

                                              b) ~ 2.7 x 2.7 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Polarisation:                       a) horizontal / vertical

                                              b) horizontal + vertical

Operating temperature:     25 ± 3  °C

Warm-up time:                    < 5 min

Beam height:                       28.5 mm

Power supply:                     DC 12 V; 15 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

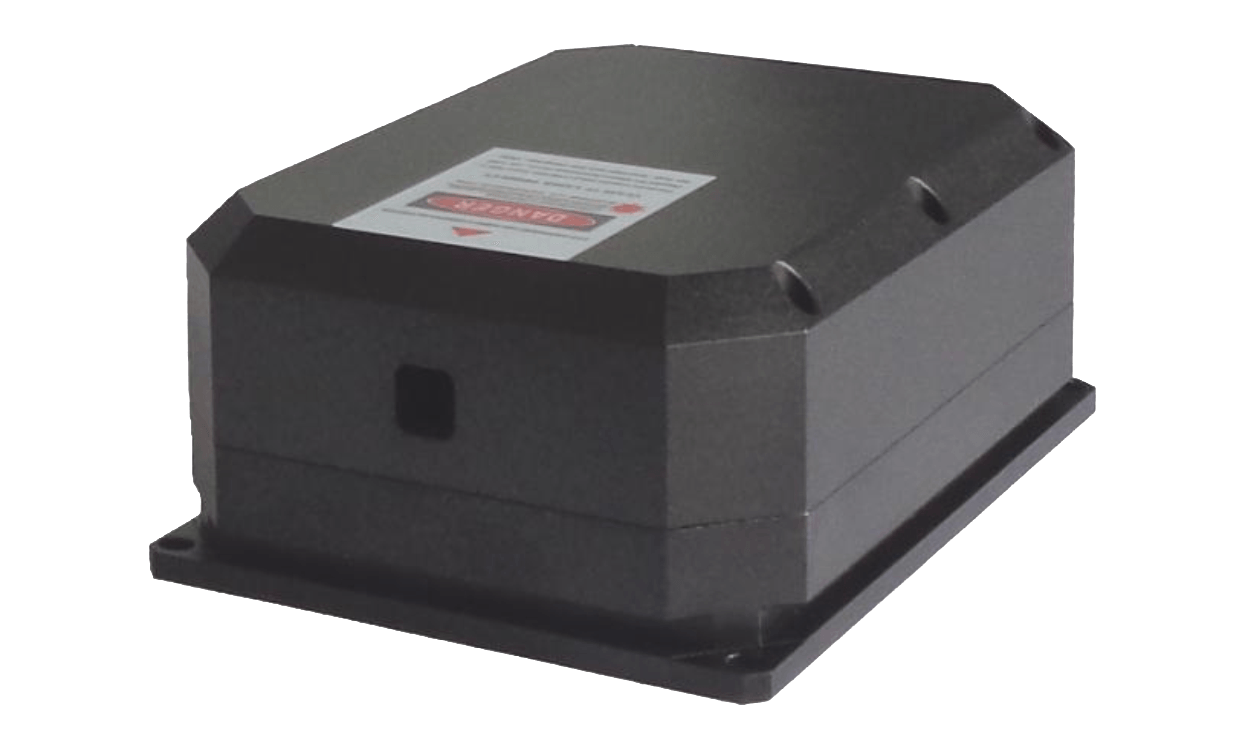

MDL-D-442-OEM

442 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 5 nm

Operating mode:                CW

Output power:                     > 4 , 5, ..., 8 W

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  ~ 3.2 x 3.2 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Polarisation:                        horizontal + vertical

Beam height:                       35 mm

Operating temperature:     25 ± 3  °C

Warm-up time:                    < 5 min

Power supply:                     DC 12 V; 15 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

TEM00 CW laser at 442 nm

TEM-F-442

The model TEM-F-442 features TEM00 mode, ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in measurement, communication, spectrum analysis, etc.


Wavelength:                        442 ± 5 nm

Operating mode:                CW

Output power:                    1, 10, ..., 15 mW

Power stability:                  < 1%, < 2%, < 3% (rms, 4 hours)

Mode:                                  TEM00

Ellipticity:                           > 0.95

M²:                                       < 1.1

Beam diameter:                 ~ 1.0 mm (1/e²)

Beam divergence:             < 1.5 mrad (full angle)

Beam height:                     25 mm

Operating temperature:   25 +/-3 °C

Warm-up time:                  < 5 min

Power supply:                   AC 85 ~ 264 V

Modulation:                       TTL or analog 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz

Expected lifetime:             10.000 hours

Warranty:                            1 Year


Note: The laser head needs to be attached to heat sink with good heat dissipation.

 Fiber coupled blue laser at 442 nm

MDL-442(FC)

Nearly all 442 nm laser modules can be coupled with MM or SM fibers with different core diameters. Here you will find all possible fiber coupling options and their parameters.

FC-442

The FC series (Fiber Coupling Laser System) includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.
