355 nm

355 nm UV laser

Q-switched and CW laser. Diode pumped or lamp pumped solid state laser (DPSS or LPSS)  and fiber laser at 355 nm wavelength

Passively Q-switched laser 355 nm

MPL-F-355

All solid state 355 nm UV laser is made  features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed

Mode:                                 ~ TEM00 (Wal-off)

Output power:                   1 ~ 100 mW

Power stability:                 < 5%, < 10% (rms, 4 hours)

Pulse duration:                  ~ 5 ns

Pulse energy:                     0.1 ~ 15 µJ

Peak power:                       200 ~ 3000 W

Repitition rate:                   1 - 4 kHz; QCW 5 - 10 kHz*

Spectral purity:                  > 99%.

Beam diameter:                 ~ 1.2 mm

Beam divergence:            < 1.5 mrad (full angle)

Polarization ratio:             > 100:1

Beam height:                     45 mm

Operating temperature:   10 ~ 35 °C

Warm-up time:                  < 5 min

Power supply:                   AC 90 - 264V

Warranty:                           1 year


*Setting up one fixed rep. rate internal or by external triggering between 1 kHz - 4 kHz with stable pulse energy, pulse duration and pulse period.

QCW state with one rep. rate between 5 kHz - 10 kHz.

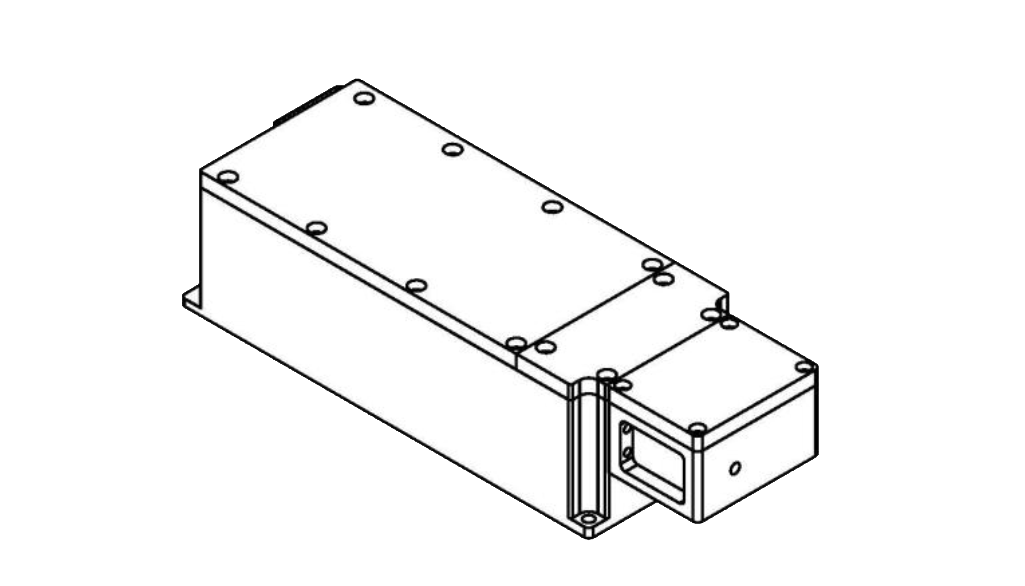

MPL-Q-355

All solid state 355 nm UV laser is made features of ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed

Mode:                                 ~ TEM00

Output power:                   1 ~ 150 mW

Pulse energy:                     0.1 ~ 15 µJ


Pulse width:

a) ~ 4 ns                |  b) ~ 1.3 ns

Pulse peak power:

a) 25 ~ 37500 W  |  b) 75 ~ 11000 W


Power stability:                 < 5%, < 10% (over 4 hours)

Repitition rate:                   3 - 5 kHz; QCW 9 - 12 kHz*

Beam diameter:                 1.2 mm (1/e²)

Beam height:                     70 mm

Operating temperature:   10 ~ 35 °C

Warm-up time:                  < 10 min

Power supply:                   AC 90-264V

Expected lifetime:            5000 hours

Warranty:                           1 year


*Setting up one fixed rep. rate internal or by external triggering between 3 kHz - 5 kHz with stable pulse energy, pulse duration and pulse period.

QCW state with one rep. rate between 9 kHz - 12 kHz.

MPL-N-355

All solid state 355 nm UV laser is made features of ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed

Mode:                                 ~ TEM00


Output power:

a) 1 ~ 150 mW     |  b) 150 ~ 800 mW

Pulse width:

a) ~ 1.3 ns          |  b) ~ 7 ns

Pulse energy:

a) 0.1 ~ 15 µJ       |  b) ~ 90 µJ

Pulse peak power:

a) 80 ~ 11500 W  |  b) 13000 W


Power stability:                 < 3%, < 5%

Repitition rate:                   3 - 5 kHz; QCW 10 - 15 kHz*

Beam height:                     70 mm

Operating temperature:   10 ~ 35 °C

Cooling method:               Air

Warm-up time:                  < 10 min

Power supply:                   AC 90-264V

Expected lifetime:            5000 hours

Warranty:                           1 year


*Setting up one fixed rep. rate internal or by external triggering between 3 kHz - 5 kHz with stable pulse energy, pulse duration and pulse period.

QCW state with one rep. rate between 10 kHz - 15 kHz.

MPL-W-355

All solid state 355nm UV laser is made features of ultra compact, long lifetime, and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed

Mode:                                 ~ TEM00 (Walk-off effect)

Output power:                   400 ~ 2000 mW

Power stability:                 < 3%, < 5%

Pulse duration:                  ~ 5 ns

Pulse energy:                     25 ~ 80 µJ

Peak power:                       5 ~ 16 kW

Repitition rate:                   1 - 4 kHz; QCW 15 - 25 kHz*

Beam divergence:             < 2.0 mrad (full angle)

Beam diameter:                 2.0 mm (1/e²)

Beam height:                     93.5 mm

Operating temperature:   10 ~ 35 °C

Warm-up time:                  < 10 min

Power supply:                   AC 90-264V

Expected lifetime:            8000 hours

Warranty:                           1 year


*Setting up one fixed rep. rate internal or by external triggering between 1 kHz - 4 kHz with stable pulse energy, pulse duration and pulse period.

QCW state with one rep. rate between 15 kHz - 25 kHz.

CW laser 355 nm

UV-FN-355

All solid state UV laser. Features: high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating. Applications: laser medical treatment, scientific experiment, optical instrument, etc.


Wavelength:                               355 ± 1nm

Operating mode:                       CW

Output power:                           1, 10, ..., 30 mW

Power stability:                         < 10%, < 5% (rms, 4 hours)

Transverse mode:                    ~ TEM00

M² factor:                                   < 1.5

Beam diameter:                        ~ 1.2 mm (1/e²)

Beam divergence:                    < 1.5 mrad (full angle)

Polarization ratio:                     >  50:1 (horizontal)

Pointing stability:                      < 0.05 mrad

Beam height:                             27.4 mm

Operating temperature:           10 ~ 35 °C

Warm-up time:                          < 10 min

Modualtion frequency:            1 Hz - 1 kHz

                                                    1 kHz - 10 kHz

                                                    10 kHz - 30 kHz

Modualtion method:                TTL

                                                    (analog as option)

Power supply:                           AC 90 ~ 264 V

Warranty:                                   1 Year


Note: The laser head needs to be used on a heat sink with good heat dissipation.

Electro-optic Q-switched laser 355 nm

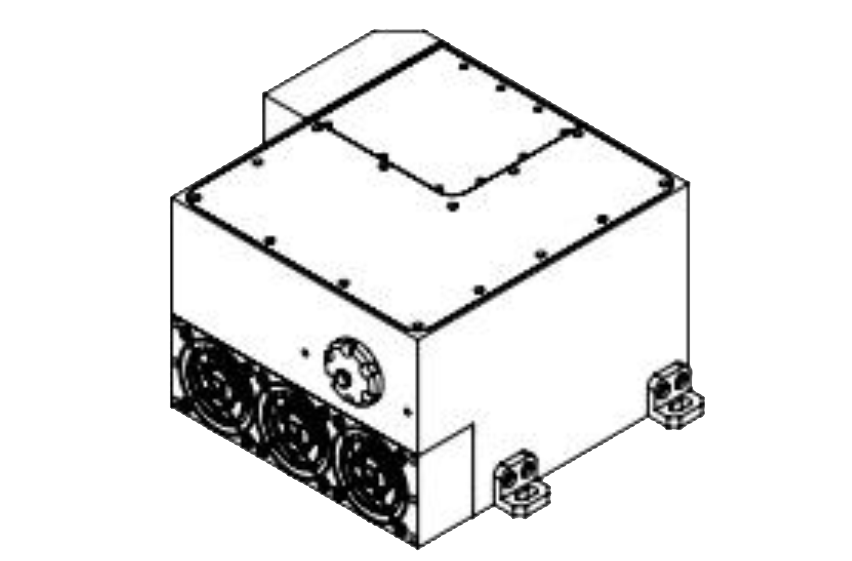

EO-XS-355

All solid state EOM Q-switched laser at 355 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in marking, carving, measure, research and so on.


Wavelength:                       355 ± 1nm

Operation mode:               electro-optically Q-switched

Output power:                   1~2 W

Power stability:                 < 3%, < 5% (rms, 4 hours)

Pulse duration:                  ~ 4 ns

Pulse energy:                     1 ~ 50 µJ

Peak power:                       1 ~ 12.5 kW

Repitition rate:                   1 - 100 kHz

Beam diameter:                 ~ 1.5 mm (1/e²)

Beam divergence:             < 3.0 mrad (full angle)

Beam height:                     101 mm

Cooling method:                Air cooled

Operating temperature:   10 ~ 35 °C

Warm-up time:                   < 10 min

Power supply:                    AC 220/110V

Expected lifetime:             10000 hours

Warranty:                            1 year



EO-355-G

High energy diode pumped all solid state Q-switched laser at 355 nm has the features of high single pulse energy, short pulse duration, and high peak power, which is widely used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.


Wavelength:                       355 ± 1nm

Operation mode:               electro-optics Q-switched

Power stability:                 < 2%, < 3%


Pulse energy*:

a) 150 µJ @ 1 kHz   |   b) 150 µJ @ 5 kHz   |   c) 4 µJ @ 25 kHz

Pulse duration:

a) < 6 ns @ 1 kHz     |   b) 6 ns @ 5 kHz        |  c) < 13 ns @ 25 kHz

Repetition rate*:

a) 1 Hz ~ 1 kHz        |  b) 1 kHz ~ 7 kHz       |  c) 1 kHz ~ 25 kHz


Ponting stability:               < 20 µrad/hour

Beam divergence:             < 3 mrad (full angle)

Beam diameter:                1.0 mm (1/e²)

Beam height:                     80 mm

Cooling method:               air cooled

Operating temperature:   15 ~ 30 °C

Warm-up time:                  < 15 min

Power supply:                   DC 24V

Expected lifetime:            10000 hours

Warranty:                           1 year


*Options: Higher energy can be customized; higher  frequency can be customized

EO-355-N

High energy diode pumped all solid state Q-switched laser at 355 nm has the features of high single pulse energy, short pulse duration, and high peak power, which is widely used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.


Wavelength:                       355 ± 1nm

Operation mode:               electro-optics Q-switched

Power stability:                 < 2%, < 3%


Pulse energy*:

a) 200 µJ @ 1 kHz   |   b) 200 µJ @ 5 kHz

c) 4 µJ @ 25 kHz        |   d) 250 µJ @ 3 kHz

Pulse duartion:

a) < 6 ns @ 1 kHz     |   b) < 6 ns @ 5 kHz

c) < 13 ns @ 25 kHz   |   d) 10 ns @ 3 kHz

Repetition rate*:

a) 1 Hz ~ 1 kHz        |  b) 1 kHz ~ 7 kHz

c) 1 kHz ~ 25 kHz       |  d) 1 kHz ~ 3 kHz (fixed)


Ponting stability:               < 20 µrad/hour

Beam divergence:             < 3 mrad (full angle)

Beam diameter:                1.0 mm (1/e²)

Beam height:                     80 mm

Cooling method:               air

Operating temperature:   15 ~ 30 °C

Warm-up time:                  < 15 min

Power supply:                   DC 24V

Expected lifetime:            10000 hours

Warranty:                           1 year


* Options: Higher energy can be customized; higher  frequency can be customized

DPS-355-E

High energy diode pumped all solid state Q-switched laser at 355 nm has the features of high single  pulse energy, short pulse duration, and high   peak power, which is widely used in LIBS, LIF, PIV, ICP-MS, LCD repair, scientific research, laser processing, military, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               electro-optics Q-switched


Pulse energy:

a) 1 mJ               |   b) 2 mJ

Beam height:

a) 34 mm           |   b) 77.5 mm

Cooling method:

a) Conduction   |   b) Ait cooled


Pulse duartion:                 < 4 ns

Repetition rate:                 1 - 50 (optional), EXT

Energy stability:                < 5%, rms

Beam diameter:                ~ 1 mm

Beam divergence:             < 3 mrad (full angle)

Operating temperature:   15 ~ 30 °C

Warm-up time:                  < 15 min

Power supply:                   DC 24V

Expected lifetime:            10^9 pulses

Warranty:                           1 year

DPS-355-Q

High energy diode pumped all solid state Q-switched laser at 355 nm has the features of high single  pulse energy, short pulse duration, and high   peak power, which is widely used in LIBS, LIF, PIV, ICP-MS, LCD repair, scientific research, laser processing, military, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               electro-optics Q-switched

Power stability:                 < 4%, < 5%, <10%


Pulse energy:

a) 2 mJ        |   b) 5 mJ           |   c) 10 mJ

Beam diameter:

a) ~ 2 mm   |   b) ~ 2.5 mm   |   c) ~ 3 mm


Pulse duartion:                 < 10 ns

Repetition rate:                 1 - 100 Hz (adjustable)

Beam divergence:             < 3 mrad (full angle)

Beam height:                     55 mm

Cooling method:               air

Operating temperature:   15 ~ 30 °C

Warm-up time:                  < 15 min

Power supply:                   AC 220V

Expected lifetime:            10^9 pulses

Warranty:                           1 year

Acousto-optic Q-switched laser 355 nm

AO-S-355

All solid state acousto-optic Q-switched laser at 355 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research and so on.


Wavelength:                       355 ± 1nm

Operation mode:               acousto-optics Q-switched

Mode:                                 ~ TEM00

M²:                                       < 1.5

Output power:                   1~100 mW

Power stability:                < 3%, < 5%, < 10% (rms, 4 hours)

Pulse duration:                  5 ~ 10 ns*

Pulse energy:                     1 ~ 40 µJ

Repitition rate:                   0.1 - 20 kHz

Beam diameter:                 ~ 0.3 mm (~ 1.2 mm) 1/e²

Beam divergence:             < 5.0 mrad (<1.5 mrad) full angle

Beam height:                     25 mm

Operating temperature:   10 ~ 35 °C

Warm-up time:                   < 10 min

Power supply:                    AC 90-264V

Expected lifetime:             10000 hours

Warranty:                            1 year


* Varies from power and repetition rate.


Note: The laser head needs to be used on a heat sink with good heat dissipation.

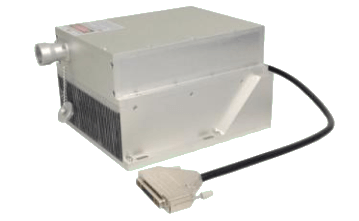

AO-L-355

All solid state AOM Q-switched laser at 355 nm has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.


Wavelength:                       355 ± 1nm

Operation mode:               acousto-optics Q-switched

Mode:                                 ~ TEM00

Output power:                   1~300 mW

Power stability:                 < 3%, < 5%,

Pulse duration:                  ~ 6 ns

Peak power:                       1 ~ 16 kW*

Pulse energy:                     1 ~ 100 µJ*

Repitition rate:                   0.2 - 4 kHz

Beam diameter:                 ~ 2.5 mm (1/e²)

Beam divergence:             < 3.0 mrad (full angle)

Beam height:                     101 mm

Polarization:                       > 100:1, horizontal

Operating temperature:   15 ~ 30 °C

Cooled method:                Air cooled

Warm-up time:                   < 10 min

Power supply:                    AC 90-264V

Expected lifetime:             10000 hours

Warranty:                            1 year


*Depends on repetition rate.

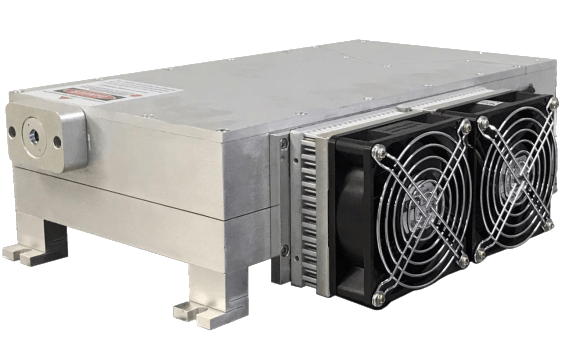

AO-V-355

All solid state AOM Q-switched laser at 355 nm has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.


Wavelength:                       355 ± 1nm

Operation mode:               acousto-optics Q-switched

Output power:                   1~2 W

Power stability:                 < 3%, < 5%,

Pulse duration:                  ~ 15 ns

Peak power:                       1 ~ 6 kW*

Pulse energy:                     1 ~ 100 µJ*

Repitition rate:                   10 - 100 kHz

Beam diameter:                 ~ 1.5 mm (1/e²)

Beam divergence:             < 2.0 mrad (full angle)

Beam height:                     76.2 mm

Polarization:                       > 100:1, horizontal

Operating temperature:   15 ~ 30 °C

Cooled method:                Air cooled

Warm-up time:                   < 10 min

Power supply:                    AC 220/110V

Expected lifetime:             5000 hours

Warranty:                            1 year


*Depends on repetition rate.

AO-V-355-Water

All solid state AOM Q-switched laser at 355 nm has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.


Wavelength:                       355 ± 1nm

Operation mode:               acousto-optics Q-switched

Output power:                   1~5 W

Power stability:                 < 3%, < 5%,

Pulse duration:                  ~ 15 ns

Peak power:                       1 ~ 10 kW

Pulse energy:                     1 ~ 250 µJ*

Repitition rate:                   10 - 100 kHz

Beam diameter:                 ~ 1.3 mm (1/e²)

Beam divergence:             < 2.0 mrad (full angle)

Beam height:                     76.2 mm

Polarization:                       > 100:1, horizontal

Operating temperature:   15 ~ 30 °C

Cooled method:                Water cooled

Warm-up time:                   < 10 min

Power supply:                    AC 220/110V

Expected lifetime:             5000 hours

Warranty:                            1 year


*Depends on repetition rate.

Lamp pumped Q-switched laser 355 nm (LPSS)

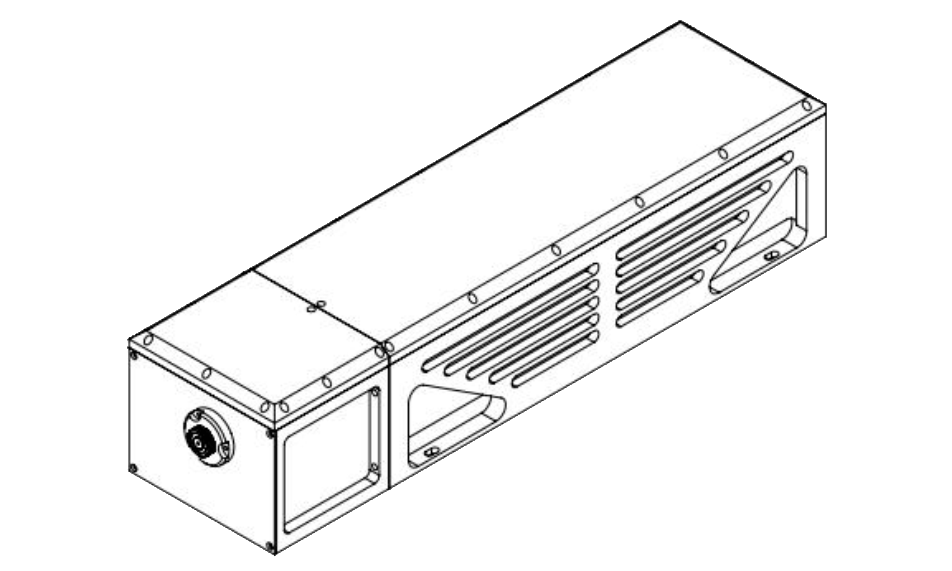

LPS-355-S

High energy lamp pumped solid state Q-switched laser at 355nm has the features of high single pulse energy, short pulse duration, and high peak power, which is widely used in LIBS, LIF, PIV, ICP-MS, LCD repair, scientific research, laser processing, militar, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed (EOM)

Pulse energy:                    20, 50, 80 mJ

Power stability:                 < 3%, < 5%

Pulse duration:                  < 10 ps

Repitition rate:                   1 ~ 10 Hz (adjustable)

Beam divergence:             < 3 mrad (full angle)

Beam diameter:                ~ 7 mm

Beam height:                     75 mm

Cooling method:               water cooled

Operating temperature:   15 ~ 35 °C

Warm-up time:                  < 15 min

Power supply:                   AC 220/110V

Expected lifetime:            10^8 pulses

Warranty:                           1 year


Options: Repetition rate: up to 20 Hz; Jitter ~ 1 ns

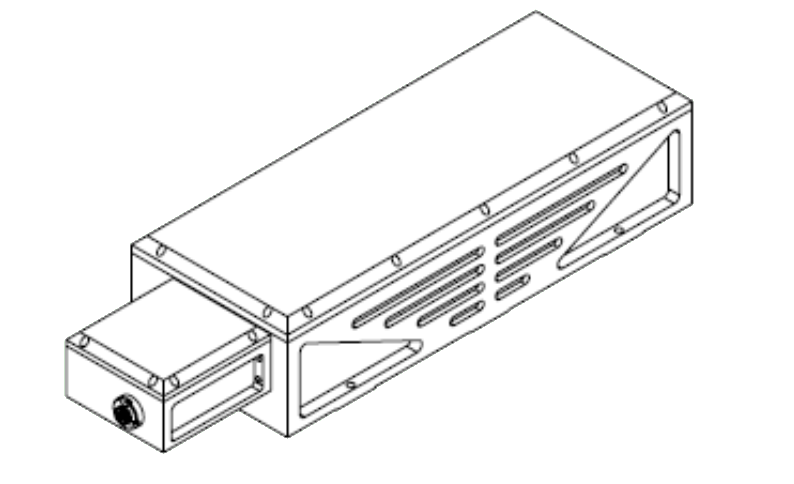

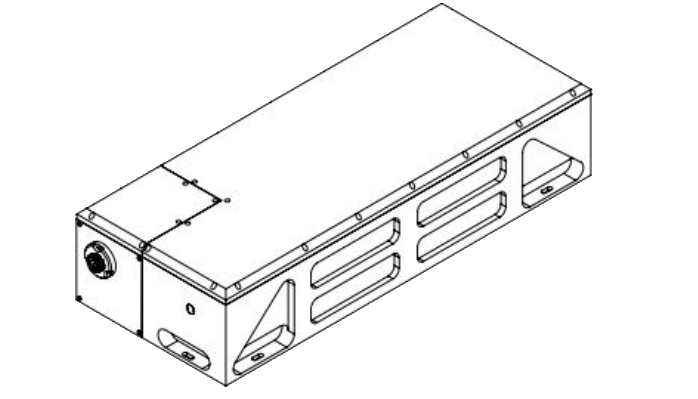

LPS-355-L

High energy lamp pumped solid state Q-switched laser at 355nm has the features of high single pulse energy, short pulse duration, and high peak power, which is widely used in LIBS, LIF, PIV, ICP-MS, LCD repair, scientific research, laser processing, militar, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed (EOM)

Pulse energy:                    100, 150, 200 mJ

Power stability:                 < 3%, < 5%

Pulse duration:                  < 10 ps

Repitition rate:                   1 ~ 10 Hz (adjustable)

Beam divergence:             < 3 mrad (full angle)

Beam diameter:                ~ 7 mm

Beam height:                     80 mm

Cooling method:               water cooled

Operating temperature:   15 ~ 35 °C

Warm-up time:                  < 15 min

Power supply:                   AC 220/110V

Expected lifetime:            10^8 pulses

Warranty:                           1 year


Options: Repetition rate: up to 20 Hz; Jitter ~ 1 ns

 Picosecond laser 355 nm

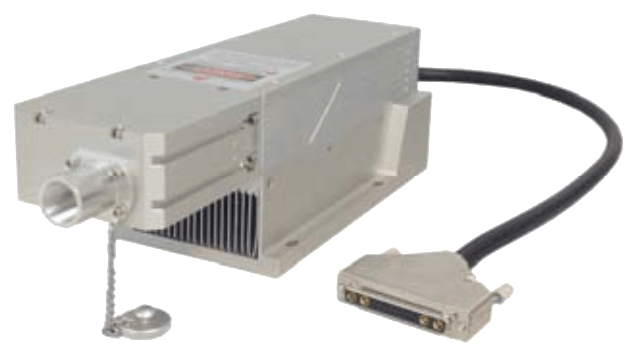

DPS-355-Pico

Diode pumped all solid state picosecond pulsed laser at 355nm has the features of short pulse duration, high repetition rate and high average power, which is widely used in laser medical treatment ,industrial processing, physics experiment,scientific research, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed

Output power:                   300, 700 mW

Power stability:                 < 1%, < 3% (rms, 4 hours)

Pulse duration:                  < 50 ps

Repitition rate:                   5 MHz

Beam divergence:             < 3 mrad (full angle)

Beam diameter:                2 mm (1/e²)

Beam height:                     128 mm

Cooling method:               air

Operating temperature:   15 ~ 30 °C

Warm-up time:                  < 15 min

Power supply:                   AC 220V

Expected lifetime:            10000 hours

Warranty:                           1 year

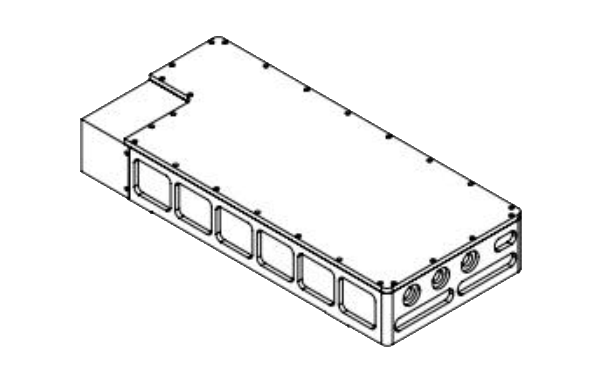

PS-R-355

Mode-locked picosecond pulsed laser at 355 nm is made features of short pulse duration, high repetition rate and good beam quality, which is used in laser medical treatment, industrial processing, etc.


Wavelength:                       355 ± 1nm

Operation mode:               Mode-locked

Mode:                                 TEM00

Output power:                   > 1, 5, 10, ..., 2000 mW

Power stability:                 < 3%, < 5% (rms, 4 hours)

Pulse duration:                  10 ~ 20 ps

Repitition rate:                   48 +/-1 MHz

Beam divergence:             < 4 mrad (full angle)

Beam diameter:                3.0 mm (1/e²)

Beam height:                     60 mm

Cooling method:               water

Operating temperature:   15 ~ 30 °C

Warm-up time:                  < 10 min

Power supply:                   AC 220V

Expected lifetime:            10000 hours

Warranty:                           1 year

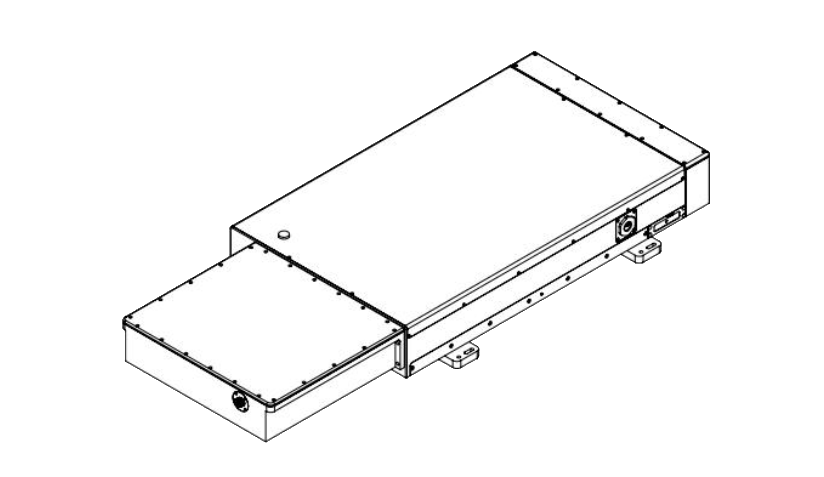

DPS-355-PS

High average power diode pumped all solid state laser at 355nm has the features of short pulse duration, high repetition rate and high average power, which is widely used in laser medical treatment ,industrial processing, physics experiment,scientific research, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               Mode-locked

Output power:                   a) 3 W, b) 6 W*

Pulse energy:                     a) 20 µJ, b) 40 µJ

Power stability:                 < 4%, < 5% (rms)

Pulse duration:                  < 15 ps

M² factor:                           < 1.5

Repitition rate:                   0 ~ 1000 KHz

Beam divergence:             < 2 mrad (full angle)

Beam diameter:                1.5 mm (1/e²)

Elipticity:                            > 85%

Polarization:                      100:1

Poinitng stability:             < 50 µrad

Beam height:                     90 mm

Cooling method:               water

Operating temperature:   15 ~ 30 °C

Warm-up time:                  < 10 min

Power supply:                   AC 220V

Expected lifetime:            10000 hours

Warranty:                           1 year


* Option: output power 10W and 15W at customers request

Fiber laser 355 nm

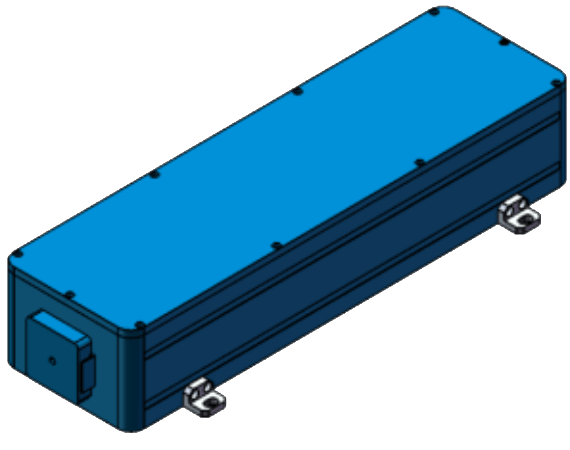

FL-355-PS

Mode-locked all fiber pulsed laser at 355nm with SESAM technique is made features of high output power stability, good beam profile, ultra compact, long lifetime,cost-effectiveness and easy operating, which is widely used in scientific research, laser processing, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               Mode-locked

Output power:                   50 mW

Power stability:                 < 3%, < 5% (rms, 4 hours)

Pulse duration:                  < 10 ps

M² factor:                           < 2

Repitition rate:                   20 - 50 MHz (fixed)

Polarisation ratio:             > 15 dB

Beam height:                     30 mm

Operating temperature:   15 ~ 35 °C

Warm-up time:                  < 15 min

Power supply:                   DC 12V

Expected lifetime:            10000 hours

Warranty:                           1 year

DPS-355-Pico

Picosecond all fiber pulsed laser at 355nm is made features of high output power stability, good beam profile, ultra compact, long lifetime,cost-effectiveness and easy operating, which is widely used in scientific research, laser processing, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed

Output power:                   10, 30, 50 mW

Power stability:                 < 3%, < 5% (rms, 4 hours)

Pulse duration:                  < 100 ~ 900 ps (fixed)

M² factor:                           < 2

Repitition rate:                   0.1 - 20 MHz (fixed)

Polarisation ratio:             > 15 dB

Beam height:                     30 mm

Operating temperature:   15 ~ 35 °C

Warm-up time:                  < 15 min

Power supply:                   DC 12V / AC 220V

Expected lifetime:            10000 hours

Warranty:                           1 year


Options:

- Pulse width 100 ~ 900 ps variable

- Repetition rate 0.1 ~ 20 MHz variable

- RS 232 interface

- Higher output power can be customized

FL-355-Nano

High frequency all fiber pulsed laser at 355nm is made features of high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating, which is widely used in scientific research, laser processing, and so on.


Wavelength:                       355 ± 1nm

Operation mode:               pulsed

Output power:                   100, 200, 300 mW

Power stability:                 < 3%, < 5% (rms, 4 hours)

Pulse duration:                  < 0.5 ~ 50 ns (fixed)

M² factor:                           < 2

Repitition rate:                   0.1 - 1 MHz (fixed)

Polarisation ratio:             > 15 dB

Operating temperature:   15 ~ 35 °C

Warm-up time:                  < 15 min

Power supply:                   DC 12V / AC 220V

Expected lifetime:            10000 hours

Warranty:                           1 year


Options:

- Pulse width 0.5 ~ 5 ns or 5 ~ 50 ns variable

- Repetition rate 0.1 ~ 1 MHz variable

- RS 232 interface

- Higher output power can be customized

Share by:
