335 nm

CW laser 335 nm


UV-FN-335 | CW UV solid state laser

All solid state UV laser. Features: high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating. Applications: laser medical treatment, scientific experiment, optical instrument, etc.

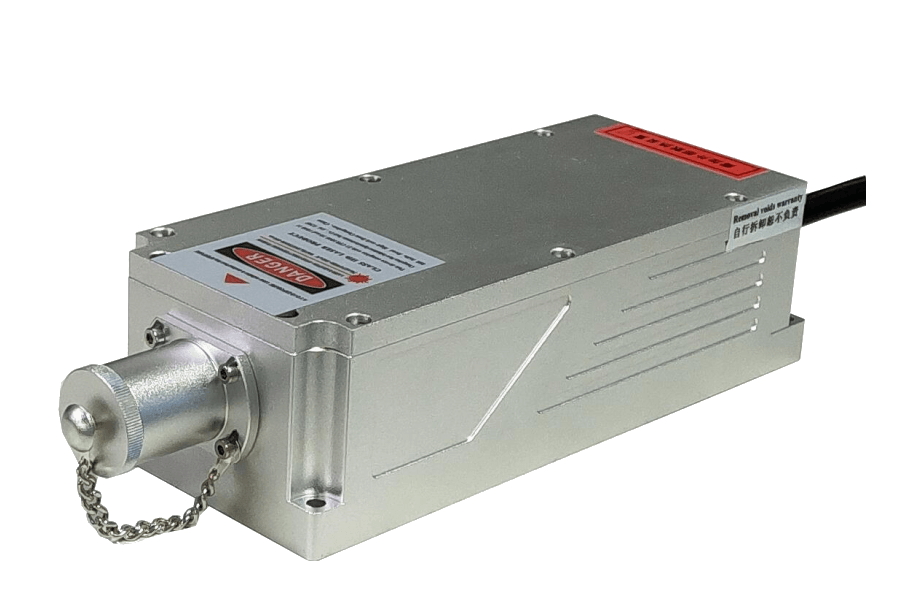

CW UV laser 335 nm, diode pumped solid state laser (DPSS)
Wavelength:                               335 ± 1nm
Operating mode:                       CW
Output power:                           1, 2, ..., 60 mW
Power stability:                         < 5%, < 3%
                                                    (rms, 4 hours)
Transverse mode:                    ~ TEM00
M² factor:                                   < 2.0
Beam diameter:                        ~ 1.5 mm (1/e²)
Beam divergence:                    < 2.5 mrad (full angle)
Polarization ratio:                     >  50:1 (horizontal)
Pointing stability:                      < 0.05 mrad
Beam height:                             27.4 mm
Operating temperature:           10 ~ 35 °C
Warm-up time:                          < 10 min
Modualtion frequency:            1 Hz - 1 kHz
                                                    1 kHz - 10 kHz
                                                    10 kHz - 30 kHz
Modualtion method:                TTL
                                                    (analog as option)
Power supply:                           AC 90 ~ 264 V
Warranty:                                   1 Year

Note: The laser head needs to be used on a heat sink with good heat dissipation.

Q-switch laser 335 nm


EO-XS-335 | EOM q-switched UV DPSS laser

All solid state EOM Q-switched laser at 335nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used inmarking, carving, measure, research and so on.
Electro-optically Q-switched UV laser 295 nm, diode pumped solid state laser (DPSS)
Wavelength:                              335 ± 1nm
Q-switch mode:                       electro-optic
Output power:                          1 ~ 100 mW
Power stability:                        < 3%, < 5% (4 hours)
Pulse energy:                           1 ~ 10 µJ
Pulse duration:                        ~ 4 ns (10µJ @10 kHz)
Peak power:                             1 ~ 2.5 kW
Repetition rate:                        10 kHz
Beam diameter:                       ~ 2 x 4 mm (1/e²)
Beam divergence:                    < 3 mrad (full angle)
Beam height:                             101 mm
Cooling method:                       air
Operating temperature:           15 ~ 35 °C
Warm-up time:                          < 10 min
Power supply:                           AC 220V
Expected lifetime:                    10000 hours
Warranty:                                   1 Year
