349 nm
CW laser 349 nm

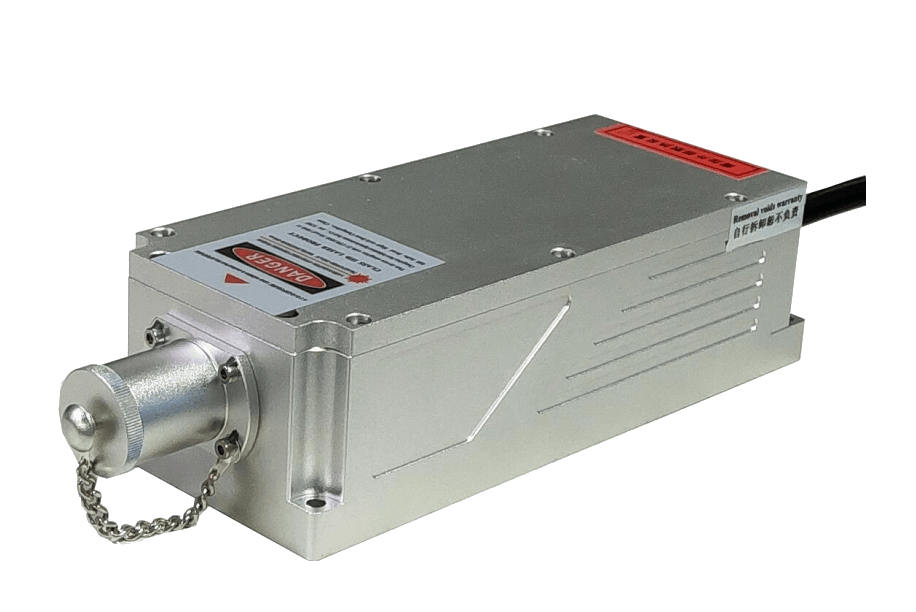

UV-FN-349 | Continuous wave UV solid state laser
All solid state UV laser. Features: high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating. Applications: laser medical treatment, scientific experiment, optical instrument, etc.
Wavelength: 349 ± 1nm
Operating mode: CW
Output power: 1, 10, ..., 100 mW
Power stability: < 5%, < 3%, < 1%
(rms, 4 hours)
Transverse mode: TEM00
M² factor: < 1.5
Beam diameter: ~ 1.2 mm (1/e²)
Beam divergence: < 1.2 mrad (full angle)
Polarization ratio: > 50:1 (horizontal)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Modualtion frequency: 1 Hz - 1 kHz
1 kHz - 10 kHz
10 kHz - 30 kHz
Modualtion method: TTL
(analog as option)
Power supply: AC 90 ~ 264 V
Warranty: 1 Year
Note: The laser head needs to be used on a heat sink with good heat dissipation.
Output power: 1, 10, ..., 100 mW
Power stability: < 5%, < 3%, < 1%
(rms, 4 hours)
Transverse mode: TEM00
M² factor: < 1.5
Beam diameter: ~ 1.2 mm (1/e²)
Beam divergence: < 1.2 mrad (full angle)
Polarization ratio: > 50:1 (horizontal)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Modualtion frequency: 1 Hz - 1 kHz
1 kHz - 10 kHz
10 kHz - 30 kHz
Modualtion method: TTL
(analog as option)
Power supply: AC 90 ~ 264 V
Warranty: 1 Year
Note: The laser head needs to be used on a heat sink with good heat dissipation.
Q-switch laser 349 nm
MPL-F-349 | Passive q-switch UV solid state laser
All solid state frequency conversed 349 nm UV laser is made features of ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiments, etc.
Repitition rate can be locked by external or internal triggering at 0.1Hz - 1kHz. Repitition rate at free running mode is between 2 - 3 kHz.
Repitition rate can be locked by external or internal triggering at 0.1Hz - 1kHz. Repitition rate at free running mode is between 2 - 3 kHz.
Wavelength: 349 ± 1nm
Operation mode: pulsed
Mode: ~ TEM00
Output power: 1 ~ 30 mW
Power stability: < 5%, < 10% (rms, 4 hours)
Pulse duration: ~ 4 ns
Pulse energy: 0.1 ~ 10 µJ
Peak power: 250 W
Repitition rate:
Mode: ~ TEM00
Output power: 1 ~ 30 mW
Power stability: < 5%, < 10% (rms, 4 hours)
Pulse duration: ~ 4 ns
Pulse energy: 0.1 ~ 10 µJ
Peak power: 250 W
Repitition rate:
Int. trigger: 0.1 Hz, 100 Hz
500 Hz, 1 kHz
Ext. trigger: 0.1 Hz - 1 kHz
500 Hz, 1 kHz
Ext. trigger: 0.1 Hz - 1 kHz
Free running: 2 - 3 kHz
Beam divergence: < 1.5 mrad (full angle)
Beam diameter: 1.2 mm
Beam diameter: 1.2 mm
Polarization ratio: > 50:1
Beam height: 45 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 90-264 V
Warranty: 1 year
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 90-264 V
Warranty: 1 year
Q-switch laser 349 nm

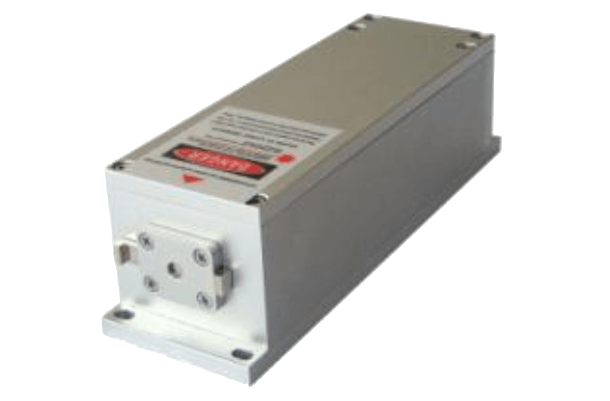

AO-S-349 | Aktive qiswitched UV solid state laser
All solid state acousto-optically Q-switched laser at 349nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research.
Wavelength: 349 ± 1nm
Q-switch mode: acousto-optics
Mode: ~ TEM00
M²: < 1.5
Output power: 1~10 mW
Power stability: <3%, <5%, <10% (4 hours)
Pulse duration: 6 ~ 10 ns*
Pulse energy: 1 ~ 8 µJ
Repitition rate: 0.1 - 10 kHz
Beam diameter: ~ 0.3 mm (~1.2 mm)
Q-switch mode: acousto-optics
Mode: ~ TEM00
M²: < 1.5
Output power: 1~10 mW
Power stability: <3%, <5%, <10% (4 hours)
Pulse duration: 6 ~ 10 ns*
Pulse energy: 1 ~ 8 µJ
Repitition rate: 0.1 - 10 kHz
Beam diameter: ~ 0.3 mm (~1.2 mm)
Beam divergence: < 5.0 mrad (<1.5 mrad)
Beam height: 25 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: AC 90-264 V
Expected lifetime: 10000 hours
Warranty: 1 year
* Varies from power and repetition rate.
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: AC 90-264 V
Expected lifetime: 10000 hours
Warranty: 1 year
* Varies from power and repetition rate.
Q-switch laser 349 nm
AO-V-349 | Aktive q-switched UV solid state laser
All solid state acousto-optically Q-switched laser at 349nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research.
Wavelength: 349 ± 1nm
Q-switch mode: acousto-optics
Output Power: 1 ~ 800 mW
Power stability: <3%, <5% (4 hours)
Pulse duration: ~ 10 ns*
Pulse energy: 1 ~ 260 µJ
Power stability: <3%, <5% (4 hours)
Pulse duration: ~ 10 ns*
Pulse energy: 1 ~ 260 µJ
Peak power: 1 ~ 26 kW
Repitition rate: 3 - 10 kHz
Beam diameter: ~ 2.0 mm
Beam divergence: < 2,0 mrad (full angle)
Beam height: 113 mm
Beam diameter: ~ 2.0 mm
Beam divergence: < 2,0 mrad (full angle)
Beam height: 113 mm
Cooled method: air
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: AC 220/110 V
Expected lifetime: 10000 hours
Warranty: 1 year
Warm-up time: < 10 min
Power supply: AC 220/110 V
Expected lifetime: 10000 hours
Warranty: 1 year
* Abhängig von Ausgangsleistung und Repetitionsrate
