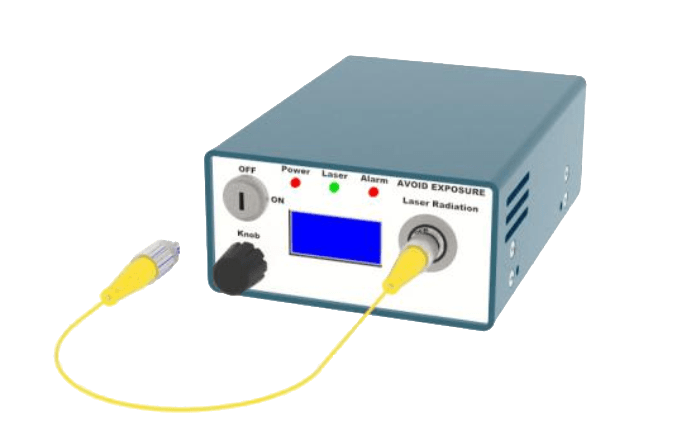

FC-D-445
FC-D-XXX series fiber coupled laser is specially designed for Raman spectroscopy. The spectral linewidth is optional from 0.1 nm and 0.06 nm according to customers' actual requirements. Housed in ultra compact package, it is the good choice for Raman spectrometer, chemical and biological research, environmental science, jewelry appraisal, forensic appraisal, food/drug safety inspection, geological exploration, systems design and integration.
Wavelength: 445 ± 0.5nm
Operating mode: CW
Fiber core-Ø: 100µm, 0,22 NA
Fiber connector: SMA905
Output power: 1, 2, ..., 200 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Spectral line width: 0.1 nm (0.06 nm optional)
Noise of amplitude: < 1%, (rms, 1Hz ~ 20MHz)
Operating temperature: 20 ~ 30 °C
Warm-up time: < 10 min
Power supply: DC 5V, 5A (AC 85~264V Adapter optional)
Expected lifetime: 10.000 hours
Warranty: 1 Year

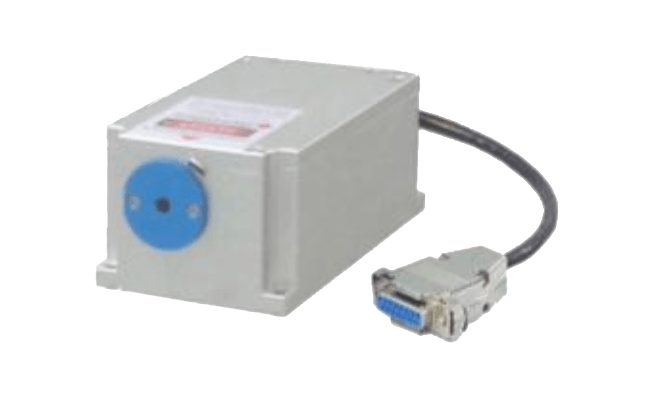

MDL-C-445 / MDL-E-445
Diode laser at 445 nm. It features a narrow spectral linewidth, long coherent length, stable wavelength, long lifetime and easy operation. It is widely used in holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, LIDAR, precision measurement, etc.
Wavelength: 445 ± 1 nm
Operating mode: CW
Output power: 1, 10, ..., 30 mW
Power stability: < 1%, < 2%, < 3%
(rms, 4 hours)
Mode: ~ TEM00
Coherent length*: > 1 m
Spectral line width**: < 0.06 nm (< 0.03 nm)
Beam diameter: ~ 1.3 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 50:1 (> 100:1 optional)
(horizontal or vertical, +/- 5°)
Beam height: 30 mm
Operating temperature: 20 ~ 30 °C
Warm-up time: < 5 min
Power supply: AC 100 ~ 240 V
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MDL-C-445 only
** Model MDL-E-445 only
MDL-NS-445
This series laser products with excellent material removal rate, are widely used in microelectronics,
material processing, solar energy and medical equipment manufacturing, etc.
Wavelength: 445 ± 5 nm
Output power: 1, 10, ..., 80 mW (CW)
Power stability: < 1%, < 2%, < 3%
(rms, 4 hours)
Pulse width: 10 ns, 20 ns, ..., 10 ms
Mode: ~ TEM00
Noise of amplitude: < 1% (rms, CW)
M²: < 1,2
Beam diameter: ~ 1.2 mm (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Polarization ratio: > 50:1, > 100:1 optional
(horizontal or vertical)
Triggering frequency: 1 Hz - 50 MHz
Rise time: < 3 ns
Fall time: < 3 ns
Modulation depth: > 1000000 : 1
Beam height: 19 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: DC 12V
Expected lifetime: 10.000 hours
Warranty: 1 Year

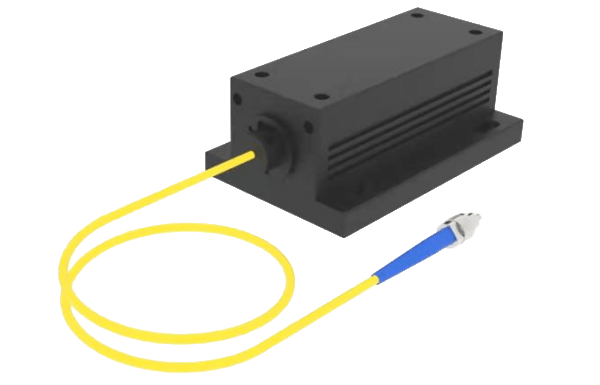

MDL-III-445-SM
Fiber coupled diode laser at 445 nm wavelength. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in
measurement applications, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 1, 2, ..., 100 mW
Fiber type: SM or MM
Fiber core diameter: 4 ~ 9 µm
Fiber NA: 0.12
Fiber connector: FC/PC, FC/APC
Fiber length: 1 m (other on request)
Transverse mode: TEM00
Ellipticity: > 0.95
Power stability: < 1%, < 2%, < 3%, (< 0.5%)
(rms, 4 hours)
M²: ~ 1.1
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year

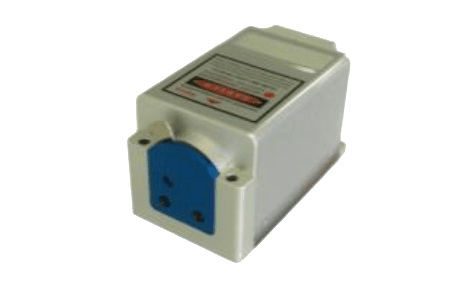

MDL-XS-445
This laser features integrated electronics, plug and play, miniaturization, international standard interface. They are the ideal solution for a wide range of applications including life sciences, environmental monitoring, inspection and machine vision.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 1, 10, ..., 80 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: ~ TEM00
Noise of amplitude: < 0.5%, < 1%(rms, 1Hz ~ 20MHz)
M²: < 1,2
Beam diameter: ~ 1.2 mm (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Polarization ratio: > 50:1, > 100:1 optional (horizontal or vertical)
Beam height: 19 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: DC 12V 4A
Modulation: DMOD (TTL) up to 1 MHz
AMOD (Analog) up to 100 kHz
DMOD + AMOD (TTL + Analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year
Note: The laser head needs to be used on a heat sink with good heat dissipation.
MLL-III-445L | MDL-III-445L
This Model, features excellent beam shape, ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in scientific research, laser pointing, measurement, communication, spectrum analysis, laser pointing and RGB mixed laser systems applications, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 1, 10, ..., 80 mW
Power stability: < 1%, < 2%, < 3%, 0.5%) (rms, 4 hours)
Mode: ~ TEM00
Noise of amplitude*: < 1% (rms, 1Hz ~ 20MHz)
M²: < 1.5 (< 1.2 )
Beam diameter: ~3.5 mm (~ 1.2 mm) (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Polarization ratio: > 50:1, > 100:1 optional (horizontal or vertical)
Pointing stability: < 0.05 mrad
Beam height: 24.8 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Modulation: 1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or Analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year
*Model MLL-III-445L only

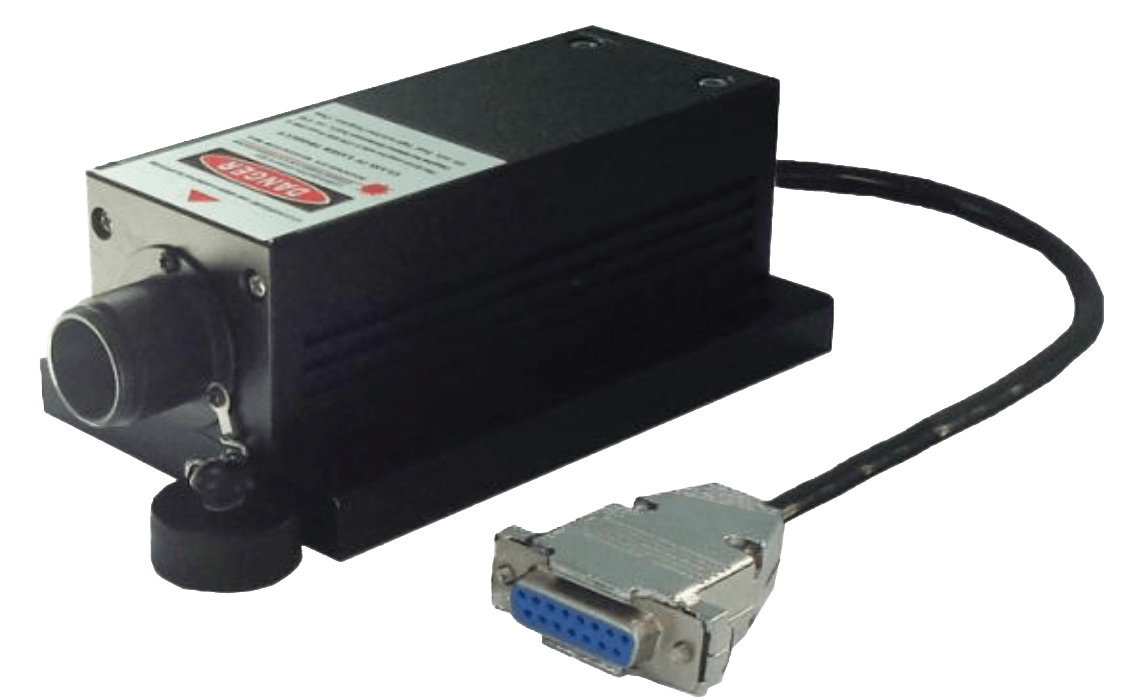

MLL-III-445 | MDL-III-445
445 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: a) > 80, 50, ..., 500 mW
b) > 500, 600, ..., 1000 mW
Power stability: < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)
Mode: multimode
Noise of amplitude*: < 1% (rms, 10Hz~20MHz)
Beam diameter: a) < 2.5 x 5.2 mm (1/e²)
b) < 2.0 x 5.0 mm² (1/e²)
Beam divergence: a) < 2.1 x 1.6 mrad (full angle)
b) < 2.5 x 0.2 mrad (full angle)
Beam height: 24.8 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MLL-III-445 only

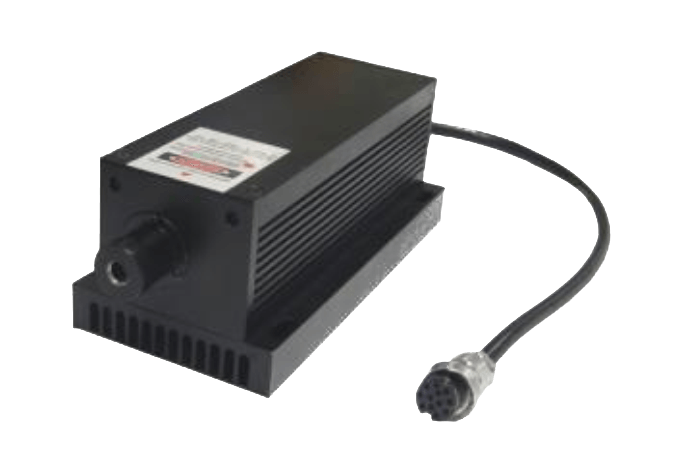

MDL-F-445 | MLL-F-445 | F-445-HS (ultra compact)
445 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: a)* 1, 10, .., 2000 mW
b) > 1000, 1100, ..., 2000 mW
c) > 2000, 2100, ..., 3500 mW
Power stability: < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)
Mode: multimode
Noise of amplitude**: < 1% (rms, 20Hz~20MHz)
Beam diameter: a) < 2.7 x 2.7 mm (1/e²)
b) < 2.7 x 2.7 mm (1/e²)
c) < 3.5 x 3.5 mm² (1/e²)
Beam divergence: < 1.4 x 0.2 mrad (full angle)
Polarization ratio***: > 50:1, > 100:1 (horizontal or vertical)
Beam height: 45 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model F-445-HS only
** Model MLL-F-445 only

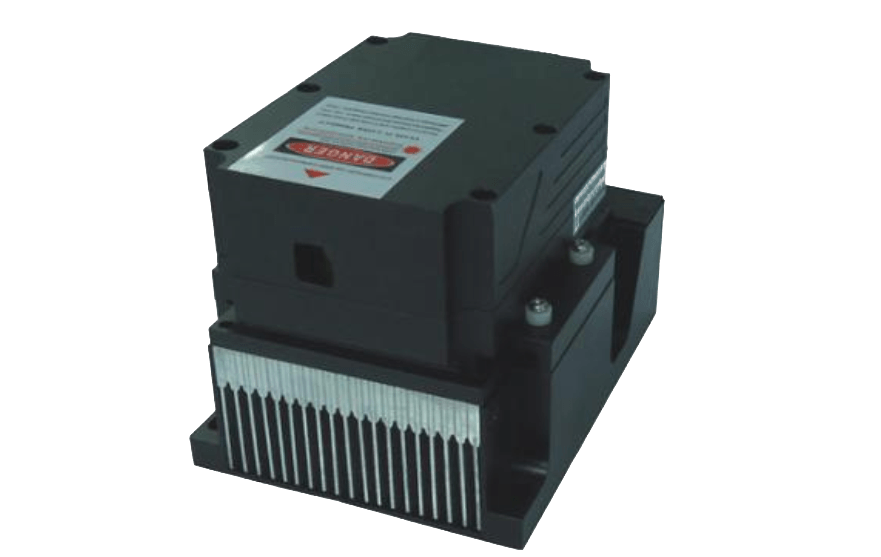

MDL-SD-445
445 nm high power blue diode laser module. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: > 3500, 3600, ..., 4000 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Beam diameter: a) ~ 4.7 x 2.7 mm
b) < 2.7 x 2.7 mm
Beam divergence: < 1.4 x 0.2 mrad (full angle)
Polarisation: a) horizontal / vertical
b) horizontal + vertical
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 100 ~ 240 V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year

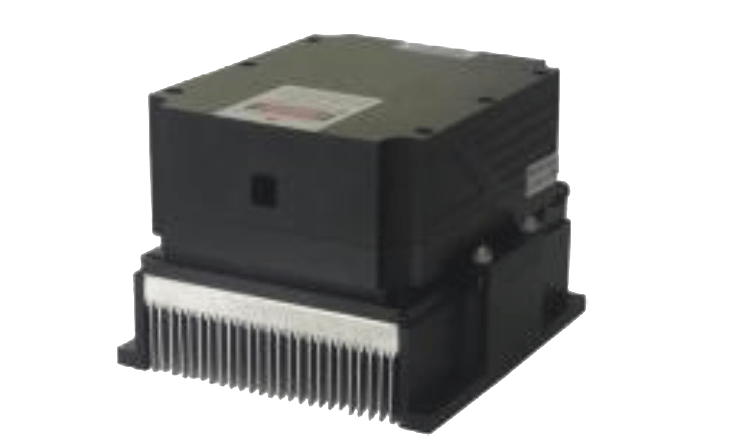

MDL-D-445
445 nm high power blue diode laser module. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: > 4000, 5000, ..., 8000 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Beam diameter: ~ 3.2 x 3.2 mm
Beam divergence: < 1.4 x 0.2 mrad (full angle)
Beam height: 68.2 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year
MDL-XD-445
High power blue diode laser at 445 nm. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: a) > 8000, 9000, ..., 16000 mW
b) > 16000, 17000, ..., 20000 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Beam diameter: a) ~ 5.0 x .5.0 mm
b) ~ 7.5 x .5.0 mm
Beam divergence: a) < 2.4 x 2.0 mrad (full angle)
b) < 2.0 x 4.0. mrad (full angle)
Polarisation direction: vertical + horizontal
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 100 ~ 240 V
Modulation: analog or TTL; 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional;
Expected lifetime: 10.000 hours
Warranty: 1 Year

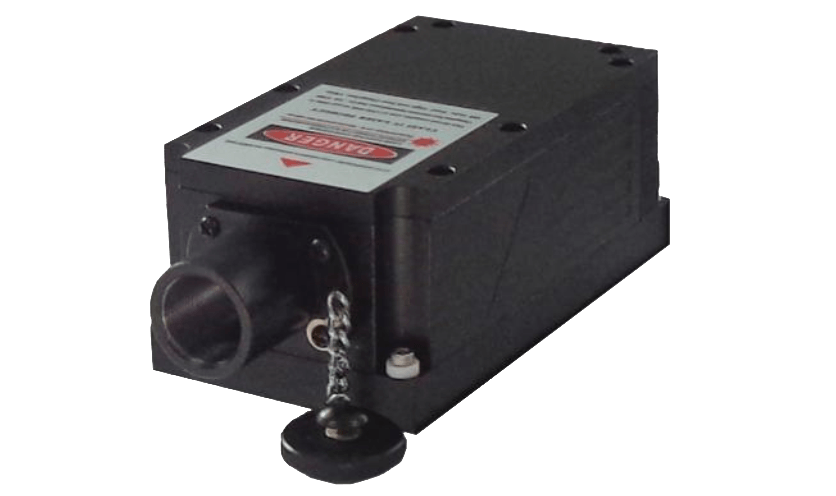

F-445-HS-OEM
445 nm blue diode laser. IIt features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: a) 1, 10, .., 2000 mW
b) > 2000, 2100, ..., 3500 mW
Power stability: < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)
Mode: multimode
Beam diameter: a) < 2.7 x 2.7 mm (1/e²)
b) < 3.5 x 3.5 mm² (1/e²)
Beam divergence: < 1.4 x 0.2 mrad (full angle)
Beam height: 25 mm
Operating temperature: 25 ± 3 °C
Warm-up time: < 5 min
Power supply: DC 8 V; 7 A
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year
OEM-I-445 (fiber coupled)
445 nm blue diode laser is made features of ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 13 W (out of 400 µm fiber)
Noise of amplitude: < 0.5% (rms, 20Hz ~ 20 MHz)
Fiber core diameter: >/= 200 µm
Fiber connector: SMA905 / FC
Numerical Aperture: 0.15* or 0.22
Fiber length: 1 m, 2 m, ...
Control interface: RS232 or USB
Operating temperature: 10°C ~ 35°C
Warm-up time: < 5 min
Power supply: DC 3~12V 6A
Opt. heatsink temp.: +15°C ~ 30°C (max. 40°C)
Overheat protection: yes
Storage temperature: -10°C ~ 50°C
Modulation: up to 100 kHz (TTL)
Warranty: 1 year
Accessories (opt.): heatsink, power supply
MDL-SD-445-OEM
445 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: > 3500, 3600, ..., 4000 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Beam diameter: a) ~ 4.7 x 2.7 mm
b) ~ 2.7 x 2.7 mm
Beam divergence: < 1.4 x 0.2 mrad (full angle)
Polarisation: a) horizontal / vertical
b) horizontal + vertical
Operating temperature: 25 ± 3 °C
Warm-up time: < 5 min
Beam height: 28.5 mm
Power supply: DC 12 V; 15 A
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year

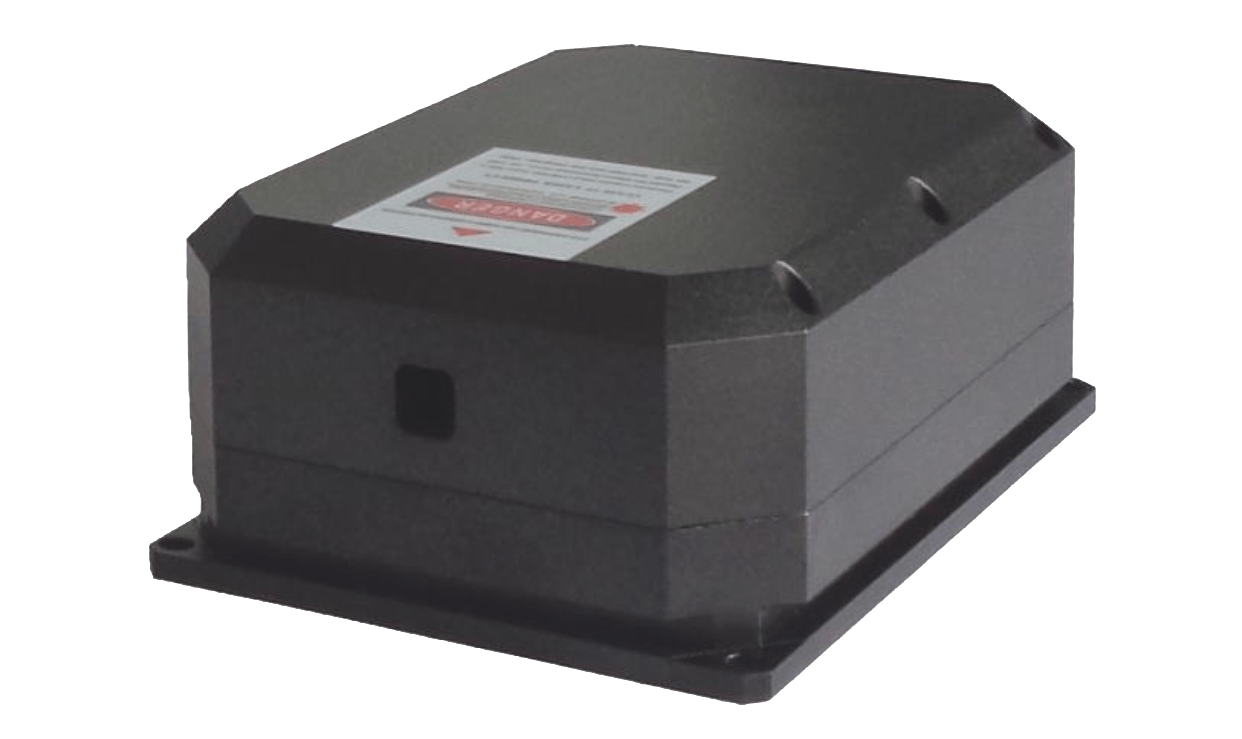

MDL-D-445-OEM
445 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: > 4W, 5W, 6 W
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Beam diameter: ~ 3.2 x 3.2 mm
Beam divergence: < 1.4 x 0.2 mrad (full angle)
Beam height: 35 mm
Operating temperature: 25 ± 3 °C
Warm-up time: < 5 min
Power supply: DC 12 V; 15 A
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year
MDL-D-445-OEM
445 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: > 6, 7, 8 W
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Polarisation: horizontal + vertical
Beam diameter: ~ 3.2 x 3.2 mm
Beam divergence: ~ 1.4 x 0.2 mrad (full angle)
Beam height: 35 mm
Operating temperature: 25 ± 3 °C
Warm-up time: < 5 min
Power supply: DC 12 V; 15 A
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year

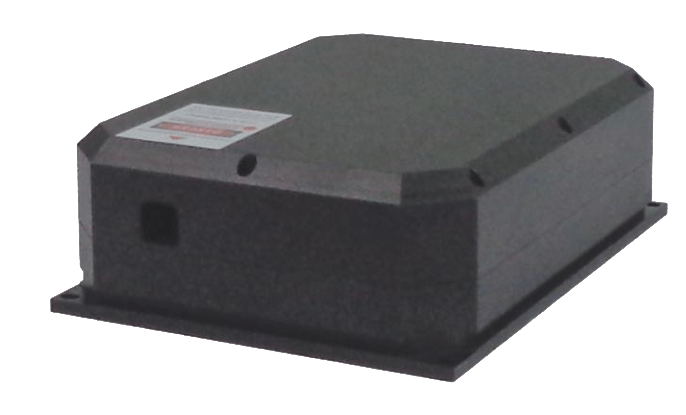

MDL-XD-445-OEM
Blue diode laser at 445 nm. This laser features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: a) > 5, 6, ..., 16 W
b) >16, 17, ..., 20 W
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Beam diameter: a) ~ 5.0 x 5.0 mm²
b) ~ 7.5 x 5.0 mm²
Beam divergence: a) < 2.4 x 2.0 mrad (full angle)
b) < 2.0 x 4.0 mrad (full angle)
Polarisation: horizontal + vertical
Beam height: 35 mm
Operating temperature: 25 ± 3 °C
Warm-up time: < 5 min
Power supply: DC 12 V; 15 A
Modulation: analog or TTL; 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional;
Expected lifetime: 10.000 hours
Warranty: 1 Year
PGL-D8-445 | PGL-D12-445
PGL-D8-445 and PGL-D12-445 are ultra small high power blue laser modules at 445nm. Features: wide temperature operating (no TEC), high reliability, and low cost. Applications: orientation, alignment and measurement, etc.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 1, 10, ..., 30 mW
Mode: ~ TEM00
Beam diameter: ~ 3.5 mm (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Operating temperature: 15 ~ 35 °C
Power supply: DC 6 V PCB
Expected lifetime: 10.000 hours
Length: 15 mm (PGL-D8) | 20 mm (PGL-D12)
Diameter: 8 mm (PGL-D8) | 12 mm (PGL-D12)
Warranty: 6 Months
PGL-F-445
PGL-F-series features small size, high stability portable laser with long lifetime. It can be controlled by PC via USB. The lens (line generator) can be changed.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 1 - 50 mW
Fan agle: 10°, 15°, 30°, 45°, 50°, 60°, 75°, 90°
Noise of amplitude: < 0.5%, 1% (rms, 20 Hz ~ 20 MHz)
Modulation: 0.1 - 50 kHz
Pointing stability: < 0.05 mrad/°C
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: DC 5 V ± 0,5 V , 1 A (USB)
Expected lifetime: 5.000 hours
Warranty: 6 Month

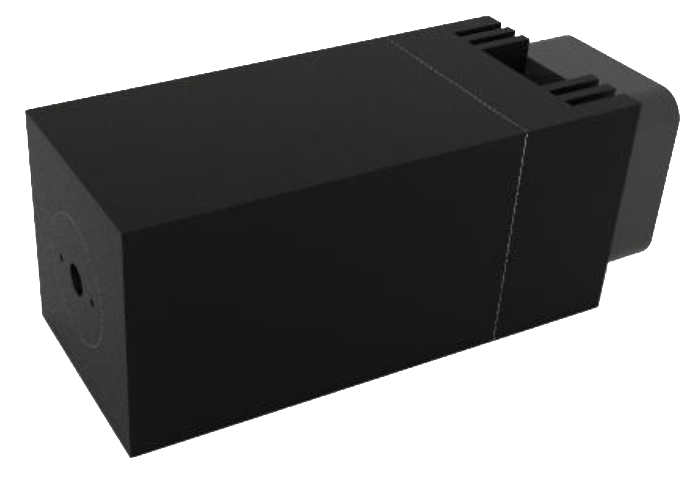

PGL-FS-445
Diode laser module at 445 nm. Feauterus: ultra compact, long lifetime, low cost and easy operating. It is which is widely used in laser pointing, show and light applications. Very good eam properties make it useful in RGB mixed laser systems.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 1, 10, ..., 50 mW
Power stability: < 1%, < 3%, < 5% (rms, 4 hours)
Mode: ~ TEM00
Beam diameter: ~ 3.5 mm (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Beam height: 15 mm
Pointing stability: < 0.05 mrad
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: DC 7/12V or AC 90-264V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (analog or TTL)
Expected lifetime: 10.000 hours
Warranty: 1 Year

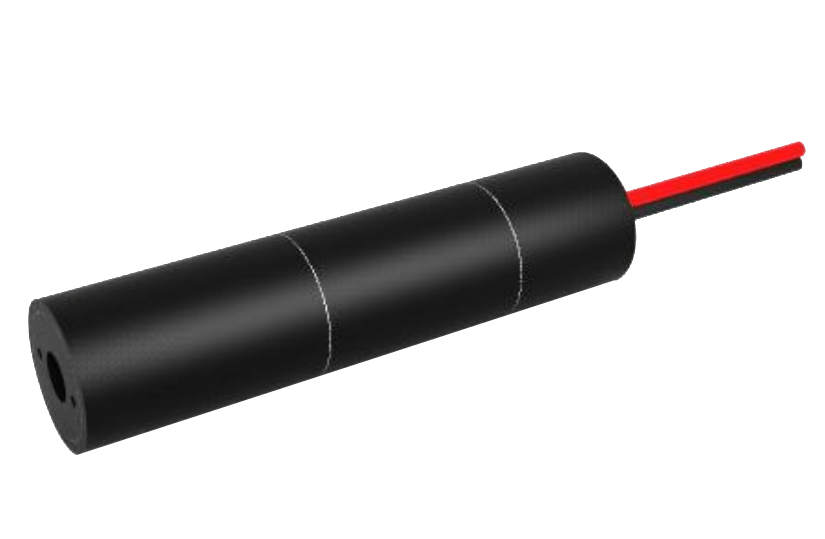

PGL-VI-445
PGL-VI-445 is a high power blue laser module at 445nm. I features small size, high output power, long lifetime, which made it widely used in collimation, laser medical treatment, scientific experiment, optical instrument and so on.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 1, 10, ..., 50 mW
Mode: ~ TEM00
Beam diameter: ~ 3.5 mm (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Operating temperature: 15 ~ 35 °C
Power supply: DC 6 V PCB
Expected lifetime: 10.000 hours
Length: 50 mm
Diameter: 12 mm
Warranty: 6 months
Optional: adjustable focus
PGL-H-445
PGL-H-445 high power blue laser module at 445nm features of small size, high output power, long lifetime, which made it widely used in collimation, laser medical treatment, scientific experiment, optical instrument and so on.
Wavelength: 445 ± 5 nm
Operating mode: CW
Output power: 1, 10, ..., 1000 mW
Mode: multimode
Beam diameter: ~ 2.0 x 4.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Operating temperature: 15 ~ 30 °C
Power supply: DC 6 V PCB
Expected lifetime: 10.000 hours
Warranty: 6 Months

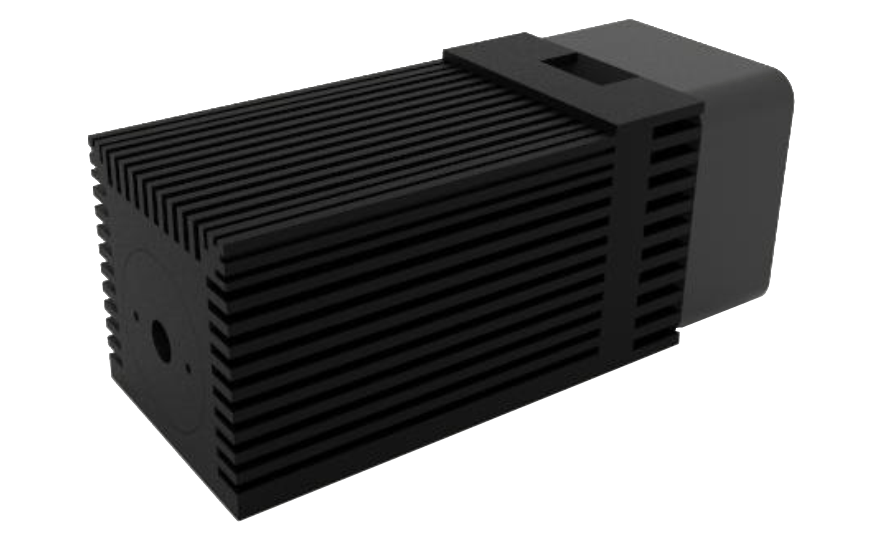

PGL-V-H-445
Diode laser module at 445 nm. Feauterus: ultra compact, long lifetime, low cost and easy operating. It is which is widely used in laser pointing, show and light applications. Very good beam properties make it useful in RGB mixed laser systems.
Wavelength: a) 445 ± 10 nm
b) 445 ± 5 nm
Operating mode: CW
Output power: a) > 1, 10, ..., 500 mW
b) > 500, 600, ..., 1000 mW
Power stability: < 1%, < 3%, < 5% (rms, 4 hours)
Mode: a) ~ TEM00
b) multimode
Beam diameter: a) ~ 5.0 mm (1/e²)
b) ~ 2.0 x 4.0 mm (1/e²)
Beam divergence: a) < 1.5 mrad (full angle)
b) < 3.0 x 0.5 mrad (full angle)
Beam height: 15 mm
Pointing stability: < 0.05 mrad
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: DC 7/12V or AC 90-264V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (analog or TTL)
Expected lifetime: 10.000 hours
Warranty: 1 Year
MDL-445(FC)
Nearly all 445 nm laser modules can be coupled with MM or SM fibers with different core diameters. Here you will find all possible fiber coupling options and their parameters.
FC-445
The FC series (Fiber Coupling Laser System) includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.
FC-W-445C
The FC-W series (Fiber Coupling Laser System) is the high power version of FC series. It includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.
FC-W-445H-II
The FC-W-xxxH series (Fiber Coupling Laser System) offer the highest power. It includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.
