303 nm
CW laser 303 nm

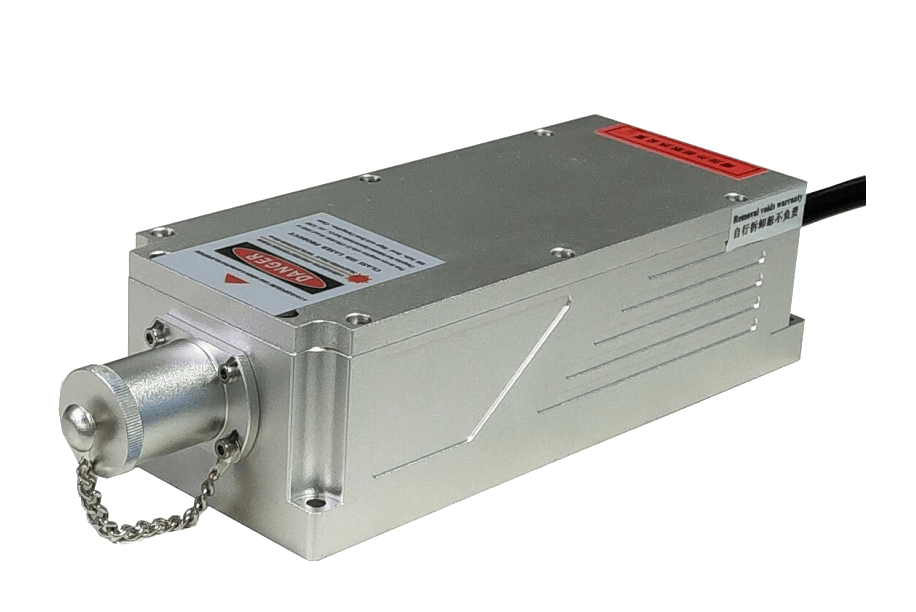

UV-FN-303 | CW UV Solid State Laser
All solid state UV laser. Features: high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating. Applications: laser medical treatment, scientific experiment, optical instrument, etc.
Wavelength: 303 ± 1nm
Operating mode: CW
Output power: 1, 2, ..., 5 mW
Power stability: < 10 % (rms, 4 hours)
Transverse mode: TEM00
M² factor: < 2.0
Beam diameter: ~ 1.5 mm (1/e²)
Operating mode: CW
Output power: 1, 2, ..., 5 mW
Power stability: < 10 % (rms, 4 hours)
Transverse mode: TEM00
M² factor: < 2.0
Beam diameter: ~ 1.5 mm (1/e²)
Beam divergence: < 6.0 mrad (full angle)
Polarization ratio: >
50:1 (horizontal)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Modualtion frequency: 1 Hz - 1 kHz
1 kHz - 10 kHz
10 kHz - 30 kHz
Modualtion method: TTL
(analog as option)
Power supply: AC 90 ~ 264 V
Warranty: 1 Year
Warranty: 1 Year
Note: The laser head needs to be used on a heat sink with good heat dissipation.
