SM- oder MM-fiber coupling for compact laser systems

All laser modules of the compact series can be coupled with MM or SM fibers with different core diameters. The detailed specifications of each laser module (such as power, stability, noise, size, etc.) determine which fiber coupling is suitable for your application.

Standard coupling


FOC-01 | adjustable

Adjustable laser fiber coupling
Inner lenses:                       spherical
Connectort:                         SMA905 / FC
Adjustable:                          yes
Customized:                        yes
Dimensions:                        D32 mm x 60.5 mm

Compact coupling


FOC-02 | fixed

Laser fiber coupling
Inner lenses:                       aspherical
Connectort:                         SMA905 / FC
Adjustable:                          no
Customized:                        yes
Dimensions:                        D11 mm x 23 mm

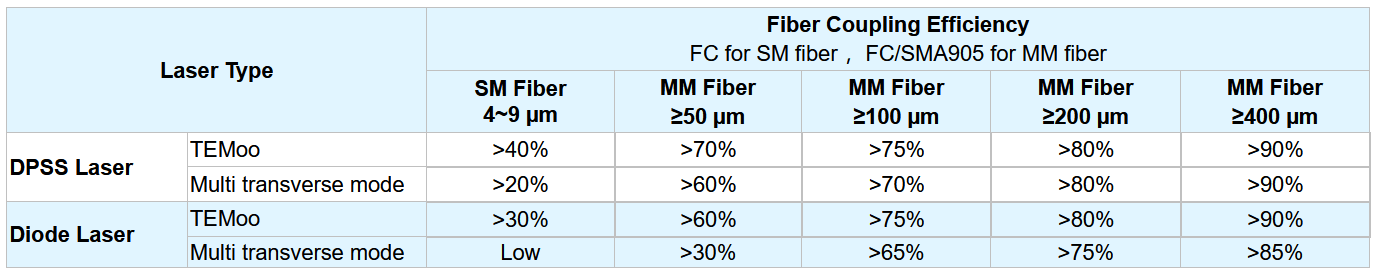

Fiber coupling efficiency (SMA905 or FC)

Fiber coupled
laser system


FC-series

 The FC series (Fiber Coupling Laser System) has integrated laser diode, laser cavity, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LCD/ LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
Fiber coupled laser system
Available wavelength:       all existing laser
                                             wavelength of the
                                             compact class lasers
Fiber Core Diameter:        100 µm, 200 µm, ...
Fiber coupling:                   FOC-01 or FOC-02
Fiber Connector:                SMA905/FC
Output Power:                    0-100%, adjustable
Operating Mode:                CW, TTL (or Analog)
Display:                               Diode current
LD Temperature                15 ~ 30 °C (diode laser)
Expected Lifetime:            10000 hours
Input Power:                       90 - 264 VAC, 50 to 60 Hz
Operating Temperature:   10 ~ 35 °C
Cooling method:                by air
Warranty time:                   1 year

High power
fiber coupled
laser system


FC-W-C-series

The FC-W-xxxC series (Fiber Coupling Laser System) provides high power and includes integrated laser diode, laser cavity, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LCD/ LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
High power fiber coupled laser system
Available wavelength:       444 - 660 nm
Power:                                 3 - 50 W
                                             (dependent on
                                             Wavelength)
Fiber Core Diameter:        100 µm, 200 µm, 400 µm
Pilotlaser:                            available (optional)
Numerical aperture:          0.15 or 0.22
Fiber Connector:                SMA905
Fiber length:                        2 m (or other)
Output Power:                    0-100%, adjustable
Modulation:                        up to 30 kHz
Operating Mode:                CW, TTL  (or Analog)
Display:                               Diode current
Expected Lifetime:            10000 hours
Input Power:                       90 - 264 VAC, 50 to 60 Hz
Operating Temperature:   25 ± 3 °C
Cooling method:                air / water
Warranty time:                   1 year

Ultra high power
fiber coupled
laser system


FC-W-H-series

The FC-W-xxxH series (Fiber Coupling Laser System) provides highest power and includes integrated laser diode, laser cavity, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LCD/ LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
Ultra high power fiber coupled laser system
Available wavelength:       444 - 660 nm
Power:                                 20 - 200 W
                                             (dependent on
                                             Wavelength)
Fiber Core Diameter:        100 µm, ..., 600 µm
Pilotlaser:                            available (optional)
Numerical aperture:          0.22
Fiber Connector:                SMA905
Fiber length:                        2 m (or other)
Output Power:                    0-100%, adjustable
Modulation:                        up to 30 kHz
Operating Mode:                CW, TTL  (or Analog)
Display:                               Diode current
Expected Lifetime:            10000 hours
Input Power:                       200 - 264 VAC, 50 - 60 Hz
Operating Temperature:   10 ~ 40 °C
Cooling method:                air / water
Warranty time:                   1 year
