450 nm

Blue 450 nm laser

- Low noise, narrow line width, power stabilized CW diode laser
- Pulsed laser with high pulse energy

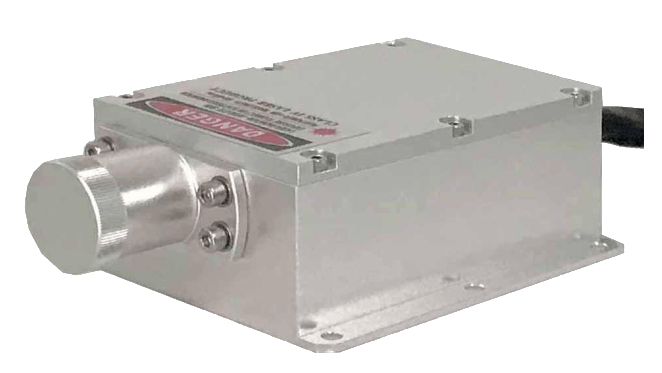

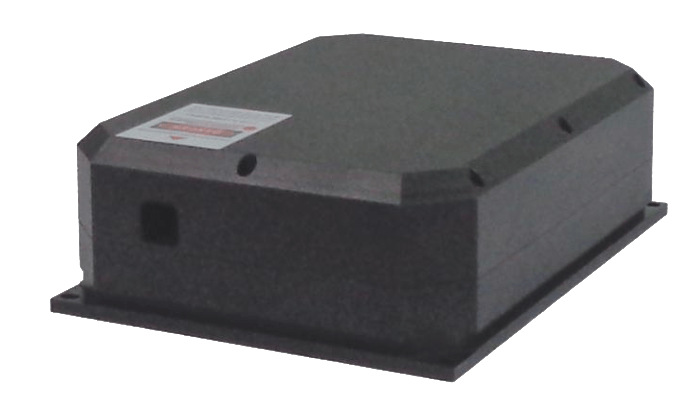

- OEM laser

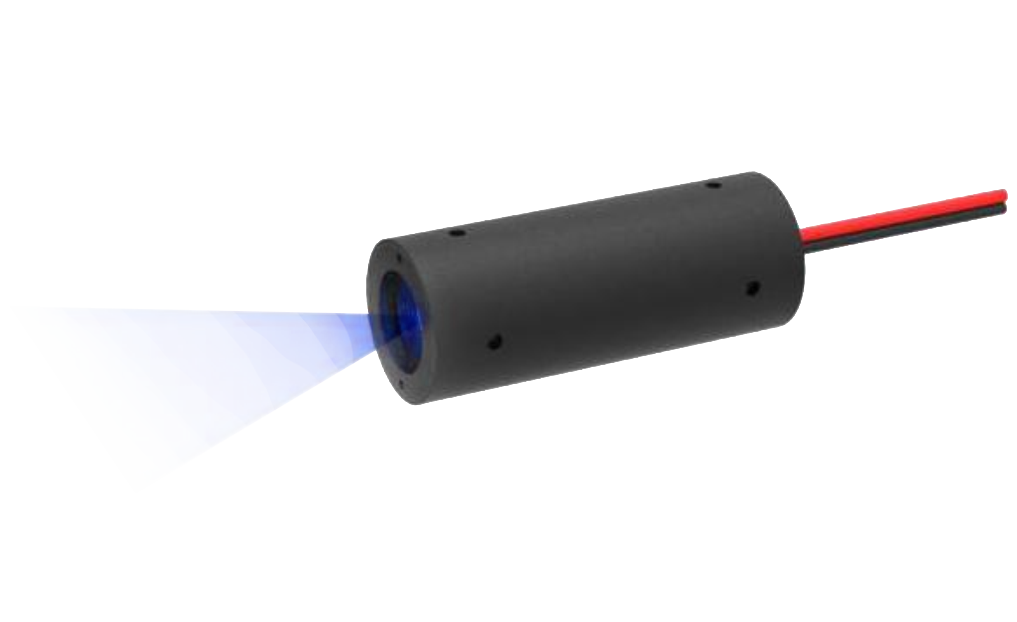

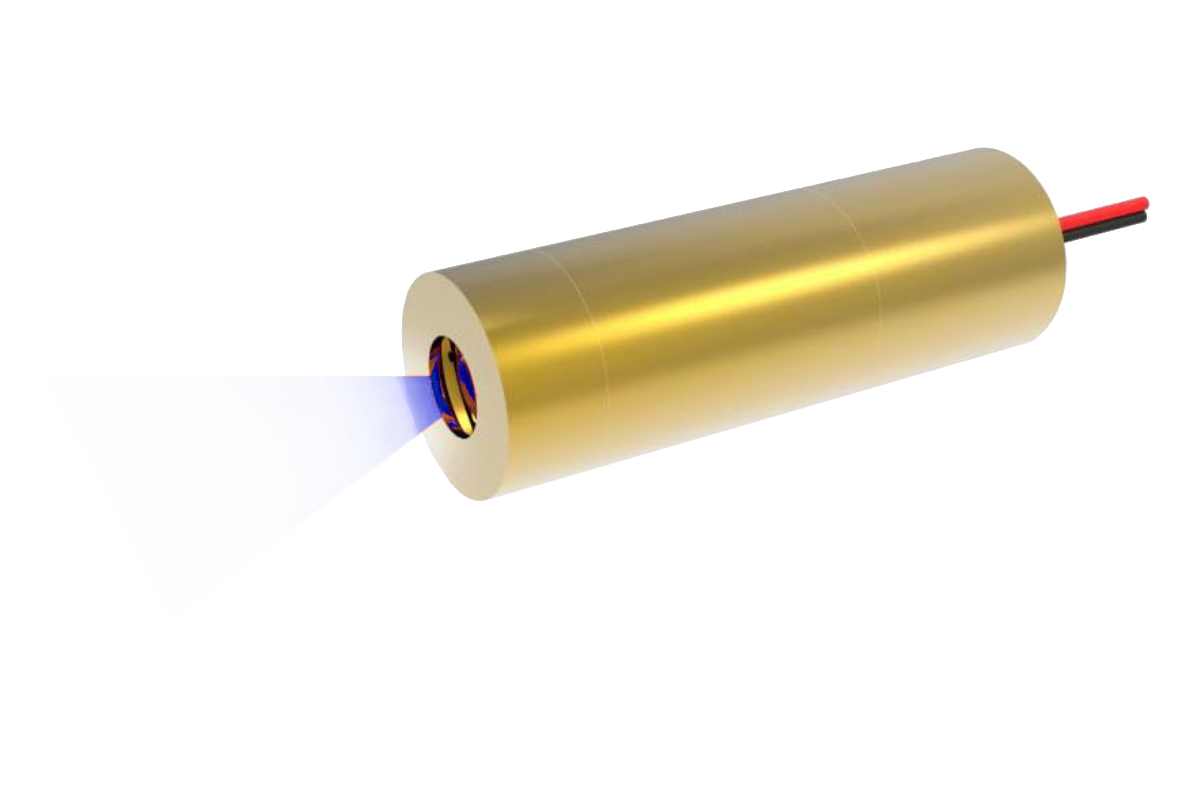

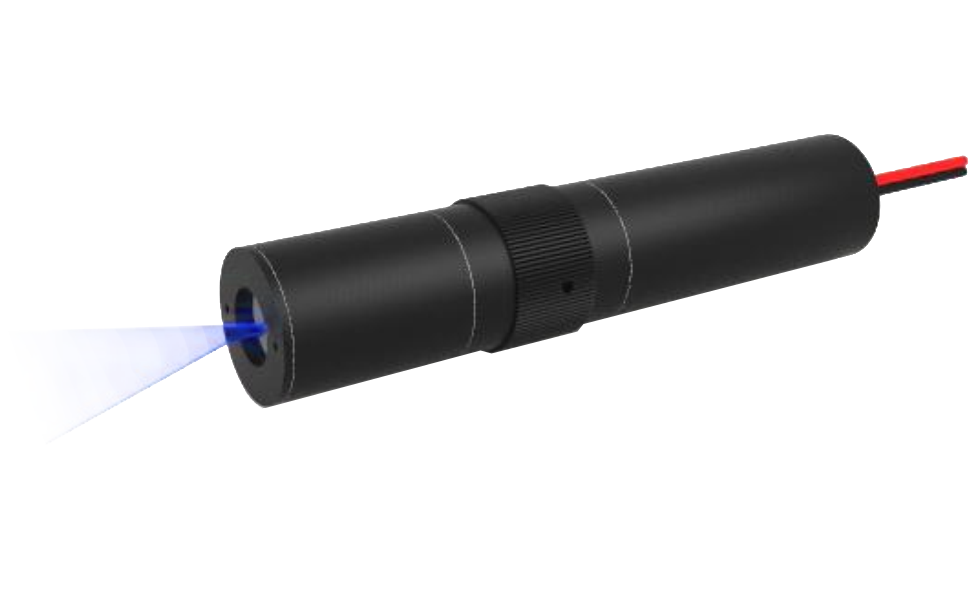

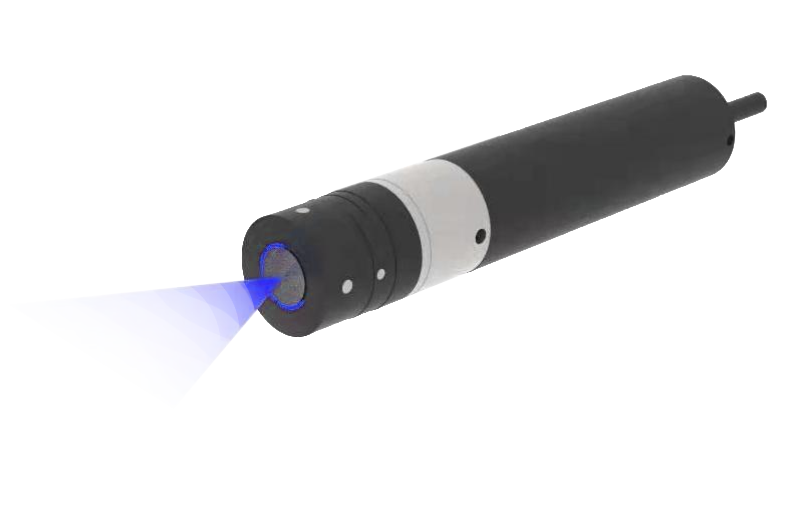

- Line generating laser

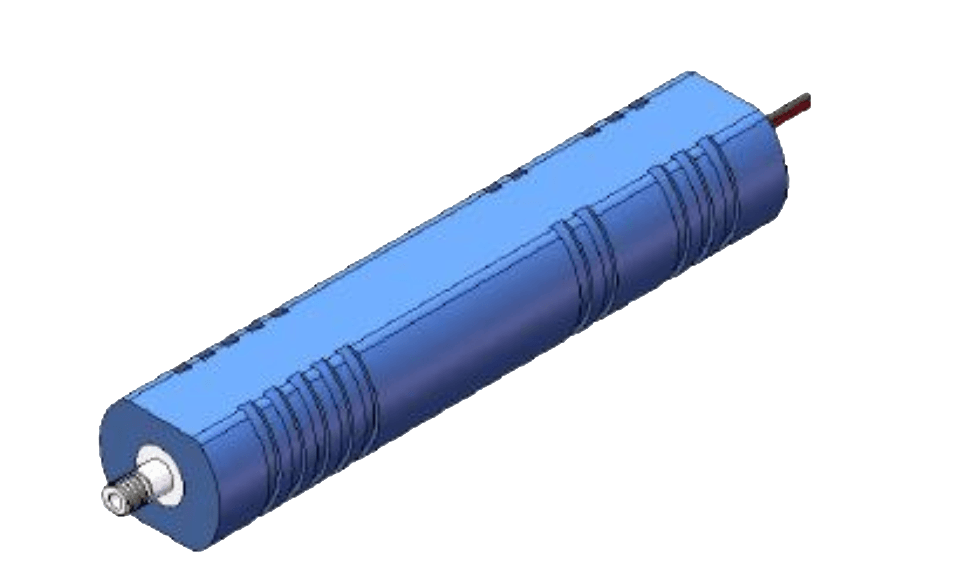

- Fiber coupled laser

450 nm pulsed laser

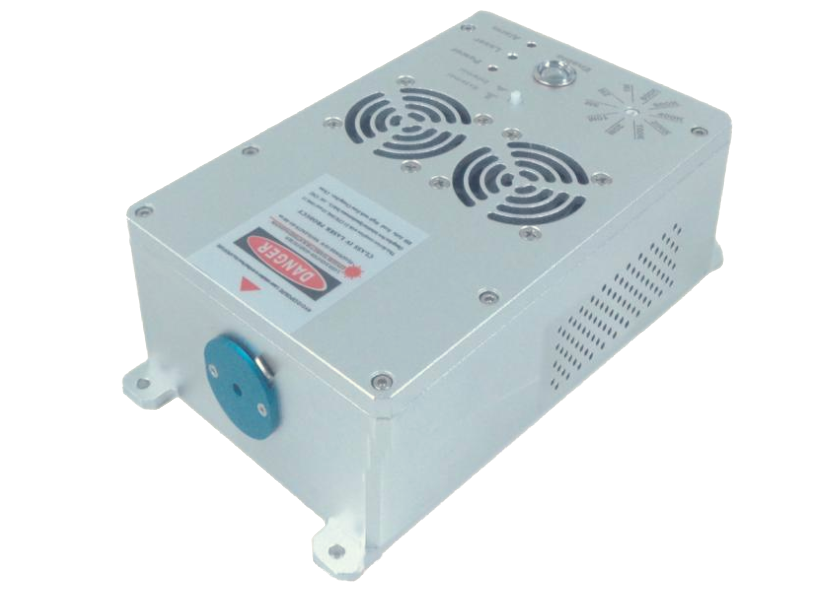

MDL-PS-450

The MDL-PS-xxx series generates picosecond pulsed radiation. It features integrated electronics, repetition rate 100kHz to 80MHz, synchronized signal output. Fast ON/ OFF/ multiplexing capability. Suitable for fluorescence excitation, time resolve spectrum, highly sensitive absorption spectroscopy, etc.


Wavelength:                            450 ± 5 nm

Output power:                        1 ~ 60 mW

Power stability:                      < 1%, < 2%, < 3% (rms, 4 hours)

Pulse width:                           100 ~ 1000 ps

Mode:                                      ~ TEM00

Beam diameter:                     ~ 1.2 mm (1/e²)

Beam divergence:                 < 1.0 mrad (full angle)

Triggering frequency:           100 kHz - 20 MHz (intern or extern), 20 MhZ ~ 80 MHz (extern)

Beam height:                         26.5 mm

Operating temperature:        10 ~ 35 °C

Warm-up time:                       < 5 min

Power supply:                        DC 12V; 4 A

Warranty:                                1 Year

MDL-NS-450

This series laser products with excellent material removal rate, are widely used in microelectronics, material processing, solar energy and medical equipment manufacturing, etc.


Wavelength:                            450 ± 5 nm

Output power:                        1, 10, ..., 80 mW (CW)

Power stability:                      < 1%, < 2%, < 3% (rms, 4 hours)

Pulse width:                           10 ns, 20 ns, ..., 10 ms

Mode:                                      ~ TEM00

Noise of amplitude:              < 1% (rms, CW)

M²:                                           < 1,2

Beam diameter:                     ~ 1.2 mm (1/e²)

Beam divergence:                 < 1.0 mrad (full angle)

Polarization ratio:                  > 50:1, > 100:1 optional (horizontal or vertical)

Triggering frequency:           1 Hz - 50 MHz

Rise time:                               < 3 ns

Fall time:                                 < 3 ns

Modulation depth:                 > 1000000 : 1

Beam height:                         19 mm

Operating temperature:        10 ~ 35 °C

Warm-up time:                       < 5 min

Power supply:                        DC 12V

Expected lifetime:                 10.000 hours

Warranty:                                1 Year

Narrow linewidht diode laser at 450 nm

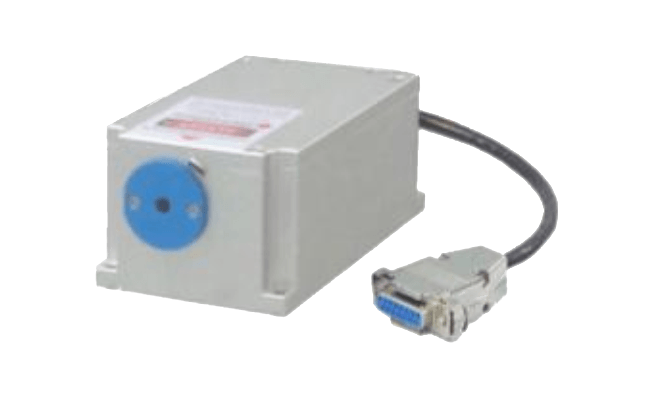

MDL-C-450 / MDL-E-450

Diode laser at 450 nm. It features a narrow spectral linewidth, long coherent length, stable wavelength, long lifetime and easy operation. It is widely used in holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, LIDAR, precision measurement, etc.


Wavelength:                       450 ± 1 nm

Operating mode:               CW

Output power:                   1, 10, ..., 30 mW

Power stability:                  < 1%, < 2%, < 3% (rms, 4 hours)

Mode:                                  ~ TEM00

Coherent length*:              > 1 m

Spectral line width**:        < 0.06 nm (< 0.03 nm)

Beam diameter:                 ~ 1.3 mm (1/e²)

Beam divergence:             < 1.5 mrad (full angle)

Polarization ratio:              > 50:1 (> 100:1 optional) (horizontal or vertical)

Beam height:                      30 mm

Operating temperature:    20 ~ 30 °C

Warm-up time:                   < 5 min

Power supply:                    AC 100 ~ 240 V

Expected lifetime:             10.000 hours

Warranty:                            1 Year


* Model MDL-C-450 only

** Model MDL-E-450 only

Tunable diode laser at 448-452 nm

TUN-448~452

This laser is a high-end custom high stability, low noise, narrow linewidth, wavelength tunable product. Mainly used in scientific research and teaching, such as holographic imaging, Raman, atomic clock, coherent detection and so on. Currently it has a line width of less than 0.1nm and a tuning range of 4nm.


Wavelength:                        448 - 452 nm

Operating mode:                CW

Output power:                    1, 10, ..., 10 mW

Power stability:                  < 1%, < 2%, < 3% (rms, 4 hours)

Mode:                                  ~ TEM00

Spectral line width:           < 0.1 nm

Beam diameter:                 ~ 3.0 mm (1/e²)

Beam divergence:             < 1.0 mrad (full angle)

Polarization ratio:              > 50:1, > 100:1 (± 5°) (horizontal or vertical)

Beam height:                     45.5 mm

Operating temperature:    20 ~ 30 °C

Warm-up time:                   < 5 min

Expected lifetime:             10.000 hours

Warranty:                            1 Year

TEM00 CW laser at 450 nm

TEM-F-450

The model TEM-F-450 features TEM00 mode, ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in measurement, communication, spectrum analysis, etc.


Wavelength:                        450 ± 10 nm

Operating mode:                CW

Output power:                    1, 2, ..., 20 mW

Power stability:                  < 1%, < 2%, < 3% (rms, 4 hours)

Mode:                                  TEM00

Ellipticity:                           > 0.95

M²:                                       < 1.1

Beam diameter:                 ~ 1.0 mm (1/e²)

Beam divergence:             < 1.5 mrad (full angle)

Beam height:                     25 mm

Operating temperature:   25 +/-3 °C

Warm-up time:                  < 5 min

Power supply:                   AC 85 ~ 264 V

Modulation:                       TTL or analog 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz

Expected lifetime:             10.000 hours

Warranty:                            1 Year


Note: The laser head needs to be attached to heat sink with good heat dissipation.

Low noise, high stability blue laser at 450 nm

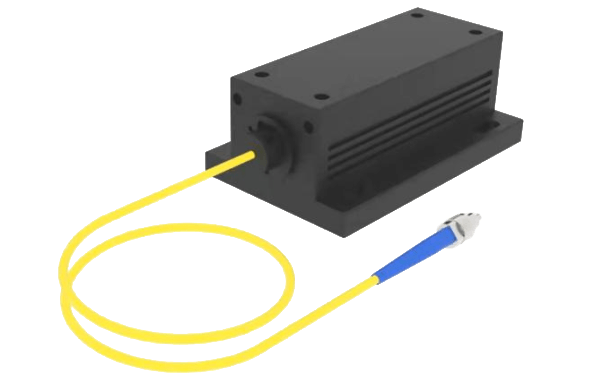

MDL-III-450-SM

Fiber coupled diode laser at 450 nm wavelength. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in measurement applications, communication, spectrum analysis, etc.


Wavelength:                        450 ± 10 nm

Operating mode:                CW

Output power:                     1, 2, ..., 50 mW (out of fiber)

Fiber type:                            SM or MM

Fiber core diameter:          4 ~ 9 µm

Fiber connector:                 FC/PC, FC/APC

Fiber NA:                              0.12

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)

Fiber length:                        1 m (other on request)

Transverse mode:              TEM00

M²:                                        ~ 1.1

Ellipticity:                             > 0.95

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

MDL-XS-445

This laser features integrated electronics, plug and play, miniaturization, international standard interface. They are the ideal solution for a wide range of applications including life sciences, environmental monitoring, inspection and machine vision.


Wavelength:                               450 ± 5 nm

Operating mode:                       CW

Output power:                           1, 10, ..., 80 mW

Power stability:                         < 1%, < 2%, < 3% (rms,  4 hours)

Mode:                                         ~ TEM00

Noise of amplitude:                 < 0.5%, < 1%(rms, 1Hz ~ 20MHz)

M²:                                              < 1,2

Beam diameter:                        ~ 1.2 mm (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Polarization ratio:                     > 50:1, > 100:1 optional (horizontal or vertical)

Beam height:                            19 mm

Operating temperature:           10 ~ 35 °C

Warm-up time:                          < 5 min

Power supply:                           DC 12V 4A

Modulation:                               DMOD (TTL) up to 1 MHz

                                                    AMOD (Analog) up to 100 kHz

                                                    DMOD + AMOD (TTL + Analog)

Expected lifetime:                    10.000 hours

Warranty:                                   1 Year


Note: The laser head needs to be used on a heat sink with good heat dissipation.

MLL-III-450L | MDL-III-450L

This model, features excellent beam shape, ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in scientific research, laser pointing, measurement, communication, spectrum analysis, laser pointing and RGB mixed laser systems applications, etc.


Wavelength:                               450 ± 5 nm

Operating mode:                       CW

Output power:                           1, 10, ..., 80 mW

Power stability:                         < 1%, < 2%, < 3%, 0.5%) (rms, 4 hours)

Mode:                                         ~ TEM00

Noise of amplitude*:                < 1% (rms, 1Hz ~ 20MHz)

M²:                                              < 1.5 (< 1.2 )

Beam diameter:                        ~3.5 mm (~ 1.2 mm) (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Polarization ratio:                     > 50:1, > 100:1 optional (horizontal or vertical)

Pointing stability:                     < 0.05 mrad

Beam height:                            24.8 mm

Operating temperature:           10 ~ 35 °C

Warm-up time:                          < 5 min

Power supply:                           AC 85 ~ 264 V

Modulation:                               1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or Analog)

Expected lifetime:                    10.000 hours

Warranty:                                   1 Year


*Model MLL-III-450L only

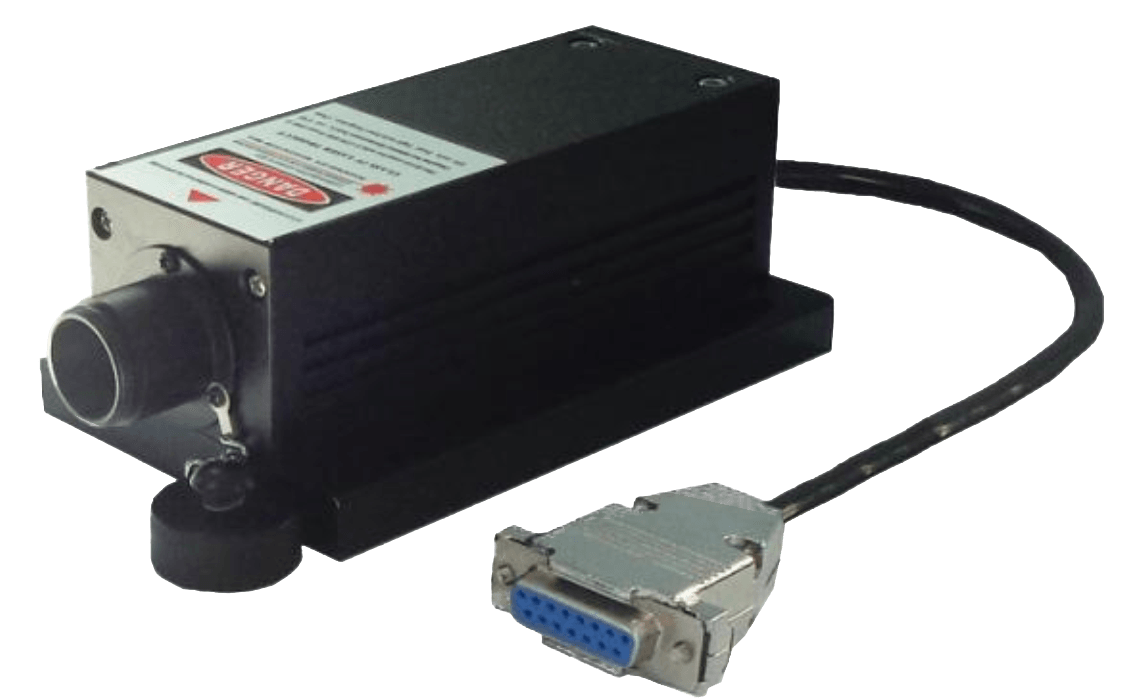

MLL-III-450 | MDL-III-450

450 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.



Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     a) > 80, 50, ..., 500 mW

                                              b) > 500, 600, ..., 1000 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)

Mode:                                   multimode

Noise of amplitude*:          < 1% (rms, 10Hz~20MHz)

Beam diameter:                  a) < 2.5 x 5.2 mm (1/e²)

                                              b) < 2.0 x 5.0 mm² (1/e²)

Beam divergence:              a) < 2.1 x 1.6 mrad (full angle)

                                              b) < 2.5 x 0.2 mrad (full angle)

Polarization ratio:               > 50:1, > 100:1 optional (horizontal or vertical)

Beam height:                       24.8 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year


* Model MLL-III-450 only

MLL-F-450 | MDL-F-450 | F-450-HS (ultra compact)

450 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     a)* 1, 10, .., 2000 mW

                                              b) > 1000, 1100, ..., 2000 mW

                                              c) > 2000, 2100, ..., 3500 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)

Mode:                                   multimode

Noise of amplitude**:        < 1% (rms, 20Hz~20MHz)

Beam diameter:                  a) < 2.7 x 2.7 mm (1/e²)

                                              b) < 2.7 x 2.7 mm (1/e²)

                                              c) < 3.5 x 3.5 mm² (1/e²)

Beam divergence:              < 1.4 x 0.2 mrad (full angle)

Polarization ratio***:         >  50:1, > 100:1 (horizontal or vertical)

Beam height:                       45 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year


* Model F-450-HS only

** Model MLL-F-450 only

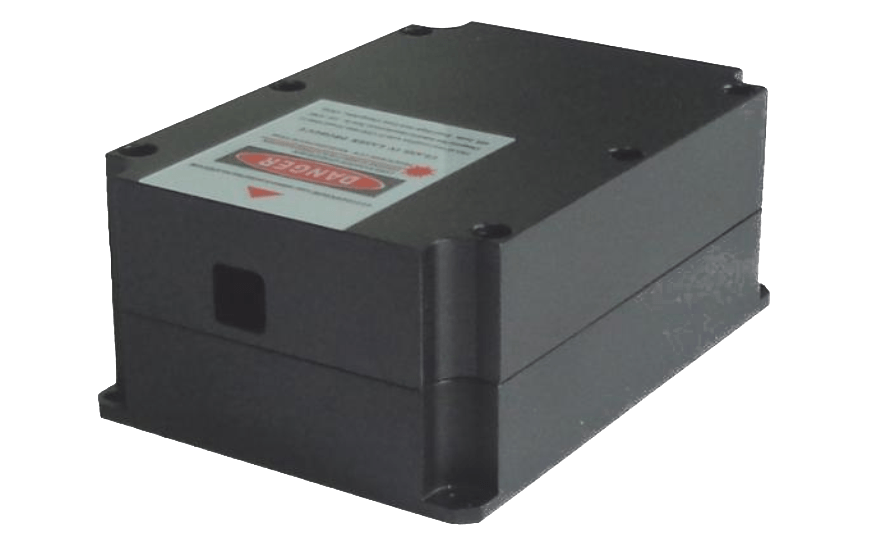

MDL-SD-450

450 nm high power blue diode laser module. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     > 3500, 3600, ..., 4000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  a) ~ 4.7 x 2.7 mm

                                              b) < 2.7 x 2.7 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Polarisation:                       a) horizontal / vertical

                                              b) horizontal + vertical

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 100 ~ 240 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

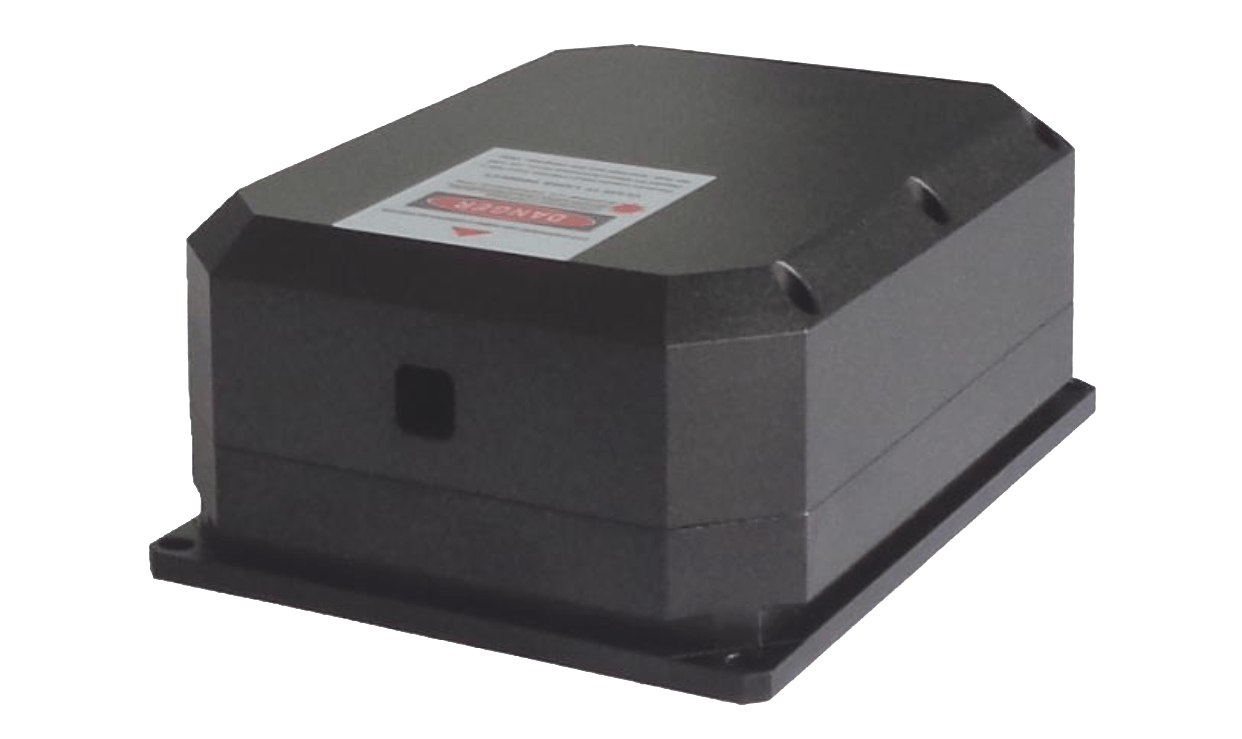

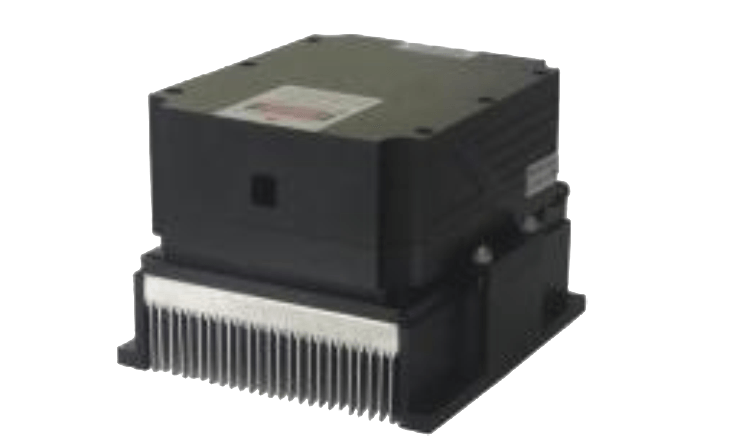

MDL-D-450

450 nm high power blue diode laser module. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     > 4000, 5000, ..., 8000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  ~ 3.2 x 3.2 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Beam height:                       68.2 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

MDL-XD-450

High power blue diode laser at 445 nm. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis.


Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     a) > 8000, 9000, ..., 16000 mW

                                              b) > 16000, 17000, ..., 20000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  a) ~ 5.0 x .5.0 mm

                                              b) ~ 7.5 x .5.0 mm

Beam divergence:              a) < 2.4 x 2.0 mrad  (full angle)

                                              b) < 2.0 x 4.0. mrad  (full angle)

Polarisation direction:       vertical + horizontal

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 100 ~ 240 V

Modulation:                         analog or TTL; 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional;

Expected lifetime:              10.000 hours

Warranty:                             1 Year

OEM laser at 450 nm

F-450-HS-OEM

450 nm blue diode laser. IIt features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     a) 1, 10, .., 2000 mW

                                              b) > 2000, 2100, ..., 3500 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)

Mode:                                   multimode

Beam diameter:                  a) < 2.7 x 2.7 mm (1/e²)

                                              b) < 3.5 x 3.5 mm² (1/e²)

Beam divergence:              < 1.4 x 0.2 mrad (full angle)

Beam height:                       25 mm

Operating temperature:     25  ± 3 °C

Warm-up time:                    < 5 min

Power supply:                     DC 8 V; 7 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (TTL oder Analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

OEM-I-450 | OEM DH-450

450 nm blue diode laser is made features of ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.


Wavelength:                       450 ± 5 nm

Operating mode:               CW

Output power:                    max. 30 W (out of fiber)

Noise of amplitude**:       < 0.5% (rms, 20Hz ~ 20 MHz)

Power stability*:                < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)

Fiber core diameter:         >/= 200 µm

Fiber connector:                SMA905 / FC

Fiber length:                       1 m, 2 m, ...

Control interface**:           RS232 or USB

Operating temperature:   10°C ~ 35°C

                                             +25°C +/- 3°C*

                                             +10°C ~ 35 °C***

Warm-up time:                   < 5 min

Power supply:                    DC 3~12V 6A**

                                             AC 90-264V**

Opt. heatsink temp.**:      +15°C ~ 30°C (max. 40°C)

Overheat protection**:      yes

Storage temperature:       -10°C ~ +50°C

Modulation:                        up to 100 kHz (TTL or analog*)

Warranty:                            1 year

Driver available:                 yes*

Accessories (opt.):            heatsink, power supply


* Model OEM-DH-450 only

** Model OEM-I-450 only

*** Model OEM-DH-450 water cooled only

MDL-SD-450-OEM

450 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     > 3500, 3600, ..., 4000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  a) ~ 4.7 x 2.7 mm

                                              b) ~ 2.7 x 2.7 mm

Beam divergence:              < 1.4 x 0.2  mrad (full angle)

Polarisation:                       a) horizontal / vertical

                                              b) horizontal + vertical

Operating temperature:     25 ± 3  °C

Warm-up time:                    < 5 min

Beam height:                       28.5 mm

Power supply:                     DC 12 V; 15 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

MDL-D-450-OEM

450 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     a) > 4 W, 5 W, 6 W

                                              b) > 6 W, 7 W, 8 W

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Polarisation:                        horizontal + vertical

Beam diameter:                  ~ 3.2 x 3.2 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Beam height:                       35 mm

Operating temperature:     25 ± 3  °C

Warm-up time:                    < 5 min

Power supply:                     DC 12 V; 15 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

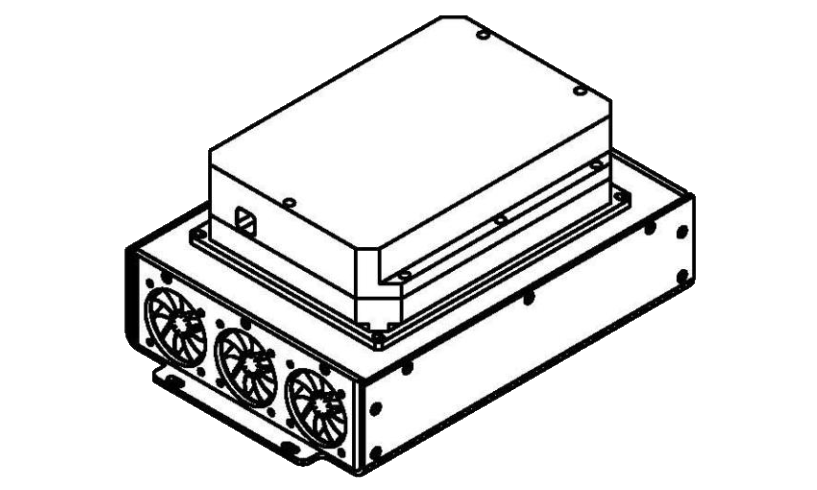

MDL-XD-450-OEM

Blue diode laser at 450 nm. This laser features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis.


Wavelength:                        450 ± 5 nm

Operating mode:                CW

Output power:                     a) > 8, 9, ..., 16 W

                                              b) >16, 17, ..., 20 W

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  a) ~ 5.0 x 5.0 mm²

                                              b) ~ 7.5 x 5.0 mm²

Beam divergence:               a) < 2.4 x 2.0 mrad  (full angle)

                                              b) < 2.0 x 4.0 mrad (full ngle)

Polarisation:                        horizontal + vertical

Beam height:                       35 mm

Operating temperature:     25 ± 3  °C

Warm-up time:                    < 5 min

Power supply:                     DC 12 V; 15 A

Modulation:                         analog or TTL; 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional;

Expected lifetime:              10.000 hours

Warranty:                             1 Year

OEM line generating laser at 450 nm

PGL-L-450

The laser module has optional internal or external power supply and features uniform power density, high straightness and good stability line beam.


PGL-L Series Diode Lasers with its industrial-suited design and stable performance works perfectly as an integrated module in collimation, laser medical treatment, scientific experiment, optical instrument, etc.


Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                     1 - 50 mW

Line width:                           40 - 200µm (@ <0.25m)

                                              < 1.0 mm (@ 1 m)

Line angle:                           7°, 10°, 15°, 30°, 45°, 60°, 75°, 90°

Modulation:                         up to 30 kHz (TTL < 0.9V or analog DC 0-3 V)

Operating temperature:     -10 ~ +45 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Warm-up time:                    < 5 min

Power supply:                     DC 6 V (internal PCB) or DC 5-12 V (external PCB)

Dissipated heat:                 < 1 W

Weight:                                15 g (with external electronics)

                                              20 g (with integrated electronics)

Length:                                 52 mm

Diameter:                             12 mm

Material:                              Aluminum

Expected lifetime:              10.000 hours

PGL-L1-450

The laser features ultra compact, long lifetime and easy operating.


PGL-L1 Series Laser Module with its industrial-suited design and stable performance works perfectly as an integrated module in collimation, laser medical treatment, scientific experiment, optical instrument, etc.


Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                     1 - 50 mW

Line width:                           40 - 200µm (@ <0.25m)

                                              < 1.0 mm (@ 1 m)

Line angle:                           7°, 10°, 15°, 30°, 45°, 60°, 75°, 90°

Operating temperature:     -10 ~ +45 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Warm-up time:                    < 5 min

Power supply:                     DC 6 V

Dissipated heat:                 < 1 W

Weight:                                40 g

Length:                                 60 mm

Diameter:                             18 mm

Material:                              Aluminum

Expected lifetime:              10.000 hours

PGL-LZ-450

The laser module with modulation function and powered by an OEM version 5-12V PCB and features excellent collimation, uniform power density, high straightness and good stability line beam.


PGL-Z Series Diode Lasers with its industrial-suited design and stable performance works perfectly as an integrated module in collimation, laser medical treatment, scientific experiment, optical instrument, etc.


Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                     1 - 50 mW

Line width:                           40 - 200µm (@ <0.25m)

                                              < 1.0 mm (@ 1 m)

Line angle:                           7°, 10°, 15°, 30°, 45°, 60°, 75°, 90°

Beam line collimation*:     < 10 mrad

Modulation:                         up to 30 kHz (TTL < 0.9V or analog DC 0-3 V)

Operating temperature:     -10 ~ +45 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Warm-up time:                    < 5 min

Power supply:                     DC 5 - 12 V

Dissipated heat:                 < 1 W

Weight 1:                             30 g (up to 100 mW)

Weight 2:                             37 g (up to 180 mW)

Length 1:                             40 mm (up to 100 mW)

Length 2:                             42 mm (up to 180 mW)

Diameter 1:                         16 mm (up to 100 mW)

Diameter 2:                         20 mm (up to 180 mW)

Material:                              Aluminum

Expected lifetime:              10.000 hours


* If the line orientation is rotated by 180°, the line thickness remains the same.

PGL-LF-450

This module has uniform line beam and the line width of laser module can easily be adjusted with the tool-free manual focus option.


PGL-LF Series Diode Lasers with its industrial-suited design and stable performance works perfectly as an integrated module collimation, laser medical treatment, scientific experiment, optical instrument, etc.


Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                     1 - 50 mW

Line width:                           40 - 200µm (@ <0.25m)

                                              < 1.0 mm (@ 1 m)

Line angle:                           7°, 10°, 15°, 30°, 45°, 60°, 75°, 90°

Operating temperature:     -10 ~ +45 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Power supply:                     DC 6 V

Dissipated heat:                 < 1 W

Weight:                                35 g

Length:                                 80 mm

Diameter:                             16 mm

Material:                              Aluminum

Expected lifetime:              10.000 hours

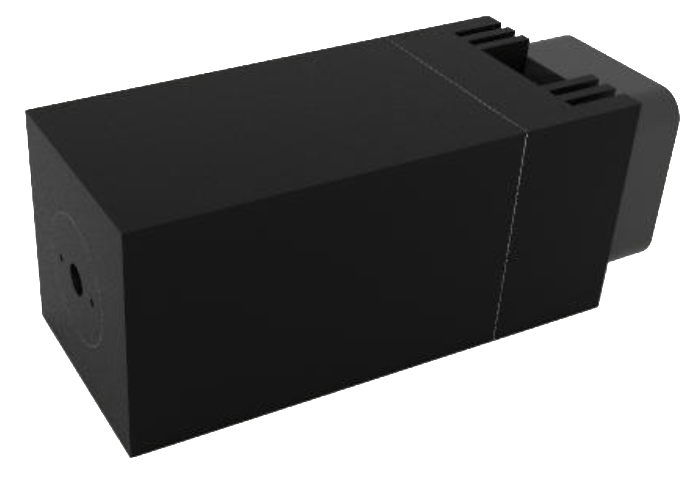

PGL-FS-450 | PGL-FS1-450

The laser includes built-in cooling fan, no additional cooling is required. It is working at AC 85-264V wide voltage supply and features uniform power density, high straightness and good stability line beam.

PGL-FS Series Lasers with its industrial-suited design and stable performance works perfectly in collimation, laser medical treatment, scientific experiment, optical instrument, etc.


Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                     1 - 50 mW

Line width:                           40 - 200µm (@ <0.25m)

                                              < 1.0 mm (@ 1 m)

Line angle:                           7°, 10°, 15°, 30°, 45°, 60°, 75°, 90°

Operating temperature:     -10 ~ +35 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Power supply:                     AC 85 - 264 V

                                              DC 5 - 12 V *

Weight:                                192 g

                                              150 g *

Length:                                 102 mm

Diameter:                             26 mm

Material:                              Aluminum

Expected lifetime:              10.000 hours


*Model PGL-FS1-450 only

MDL-SL-450 / MDL-L-450

The MDL-SL Series Laser is powered by an external OEM Version 5Vor 5-30V PCB and MDL-L Series Laser is photoelectric integrated. They are made features of easy integration, high reliability, focus adjustable, good environmental adaptability.


MDL-SL/ MDL-L Series Laser Module with its stable performance and high reliability works professionally in 3D scan and measurement, position welding and dimensional Inspection, etc.


Wavelength:                         455 ± 5 nm

Operating mode:                 CW

Output power:                     1 - 80 mW

Line width:                           40 - 200µm (@ <0.25m)

                                              < 1.0 mm (@ 1 m)

Line angle:                           7°, 10°, 15°, 30°, 45°, 50° 60°, 75°, 90°

Working distance:               0.05 - 2 m (adjustable)

Luminance uniformity:      80%

Straightness error:              < 0.5%

Temp. and power stability: < 0.5%

Modulation:                         up to 10 kHz (TTL or analog for adjusting power)

Operating temperature:     -10 ~ +45 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Power supply:                     DC 5 - 30 V (MDL-SL)

                                              DC 5 V (MDL-L)

Current:                                300 mA (max)

Dissipated heat:                 < 1 W

Length (MDL-SL):               67 mm

Length (MDL-L):                 109 mm

Diameter:                            19 mm

Material:                              Aluminum

Expected lifetime:              10.000 hours

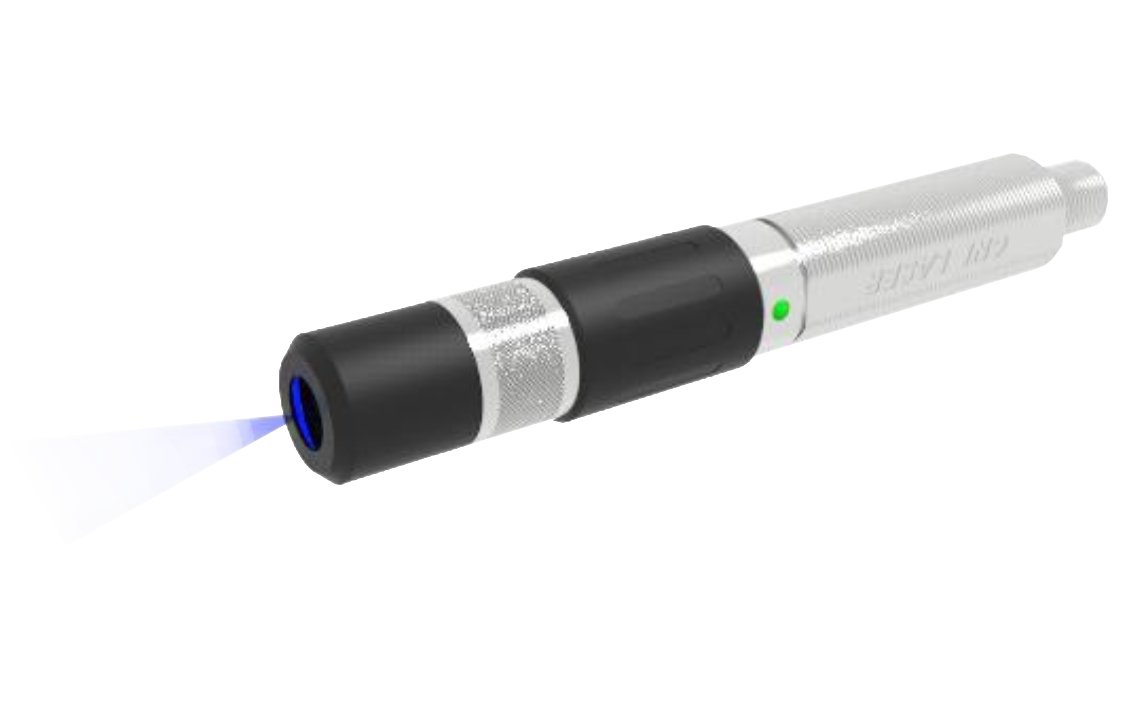

MDL-Z-450

The laser MDL-Z-series features precision fringes, uniform power distribution, clear edges, high stability. The module is protected against environmental influences according to the IP67 standard.


Tis Laser Module with its stable performance, high reliability and industrial-suited design works professionally in various 2D/ 3D visual field applications, inspection systems and medical treatment, etc.


Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                     1 - 80 mW

Line width:                           40 - 200µm (@ <0.25m)

                                              < 1.0 mm (@ 1 m)

Line angle:                           7°, 10°, 15°, 30°, 45°, 50° 60°, 75°, 90°

Working distance:               0.05 - 2 m

Luminance uniformity:      85%

Straightness error:              < 0.1%

Temp. and power stability: < 0.5%

Modulation:                         up to 100 kHz (TTL)

                                              up to 30 kHz (analog for adjusting power)

Operating temperature:     -10 ~ +45 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Power supply:                     DC 5 - 30 V (with wrong connection protection)

Current:                                300 mA (max)

Dissipated heat:                 < 1 W

Protection:                           IP67, dust and water proof

Length:                                 147 mm

Diameter:                             22 mm

Material:                              Aluminum

Expected lifetime:              10.000 hours

PGL-LH-450

The high power laser module features high output power, ultra compact design, long lifetime and easy operation.

PGL-LH Series Diode Lasers with its industrial-suited design and stable performance works perfectly as an integrated module in collimation, laser medical treatment, scientific experiment, optical instrument, etc.



Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                     100 - 1000 mW

Line width:                           < 1.0 mm (@ 1 m)

Line angle:                           7°, 10°, 15°, 30°, 45°, 50° 60°, 75°, 90°

Working distance:               0.05 - 2 m

Luminance uniformity:      85%

Straightness error:              < 0.1%

Temp. and power stability: < 0.5%

Modulation:                         up to 300 kHz (TTL 2.2V - 7V or analog DC 0-5)

Operating temperature:     -10 ~ +45 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Power supply:                     DC 6 V or 7 V (intern) or AC 85-264V with adapter

Dissipated heat:                 < 1 W

Weight:                                 113 g

Length:                                 60 mm

Diameter:                             20 mm

Material:                              Copper

Expected lifetime:              10.000 hours

MDL-XL-450

MDL-XL Series Laser is photoelectric integrated. It features easy integration, high reliability, adjustable focus, good environmental resistance. The user simply needs to provide a digital modulation signal to synchronize the enable time and disable time of the laser emission. MDL-XL Series Laser Module with its stable performance and high reliability works professionally in 3D scan and measurement, position welding, dimensional Inspection, rail road inspection, etc.


Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                     3 W

Power stability:                   < 1% (8 hours)

Line width:                           ~ 0.2 mm @ 0.4 m (adjustable)

Line angle:                           7°, 10°, 15°, 30°, 45°, 50° 60°, 75°, 90°

Working distance:               0.05 - 2 m (adjustable)

Luminance uniformity:      80%

Straightness error:              < 0.5%

Temp. and power stability: < 0.5%

Modulation:                         up to 10 kHz (TTL or analog for adjusting power)

Operating temperature:     -10 ~ +50 °C

Storage temperature:        -20 ~ +80°C

Humidity:                             < 90%

Power supply:                     DC 5/12/24 V

Dissipated heat:                 1 ~ 5 W

Length:                                 101 mm

Diameter:                             19 mm

Material:                              Aluminum

Expected lifetime:              10.000 hours

Compact OEM laser modules at 450 nm

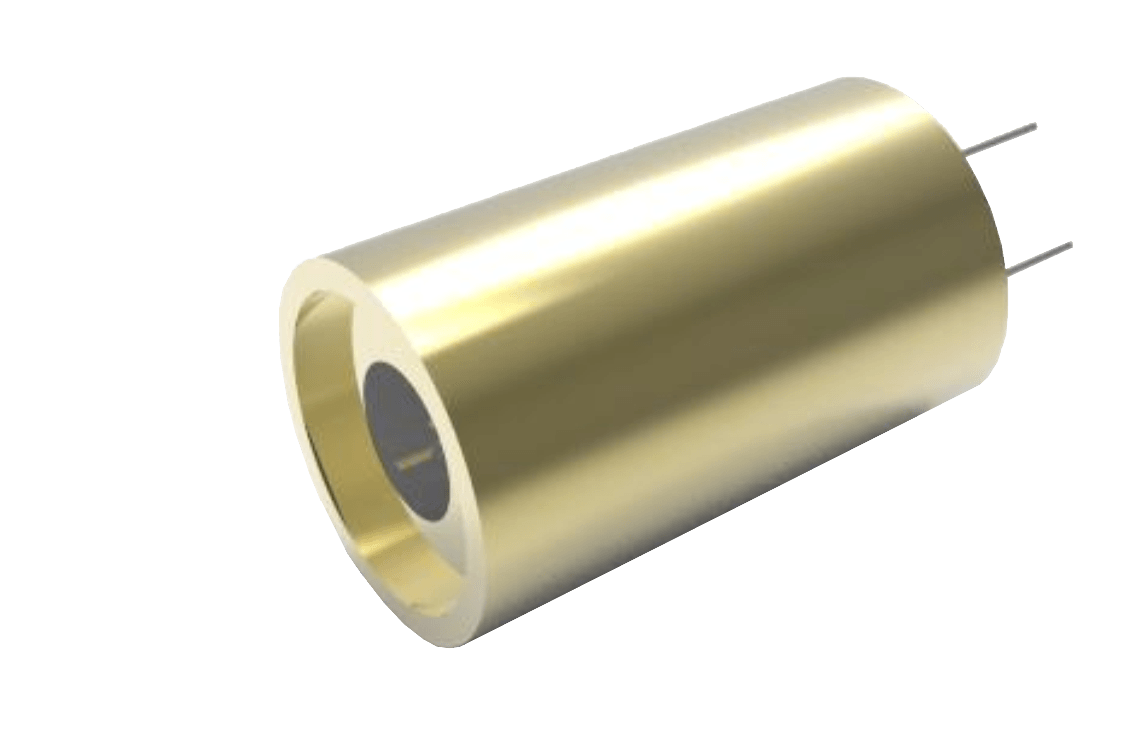

PGL-D8-450 | PGL-D12-450

PGL-Dxx-xxx modules are ultra compact laser modules, which feaute wide temperature operating (no TEC), high reliability, and low cost. Applications: orientation, alignment and measurement, etc.


Wavelength:                              450 ± 10 nm

Operating mode:                      CW

Output power:                           1, 10, ..., 30 mW

Mode:                                         ~ TEM00

Beam diameter:                        ~ 3.5 mm (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Operating temperature:           15 ~ 35 °C

Power supply:                           DC 6 V PCB

Expected lifetime:                    10.000 hours

Length:                                       15 mm (PGL-D8) | 20 mm (PGL-D12)

Diameter:                                   8 mm (PGL-D8) | 12 mm (PGL-D12)

Warranty:                                   6 Months

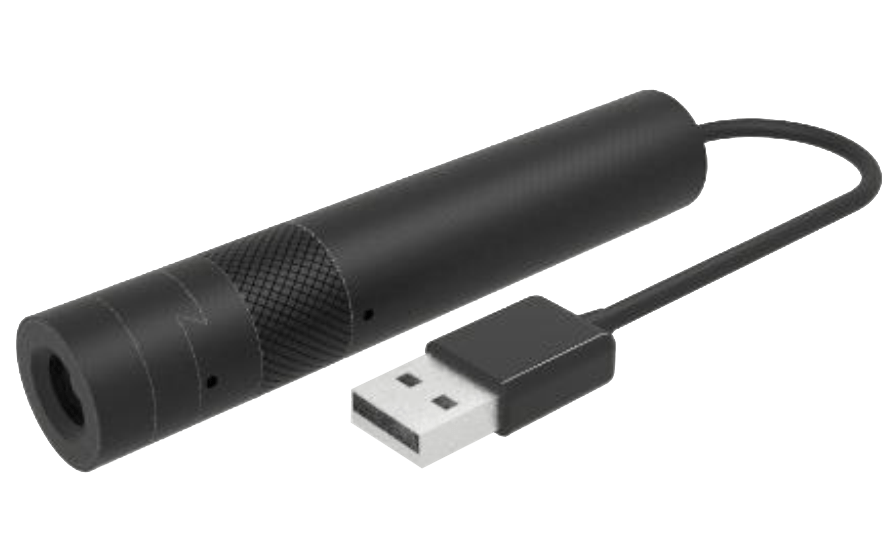

PGL-F-450

PGL-F-series features small size, high stability portable laser with long lifetime. It can be controlled by PC via USB. The lens (line generator) can be changed.


Wavelength:                         450 ± 5 nm

Operating mode:                 CW

Output power:                      1 - 80 mW

Fan agle:                               10°, 15°, 30°, 45°, 50°, 60°, 75°, 90°

Noise of amplitude:            < 0.5%, 1% (rms,  20 Hz ~ 20 MHz)

Modulation:                         0.1 - 50 kHz

Pointing stability:                < 0.05 mrad/°C

Operating temperature:     10 ~ 35 °C

Warm-up time:                     < 5 min

Power supply:                      DC 5 V ± 0,5 V , 1 A (USB)

Expected lifetime:               5.000 hours

Warranty:                              6 Month

PGL-FC-450 (fasergekoppelt)

PGL-FC series laser is made features of wide temperature operating (no TEC), high reliability, and low cost, which is widely used in orientation, alignment and measurement, etc.


Wavelength:                         450 nm

Operating mode:                 CW

Output power:                      50 mW

Power stability:                   < 5% (rms, 4 hours)

Fiber core:                            400 µm

Fiber type:                            FC/PC or SMA905

Operating temperature:     15 ~ 35 °C

Warm-up time:                     < 10 min

Power supply:                      DC 5V

Expected lifetime:               10.000 hours

Warranty:                              6 Month

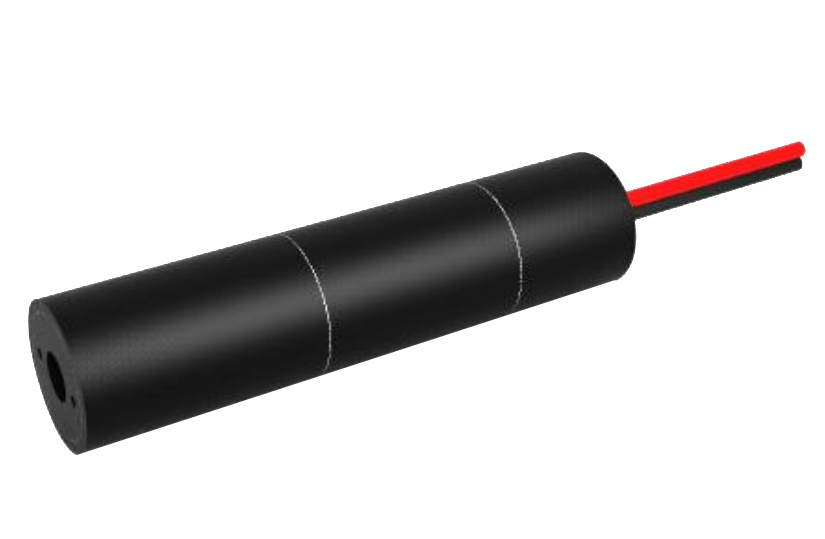

PGL-VI-450

PGL-VI-450 is a high power blue laser module at 450nm. I features small size, high output power, long lifetime, which made it widely used in collimation, laser medical treatment, scientific experiment, optical instrument and so on.


Wavelength:                              450 ± 10 nm

Operating mode:                      CW

Output power:                           1, 10, ..., 50 mW

Mode:                                         ~ TEM00

Beam diameter:                        ~ 3.5 mm (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Operating temperature:           15 ~ 30 °C

Power supply:                           DC 6 V PCB

Expected lifetime:                    10.000 hours

Length:                                       50 mm

Diameter:                                   12 mm

Warranty:                                   6 months

Optional:                                    adjustable focus distance

PGL-FS-450

Diode laser module at 450 nm. Feauterus: ultra compact, long lifetime, low cost and easy operating. It is which is widely used in laser pointing, show and light applications. Very good eam properties make it useful in RGB mixed laser systems.


Wavelength:                               450 ± 10 nm

Operating mode:                       CW

Output power:                           1, 10, ..., 50 mW

Power stability:                         < 1%, < 3%, < 5% (rms,  4 hours)

Mode:                                         ~ TEM00

Beam diameter:                        ~ 3.5 mm (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Beam height:                            15 mm

Pointing stability:                     < 0.05 mrad

Operating temperature:           10 ~ 35 °C

Warm-up time:                          < 10 min

Power supply:                           DC 7/12V or AC 90-264V

Modulation:                               1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (analog or TTL)

Expected lifetime:                    10.000 hours

Warranty:                                   1 Year

PGL-H-450

PGL-H-450 blue laser module at 450nm features small size, high output power, long lifetime. It is widely used in collimation, laser medical treatment, scientific experiment, optical instrument and so on.


Wavelength:                              450 ± 5 nm

Operating mode:                      CW

Output power:                           1, 10, ..., 50 mW

Mode:                                         ~ TEM00

Beam diameter:                        ~ 3.5 (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Operating temperature:           15 ~ 30 °C

Power supply:                           DC 6 V PCB

Expected lifetime:                    10.000 hours

Warranty:                                   6 Months

PGL-V-H-450

Diode laser module at 450 nm. Feauterus: ultra compact, long lifetime, low cost and easy operating. It is is widely used in laser pointing, show and light applications. Very good beam properties make it useful in RGB mixed laser systems.


Wavelength:                              450 ± 5 nm

Operating mode:                      CW

Output power:                           a) > 1, 10, ..., 80 mW

                                                    b) > 80, 100, ..., 1000 mW

Power stability:                         < 1%, < 3%, < 5% (rms,  4 hours)

Mode:                                         a) ~ TEM00

                                                    b) multimode

Beam diameter:                        a) ~ 5.0 mm (1/e²)

                                                    b) ~ 2.0 x 4.0 mm (1/e²)

Beam divergence:                    a) < 1.5 mrad (full angle)

                                                    b) < 3.0 x 0.5 mrad (full angle)

Beam height:                            15 mm

Pointing stability:                     < 0.05 mrad

Operating temperature:           10 ~ 35 °C

Warm-up time:                          < 10 min

Power supply:                           DC 7/12V or AC 90-264V

Modulation:                               1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (analog or TTL)

Expected lifetime:                    10.000 hours

Warranty:                                   1 Year

Fiber coupled blue laser at 450 nm

MDL-450(FC)

Nearly all 450 nm laser modules can be coupled with MM or SM fibers with different core diameters. Here you will find all possible fiber coupling options and their parameters.

FC-450

The FC series (Fiber Coupling Laser System) includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.

FC-W-450C

The FC-W series (Fiber Coupling Laser System) is the high power version of FC series. It includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.

FC-W-450H-II

The FC-W-xxxH series (Fiber Coupling Laser System) offer the highest power. It includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.

Share by:
