454 nm

Blue 454 nm laser

- Low noise, narrow line width, power stabilized CW diode laser
- OEM laser
- Multicolor laser

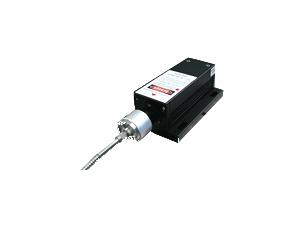

- Fiber coupled laser

Narrow linewidht diode laser at 454 nm

MDL-E-454

Diode laser at 454 nm. It features a narrow spectral linewidth, long coherent length, stable wavelength, long lifetime and easy operation. It is widely used in holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, LIDAR, precision measurement, etc.


Wavelength:                       454 ± 1 nm

Operating mode:               CW

Output power:                   1, 10, ..., 30 mW

Power stability:                  < 1%, < 2%, < 3% (rms, 4 hours)

Mode:                                  ~ TEM00

Spectral line width:           < 0.06 nm (< 0.03 nm)

Beam diameter:                 ~ 1.3 mm (1/e²)

Beam divergence:             < 1.5 mrad (full angle)

Polarization ratio:              > 50:1 (> 100:1 optional) (horizontal or vertical)

Beam height:                      30 mm

Operating temperature:    20 ~ 30 °C

Warm-up time:                   < 5 min

Power supply:                    AC 100 ~ 240 V

Expected lifetime:             10.000 hours

Warranty:                            1 Year

Low noise, high stability blue laser at 454 nm

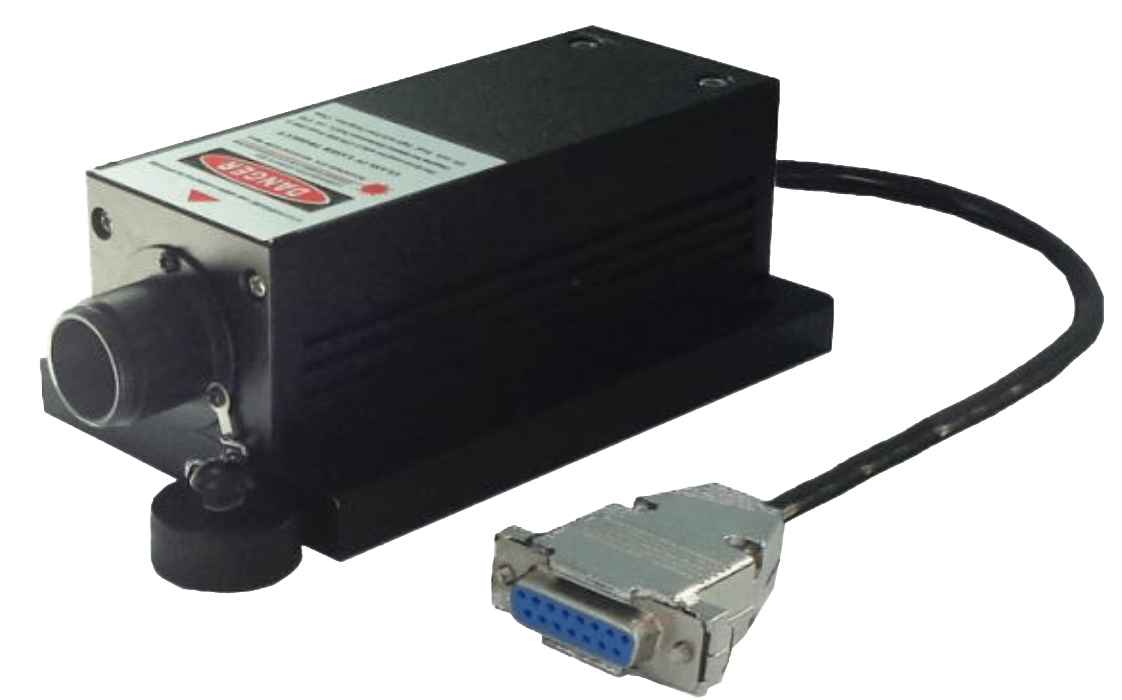

MLL-III-454L | MDL-III-454L

This Model, features excellent beam shape, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser are used in scientific research, laser pointing, measurement, communication, spectrum analysis, laser pointing and RGB mixed laser systems applications, etc.


Wavelength:                               454 ± 5 nm

Operating mode:                       CW

Output power:                           1, 10, ..., 80 mW

Power stability:                         < 1%, < 2%, < 3%, 0.5%) (rms, 4 hours)

Mode:                                         ~ TEM00

Noise of amplitude*:                < 1% (rms, 1Hz ~ 20MHz)

M²:                                              < 1.5 (< 1.2 optinal )

Beam diameter:                        ~3.5 mm (~ 1.2 mm optional) (1/e²)

Beam divergence:                    < 1.0 mrad (full angle)

Polarization ratio:                     > 50:1, > 100:1 optional (horizontal or vertical)

Pointing stability:                     < 0.05 mrad

Beam height:                            24.8 mm

Operating temperature:           10 ~ 35 °C

Warm-up time:                          < 5 min

Power supply:                           AC 85 ~ 264 V

Modulation:                               1 Hz- 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or Analog)

Expected lifetime:                    10.000 hours

Warranty:                                   1 Year


*Model MLL-III-454L only

MLL-III-454 | MDL-III-454

454 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.



Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     a) > 80, 50, ..., 500 mW

                                              b) > 600, 650, ..., 8000 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)

Mode:                                   multimode

Noise of amplitude*:          < 1% (rms, 10Hz~20MHz)

Beam diameter:                  a) < 2.5 x 5.2 mm (1/e²)

                                              b) < 2.0 x 5.0 mm² (1/e²)

Beam divergence:              a) < 2.1 x 1.6 mrad (full angle)

                                              b) < 2.5 x 0.2 mrad (full angle)

Beam height:                       24.8 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; 30 kHz - 100 kHz (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year


* Model MLL-III-454 only

MDL-F-454 | MLL-F-454 | F-454-HS (ultra compact)

454 nm blue diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     a)* 1, 10, .., 2000 mW

                                              b) > 800, 1000, ..., 2000 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)

Mode:                                   multimode

Noise of amplitude**:        < 1% (rms, 20Hz~20MHz)

Beam diameter:                  < 2.7 x 2.7 mm (1/e²)

Beam divergence:              < 1.4 x 0.2 mrad (full angle)

Polarization ratio***:            >  50:1, > 100:1 (horizontal or vertical)

Beam height:                       45 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year


* Model F-454-HS only

** Model MLL-F-454 only

*** Model MLL-F-545 and MDL-F-545 only

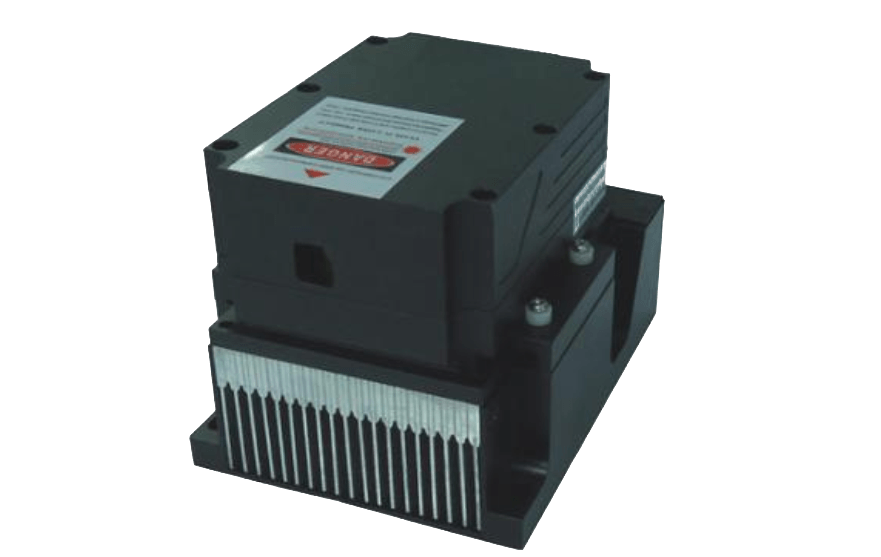

MDL-SD-454

454 nm high power blue diode laser module. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     > 2000, 2500, ..., 4000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  a) ~ 4.7 x 2.7 mm

                                              b) < 2.7 x 2.7 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Polarisation:                       a) horizontal / vertical

                                              b) horizontal + vertical

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 100 ~ 240 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 year

MDL-D-454

454 nm high power blue diode laser module. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.


Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     > 4000, 5000, ..., 8000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Polarization:                        horizontal + vertical

Beam diameter:                  ~ 3.2 x 3.2 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Beam height:                       68.2 mm

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 85 ~ 264 V

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

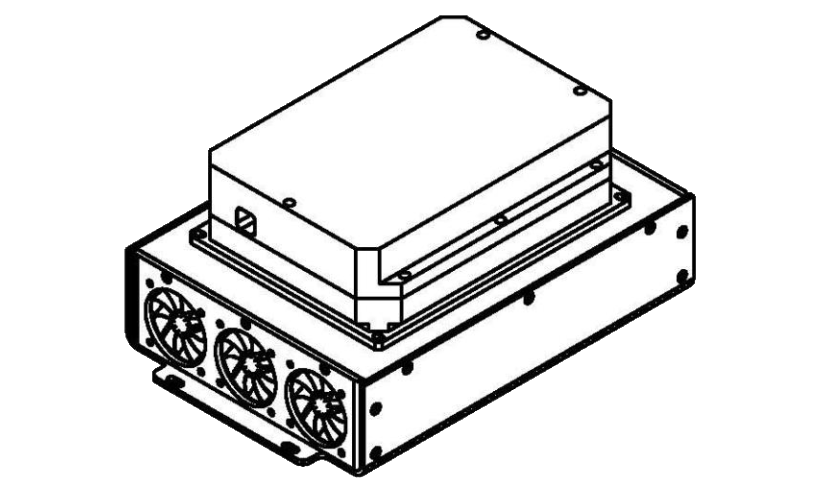

MDL-XD-454

High power blue diode laser at 454 nm. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis.


Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     > 8000, 9000, ..., 16000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  ~ 5.0 x .5.0 mm

Beam divergence:              < 2.4 x 2.0 mrad  (full angle)

Polarisation direction:       vertical + horizontal

Operating temperature:     10 ~ 35 °C

Warm-up time:                    < 5 min

Power supply:                     AC 100 ~ 240 V

Modulation:                         analog or TTL; 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional;

Expected lifetime:              10.000 hours

Warranty:                             1 year

OEM laser at 454 nm

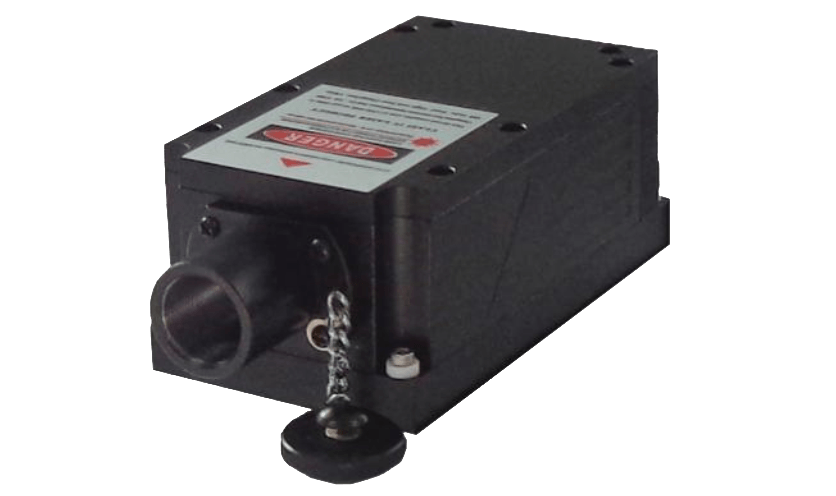

F-454-HS-OEM

454 nm blue diode laser. IIt features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     a) 1, 10, .., 2000 mW

Power stability:                   < 1%, < 2%, < 3%, (< 0.5%) (rms, 4 hours)

Mode:                                   multimode

Beam diameter:                  < 2.7 x 2.7 mm (1/e²)


Beam divergence:              < 1.4 x 0.2 mrad (full angle)

Beam height:                       25 mm

Operating temperature:     25  ± 3 °C

Warm-up time:                    < 5 min

Power supply:                     DC 8 V; 7 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (TTL oder Analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

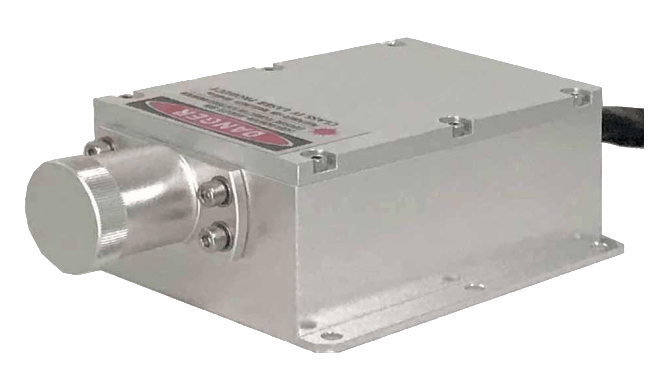

OEM-I-454 (fiber coupled)

454 nm blue diode laser is made features of ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.


Wavelength:                       454 ± 5 nm

Operating mode:               CW

Output power:                    15 W (out of fiber)

Noise of amplitude:          < 0.5% (rms, 20Hz ~ 20 MHz)

Fiber core diameter:         >/= 200 µm

Fiber connector:                SMA905 / FC

Fiber length:                       1 m, 2 m, ...

Control interface:              RS232 or USB

Operating temperature:   10°C ~ 35°C

Warm-up time:                   < 5 min

Power supply:                    DC 3~12V 6A

Opt. heatsink temp.:         +15°C ~ 30°C (max. 40°C)

Overheat protection:         yes

Storage temperature:       -10°C ~ +50°C

Modulation:                        up to 100 kHz (TTL)

Warranty:                            1 year

Accessories (opt.):           heatsink, power supply

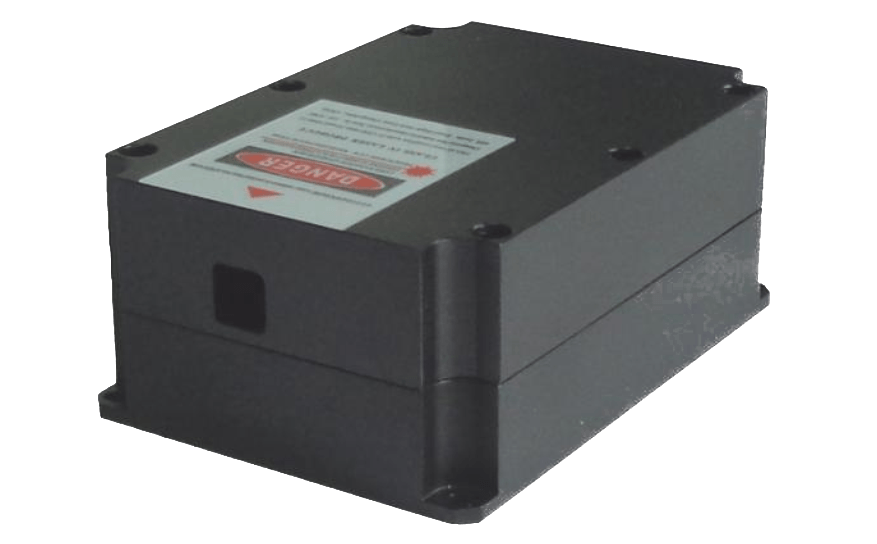

MDL-SD-454-OEM

454 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     > 2000, 2500, ..., 4000 mW

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  a) ~ 4.7 x 2.7 mm

                                              b) ~ 2.7 x 2.7 mm

Beam divergence:              < 1.4 x 0.2  mrad (full angle)

Polarisation:                       a) horizontal / vertical

                                              b) horizontal + vertical

Operating temperature:     25 ± 3  °C

Warm-up time:                    < 5 min

Beam height:                       28.5 mm

Power supply:                     DC 12 V; 15 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

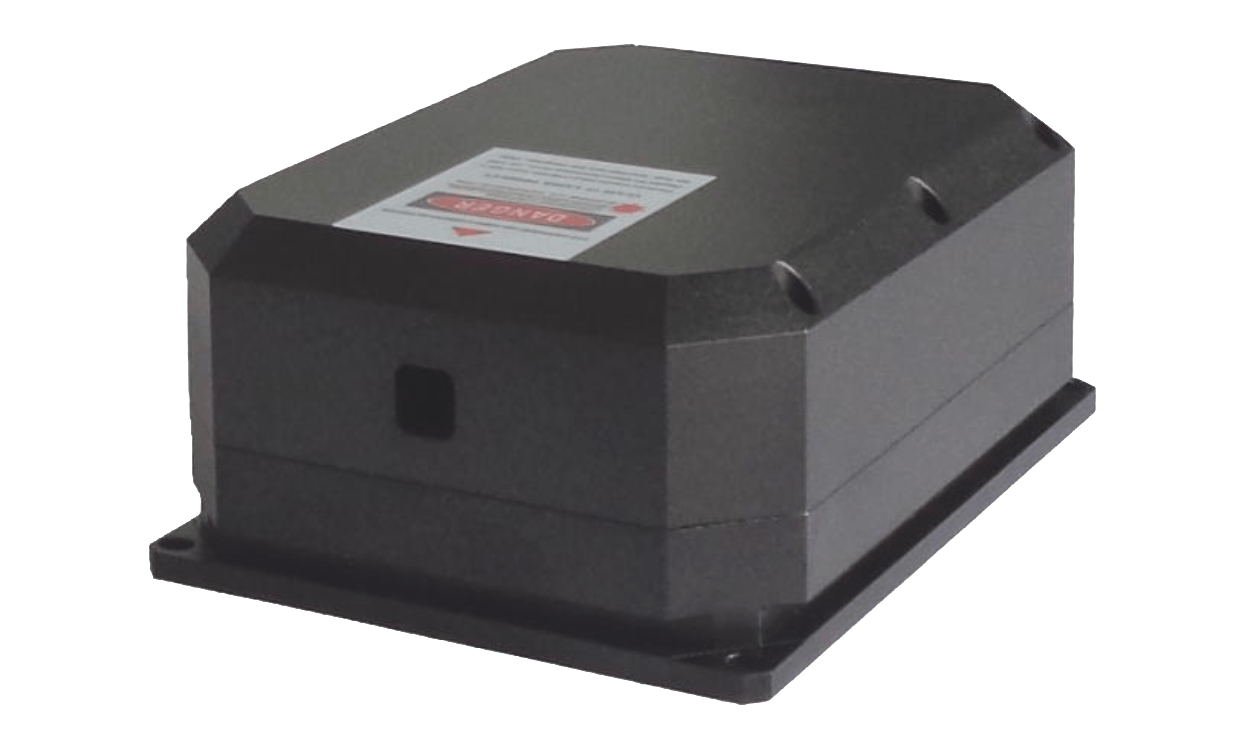

MDL-D-454-OEM

454 nm high power blue diode laser module. It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis, etc.


Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     a) > 4 W, 5 W, 6 W

                                              b) > 6 W, 7 W, 8 W

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Polarisation:                        horizontal + vertical

Beam diameter:                  ~ 3.2 x 3.2 mm

Beam divergence:               < 1.4 x 0.2  mrad (full angle)

Beam height:                       35 mm

Operating temperature:     25 ± 3  °C

Warm-up time:                    < 5 min

Power supply:                     DC 12 V; 15 A

Modulation:                         1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional (TTL or analog)

Expected lifetime:              10.000 hours

Warranty:                             1 Year

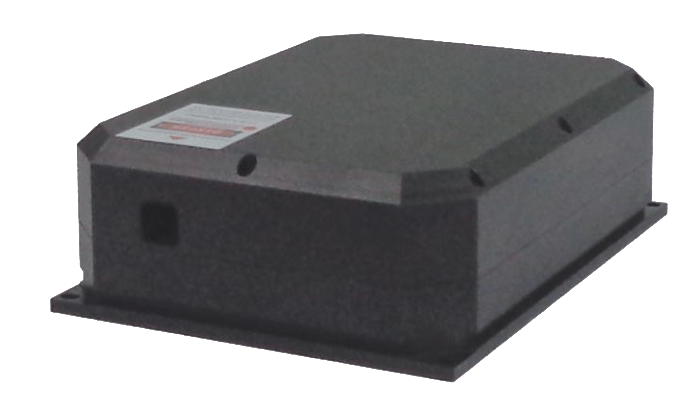

MDL-XD-454-OEM

Blue diode laser at 454 nm. This laser features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis.


Wavelength:                        454 ± 5 nm

Operating mode:                CW

Output power:                     > 8, 9, ..., 16 W

Power stability:                   < 1%, < 2%, < 3% (rms, 4 hours)

Beam diameter:                  ~ 5.0 x 5.0 mm²

Beam divergence:               < 2.4 x 2.0 mrad  (full angle)

Polarisation:                        horizontal + vertical

Beam height:                       35 mm

Operating temperature:     25 ± 3  °C

Warm-up time:                    < 5 min

Power supply:                     DC 12 V; 15 A

Modulation:                         analog or TTL; 1 Hz - 1 kHz; 1 kHz - 10 kHz, 10 kHz - 30 kHz optional;

Expected lifetime:              10.000 hours

Warranty:                             1 Year

Multicolor fiber coupled diode laser

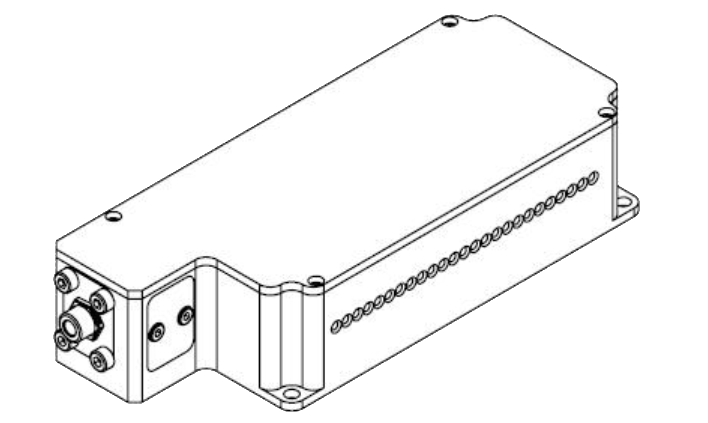

YL-F-455 | YL-S-455

Blue diode laser at 455 nm. It features ultra compact design, long lifetime, low cost and easy operating. It’s easy to be installed in customer’s equipment


Wavelength:                        455 ± 5 nm

Output power:                     a) 1 - 17 W*

                                              b) 18 - 25 W**

Operating mode:                CW

Fiber core diameter:          400 µm, 600 µm, ...

Fiber connector:                 FC or SMA905

Numerical aperture:           0,22

Fiber length:                        1m, 2m, ...

Power stability:                   < 1% (rms 4 h)

Operating temperature:    10 ~ 30 °C

Warm-up time                     < 5 min

Life time:                             up to 10.000 h

Warranty:                             1 year


NOTE: The laser needs to be used on a heat sink with good heat dissipation!


* Modell YL-F-455 only

** Modell YYL-S-455 only

YL-F-980/808/520/455

Multi-color diode laser, which combines 4 wavelengths (980 nm, 808 nm, 520 nm and 455 nm) in one module. The beam intensity of each wavelengths can be adjusted separatelly. The model is characterized by its compactness, long life time and easy operation. The module can be easily installed in various devices or machines and is mainly used in medicine.


Wavelength:                        980 ± 5 nm

                                              808 ± 3 nm

                                              520 ± 5 nm

                                              455 ± 5 nm

Output power:                     10 W @ 980 nm

                                              8 W @ 808 nm

                                              1 W @ 520 nm

                                              4 W @ 455 nm

Operating mode:                CW

Fiber core diameter:          400 µm, 600 µm, ...

Fiber connector:                 FC or SMA905

Numerical aperture:           0,22

Fiber length:                        1m, 2m, ...

Power stability:                   < 1% (rms 4 h)

Operating temperature:    10 ~ 30 °C

Warm-up time                     < 5 min

Life time:                             up to 10.000 h

Warranty:                             1 year


NOTE: The laser needs to be used on a heat sink with good heat dissipation!

YL-F-980/808/635/455

Multi-color diode laser, which combines 4 wavelengths (980 nm, 808 nm, 635 nm and 455 nm) in one module. The beam intensity of each wavelengths can be adjusted separatelly. The model is characterized by its compactness, long life time and easy operation. The module can be easily installed in various devices or machines and is mainly used in medicine.


Wavelength:                        980 ± 5 nm

                                              808 ± 3 nm

                                              635 ± 5 nm

                                              455 ± 5 nm

Output power:                     10 W @ 980 nm

                                              8 W @ 808 nm

                                              0,5 W @ 635 nm

                                              4 W @ 455 nm

Operating mode:                CW

Fiber core diameter:          400 µm, 600 µm, ...

Fiber connector:                 FC or SMA905

Numerical aperture:           0,22

Fiber length:                        1m, 2m, ...

Power stability:                   < 1% (rms 4 h)

Operating temperature:    10 ~ 30 °C

Warm-up time                     < 5 min

Life time:                             up to 10.000 h

Warranty:                             1 year


NOTE: The laser needs to be used on a heat sink with good heat dissipation!

YL-F-980/808/635/520/455

Multi-color diode laser, which combines 5 wavelengths (980 nm, 808 nm, 635 nm, 532 nm and 455 nm) in one module. The beam intensity of each wavelengths can be adjusted separatelly. The model is characterized by its compactness, long life time and easy operation. The module can be easily installed in various devices or machines and is mainly used in medicine.


Wavelength:                        980 ± 5 nm

                                              808 ± 3 nm

                                              635 ± 5 nm

                                              532 ± 5 nm

                                              455 ± 5 nm

Output power:                     10 W @ 980 nm

                                              8 W @ 808 nm

                                              0,5 W @ 635 nm

                                              1 W @ 635 nm

                                              4 W @ 455 nm

Operating mode:                CW

Fiber core diameter:          400 µm, 600 µm, ...

Fiber connector:                 FC or SMA905

Numerical aperture:           0,22

Fiber length:                        1m, 2m, ...

Power stability:                   < 1% (rms 4 h)

Operating temperature:    10 ~ 30 °C

Warm-up time                     < 5 min

Life time:                             up to 10.000 h

Warranty:                             1 year


NOTE: The laser needs to be used on a heat sink with good heat dissipation!

Fiber coupled blue laser at 454 nm

MDL-454(FC)

Nearly all 454 nm laser modules can be coupled with MM or SM fibers with different core diameters. Here you will find all possible fiber coupling options and their parameters.

FC-454

The FC series (Fiber Coupling Laser System) includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.

FC-W-454C

The FC-W series (Fiber Coupling Laser System) is the high power version of FC series. It includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.

Share by:
