DPSS and Frequency doubler

DPSS Laser
Frequency doubler

Powerful single frequency DPSS laser and high efficient frequency doubler

Modern DPSS laser technology is well advanced and allows to generate powerful, stable and high quality laser radiation from IR to UV in the range of several watts. Diode-pumped solid state (DPSS) CW laser with 1064nm, 532nm or 266nm wavelength radiation, high output power and excellent beam quality are listed below. This radiation perfectly matches the requirements for Raman spectroscopy, holography or pump laser for Ti:Sa or dye lasers. Also, resonant frequency doubler for CW and Quasi-CW laser adapted to needed wavelengthrang are available.

Mozart 1064

Wavelength 1064 nm
Output power 18 W
Mode TEM00
Linewidth < 5 MHz/sec
M² ≤ 1,1
Button
Mozart 532

Wavelength 532 nm
Output power > 8 W
Mode TEM00
Linewidth < 5 MHz/sec
M² ≤ 1,1
Button

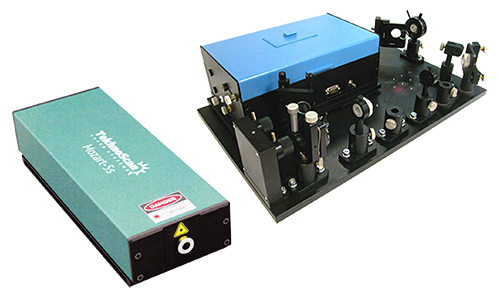

Mozart + FD-SF-07

Wavelength 266 nm
Output power > 2 W
Mode TEM00
Linewidth < 10 MHz/sec
M² ≤ 1,1
Button

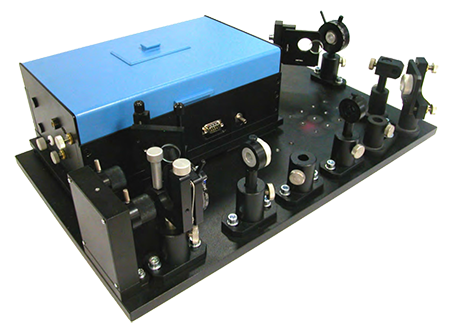

FD-SF-07

Wavelength 488 - 1100 nm -> 244 - 550 nm
Efficiency bis zu 40%
Linewidth < 1 MHz (< 5 MHz)
Frequency doubling, sum-frequency, CW and Quasi-CW
Button
