Ti:Sapphire laser

Titan Sapphire Laser

Tunable single frequency Ti:Sa CW-laser

Various types of tunable Ti:Sapphire lasers are listed below. Line width, scanning range, wavelength range and other parameters can be adapted to customer needs. Wavelength range of the Titan Sapphire laser can be expanded from red-IR to UV-green range by using internal (TIS-FD-08) or external (Tisarius-D) frequency doubling.

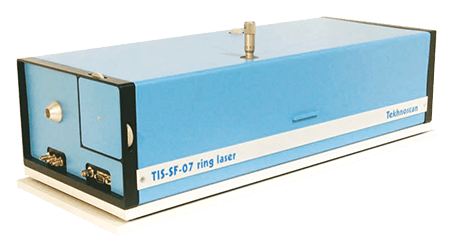

TIS-SF-07

Wavelength 695-1100 nm
Output power > 1.9 W (12 W Pumpleistung)
Scanning range 5 / 18 / 25 / 35 / 45 GHz
Linewidth < 5 MHz/s (<500KHz/0,1s) rms

Button

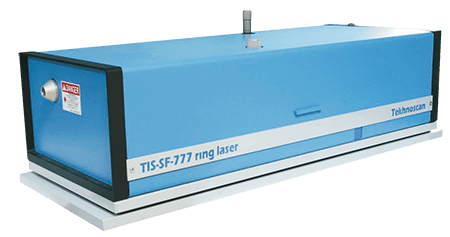

TIS-SF-777

Wavelength 695-1100 nm
Output power > 1.9 W (12 W pump power)
Scanning range 5 / 18 / 25 GHz / (> 50 GHz)
Linewidth < 10 kHz/s (< 1 kHz/0,1s) rms
Line stability < 40 MHz/h. (< 4MHz/h)
Button
Tisarius-D

Wavelength 350-525 nm
Output power 100-800 mW
Scanning range 5 / 18 / 25 / 35 / 45 GHz
Linewidth < 10 kHz/s (< 1 kHz/0,1s) rms

Button

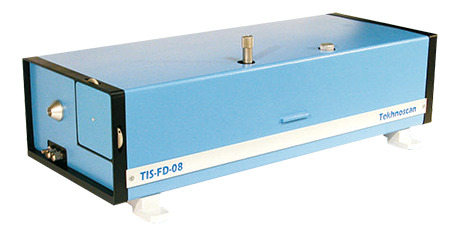

TIS-FD-08

Wavelength 700-950 / 350-475 nm
Output power > 1,5/0,1 W (10 W pump power)
Linewidth 0,05-0,01 nm
