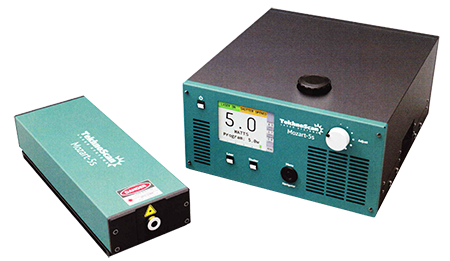

Mozart 532

DPSS laser 532nm single frequency frequenvydoubled Nd:YVO4 Vanadate

Mozart 532


Powerful  DPSS single frequency green laser at 532 nm

Wavelength               532 nm
Output power             > 8 W
Mode                          TEM00
Linewidth                    < 5 MHz/sec
Regime                       Single frequency
Noise                            < 0,03% (RMS)
M²                                 < 1,1
Single-mode single-frequency Nd:VYO4 laser Mozart continues the line of precision ring-cavity lasers. The output power of this green laser exceeds 8 W at 532 nm. Comparatively high level of CW output power at 532 nm allows successful use of this laser for efficient pumping of tunable Ti:Sapphire and Dye lasers.

Powerful single-frequency output of this laser also perfectly matches the requirements for pumping resonant parametric oscillators capable of generating relatively powerful monochromatic radiation at a specified wavelength within an ultra-wide spectral range.

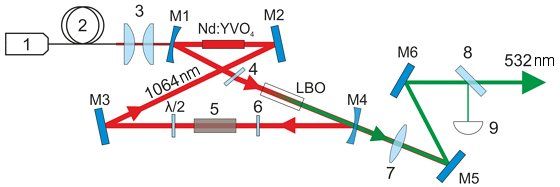

DPSS laser resonator 532nm frequency doubled beam propagation cavity design layout

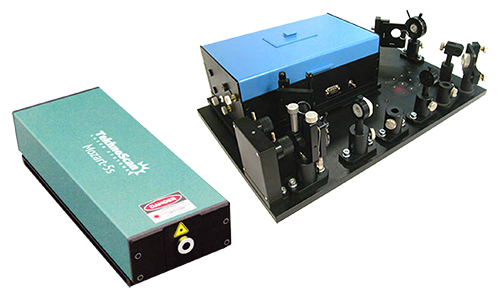

DPSS laser and frequency doubler for 266 nm
A tandem of Mozart and resonant frequency doubler FD-SF-07 delivers a stable single-frequency UV beam at wavelength 266 nm with output power exceeding 2.5 W and linewidth <10 MHz. Single frequency operation of Mozart verified using a scanning Fabry-Perot interferometer with a free spectral range of 750 MHz and a resolution of 2 MHz.

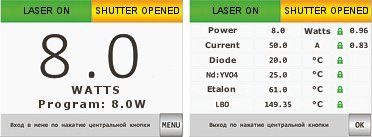

All important parameters of the laser can be adjusted with the help of the electronics and read on the large LCD color display.
Mozart laser 1064nm display control
Application DPSS laser Raman spectroscopy micro lithogarphy
Applications of the laser "Mozart" include:

Raman spectroscopy, holography, microlitography, interferometry, cytometry, testing of semiconductors.
Also, Mozart 532 can be perfectly used for Ti:Sapphier or dye laser pumping.
NEW
Tunable wavelength

Our single frequency DPSS laser Mozart has now an option to tune the wavelength around the peak wavelength at 532 nm!

The tunability bandwidth can be adapted to the intended application, depending on the requirements.

Scanning range: 5 GHz or 9 GHz ( > 9 GHz on request)
DPSS Nd:YVO single frequency laser 532 nm tunable wavelength
FEATURES

Simple und stable

the laser does not need any alignment or servicing, the laser cavity es sealed off from the environment

Precise

Single mode and single frequency operation

Remote control

Complete remote access to the laser via the Internet

Long life time

Mozart lasers use pumping diodes with working life time exeeding 60.000 hours, all other components of the system provide reliable operation for much longer period

Software development kit

Lasercontrol via C++ or other software

Modulator as option

guarantees full peak power and stability during the modulation process (on request)
