EO-XS-457
All solid state EOM Q-switched laser at 447 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in marking, carving, measure, research and so on.
Wavelength: 457 ± 1nm
Operation mode: electro-optically Q-switched
Output power: 1~150* mW (150 mW @ 10 kHz)
Power stability: < 3%, < 5% (rms, 4 hours)
Pulse duration: ~ 3 ns (@ 10 kHz)
Pulse energy: 1 ~ 15 µJ (15 µJ @ 10 kHz)
Peak power: 1 ~ 5 kW (5 kW @ 10 kHz)
Repitition rate: 1 - 10 kHz
Beam diameter: ~ 2.0 mm (1/e²)
Beam divergence: < 3.0 mrad (full angle)
Beam height: 79 mm
Cooling method: Air cooled
Operating temperature: 10 ~ 30 °C
Warm-up time: < 10 min
Power supply: AC 220/110V
Expected lifetime: 10000 hours
Warranty: 1 year
* Depending on pulse energy and repetition rate
AO-V-457
All solid state AOM Q-switched laser at 457 nm has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
Wavelength: 457 ± 1nm
Operation mode: acousto-optics Q-switched
Output power: 1~500* mW
Power stability: < 3%, < 5%,
Pulse duration: ~ 300 ns @ 10 kHz
Peak power: 0.01 ~ 0.1 kW* (0.1 kW @ 1 0 kHz)
Pulse energy: 1 ~ 50 µJ* (50 µJ @ 10 kHz)
Repitition rate: 1 - 50 kHz
Beam diameter: ~ 1.0 mm (1/e²)
Beam divergence: < 2.5 mrad (full angle)
Beam height: 113 mm
Operating temperature: 10 ~ 35 °C
Cooled method: Air cooled
Warm-up time: < 10 min
Power supply: AC 220/110V
Expected lifetime: 10,000 hours
Warranty: 1 year
*Depends on repetition rate.
MSL-U-457
Single frequency solid state laser at 457 nm wavelength. Main advantages are long life time, ultra compact design, cost efficiency and easy operating. Applications: used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.
Wavelength: 457 ± 1nm
Operating mode: CW
Output power: 1, 2, ..., 300 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Transverse mode: ~ TEM00
Longitudinal mode: single
Spectral linewidth: < 0.00001 nm
Coherent length: > 50 m
Noise of amplitude: < 1%, < 0.5% (rms, 1Hz~20MHz)
M² factor: < 1.2
Beam diameter: ~ 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1 (vertical*)
Pointing stability: < 0.05 mrad
Frequency shift**: < ±200 MHz (over 8 hours); < 200 MHz/°C
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Max. heat sink temp.: 50 °C
Warm-up time: < 5 min
Laser head consumption: < 25 W @ 40 °C (< 15 W typical)
Power supply: AC 90-264V
Expextedt life time: 10,000
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
* horizontal orientation on request
** optional
MLL-U-457
Ultra low noise laser. It features ultra compact, long lifetime, high stability and reliability, which is used in scientific experiment, medical measurement, instrument, spectrum analysis, etc.
Wavelength: 457 ± 1nm
Operating mode: CW
Output power: 1, 2, ..., 350 mW
Power stability: < 2%, < 3%, < 5% (rms, 4 hours)
Transverse mode: ~ TEM00
Spectral linewidth: < 0.1 nm; < 0.003 nm
Noise of amplitude: < 1% (rms, 1Hz~20MHz)
M² factor: < 1.5
Beam diameter: ~ 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1 (vertical*)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 90-264V
Expextedt life time: 10,000
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
* horizontal orientation on request

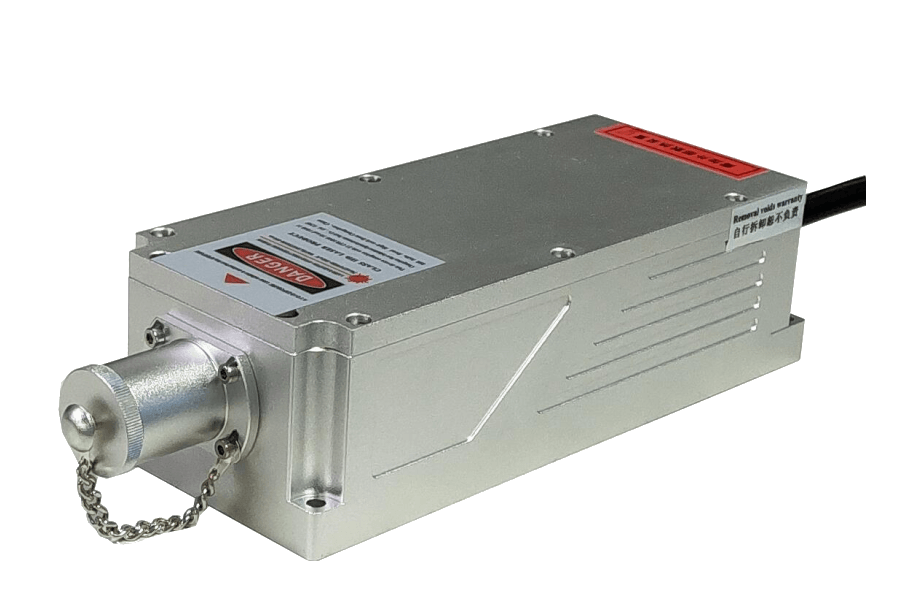

MSL-FN-457
All solid state 457 nm blue laser. Features: ultra compact, cost-effectiveness and easy operating. Applications: DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurements, holography, physics experiments, etc.
Wavelength: 457 ± 1nm
Operating mode: CW
Output power: 1, 2, ..., 350 mW
Power stability: <2%, < 3%, < 5% (rms, 4 hours)
Transverse mode: ~ TEM00
Longitudinal mode: single
Spectral linewidth: < 0.00001 nm
Coherent length: > 50 m
Noise of amplitude: < 1%, < 0.5% (rms, 1Hz~20MHz)
M² factor: < 1.2
Beam diameter: ~ 2.0 mm (1/e²)
Beam divergence: < 1.2 mrad (full angle)
Polarization ratio: > 100:1 (vertical*)
Pointing stability: < 0.05 mrad
Frequency shift**: < ±200 MHz (over 8 hours); < 200 MHz/°C
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Max. heat sink temp.: 50 °C
Warm-up time: < 5 min
Power supply: AC 90-264V
Laser head consumption: < 25 W @ 40 °C (< 15 W typical)
Expextedt life time: 10,000
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
* horizontal orientation on request
** optional
MSL-R-457
All solid state single longitudinale mode 457 nm blue laser. Features: compact design, cost-effectiveness and easy operating. Applications: DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurements, holography, physics experiments, etc.
Wavelength: 457 ± 1nm
Operating mode: CW
Output power: 350 - 3000 mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Transverse mode: ~ TEM00
Longitudinal mode: single
Spectral linewidth: < 0.00001 nm
Coherent length: > 50 m
Noise of amplitude: < 1%, < 0.5% (rms, 1Hz~20MHz)
M² factor: < 1.5
Beam diameter: < 1.5 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1 (horizontal*)
Pointing stability: < 0.05 mrad
Beam height: 58 mm
Operating temperature: 20 ~ 30 °C
Warm-up time: < 15 min
Power supply: AC 90-264V
Cooling method: water
Expextedt life time: 10,000
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
* vertical orientation on request
MBL-U-457
All solid state laser is at 457 nm. It features ultra compact design, long lifetime, high stability and reliability, which. The laser is used in scientific experiment, medical measurement, instrument, spectrum analysis, etc.
Wavelength: 457 ± 1 nm
Operating mode: CW
Output power: 1, 10, .., 500 mW
Power stability: < 1%, < 2%, < 3%, < 5% (< 0.5%) (rms, 4 hours)
Mode: TEM00
M²: < 1.5
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, vertical (or horizontal*)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; (TTL or analog)
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Electrical consumption: < 25 W (at 40 °C), typical 15W
Expected lifetime: 10.000 hours
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
* As option

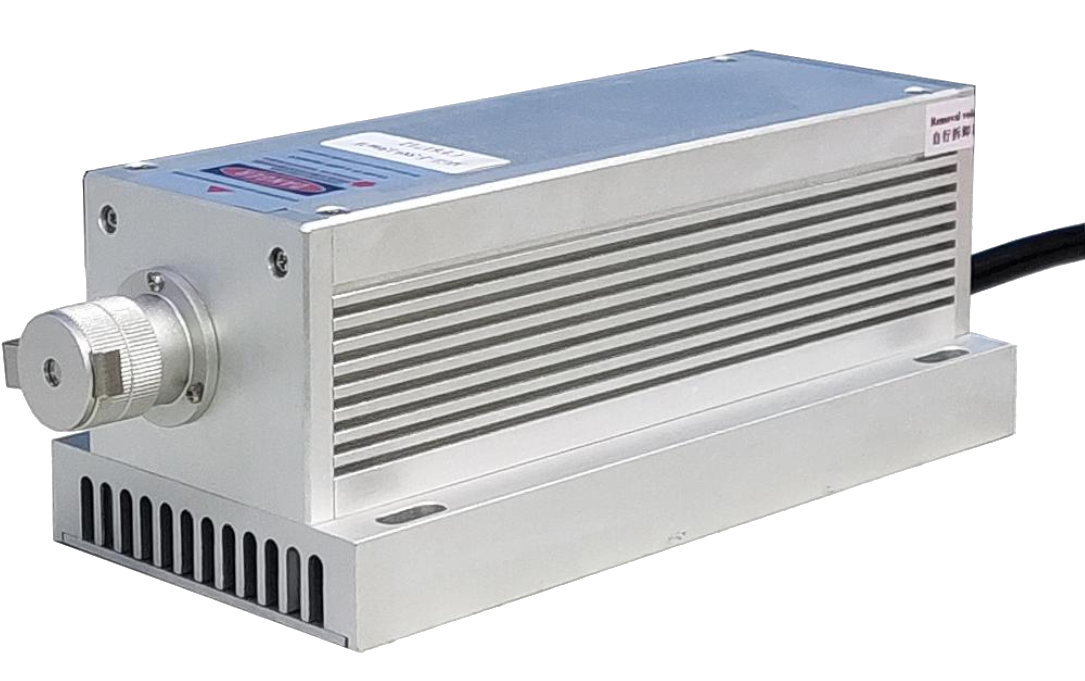

MLL-F-457 | MBL-F-457
All solid state laser is at 457 nm. It features ultra compact design, long lifetime, low cost and easy operating. The laser is used widely in scientific experiment, laser fluorescence, etc
Wavelength: 457 ± 1 nm
Operating mode: CW
Output power: a) 30, ..., 400 mW
b) > 400, ..., 1000 mW
Power stability: a) < 2%, < 3% (rms, 4 hours)
b) < 3%, <5% (rms, 4 hours)
Mode: a) TEM00
b) ~ TEM01 (TEM00 optional)
M²: < 2.0
Line width*: < 0.1 nm
Noise of amplitude*: < 3% (rms, 1 Hz ~ 20 MHz)
Beam diameter: ~ 2.0 mm; ~ 3.0* mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, vertical (or horizontal*)
Pointing stability: < 0.05 mrad
Beam height: 45 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; TTL (+ analog optional)
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MLL-F-457 only
** Model MBL-F-457 only

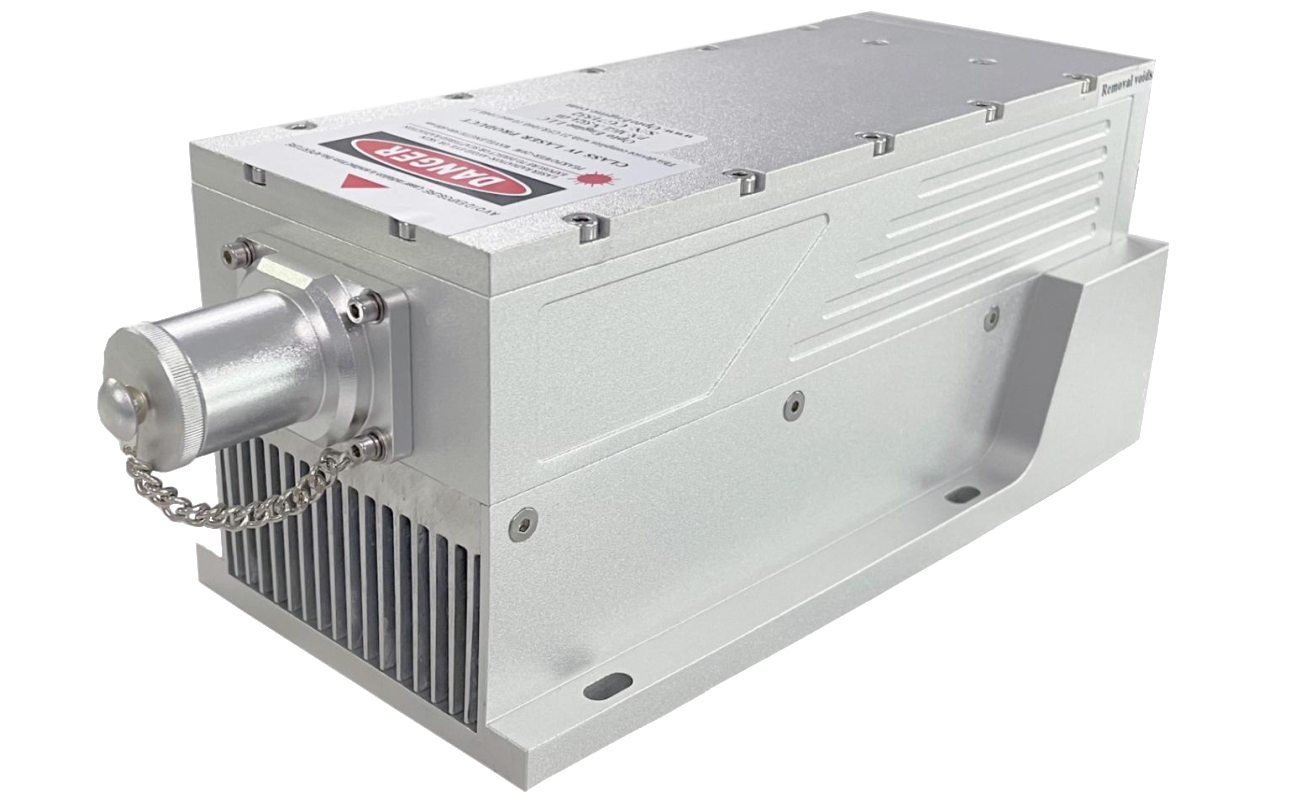

MLL-N-457 | MBL-N-457
All solid state 457 nm blue laser. It features ultra compact design, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
Wavelength: 457 ± 1 nm
Operating mode: CW
Output power*: a) 1, .., 1000 mW; b) > 1000, ..., 1500 mW
Output power**: a) 1000, .., 1500 mW; b) > 1000, ..., 2000 mW
Power stability: a) < 5%, < 3%, < 2%, <1% (rms, 4 hours)
Mode: a) TEM00; b) ~ TEM00
M²: a) < 1.5 b) < 3.0
Noise of amplitude*: a) < 1%, < 3% (rms, 1 ~ 20 MHz); b) < 3% (rms, 1 ~ 20 MHz)
Beam diameter: a) ~ 2.0 mm (1/e²); b) ~ 3.0 mm (1/e²)
Beam divergence: < 1.2 mrad (full angle)
Polarization ratio: > 100:1
Beam height: 68.4 mm
Operating temperature: a) 20 ~ 30 °C; b) 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: AC 90 ~ 264 V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (optional); TTL (+ analog optional)
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MLL-N-457 only
** Model MBL-N-457 only

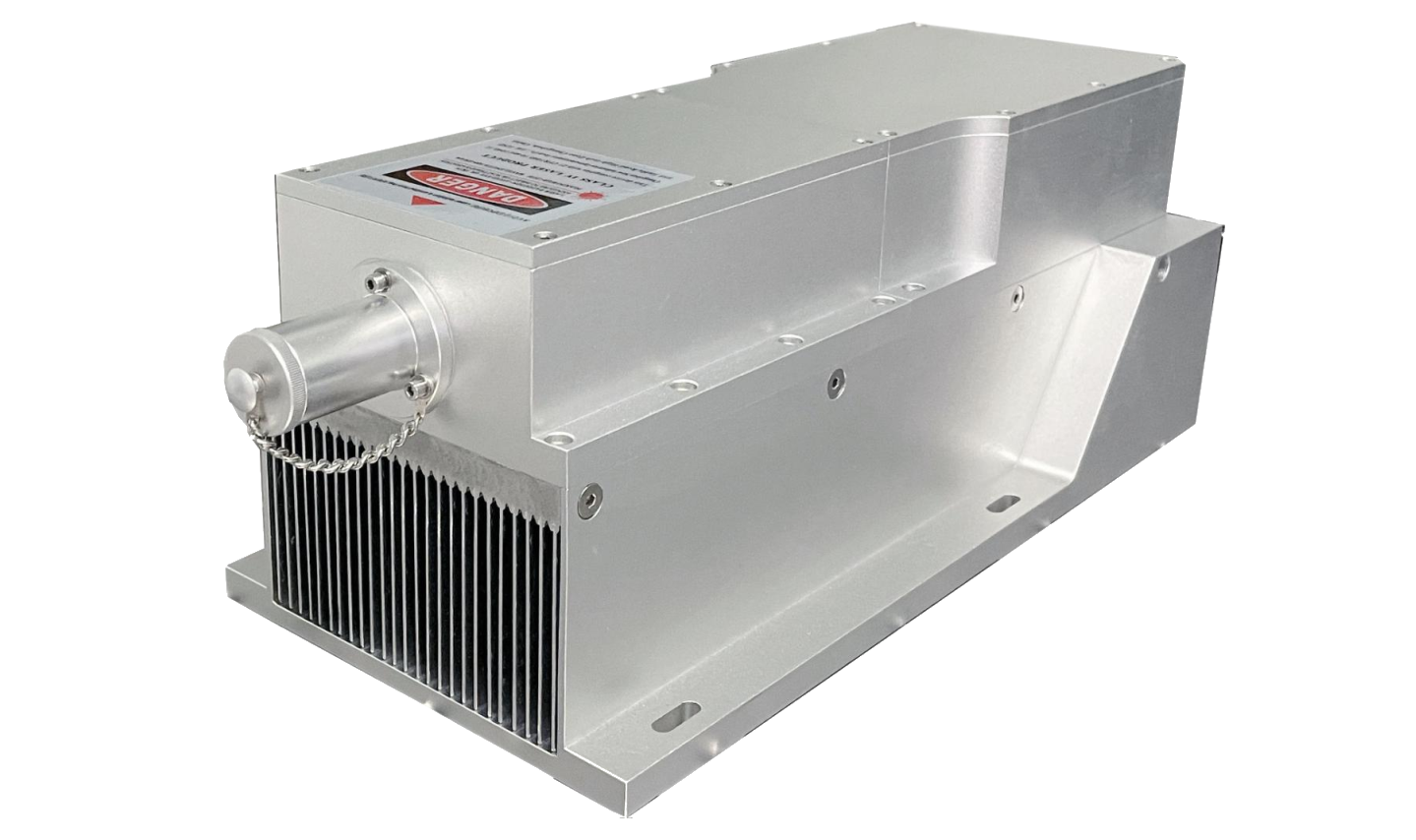

MLL-W-457 | MBL-W-457
All solid state low noise 457nm blue laser. It features ultra compact design, long lifetime and easy operating, which is used in fluorescence sensors, Raman spectrum, laser printing, holography, laser display, submarine communication, biomedicine, laser lighting show, etc.
Wavelength: 457 ± 1 nm
Operating mode: CW
Output power*: 1,5; ... 10 W;
Output power**: a) ~ 3 b) > 3; ... 10 W
Output power***: a) >1; ... 3 W
Power stability: a) < 5%, < 3%, < 2%***, <1%*** (rms, 4 hous)
Mode*: ~TEM01
Mode**: a) ~TEM00; b) ~ TEM01
Mode***: ~TEM00
M²*: 3 ~ 6
M²***: < 1,5
Noise of amplitude*: < 3% (rms, 1 ~ 20 MHz)
Beam diameter*: < 2.0 mm (1/e²);
Beam diameter**: a) ~ 2.0 mm (1/e²); b) ~ 4.0 mm (1/e²)
Beam diameter***: ~ 2.0 mm (1/e²);
Beam divergence*: < 2.0 mrad (full angle)
Beam divergence**: a) < 1.0 mrad (full angle) b) < 2.0 mrad (full angle)
Beam divergence***: < 1.5 mrad (full angle)
Polarization ratio: > 100:1
Beam height: 68.4 mm; 85 mm***
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: AC 90 ~ 264 V
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz (optional); TTL (+ analog optional)
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MLL-W-457 only
** Model MBL-W-457 only
*** Watercooled Model MBL-W-457 only
MDL-C-457 | MDL-E-457 | MDL-III-457
Diode laser at 457 nm. It features a narrow spectral linewidth, long coherent length, stable wavelength, long lifetime and easy operation. It is widely used in holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, LIDAR, precision measurement, etc.
Wavelength: 457 ± 1 nm
Operating mode: CW
Output power: 1, 10, ..., 30 mW, up to 1000*** mW
Power stability: < 1%, < 2%, < 3% (rms, 4 hours)
Mode: ~ TEM00
Coherent length*: > 1 m
Spectral line width**: < 0.06 nm (< 0.03 nm)
Beam diameter: ~ 1.3 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 50:1 (> 100:1 optional (horizontal or vertical, +/- 5°)
Beam height: 30 mm
Operating temperature: 20 ~ 30 °C
Warm-up time: < 5 min
Power supply: AC 100 ~ 240 V
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MDL-C-410 only
** Model MDL-E-410 only
*** Model MDL-III-457 only
MBL-U-457-OEM
All solid state laser at 457 nm. It features ultra compact design, long lifetime, high stability and reliability. Typical applications are scientific experiments, medical measurements, usage in instruments, spectrum analysis, etc.
Wavelength: 457 ± 1 nm
Operating mode: CW
Output power: 1, 10, .., 500 mW
Power stability: < 1%, < 2%, < 3%, < 5% (< 0.5%) (rms, 4 hours)
Mode: TEM00
M²: < 1.5
Beam diameter: < 1.0 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 100:1, vertical (or horizontal*)
Pointing stability: < 0.05 mrad
Beam height: 27.4 mm
Operating temperature: 10 ~ 35 °C
Modulation: 1 Hz - 1 kHz; 1 kHz - 10 kHz; 10 kHz - 30 kHz; (TTL or analog)
Warm-up time: < 5 min
Power supply: AC 90 ~ 264 V
Electrical consumption: < 25 W (at 40 °C), typical 15W
Heat sink temp.: 50 °C max
Expected lifetime: 10.000 hours
Warranty: 1 Year
Attention: The laser head needs to be attached to heat sink with good heat dissipation
* As option

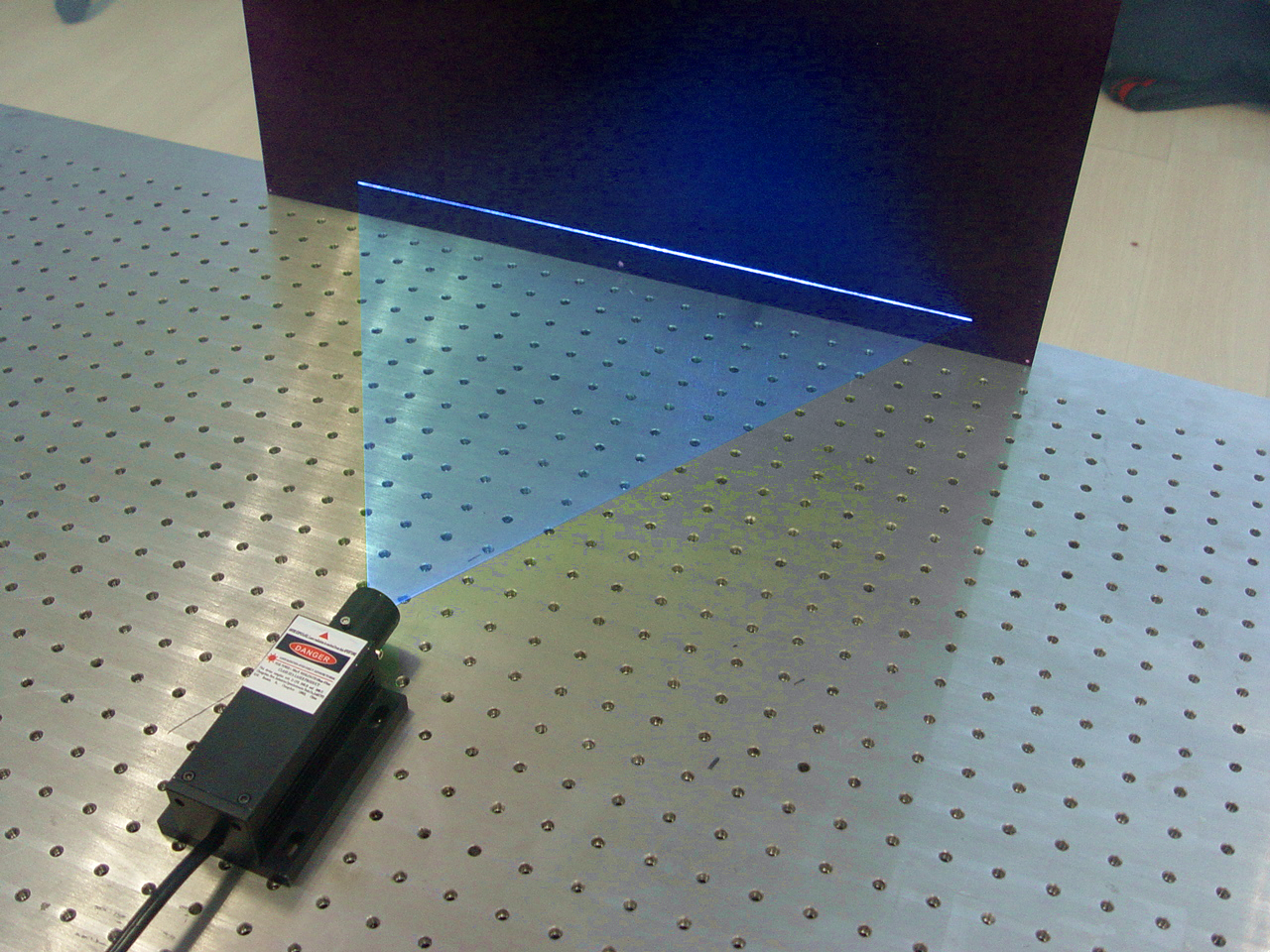

MBL-457
Almost every model can be equipped with line generator for uniform line beam. Also the angles of divergence are available at 5°, 7°, 10°, 30°, 45°, 60°, 75°,90°and 100° for custom applications. These series lasers can be used to display a uniform straight reference line for use in alignment, machine vision systems, 3D imaging, construction and process control.
MDL-457(FC)
Nearly all 457 nm laser modules can be coupled with MM or SM fibers with different core diameters. Here you will find all possible fiber couplings and parameters.
FC-457
The FC-series (Fiber Coupling Laser System) includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.
