415 nm

415 nm diode laser


MDL-C-415 / MDL-E-415
Long coherent length / narrow line width

Diode laser at 415 nm. It features a narrow spectral linewidth, long coherent length, stable wavelength, long lifetime and easy operation. It is widely used in holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, Laser radar, precision measurement, etc.

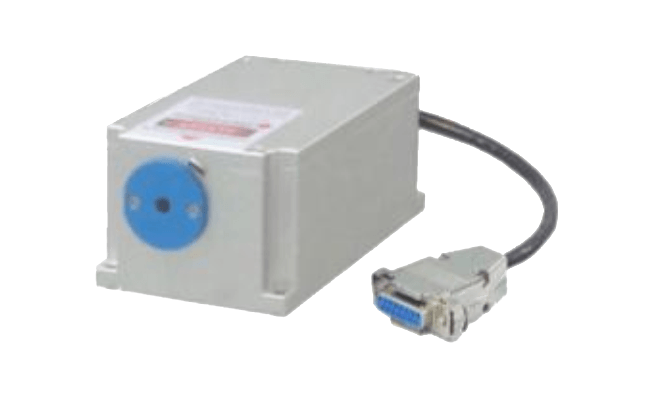

415 nm CW Diode laser with long coherent length and narrow linewidth
Wavelength:                       415 ± 1 nm
Operating mode:               CW
Output power:                   1, 10, ..., 50 mW
Power stability:                  < 1%, < 2%, < 3%
                                             (rms, 4 hours)
Mode:                                  ~ TEM00
Coherent length*:              > 1 m
Spectral line width**:        < 0.06 nm (< 0.03 nm)
Beam diameter:                 ~ 1.3 mm (1/e²)
Beam divergence:             < 1.5 mrad (full angle)
Polarization ratio:              > 50:1 (> 100:1 optional)
                                             (horizontal or vertical, +/- 5°)
Beam height:                      30 mm
Operating temperature:    20 ~ 30 °C
Warm-up time:                   < 5 min
Power supply:                    AC 100 ~ 240 V
Expected lifetime:             10.000 hours
Warranty:                            1 Year

* Model MDL-C-415 only
** Model MDL-E-415 only

415 nm diode laser


MDL-III-415 / MLL-III-415
Low noise CW diode laser

415 nm violet diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.
Low noise 415 nm CW Diode laser
Wavelength:                        415 ± 5 nm
Operating mode:                CW
Output power:                     >1, 10, ..., 100 mW
Power stability:                   < 1%, < 2%, < 3%, (< 0.5%)
                                              (rms, 4 hours)
Mode:                                   ~ TEM00
Noise of amplitude*:          < 1% (rms, 10Hz~20MHz)
M²:                                        < 1.5 or < 1.2
Beam diameter:                  ~ 3.5 mm or ~ 1.2 mm
Beam divergence:               < 1.0 mrad (full angle)
Pointing stability:                < 0.05 nrad
Beam height:                       24.8 mm
Operating temperature:     10 ~ 35 °C
Warm-up time:                    < 5 min
Power supply:                     AC 85 ~ 264 V
Modulation:                         1 Hz - 1 kHz
                                              1 kHz - 10 kHz
                                              10 kHz - 30 kHz
                                              30 kHz - 100 kHz
                                              (TTL or analog)
Expected lifetime:              10.000 hours
Warranty:                             1 Year

* Model MLL-III-415 only

 Fiber coupler for
415 nm laser module


 MDL-415(FC)
1 ~ 250 mW

Nearly all 415 nm laser modules can be coupled with MM or SM fibers with different co re diameters. Here you will find all possible fiber couplings and parameters.
Fiber coupler violet CW laser 415 nm

Fiber coupled violet
laser system at 415 nm


FC-415

1 ~ 5 W

The FC series (Fiber Coupling Laser System) includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.
Fiber coupled laser system violet 415 nm
