DYE-SF-07
DYE-SF-07
Tunable single frequency dye laser
Wavelength 520-700 nm
Output power > 1.5 W (10 W pump power)
Scanning range 6 / 20 / 40 GHz / 80 GHz
Linewidth < 10 MHz/s (1MHz/0,1s) rms
Output power > 1.5 W (10 W pump power)
Scanning range 6 / 20 / 40 GHz / 80 GHz
Linewidth < 10 MHz/s (1MHz/0,1s) rms
Dye laser DYE-SF-07 is the first representative of the new contemporary generation
of dye lasers that offer to the user virtually the same level of convenience and simplicity of operation as with a solid-state tuneable laser. Similarity of this laser to a solid-state one is emphasized by the fact that DYE-SF-077 can be optionally shipped in the combined configuration which allows its operation as a Ti:Sapphire laser.

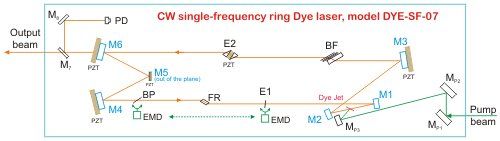

CW single-frequency ring Dye laser, model DYE-SF-07, is a powerful solution of a source of tuneable radiation in the range of 520-700 nm for research in cold atoms and ultra-high resolution spectroscopy.
CW single-frequency ring Dye laser, model DYE-SF-07, is a powerful solution of a source of tuneable radiation in the range of 520-700 nm for research in cold atoms and ultra-high resolution spectroscopy.
The output power of the laser exceeds 1.5 W when pumped with 10 W
at either 532/515-nm wavelength or all blue-green lines of Ar laser (488 nm pump laser is needed to achieve 520 - 550 nm range).

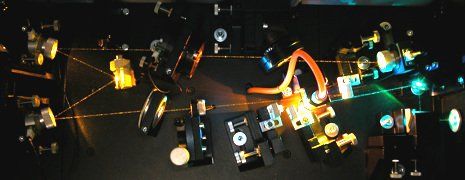

The horizontal orientation of the resonator
plane allows compact arrangement of the cavity elements on a rigid and massive vibro-isolated base of DYE-SF-07, which ensures high stability
of the generation parameters of Dye laser.
Active frequency stabilisation performed through an external thermo-stabilised cavity is available in model DYE-SF-077; it provides short-time linewidth less than 100 kHz/s rms and line stability down to 4MHz/h.
Active frequency stabilisation performed through an external thermo-stabilised cavity is available in model DYE-SF-077; it provides short-time linewidth less than 100 kHz/s rms and line stability down to 4MHz/h.
The standard spectral range of the laser of 520-700 nm
can be extended into the 260-350 nm
range by using the efficient resonant external frequency doubler FD-SF-07. Output power up to 300 mW can be reached if pumped by 1,5W @ fundamental wavelength.
FEATURES
Rigid laser base-plate
Rigid laser base-plate with three invar rods in a volumetric configuration. This insures additional stability
Compact and powerful
The dye circulation system with a leak-free magnetically coupled pump
Low vibration
Additional vibration dump components are built in to hte base of the laser cavity
Efficient system
for suppression of pressure fluctuations in the dye circulation loop
Possibility of direct pumping
without any additional mirrors and/or spacers by popular DPSS lasers
Absolutely dry
The laser has a reliable integrated shutter for the dye solution during powering on and switching off the circulation system
