351 nm

Q-switch laser 351 nm


MPL-F-351 | passivelly Q-switched UV solid state laser

All solid state 351 nm UV laser. Features: ultra compact, long lifetime, low cost and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.
Repitition rate can be locked by external or internal triggering at 0.1Hz - 1kHz. Repitition rate at free running mode is between 2 - 3 kHz.
Q-switched UV laser 351 nm, diode pumped solid state laser (DPSS)
Wavelength:                       351 ± 1nm
Operation mode:               pulsed
Mode:                                 ~ TEM00 (Walk-off)
Output power:                   1 ~ 10 mW
Power stability:                 < 5%, < 10% (4 hours)
Pulse duration:                  ~ 4 ns
Pulse energy:                     0.1 ~ 4 µJ
Peak power:                       250 ~ 1000 W
Repitition rate:
Int. trigger:                          0.1 Hz, 100 Hz
                                             500 Hz, 1 kHz
Ext. trigger:                         0.1 Hz - 1 kHz
Free running:                      2 - 3 kHz
Beam divergence:             < 1.5 mrad (full angle)
Beam diameter:                 1.2 mm
Polarization ratio:             > 50:1
Beam height:                     45 mm
Operating temperature:   10 ~ 35 °C
Warm-up time:                  < 5 min
Power supply:                   AC 90 - 264 V
Warranty:                           1 year

Q-switch laser 351 nm


AO-S-351 | Activelly Q-switched UV solid state laser

All solid state acousto-optically Q-switched laser at 351nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measurements, scientific research and so on.

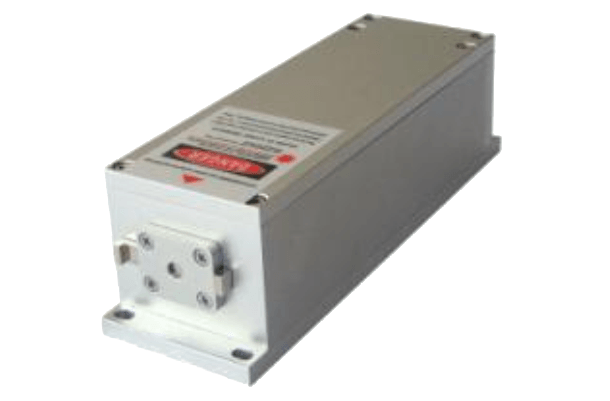

Acousto-optically Q-switched UV laser 351 nm, diode pumped solid state laser (DPSS)
Wavelength:                       351 ± 1nm
Q-switch mode: :               acousto-optics
Mode:                                 ~ TEM00
M²:                                       < 1.5
Power stability:                 < 3%, < 5%, < 10% (4 hours)
Pulse duration:                  6 ~ 10 ns*
Pulse energy:                     1 ~ 15 µJ
Repitition rate:                   0.1 - 15 kHz
Beam diameter:                ~ 0.3 mm ( ~ 1.2 mm)
Beam divergence:             < 5.0 mrad (<1.5 mrad)
Polarisation ratio:             > 100:1 (horizontal +/- 5°)
Beam height:                     25 mm
Operating temperature:   10 ~ 35 °C
Warm-up time:                  < 10 min
Power supply:                   AC 90-264 V
Expected lifetime:            10000 hours
Warranty:                           1 year

* Varies from power and repetition rate.
