295 nm
Q-switch Laser 295 nm

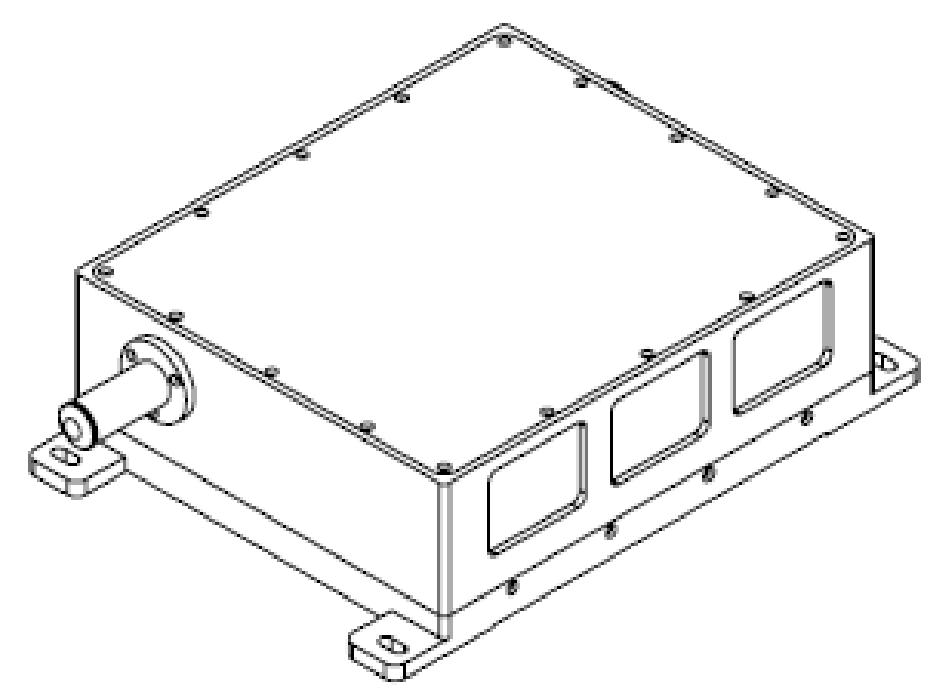

AO-K-295 | Q-switched UV solid state laser (DPSS)
All solid state Q-switched UV laser at 295 nm has the features of ultra compact, easy operating. It is widely used in UV curing, micro-electronics, metrology and material processing, laser medical treatment, scientific experiment, etc.
Wavelength: 295 ± 1nm
Operation mode: acousto-optically
Operation mode: acousto-optically
Q-switched
Output power: 1 - 50 mW
Power stability: < 3%, < 5% (rms, 4 hours)
Pulse duration: 10 ± 2 ns
Pulse peak power: 1 ~ 5 µJ
Peak power: up to 500 W
Repitition rate: 10 kHz
Beam divergence: < 1 mrad (full angle)
Beam shape: 1,5 x 3 mm²
Beam height: 120 mm
Cooling method: air
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
Output power: 1 - 50 mW
Power stability: < 3%, < 5% (rms, 4 hours)
Pulse duration: 10 ± 2 ns
Pulse peak power: 1 ~ 5 µJ
Peak power: up to 500 W
Repitition rate: 10 kHz
Beam divergence: < 1 mrad (full angle)
Beam shape: 1,5 x 3 mm²
Beam height: 120 mm
Cooling method: air
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
Q-switch Laser 295 nm

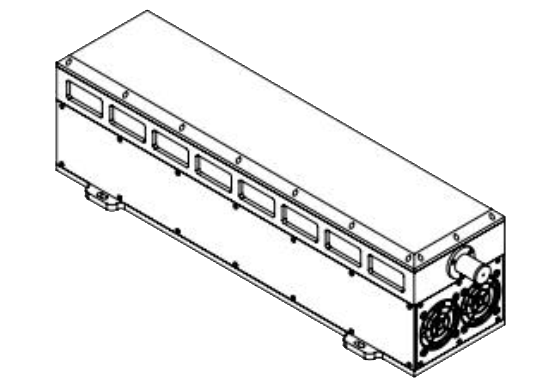

MPL-Q-295 | Q-switched UV solid state laser (DPSS)
All solid state Q-switched water cooled UV laser at 295 nm has the features of ultra compact, easy operating. It is widely used in UV curing, micro-electronics, metrology and material processing, laser medical treatment, scientific experiment, etc.
Wavelength: 295 ± 1nm
Operation mode: acousto-optically
Operation mode: acousto-optically
Q-switched
Output power: 1-80 mW (@ 20 kHz)
Performance stability: <5%; <10% (rms, 4 hours)
Pulse duration: ~ 30 ns (20 kHz, 80 mW)
Pulse energy: 0.1-4.0 µJ
Pulse peak power: 3 ~ 134 W
Spectral purity: > 99%
Beam height: 61 mm
Cooling: water cooling
Warm-up time: <10 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
Output power: 1-80 mW (@ 20 kHz)
Performance stability: <5%; <10% (rms, 4 hours)
Pulse duration: ~ 30 ns (20 kHz, 80 mW)
Pulse energy: 0.1-4.0 µJ
Pulse peak power: 3 ~ 134 W
Spectral purity: > 99%
Beam height: 61 mm
Cooling: water cooling
Warm-up time: <10 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
